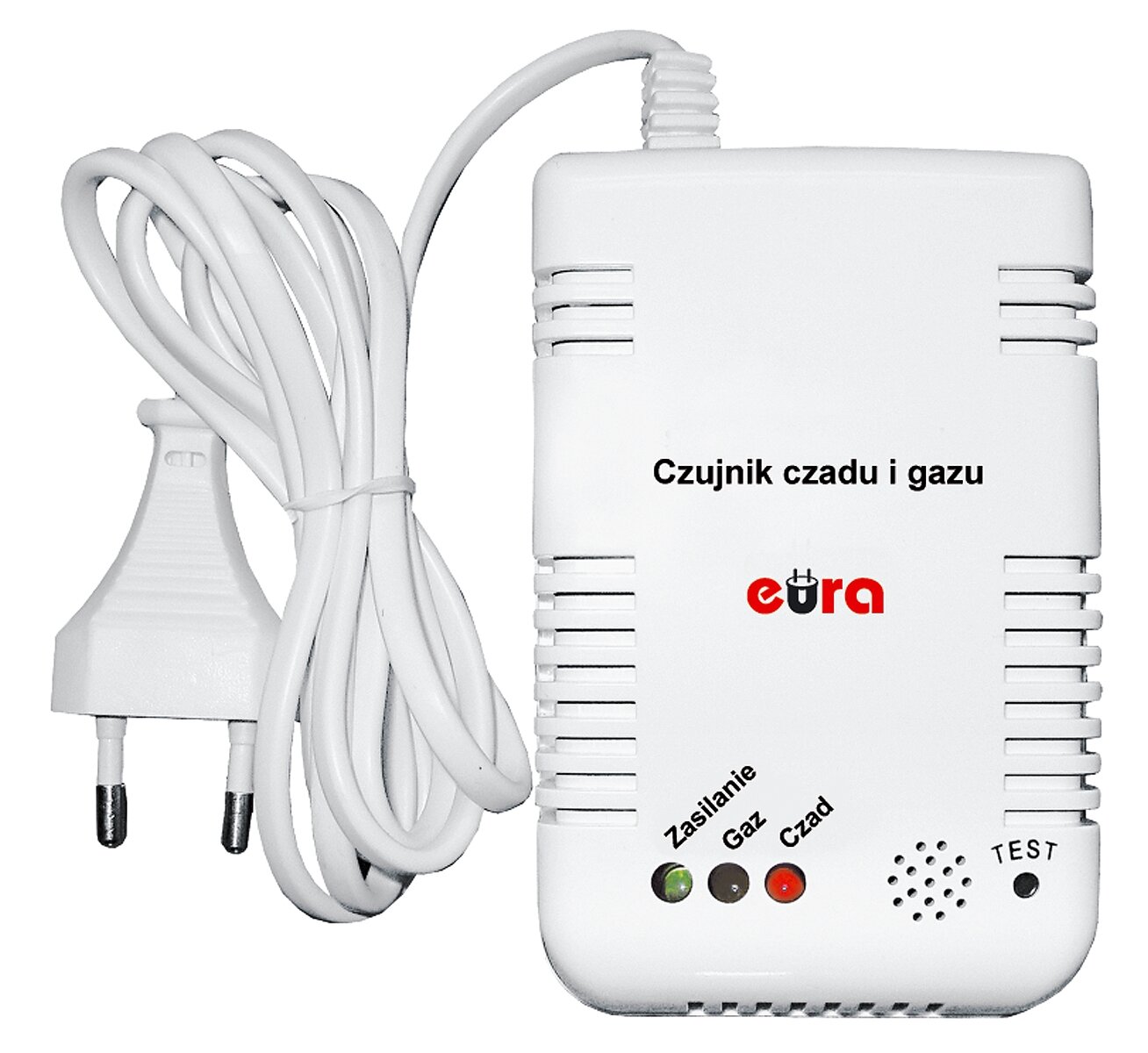

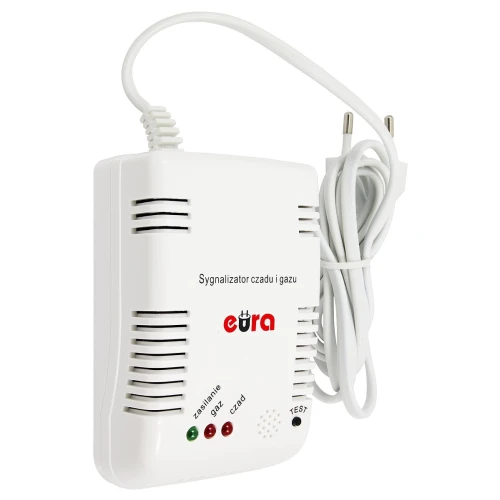

Carbon monoxide and gas detector EURA CGD-36A2
Photo gallery
-
Manufacturer
-
Product Code
CGD-36A2
-
Warranty
24 miesiące
- Sensor type: Carbon Monoxide
Gas
Files attached to the product show files
Files for download
-
Size: 1,19 MB
-
Size: 2,47 MB
-
Size: 0,25 MB
Price (Incl. VAT):
Archival product
Najniższy koszt dostawy: 12,98 zł
Do you represent a budgetary unit?
Check out the deferred payment option.
Product Description
The El Home CGD-33A2 smoke and gas sensor is used for continuous monitoring of the presence of carbon monoxide and natural gas/LPG in the air, as well as detecting and alarming when the maximum safe concentration of these gases is exceeded.
- carbon monoxide - the device is installed at head height (e.g., the installation height in the bedroom is about 0.7 m, and in the living room 1.5 m from the floor).
- propane-butane gas (LPG)-the device should be installed at the lowest possible height above the floor.
- natural gas - the device should be installed more than 1.5 m above the floor.
Technical Specification:
| Power supply voltage | 230 V AC |
| Protection factor | IP20 |
| Types of detected hazards | Carbon monoxide, natural gas, LPG |
| Type of power supply | Mains cable built-in |
| Permissible relative humidity | 10%...90% RH |
| Sensor current consumption | Standby / alarm 15 mA / 22 mA |
| Sensor power consumption | standby / alarm 3.5 W / 5 W |
| Recommended place of installation | indoors |
| Max. sound level | 85 dB / 1 m |
| Min. detectable gas concentration | <10% LEL (lower explosive limit) |
| Compliance with standard | EN50291-1:2010 |
| Type of Chad sensor | Electrochemical (Figaro) |
| Type of gas sensor | semiconductor |
| Detection range of the sensor | approx. 20-25 m² |
| LCD display | No |
| Test button | Yes |
| Low battery (or power failure) indication | Yes |
| Failure indication | Yes |
| Thermometer | No |
| Relay output | None |
| Temperature operating range of the sensor | +4ºC ~ +38ºC |
| Sensor dimensions (H x W x D) | 110 x 70 x 45 mm |
| Net weight of the sensor | 190 g |
| Package dimensions (H x W x D) | 235 x 165 x 45 mm |
| Gross weight | 380 g |
| Packaging type | Blister |
