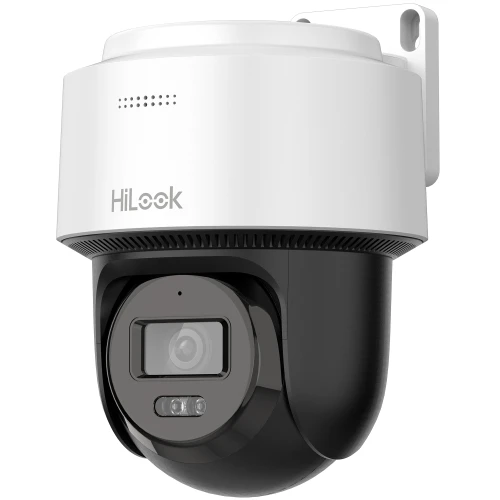

PTZ-N4MP-P 4Mpx Rotating IP Camera HiLook by Hikvision

Product contents:

In addition to the PTZ-N4MP-P camera, the box also contains useful instructions and mounting accessories to speed up the entire process of mounting the camera.

• 1x PTZ-N4MP-P HiLook camera by Hikvision
• Documentation - User manual, warranty card, adjustments
• Template - Small size template with mounting holes of the camera
• Screws and mounting studs - Everything you need to mount the camera
• Waterproof kit - A set of accessories to protect the camera's connectors from moisture

HiLook by Hikvision products are all about ease of use, literally anyone can handle the installation and setup thanks to the included instructions.

PTZ-N4MP-P camera features:

• High-quality imaging with 4 MP resolution
• Clear images under strong backlighting thanks to DWDR technology
• Automatic tracking of detected objects (Autotracking-Lite)
• 3D DNR technology delivers clear and sharp images
• Hik-Connect cloud service and app for remote device management and viewing
• Built-in microphone and speaker for two-way audio communication
• Built-in memory card slot, supporting microSD/SDHC/SDXC cards up to 512 GB
• Water and dust resistant according to IP66 standard

Remote access from phone and desktop computer PTZ-N4MP-P allows you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back the recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature of the PTZ-N4MP-P is a technology that allows data and electrical power to be transmitted to a network device over a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.


Omnidirectional monitoring without blind spots

A PT (Pan-Tilt) camera is a type of surveillance camera that allows the operator to remotely control direction (pan and tilt) and optical zoom (zoom in and out). With these functions, the PTZ-N4MP-P camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.


Color images in total darkness

Hybrid illumination in surveillance cameras combines the advantages of LED and infrared lighting for effective monitoring both during the day and at night. With this technology, cameras can capture clear images at low light levels without visible light sources, minimizing the risk of detection by intruders. In addition, hybrid illumination enables color recognition, which is crucial for identifying details such as the color of a car or an intruder's clothes, increasing the effectiveness and reliability of the surveillance system.



Auto-tracking of detected objects

The PTZ-N4MP-P's autotracking function automatically tracks moving objects in the camera's field of view, allowing continuous monitoring of suspicious people or vehicles without the need for manual control. With this technology, cameras can dynamically adjust their settings, such as the angle of view, to provide an optimal image of the tracked object. The benefits of autotracking include increased monitoring efficiency, reduced operational costs by reducing the need for human intervention, and the ability to better identify and analyze suspicious behavior in real time.

Two-Way Audio Talk The PTZ-N4MP-P 's Two-Way Audio Talk feature enables communication between the camera operator and those within the camera's range, enhancing the security and interactivity of the system. With this technology, the operator can immediately respond to emergency situations, give directions or scare away potential intruders with his voice. In addition, two-way audio conversation allows for remote management and control of the facility, which can greatly improve management and surveillance processes.

Reliable in all conditions The IP66 waterproofing of the surveillance camera is key, as it provides full protection against dust and strong water jets, allowing the camera to operate reliably in harsh weather conditions. As a result, the IP66-certified PTZ-N4MP-P can be installed outdoors without worrying about damage from rain, snow or dust, increasing its durability and functionality. In addition, the camera's ability to withstand adverse environmental conditions makes the PTZ-N4MP-P ideal for long-term monitoring of dusty or humid areas, providing uninterrupted protection and security.

Flexible recording options

PTZ-N4MP-P offers two ways to record video footage. If you don't need a long recording time or have a surveillance system with a DVR, simply equip the camera with a memory card. On the other hand, if you also want to purchase a DVR with a disk or already have one, the PTZ-N4MP-P also supports recording to the DVR's hard drive.



Technical specifications:

Camera	PTZ-N4MP-P
Camera
Image sensor	1/3" Progressive Scan CMOS
Maximum resolution	2560 x 1440
Minimum illumination	Color: 0.01 Lux @(F1.6, AGC ON), B/W: 0 Lux with light
Lens
Focal length	2.8 mm
Field of view (FOV)	2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3°.
Aperture	F1.6
Illuminator
Auxiliary light type	IR & White Light
Auxiliary light range	White light range: up to 30m IR range: up to 30m
Intelligent auxiliary light	Yes
IR wavelength	850 nm
PT	Yes
Range of motion (Rotation)	0° to 345°
Range of motion (Tilt)	0° to 80°
Rotation speed	Rotation speed: configurable from 4° to 25°/sec.
Tilt speed	Tilt speed: configurable from 4° to 20°/sec.
Video
Video compression	H.265, H.264, MJPEG
H.264 type	Baseline Profile, Main Profile, High Profile
Type H.265	Main Profile
Main Stream	50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-stream	50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360) 60 Hz: 24 fps (1280 x 720, 640 x 480, 640 x 360)
Video bit rate	32 Kbps to 8 Mbps
Audio
Audio compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio bit rate	16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
Audio sampling frequency	8 kHz/16 kHz
Ambient noise reduction	Yes
Networking
Protocols	IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Image settings	Saturation, brightness, contrast and sharpness adjustable by client software or browser
Wide dynamic range (WDR)	Digital WDR
Image enhancements	BLC, HLC, 3D DNR
Interface
Ethernet interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in memory	Built-in memory card slot, support for microSD/SDHC/SDXC cards up to 512 GB
Built-in microphone	1 built-in microphone
Built-in speaker	1 built-in speaker
Reset	Yes
Events
Basic event	Motion detection (supports triggering alarm by specific type of target (human)), video tampering alarm, exception
Alarm	FTP/memory card upload, monitoring center notification, emailing, capture trigger, audio warning, automatic tracking
General
Operating conditions	-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General functions	Mirroring, password protection, watermarking
Power supply	12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE	IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
Dimensions	Camera dimensions: 163.9 mm x 185.8 mm x 131.9 mm (6.45" x 7.31" x 5.19")
Weight	Camera weight: 600 g (1.32 lb.)
Approvals
EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Protection	IP66
