Dome camera with audio 8Mpx BCS-DMIP5801AIR-IV online streaming transmission SPB
Photo gallery
-
Manufacturer
-
Product Code
BCS-DMIP5801AIR-IV
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 50m
- Memory card slot: Yes
- Audio: Yes
Price (Incl. VAT):
Archival product
Najniższy koszt dostawy: 20,68 zł
Do you represent a budgetary unit?
Check out the deferred payment option.
Related products
Product Description

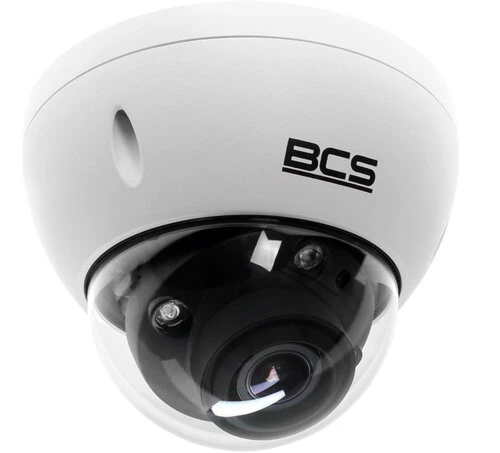

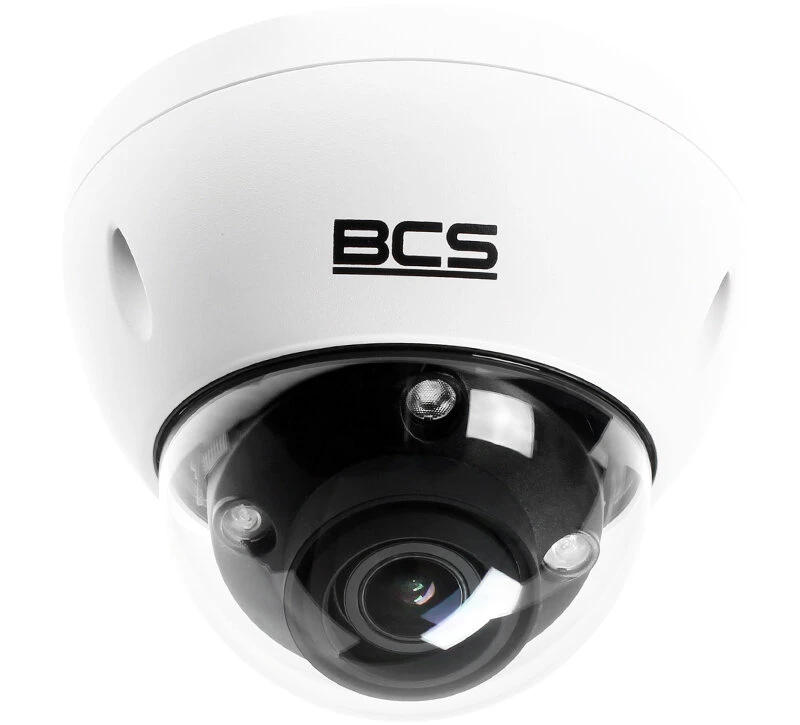

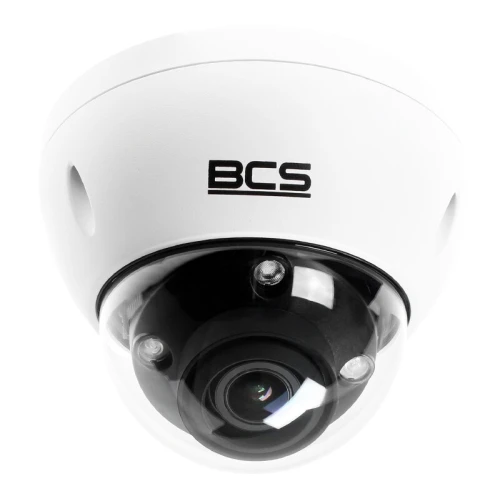

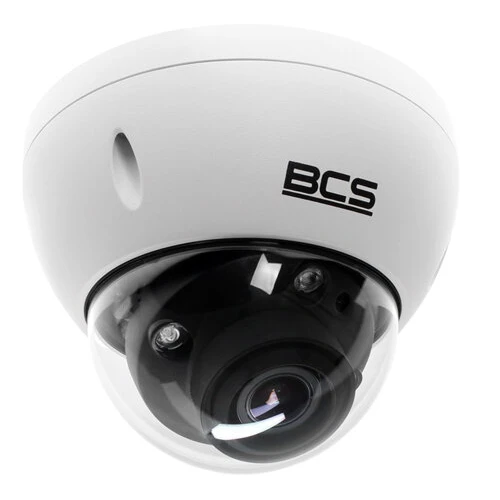

IP 8 megapixel dome camera BCS-DMIP5801AIR-IV
8 Mpx dome camera. Mechanical IR filter and 50m range illuminator allow the camera to present good quality images in total darkness. 3DNR - digital noise reduction function, improves image quality even in low light conditions. The 2.7-12mm varifocal lens is adjustable from the viewer or with buttons under the dome. The vandal-proof metal housing allows the camera to be used also in areas prone to vandalism. The camera is powered by DC12V / AC24V and via PoE (802.3at).
Main features:
- 1/2.5" 8Mpx progressive scan CMOS sensor
- RTMP protocol - video streaming
- H.265 /H.264 / MJPEG encoding
- Support of three encoding streams
- Mechanical infrared filter
- 3DNR digital noise reduction
- WDR(120dB) extended image dynamics
- AWB, AGC, BLC, HLC, ROI functions
- Built-in Web Server, NVR compatibility, support via CMS (BCS Manager), BCS mobile app (iOS, android), P2P
- Motozoom 2.7-12mm F1.4 lens adjustable from the viewer or with buttons under the dome
- 3D camera module mount
- Intelligent infrared illuminator with a range of up to 50m
- Intelligent detection functions, line crossing, area intrusion, scene change, face detection, object appearance / disappearance, audio detection
- 1 alarm input and 1 alarm output
- 1 audio input and 1 audio output
- IP66 IK10 outdoor housing
- CVBS service output (RCA jack) under the dome
- MicroSD memory card slot up to 128GB
- Power supply 12V DC / 24V AC / PoE(802.3at)
Technical specifications:
| Model | BCS-DMIP5801AIR-IV |
| Scanning system | Progressive Scan |
| Sensor | 1/2.5" 8 Mpx Starvis CMOS sensor |
| Number of pixels | 3840(H)x2160(V) |
| Sensitivity | 0.05Lux/F1.4 (Color,1/3s,30IRE)0.2Lux/F1.4 (Color,1/30s,30IRE)0Lux/F1.4(IR on) |
| S/N ratio | > 50dB |
| White balance | (AWB) Auto/manual |
| Lens | Motozoom 2.7-12mm F1.4 auto DCH:110°~40° V:58°~23° |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto/manual (1/3-1/100000s), flicker protection |
| Gain control | (AGC) Auto / manually |
| Noise reduction (NR) | 3DNR Off. - On - adjustable |
| Motion detection | On/Off (4 areas, position, size, sensitivity, threshold) |
| Restricted zones | On/Off (4 areas, position, size) |
| Image rotation | Mirror, flip 90°, 180°, 270° |
| Sharpening | Auto/manually - smooth adjustment |
| Day/night function | Mechanical Filter (ICR) |
| Compression | H.265 / H.264 / MJPEG |
| Resolution | 8M(3840x2160) / 6M(3072x2048) / 5M(3072x1728)(2592x1944) / 4M(2688x1520)(2560x1440) / 3M(2304x1296) / 1080P(1920×1080) / SXGA(1280x1024) / 1.3M(1280x960) / 720P(1280×720)/ D1(704×576) / CIF(352×288) |
| Main stream bit rate | 8M(1 ~15fps), 6M(1 ~20fps), 5M/4M/3M/1080P/SXGA/1.3M/720P(1 ~ 25fps) |
| Second stream transmission speed | D1/CIF(1~25fps) |
| Third stream bit rate | 1080P/720P/D1(1 ~ 25fps) |
| Bitrate | H.264: 24K ~ 10240Kbps, H.265: 14K ~ 9984Kbps |
| Network connection | RJ-45 (10/100Base-T) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, RTMP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, Multicast, 802.1x,easy4ip |
| Mobile users | iOS, android |
| Users | Maximum of 20 logged in |
| Audio | Inputs/outputs 1/1 |
| Audio coding | G.711A / G.711Mu / G.726 / AAC |
| Power supply | 12VDC / 24VAC / POE (802.3at) |
| Radiator | Range up to 50m |
| Power consumption | <15W |
| Operating conditions | -30°C ~ +60°C, IP66 |
| Weight | 0.95kg |

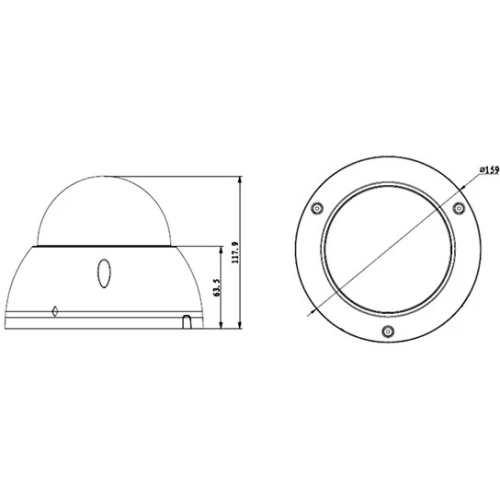

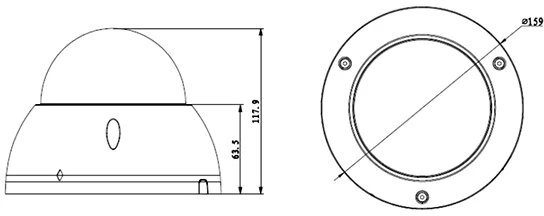

| Dimensions of diameter/height | Φ159.1mm× 117.9mm |
