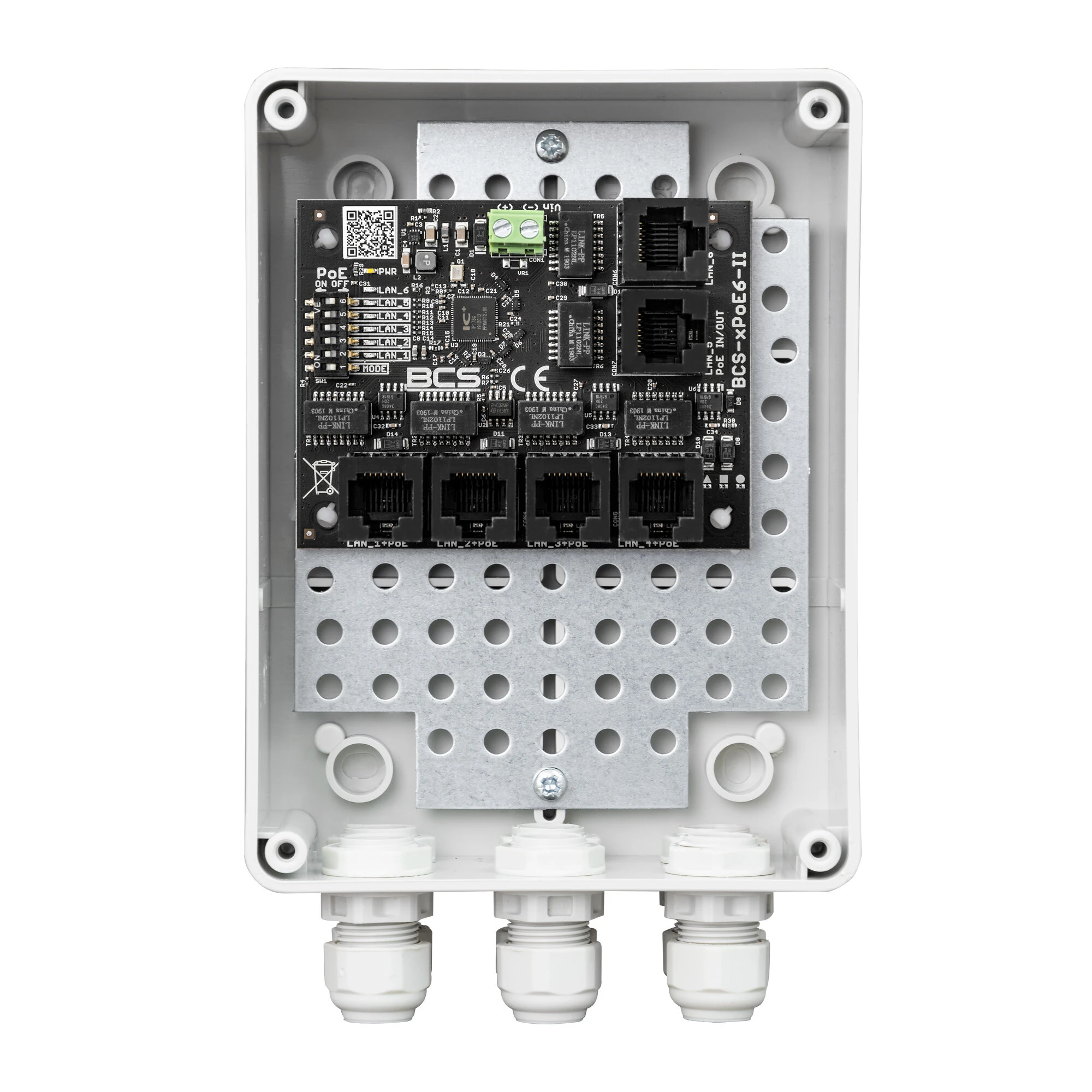

BCS-xPoE6/S PoE Switch

BCS-xPoE6/S is a universal PoE network switch dedicated to IP CCTV systems. The device is designed to work with IP cameras and other network devices powered by PoE 802.3at/af and PoE PASSIVE standards. Electronic protection of PoE outputs ensures continuity of operation of the entire system in the event of a short circuit or overload of individual power supply branches, as well as automatic voltage recovery after the failure has ceased. The ?Long Range? mode allows to extend the transmission range up to 280m using standard UTP cable. BCS outdoor enclosures provide a convenient solution to the problem of protecting devices and cable connections mounted in outdoor environments. High-quality plastic provides resistance to UV radiation and other adverse weather conditions.

• ability to power 5 PoE 802.3at/af or PoE PASSIVE receivers
• possibility of data transmission up to 280m (in LONG RANGE mode)
• independent electronic fuses for each PoE channel (auto return)
• possibility of power off on selected ports
• wide input voltage range (10 ... 56 VDC)
• up to 70W power on LAN_5 PoE IN/OUT port
• up to 40W power on other PoE ports
• power supply via a screw connector (Vin) or from another PoE PASSIVE switch (PoE IN/OUT port)
• possibility of cascade power supply - one xPoE powers the next (PoE IN/OUT port)
• easy and quick startup without configuring parameters
• very low power consumption (< 1.5W)
• cable entry through glands mounted in the housing: 6 x M16
