Radbit Digital Single-Family Set Intercom Panel KEC-4 PT MINI GD36

Digital multi-family intercom KEC-4 PT MINI GD36

Compact, elegant KEC-4 PT MINI GD36 digital multi-family intercom with convenient backlit keypad and code lock function. It supports up to 254 premises. The intercom works with RADBIT digital uniphones, 3-wire installation. The intercom is designed for flush mounting. It can control two electric door openers, has adjustable brightness. An additional exit keypad can be connected to the intercom.

Main features:

• Cipher lock function - 254 codes
• EXIT BUTTON function
• Gate and wicket control function
• Code search lock
• Made of anodized aluminum - vandal resistant
• Energy-saving backlighting
• Resistant to rain and snow
• LED indication of the door opener status - a significant convenience for the deaf
• Keypad backlight brightness adjustment
• Volume control of the cassette and call volume in the uniphone
• Possibility to connect more than 1 uniphone (e.g. first floor and first floor)

The small size of the intercom allows you to install it even in narrow gate posts, and a wide selection of colors allows you to match the appearance to the surroundings.

The intercom has outgoing wires for connecting an internal short-circuit button. When leaving the cage/possession, just press it and the electric door strike will be released for about 5 seconds.

Compatibility:

The intercom panel works with Radbit UCN digital uniphones.

digital multi-family intercom - Numeric keypad:

The intercom keypad is made of anodized aluminum and backlit with energy-saving LEDs. The shape of the digits can be gently felt under the fingers. All this makes the intercom easy to use also for the visually impaired. The status of the intercom is also indicated by the corresponding LED colors, which is a familiar convenience for the deaf.

Quality:

The intercom is made entirely in Poland with the best quality materials. It is durable and resistant to damage and weather conditions. Backlighting makes it easy to operate also at night. The housing is made of anodized aluminum with a thickness of 3mm - it will never bend or deform. The faceplate and button faces are also made of 2mm thick anodized aluminum. The keys will not chip or wear out.

The electronics of the digital multifamily intercom are enclosed in a special module, and the intercom is sealed.

The front plate of the intercom has an engraving with ringing instructions - it will always be legible and visible.

Digital multifamily intercom - ringing

To ring a subscriber, dial the premises number (from 1 to 255) on the keypad and then press the button with the bell symbol. Ringing lasts as long as the button with the bell symbol is pressed, but not less than 0.6 seconds. To ring again (e.g.: when the subscriber does not answer), you do not need to redial the premises number, just press the "ring" button again. The cassette remembers the last dialed number for 15 seconds. After this time, it is necessary to redial the premises number. The memorized premises number can be deleted at any time by pressing the "K" button on the keypad.

The way of ringing is permanently located on the front panel of the intercom (engraved), so operation should not cause trouble to anyone.

Digital multi-family intercom - door opening:

The intercom has the ability to open the door with a button on the uniphone, with a special button for exiting the PW property, or with a four-digit subscriber code. The system allows 254 subscriber codes and one administrator code to be programmed. The administrator code does not open the door, but is only used to program the cassette.

To open the door with the code, first dial "0" (zero) and then your four-digit code. After entering the correct code, the door will open for about 5 seconds. (On request, we can change this time - before purchasing the cassette). In case of a wrong code, this will be signaled by a sound (long). After three wrong code entries, the keypad will be locked for about 30 seconds.

An additional exit code keypad can be connected to the intercom. The possibility of connecting an additional keypad should be taken into account at the time of purchasing the intercom.

The intercom is also available in a version that controls two electric strikes, e.g. a gate and a gate.

Technical specifications:

Weight	0.9 Kg
Housing color	black, satin-silver
Mounting	flush mounted
Access control	Cipher
Operation of two electric door openers	Yes, No
Number of premises	5-10, 11-255
LCD display	No
Intercom function	No
EXIT BUTTON function	Yes
Material	Anodized aluminum
Light brightness adjustment	Yes
Temperature range	From -30°C to +50°C
Intercom - components	External unit
Dimensions	89 x 144 x 20 mm
Housing	Anodized aluminum

1x UNC Radbit digital uniphones:


The intercom works with UCN Radbit digital uniphones. After the uniphone is installed, it is programmed to the number that matches the premises number (using jumpers). The uniphone programming helper displays on the LCD display of the intercom information about which jumpers should be inserted in the uniphone to program it to a given number.

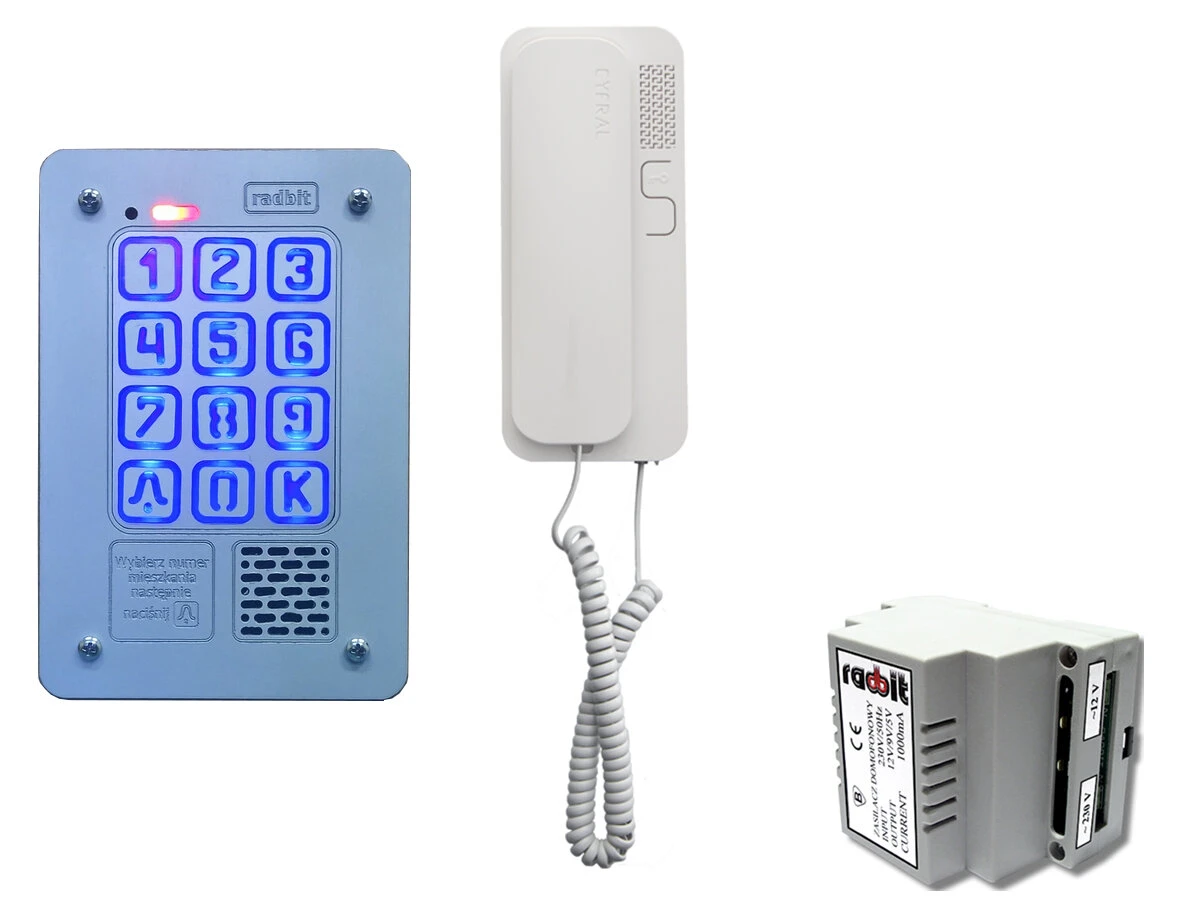

The set includes:

• KEC-4 PT MINI GD36 outdoor panel ( 1 piece ).
• Uniphone UNC ( 1 pc ).
• Power supply ( 1 pc. )
