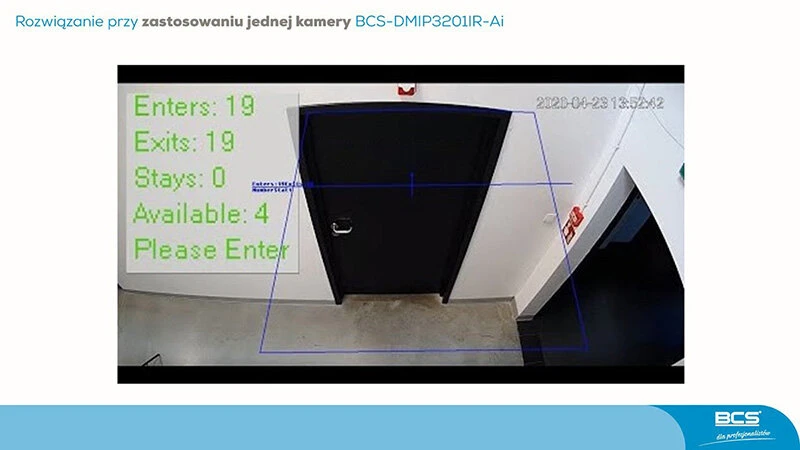

People counting system in the facility BCS-NVR1602-4K-III Recorder 4 IP Cameras Ai

Main features:

• Complete set BCS DVR with 4 FullHD IP BCS cameras.
• High image quality 1920 x 1080 pixels 2Mpx

• Camera with outdoor indoor mounting capability
• Night visibility up to30meters
• Day/night ICR camera

• Motiondetection
• Overwrite function
• High capacityhard drive
• Viewing via the internet on your computer, cell phone, tablet
• P2P(cloud) support - function that allows remote access without port forwarding and public IP address
• Software included
• Polish manual for operation, configuration and installation

IP 16-channel DVR

• Model: BCS-NVR1602-4K-III
• 16 Channel Network NVR
• Quad-Core processor for simultaneous viewing, recording and remote management
• H.265/H.264/MJPEG dual stream encoding
• Recording of up to 16 IP cameras max: 12 Mpx, 8Mpx, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, 720p, D1.
• Max. bitrate 320 Mbps
• Synchronous playback of all channels
• Simultaneous operation of HDMI 4K and VGA outputs
• Search for IP cameras on the network, PTZ operation over the network
• Intelligent functions: line crossing, trespassing, left/lost object, face detection, people counting, heat map, audio detection
• Remote control of camera recording parameter settings
• Support for PTZ and 3D positioning with high-speed cameras
• Support for 2 SATAIII drives up to 20TB (max. 10TB each), 2 USB ports, RS232, RS485
• 4 alarm inputs / 2 alarm outputs
• 1 audio input / 1 audio output
• Hard drive: 1TB
• Built-in web server, support via CMS (DSS/Smart PSS/BCS Manager), DMSS, BCS mobile app (iOS, android)
• P2P(cloud) support - a function that allows remote access without port forwarding and public IP address
• Included : mouse, power adapter, Ethernet cable, manual, CD



1x BCS IR 30m 2Mpx IP dome camera

• Model: BCS-DMIP5201IR-Ai
• 1/2.8" 2Mpx Starvis PS CMOS sensor
• H.265+/H.264+/MJPEG encoding
• Support for three encoding streams
• RTMP protocol - streaming video transmission
• Motozoom lens 2.7~13.5mm F1.5
• Mechanical infrared filter ICR
• Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P, Onvif
• Features AWB, AES, AGC, BLC, HLC, WDR(120dB), Ultra DNR, Defog, ROI, EIS
• Advanced analytics intelligent functions: perimeter protection, face detection and recognition, object recognition, metadata, real-time intelligent analysis and advanced search, people counting, lost/lost object, audio detection
• Infrared illuminator up to 40m
• 1 audio input and 1 audio output
• 1 alarm input and 1 alarm output
• Outdoor metal housing IP67, IK10
• Operating temperature -30°C ~ +60°C
• Surge protection 6KV
• Support for microSD card up to 256GB
• Power supply DC12V, AC24V, PoE(802.3af), ePoE

1x BCS IR 30m 2Mpx IP dome camera

• Model: BCS-DMIP3501IR-Ai
• 1/2.7" 5Mpx PS CMOS sensor
• H.265+/H.264+/MJPEG encoding
• Support for three encoding streams
• Fixed lens 3.6mm F1.6
• Mechanical infrared filter ICR
• Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P, Onvif
• Features AWB, AES, AGC, BLC, HLC, WDR(120dB), Ultra DNR, Defog, ROI
• Advanced analytics intelligent functions: perimeter protection, face detection and recognition, object recognition, metadata, real-time intelligent analysis and advanced search, people counting, lost/lost object, audio detection
• Infrared illuminator up to 50m
• 1 audio input and 1 audio output
• 1 alarm input and 1 alarm output
• Outdoor metal housing IP67, IK10
• Operating temperature -30°C ~ +60°C
• Surge protection 6KV
• Support for microSD card up to 256GB
• Power supply DC12V, PoE(802.3af), ePoE

2x BCS IR 30m 2Mpx IP horn camera

• Model: BCS-TIP5501IR-Ai
• 1/2.7" 5Mpx PS CMOS sensor
• H.265+/H.264+/MJPEG encoding
• Support for three encoding streams
• Fixed lens 3.6mm F1.6
• Mechanical infrared filter ICR
• Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P, Onvif
• Features AWB, AES, AGC, BLC, HLC, WDR(120dB), Ultra DNR, Defog, ROI
• Advanced analytics intelligent functions: perimeter protection, face detection and recognition, object recognition, metadata, real-time intelligent analysis and advanced search, people counting, lost/lost object, audio detection
• Infrared illuminator up to 80m
• 1 audio input and 1 audio output
• 1 alarm input and 1 alarm output
• Outdoor metal housing IP67
• Operating temperature -30°C ~ +60°C
• Surge protection 6KV
• Support for microSD card up to 256GB
• Power supply DC12V, PoE(802.3af), ePoE

1x LED monitor DS-D5022QE-B Hikvision 21.5 inches

Accessories:

For whom will this surveillance kit be suitable?

The kit includes:

• BCS-NVR1602-4K-III DVR ( 1pc ).
• BCS-DMIP5201IR-Ai camera ( 1pc ).
• BCS-DMIP3501IR-Ai camera ( 1pc ).
• BCS-TIP5501IR-Ai camera( 2pcs ).
• LED monitor DS-D5022QE-B Hikvision ( 1pc )
• Hard drive 1TB ( 1pc ).
• Cable for camera with power supply ( 100m )
• Switch for the camera ( 1pc )
• Sticker "Attention Monitored Object" ( 1pcs )
• Set of signal and power connectors
