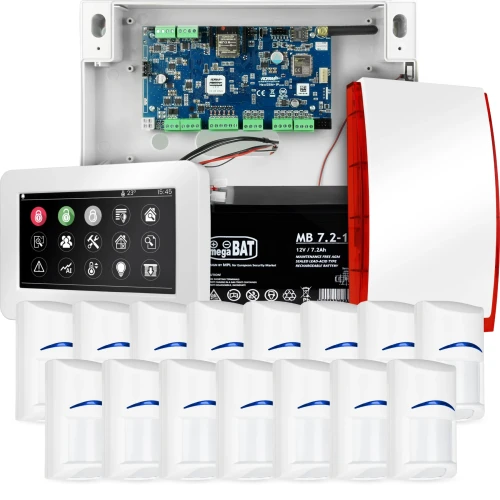

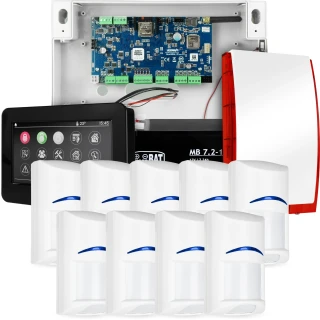

Ropam NeoGSM-IP Alarm Set 15 x Bosch Touch Manipulator TPR-4WS Wifi GSM Sensor
Photo gallery
-
Manufacturer
-
Product Code
ZA14411
-
Warranty
24 miesiące
- Number of sensors: 15
Ask about this product show form
Product Description
Alarm: Ropam NeoGSM-IP main board + TPR-4WS keypad + 15x Bosch ISC-BPR2-W12 detector + accessories
More important features:
- two zones with two armed modes
- 8 to 32 zones, expandable via zone expanders
- 8 to 24 outputs, expandable via output expanders
- operation via touch panel
- operation via RopamNeo mobile application
- remote control and steering of the system
- built-in GSM and WiFi module
- support of building automation functions
- Push notification, SMS, Voice/Clip, Email
- GSM jamming detection (Jamming)
Ropam NeoGSM-IP Main Board
- 2 independent zones with two types of standby: full or night,
- hybrid PBX: wired + Aero wireless system,
- users: 32 codes (1 main +31), 8 phone numbers, e-mail
- 8-32 programmable zones, expansion via zone expanders, touch panels, Aero wireless system,
- 8-24 programmable outputs, expansion via output expanders,
- support for up to 4 touch panels (TPR-4x/4xS series) or touch keypads (TK 3x),
- additional local relay output in each touch panel,
- built-in GSM modem
- built-in WIFI module ( ATTENTION ! due to built-in WiFi antenna, installation in plastic housing is required - O-R3P)
- option of wired LAN connection via expander: EXP-LAN,
- notifications type: SMS/CALL/E-MAIL/PUSH,
- support for mobile application: RopamNeo, for online surveillance via internet,
- IP communication: WIFI/LAN primary channel, GPRS backup channel (automatic switching),
- 4 timers with calendar, for control and automation,
- cooperation with PSR-ECO power supplies (energy and cost saving,)
- advanced logic functions and software timer relays, LogicProcessor,
- local programming via micro USB or WIFI/ETH,
- software remote via RopamBridge server (GPRS or IP),
- support for USSD codes (control of pre-paid cards
- convenient detachable terminal connectors, grouped by ports
- local programming via microUSB or WIFI
- SMS notification and control - independent messages for system events,
- VOICE/CLIP: independent voice call for events in the system with voice messages (VSR-1, VSR-2 speech synthesizer, AMR-1 eavesdropper),
- E-MAIL: independent e-mail messages for events in the system, SMTP server support (without SSL/TSL),
- GPRS monitoring: cooperation with Ropam Monitoring Software station/server or with Kronos NET station (RopamDirect controller), encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation with SMS/VOICE notification mode,
- possibility to operate via RopamNeo mobile application
Ropam TPR-4WS Touch Keypad
- 4.3" TFT LCD color display, LED, with high contrast and brightness,
- aesthetic design with plastic frame,
- touch panel "TouchPanel", without mechanical contacts, resistive, gesture support,
- interactive graphic menu with pictograms (icons),
- two screens with free placement of pictograms, according to application or user requirements,
- visualization and control of home automation,
- room thermostat function (2 independent), weekly calendar, five temperature profiles,, four daily ranges, synchronization on selected panels and mobile application (IP),
- random numeric keypad layout function,
- text prompts for given functions,
- a bar for additional information on system status,
- acoustic signaling,
- screen saver with calendar, clock and current temperature function,
- two alarm inputs,
- LoggerTemp temperature logger function: save temperature history to SD card, (txt) and/or view histogram in screen saver mode,
- EIA-485 bus for communication with control panels, RopamNET protocol,
- local USB micro port for firmware updates,
- housing tamper protection,
- dimensions:122x88x17 mm (WxHxD) (without connectors),
- color of housing, bezel: white
15x Bosch ISC-BPR2-W12 Detector
- Full area coverage - excellent detection performance in a 12 × 12 m area
- Dynamic temperature compensation - excellent detection performance in any conditions
- Changeable mounting height without additional adjustments - reduced installation time and fewer false alarms, increased detection efficiency
- Self-locking housing and built-in bubble level - reduced installation time

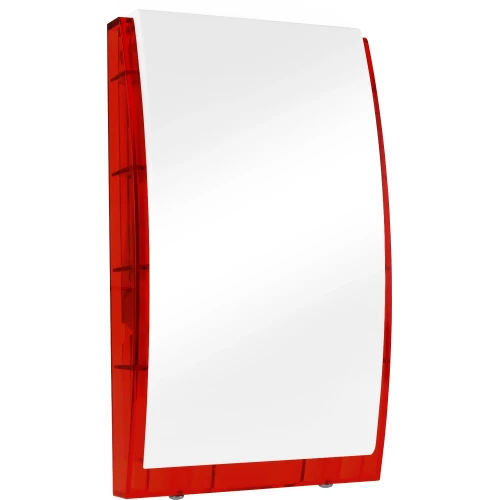

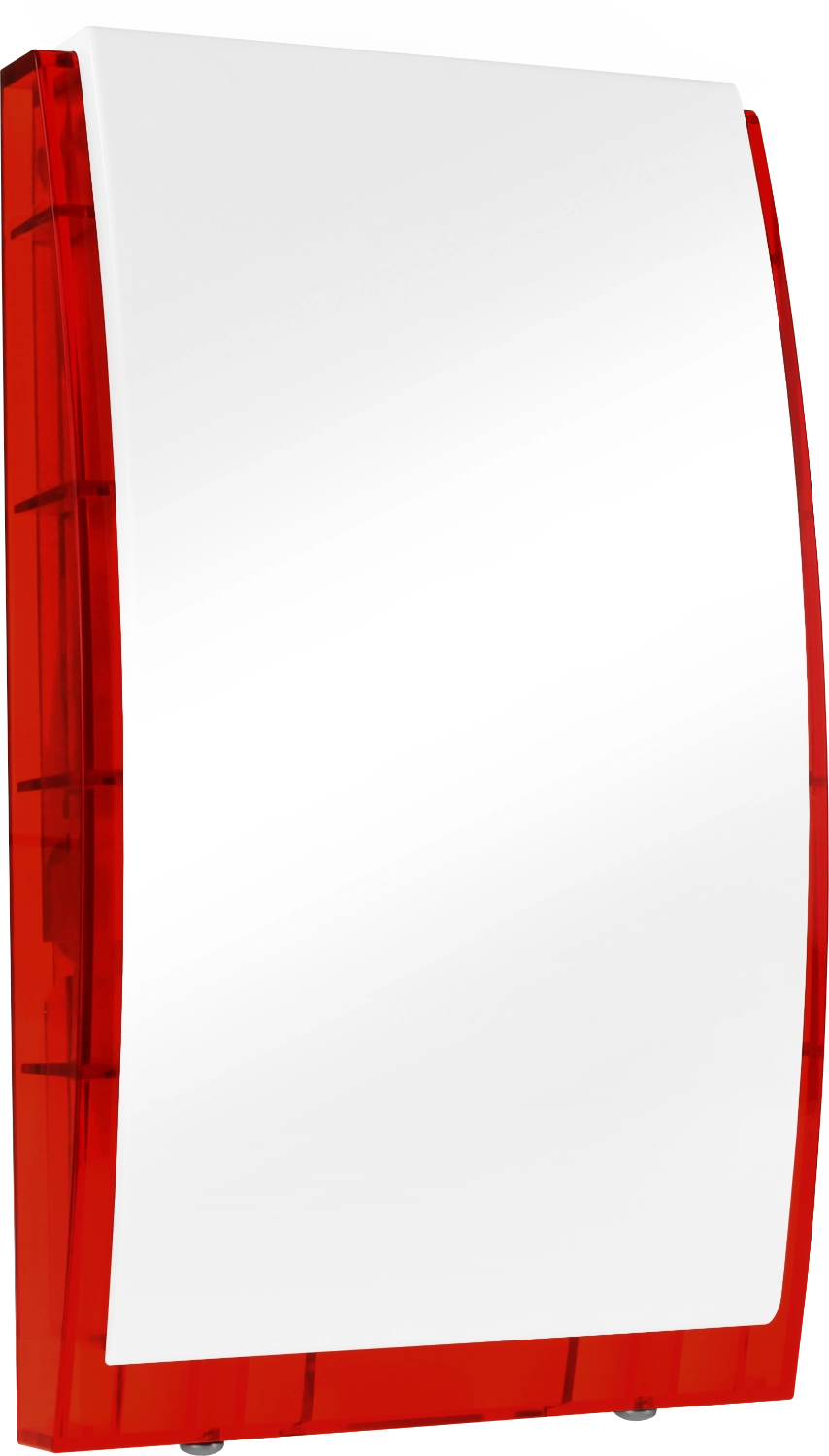

SPL-5010 R optical/acoustic signaling device
- acoustic signaling: piezoelectric transducer
- optical signaling: super-bright LEDs
- tamper protection against: suppression of the signalling unit by flooding it with mounting foam (optional: SPL-TO); tearing it off the floor; opening.
Ropam O-R3P enclosure
- power supply compatibility: PSR-ECO-2012
- compatibility: BasicGSM 2, MultiGSM 2 + VAR-1*, OptimaGSM+ EXP-I8 +AP-IP + RF-4*+VAR-1*(* mounting: self-adhesive pins)
- installation of GSM, WIFI antenna inside the housing,
- dimensions 264x253x85 [mm] (WxHxD,
- space for battery: 7Ah/12V V(SLA)
- Ropam tamper - anti-tamper microswitch,
- tamper - opening of the housing,
- material: ABS, light gray color
- locking: bolted x4 from the front of the housing,
- DIN rail (TH35) for mounting PSR-ECO power supply,
- Plexiglas mounting plate, PCB mounting with screws (easy modification, different configuration)
GSM antenna Ropam AT-GSM-MINI90
- frequency: dual-band, 900/1800 MHz, omnidirectional
- SMAm connector, 90° angle
- gain: 2.15 dBi
- VSWR <2.0
- impedance: 50 ohm
- polarization: vertical, omnidirectional.
- dimensions: ø 10 x 48 mm
- color: black
- operating temp: -30°C ÷ 85°C
Rechargeable battery 12V 7.2Ah
- modern product, which is able to ensure the efficient operation of the alarm in a situation of a temporary or prolonged lack of electricitydedicated to power supply systems of control panels
- does not require topping up water and constant maintenance of electrolyte
- can operate in any position
PSR-ECO-2012 power supply
- Power: 30VA (supply: 230V/50Hz/0.04A).
- Output voltage (SEC): 16.5V/1.8A (wires included).
- Short circuit protection: T250mA fuse.
- Housing: ABS, resin flooded transformer.
- For mounting in O-R3D, -R4D, O-RHD enclosures interchangeably with DIN rail (or on flat
- substrate e.g. control cabinets)
Expanter EXP-I8
- 8 additional inputs in OptimaGSM, NeoGSM or NEO system
- operation configuration 2EOL/NC, 2EOL/NO, EOL, NC, NO
- local module connected to main board X2 connector
- configurable input type and response
Set includes:
- Ropam NeoGSM-IP Main Board ( 1pc )
- Ropam TPR-4WS Touch Keypad ( 1pc )
- Bosch ISC-BPR2-W12 detector ( 15pcs)
- EXP-I8 expander ( 1 pc )
- SPL-5010 outdoor siren ( 1 pc )
- Housing O-R3P ( 1 pc )
- Mini GSM antenna AT-GSM-MINI90 ( 1 pc )
- Rechargeable battery 12V 7.2A ( 1 pc )
- Power supply PSR-ECO-2012 ( 1 pc )
