AMO-5G10 UBIQUITI omnidirectional antenna 5.45GHz ... 5.85GHz 10dBi

The image shows a cylindrical omnidirectional antenna with a sleek white finish, designed for outdoor use. It features a sturdy mounting bracket for secure installation and is suitable for 5.45 GHz to 5.85 GHz frequency ranges.
A close-up view of a metallic connector with a sleek, silver finish, featuring multiple screws and a mounting bracket. The design is robust, suitable for secure and stable installations.
The image shows a metal mounting bracket with a rectangular base and four circular holes for secure attachment. The bracket features a ribbed design on the upper section for added stability and a handle at the bottom for easy handling.
The image displays a graph illustrating the reflection attenuation characteristics of a product, with two lines representing vertical and horizontal polarization across a frequency range from 5.45 GHz to 5.85 GHz. The vertical axis shows attenuation in decibels (dB), while the horizontal axis represents frequency in gigahertz (GHz).
The image displays two polar plots illustrating the directional characteristics for vertical polarization, with the left plot showing a broader pattern and the right plot depicting a more focused, directional pattern. These plots are used to analyze the performance and coverage of antennas in different orientations.
Two polar plots illustrate the directional characteristics of an antenna, with the left plot showing a circular pattern for horizontal polarization and the right plot displaying a lobed pattern for vertical polarization. The decibel scale is marked from 0 to -30 dB, indicating signal strength variations.
A vertical outdoor antenna with a cylindrical design is mounted on a metal bracket, featuring two connected cables leading to a compact white device with indicator lights. The setup is designed for enhancing wireless connectivity in various environments.
The image shows a set of mounting accessories, including four long metal bolts, four nuts, two coaxial cable connectors, and three white plastic brackets. These components are likely used for securing and connecting satellite or antenna equipment.
The image shows a cylindrical omnidirectional antenna with a sleek white finish, designed for outdoor use. It features a sturdy mounting bracket for secure installation and is suitable for 5.45 GHz to 5.85 GHz frequency ranges.

Photo gallery

A close-up view of a metallic connector with a sleek, silver finish, featuring multiple screws and a mounting bracket. The design is robust, suitable for secure and stable installations.
The image shows a metal mounting bracket with a rectangular base and four circular holes for secure attachment. The bracket features a ribbed design on the upper section for added stability and a handle at the bottom for easy handling.
The image displays a graph illustrating the reflection attenuation characteristics of a product, with two lines representing vertical and horizontal polarization across a frequency range from 5.45 GHz to 5.85 GHz. The vertical axis shows attenuation in decibels (dB), while the horizontal axis represents frequency in gigahertz (GHz).
The image displays two polar plots illustrating the directional characteristics for vertical polarization, with the left plot showing a broader pattern and the right plot depicting a more focused, directional pattern. These plots are used to analyze the performance and coverage of antennas in different orientations.
Two polar plots illustrate the directional characteristics of an antenna, with the left plot showing a circular pattern for horizontal polarization and the right plot displaying a lobed pattern for vertical polarization. The decibel scale is marked from 0 to -30 dB, indicating signal strength variations.
A vertical outdoor antenna with a cylindrical design is mounted on a metal bracket, featuring two connected cables leading to a compact white device with indicator lights. The setup is designed for enhancing wireless connectivity in various environments.
The image shows a set of mounting accessories, including four long metal bolts, four nuts, two coaxial cable connectors, and three white plastic brackets. These components are likely used for securing and connecting satellite or antenna equipment.

  • Manufacturer

  • Product Code

    AMO-5G10

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

184,47 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

AirMax Omni dual-polarized omni-directional antenna. The antenna is designed to work with a dedicated Ubiquiti Rocket M5 device. Thanks to its omnidirectional radiation pattern, it allows building a very efficient and relatively inexpensive 802.11n 2xMIMO base station with throughput up to 300 Mbps. The AMO-5G10 is ideal for distributed client environments where there is a need to cover a large area (360 degrees) with a high network capacity.

Technical specifications:

Frequency range:5.45 GHz ... 5.85 GHz
Energy gain : 10 dBi
Wave polarization:dual linear
VSWR:1.6 : 1
Horizontal (H) main beam width:360 °
Main beam width in thevertical plane (V):360 °
Connector:SMA-RP
Attachment to mast:max. Ø 60 mm
Cable length:Not
Weight:0.71 kg
Dimensions:582 x 90 x 65 mm
Manufacturer/Brand:UBIQUITI

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

Zamknij

Similar products in this category

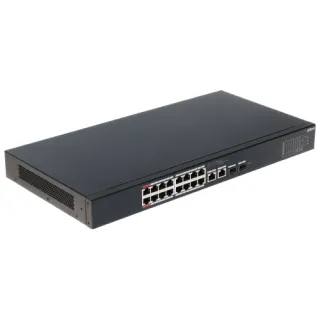

The image shows a black 16-port PoE switch with two SFP ports, designed for efficient network connectivity. The front panel features multiple Ethernet ports and indicator lights for easy monitoring.

in stock Shipping 24h

SWITCH POE CS4218-16ET-135 16-PORT SFP Dahua

196,42 €

szt.

Add to Watchlist

The image shows a Dahua industrial switch with eight Ethernet ports, designed for efficient network connectivity. The sleek black design features LED indicators for each port, providing a modern and functional appearance.

in stock Shipping 24/48h

Industrial Switch PFS3008-8GT-V2 8-port Dahua

31,01 €

pcs.

Add to Watchlist

The image shows a sleek, cylindrical omnidirectional antenna designed for outdoor use, featuring a durable white casing. It includes a sturdy mounting bracket for easy installation on various surfaces.

in stock Shipping 24/48h

AMO-2G10 2.35GHz ... 2.55GHz 10dBi Omni Antenna UBIQUITI

  • High wind and weather resistance

246,27 €

pcs.

Add to Watchlist

The image shows a sleek black Dahua Wi-Fi 6 router featuring four external antennas for enhanced signal strength. Its modern design includes a glossy finish and ventilation slots for optimal performance.

in stock Shipping 24/48h

Dahua AX18 Router

  • Frequency range: 2.4 GHz, 5 GHz,
  • Antenna type: 4 x Omni-directional Antenna 5 dBi - Integrated, 2x2 MU-MIMO
  • Transmission speed: 574 Mb/s + 1201 Mb/s
  • LAN ports:
    • 1 x 10/100/1000 Mbps - WAN
    • 3 x 10/100/1000 Mbps - LAN

57,20 €

szt.

Add to Watchlist

The image shows a white metal enclosure containing a PoE switch designed for connecting up to eight IP cameras. The interior features a circuit board with multiple ports and a power supply unit, suitable for security system installations.

in stock Shipping 24h

PoE Switch for 8 IP cameras BCS-IP8Gb/E-S/E

  • PoE ports:8×RJ45 100Mbps
  • Uplink ports: 2×RJ45 1Gbps
  • Power supply power: 96W
  • Power supply V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

307,71 €

pcs.

Add to Watchlist

A gray, rectangular PoE switch with a durable, weather-resistant enclosure designed for outdoor use. The device features multiple ports for network connectivity, suitable for various networking applications.

in stock Shipping 24/48h

Switch poe IP-9-11-L2 8-port ATTE

212,96 €

szt

Add to Watchlist

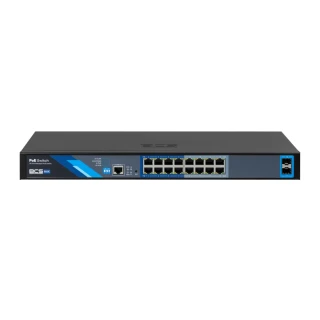

A 16-port PoE switch with a sleek black design and blue accents, featuring multiple Ethernet ports for network connectivity. The front panel includes LED indicators for power and network status, enhancing functionality and ease of use.
