DS-KD-IN Hikvision SPB Device Status Signaling Module

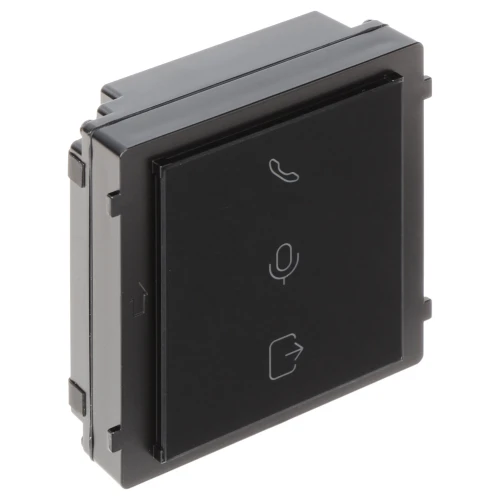

A sleek black device module featuring icons for phone, microphone, and exit functions on its front panel. The compact design is suitable for integration into various electronic systems.

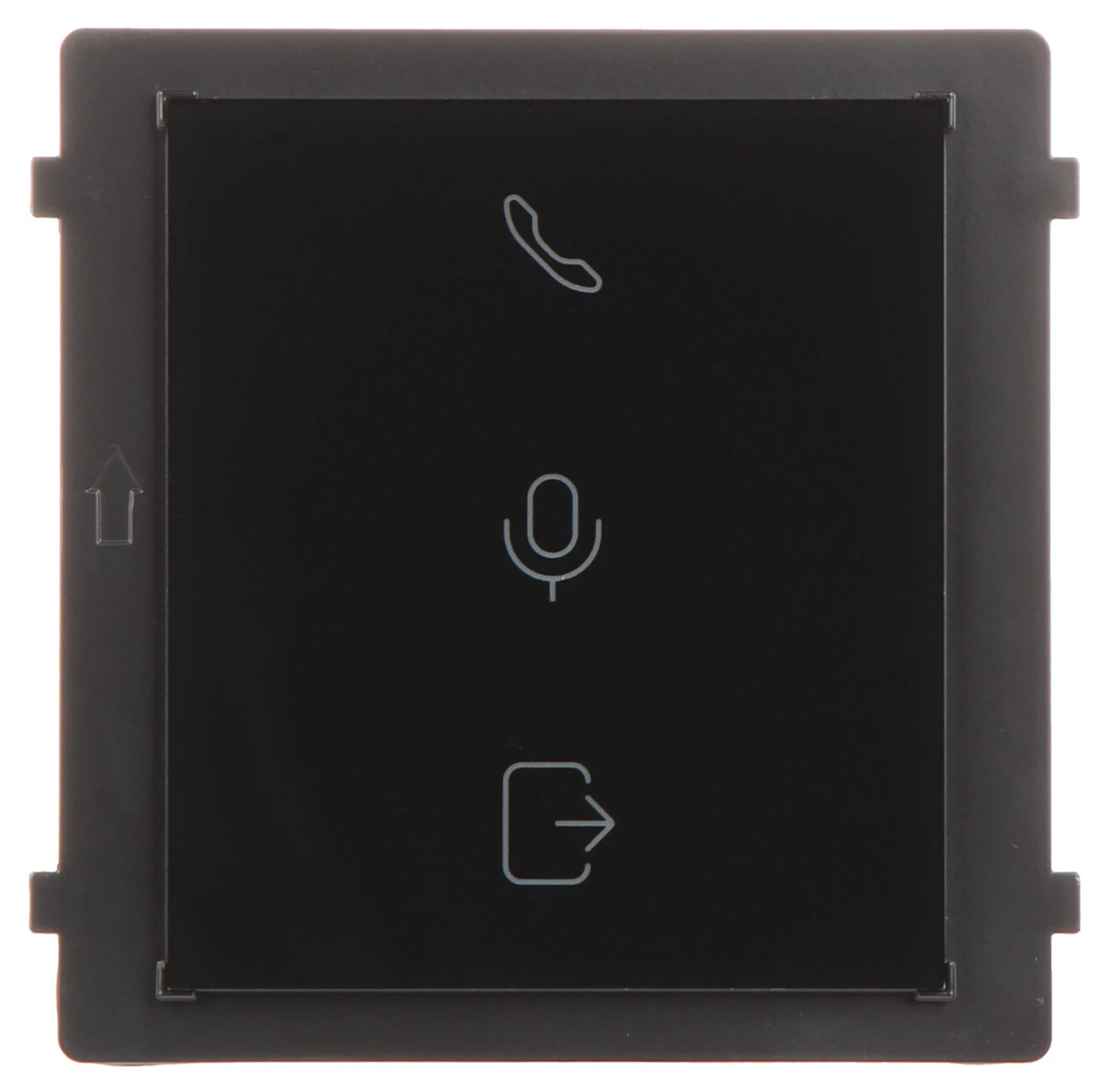

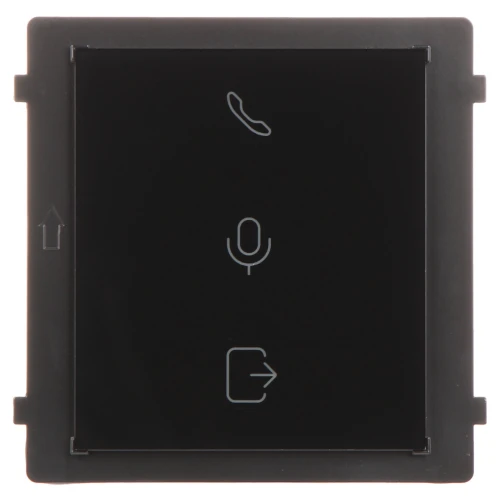

A sleek black control panel featuring icons for a phone, microphone, and exit function. The minimalist design is ideal for modern communication systems.

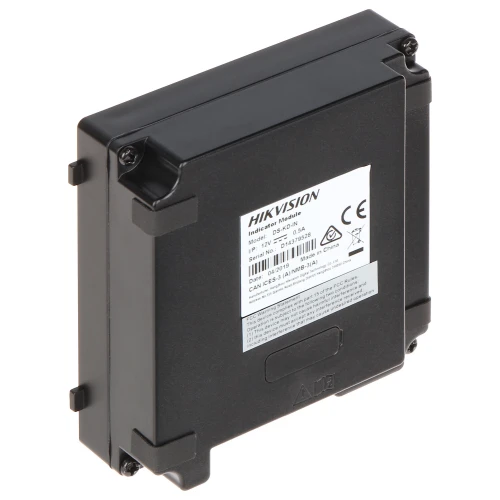

The image shows a black Hikvision intercom module with a rectangular shape and a durable casing. The back of the module features a label with technical specifications and compliance markings.

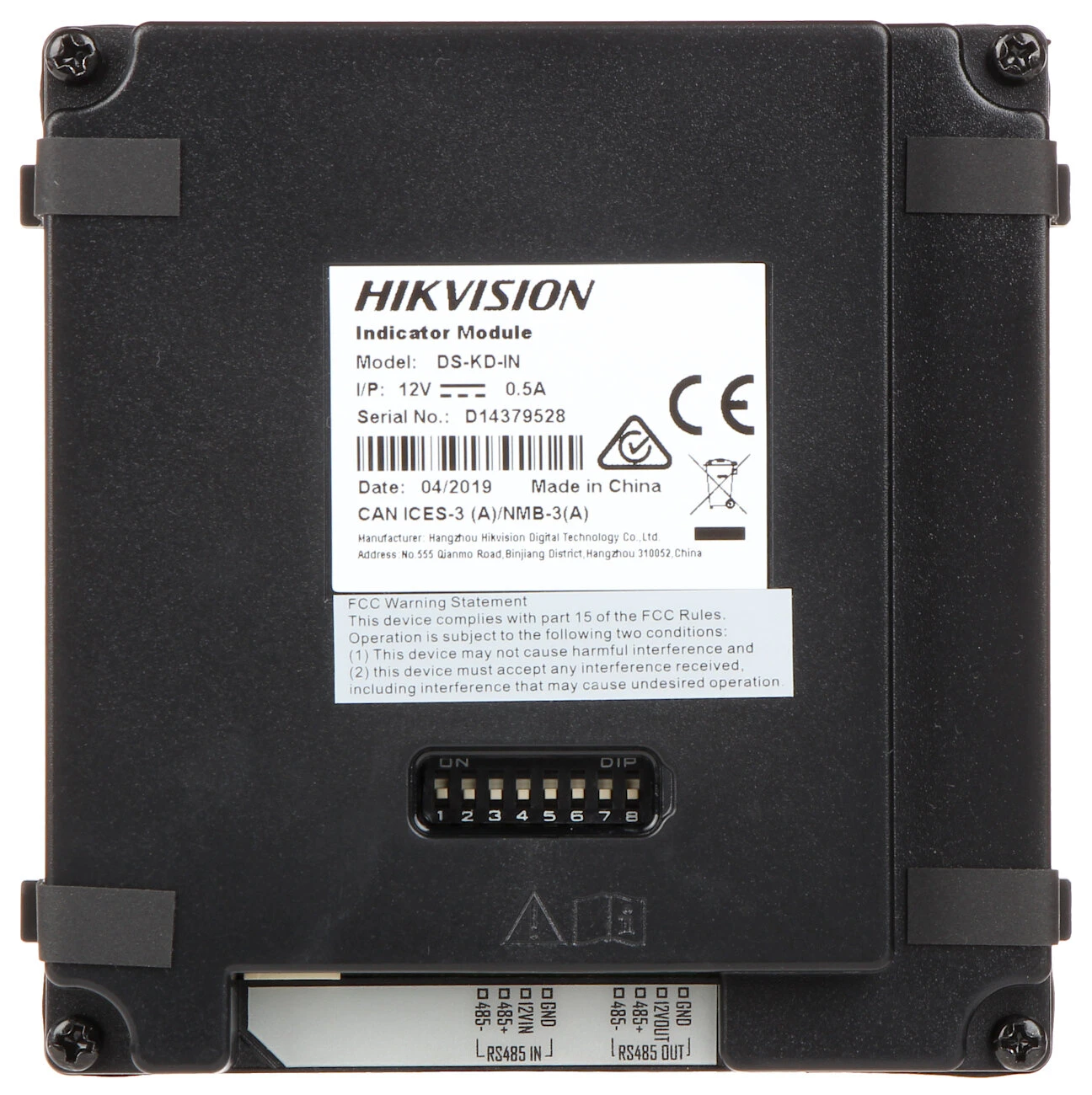

The image shows a Hikvision indicator module with a black casing and a label displaying model and serial information. It features a connector port at the bottom and is designed for integration with security systems.
The image shows a close-up of a black electronic device featuring a row of eight small toggle switches labeled "UN" and "DIP." The device also has a label with FCC compliance information and visible connection ports at the bottom.

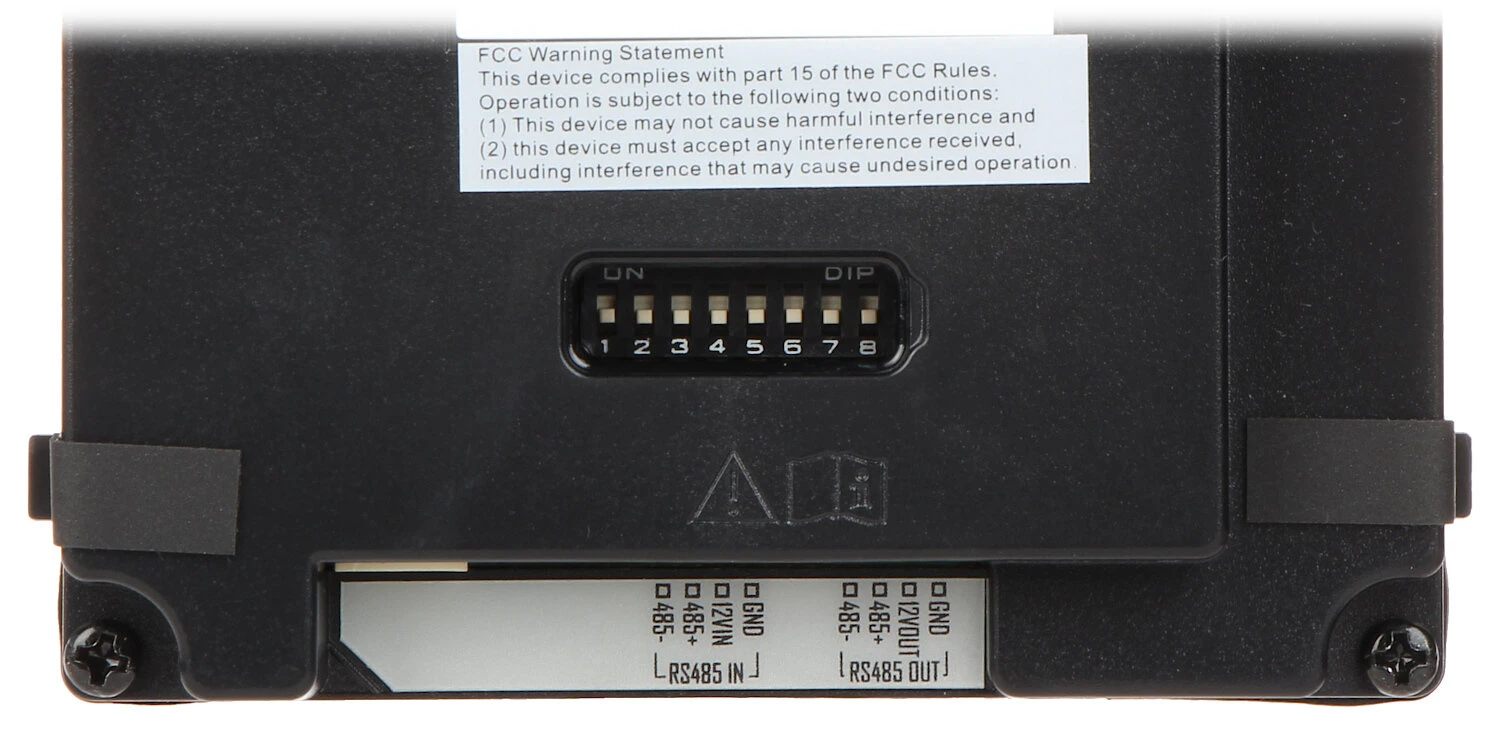

The image shows a close-up of a black electronic device featuring two RS485 connectors labeled "IN" and "OUT" for data communication. The connectors are housed in a recessed area, with clear labeling for easy identification and installation.

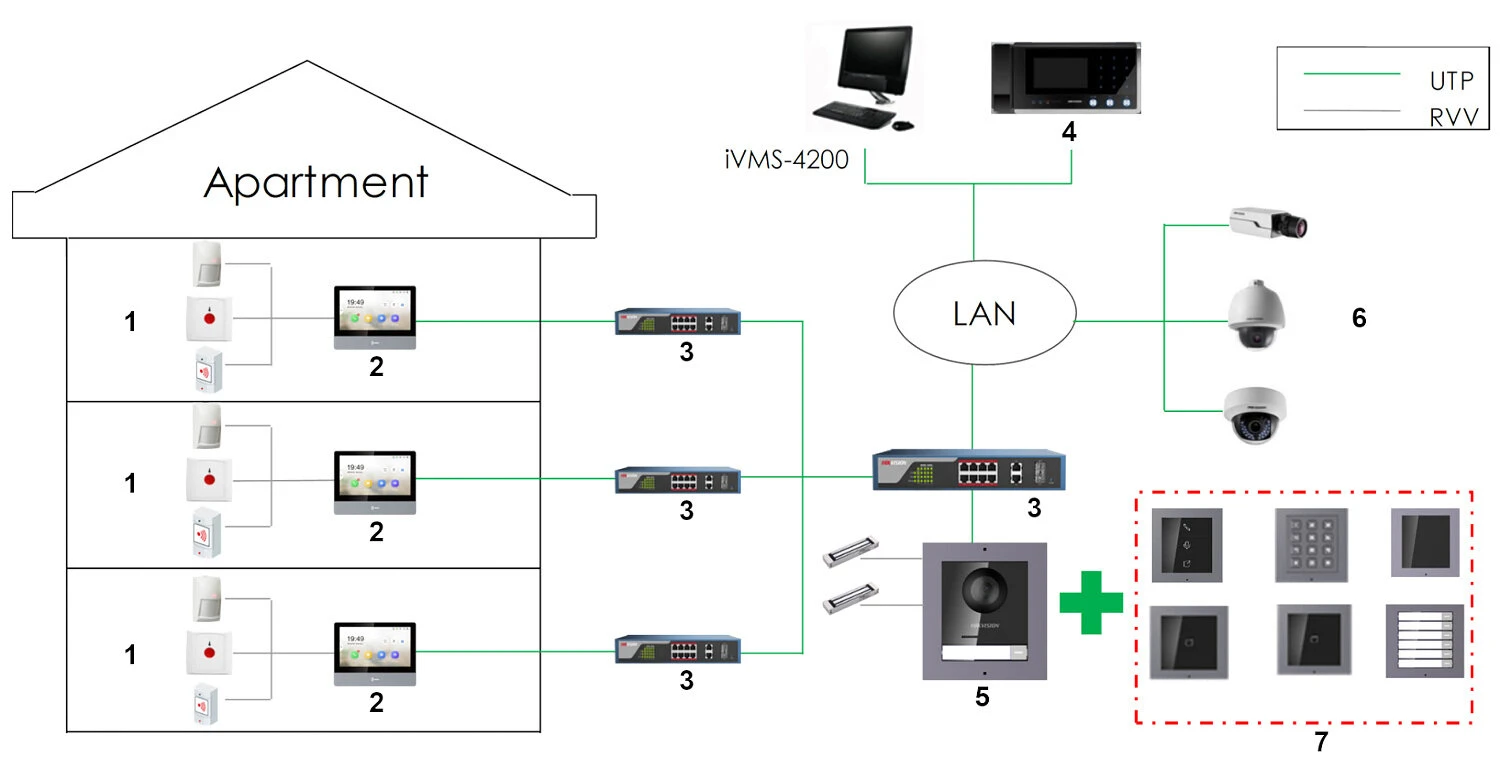

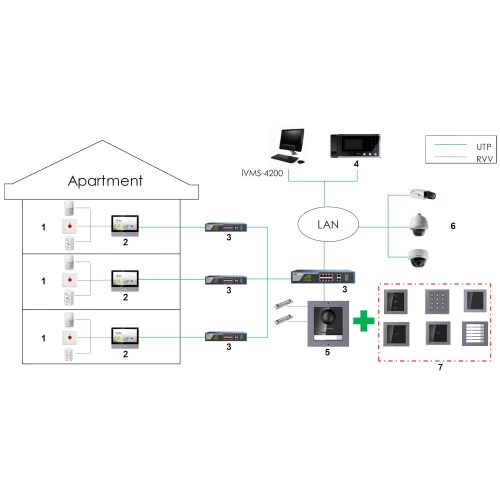

Diagram illustrating a security and communication system setup in an apartment building, featuring video intercoms, network switches, and surveillance cameras. The layout shows connections between apartments, a central control unit, and external monitoring devices.
A clear, octagonal glass award with the Hikvision logo and text, mounted on a black base. The award recognizes Ivel Electronics as an authorized national distributor for Hikvision in Poland for the year 2021.

  • Manufacturer

    HIKVISION

  • Product Code

    DS-KD-IN

  • Warranty

    24 miesiące

see description

    Price (Incl. VAT):

    Archival product

    Shipping from: 12,98 €

    Do you represent a budgetary unit?
    Check out the deferred payment option.

    Product Description

    The module is designed to work with DS-KD8003-IME1 or DS-KD8003-IME2 video intercom module. The device is used to visually indicate the status of the videophone's voice connection with the indoor panel and the status of the wicket opening. The DS-KD-xx series modules are mounted in dedicated DS-KD-ACF series housings (flush mount housings) and DS-KD-ACW series housings (surface mount housings). The included bezels for both series enclosures are made of aluminum.
    Compatibility:DS-KD8003-IME1, DS-KD8003-IME2
    LED signaling:
    • Establishing a connection
    • Transmission of two-way audio
    • Gate opening
    Power supply:Provided by DS-KD8003-IME1 or DS-KD8003-IME2
    Power consumption:≤ 2 W
    Permissible relative humidity of the environment:10 ... 95 % (without condensation)
    Leakage class:IP65
    Housing:Plastic
    Color:Black
    Operating temperature:-40 °C ... 60 °C
    Weight:0.16 kg
    Dimensions:100 x 98 x 34 mm
    Manufacturer / Brand:Hikvision
    SAP Code:305301210
