Camera switch PPK-3

A compact video switcher with four BNC connectors and a row of control buttons for selecting different video inputs. The device features LED indicators for easy monitoring and a durable black casing.

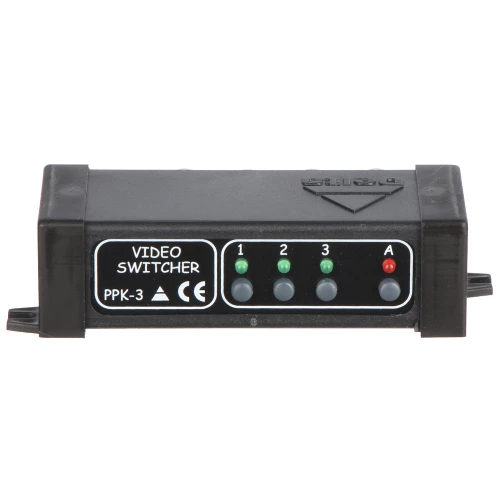

The image shows a black video switcher with labeled buttons for inputs 1, 2, 3, and an output labeled A. The front panel features indicator lights above each button and a label reading "VIDEO SWITCHER."
The image shows a black electronic panel with four coaxial connectors and a power input labeled "12V 50mA." The panel is designed for connecting multiple video or audio cables, featuring a durable plastic casing.
A black electronic device with the Delta logo features four silver coaxial connectors at the bottom. The top of the device has three colored indicator lights: red, green, and blue.

  • Manufacturer

    Delta

  • Product Code

    PPK-3

  • Warranty

    24 miesiące

  • Time for return

    30 days

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

53,73 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Shipping from: 13,25 €

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The switch allows you to select one of the signal sources and connect it to the output. The selection can be made manually or automatically. The time after which the next switchover will occur can be set for all cameras simultaneously or for each camera separately. It is also possible to set a skip in the sequence of each input.

Standard:
  • AHD - 4 Mpx,
  • HD-CVI - 1080p,
  • HD-TVI - 5 Mpx,
  • CVBS - PAL, NTSC
Video inputs:3 pcs. BNC
Video outputs:1 pcs. BNC
Input impedance:75 Ω
Output impedance:75 Ω
Controls:Pushbutton controls
Power supply:12 V / 50 mA (no power supply included)
Time adjustment range:0.5 ... 125 s
Mounting:To the wall
Weight:0.08 kg
Dimensions:120 x 62 x 30 mm
Manufacturer / Brand:DELTA
