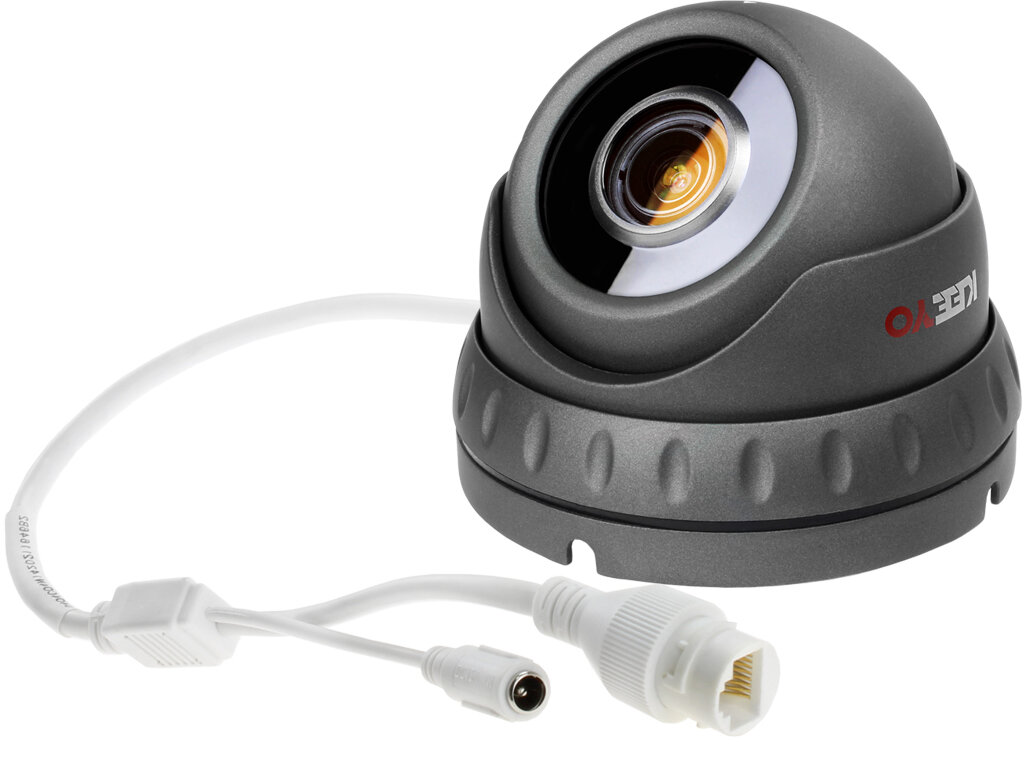

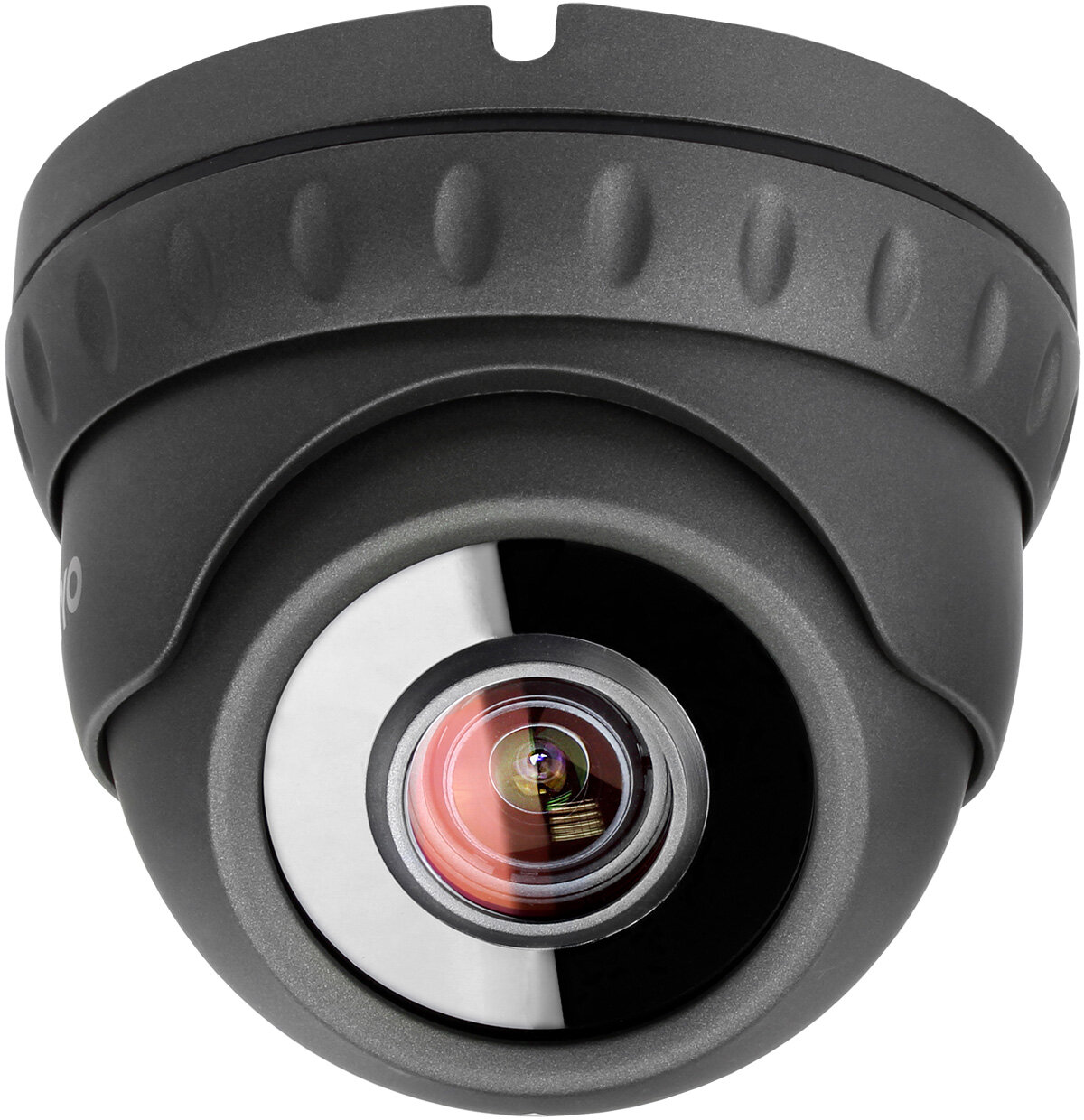

KEEYO LV-IP5M4AFBL-III 5Mpx IR 40m Network IP Camera

Camera features:

• 1/2.7" CMOS 5Mpx sensor
• DSP signal processor
• Wide dynamic range image WDR 120dB
• High resolution 5Mpx
• Pixel count 2592 x 1944 px
• Onvif support
• H.265+ compression
• 2.7-13.5mm MOTOZOOM lens
• Viewing angle 95° - 26° ( Manufacturer's data ) 93° - 30° ( Our tests )
• Optical zoom x5
• Night operation range up to 40m
• Built-in memory slot: microSD up to 512GB (card not included)
• P2P(cloud) support - a function that allows remote access without port forwarding and public IP address
• Viewing on computer and mobile devices
• Outdoor or indoor mounting of the camera
• Power supply 12V DC or PoE Standard IEEE 802.3af
• Easy configuration and installation
• Polish manual

For whom will this camera work?

This model is extremely versatile and will fit into various types of monitoring systems. You can use it both outdoors and indoors, expecting good quality of recorded image.

With its help you can conduct, among others:

monitoring of a store,
monitoring of a wholesale and warehouse, as well as a production hall,
monitoring of a school, monitoring of a kindergarten or other educational institutions,
monitoring of a backyard, sports field or playground,
monitoring of a private home,
monitoring of a bar and restaurant,
monitoring of a parking lot.

Reach for this model wherever you need reliable and modern monitoring equipment.


Main features:

• IP network dome camera
• 1/2.7" CMOS 5Mpx sensor
• DSP signal processor
• Resolution 2592 x 1944
• Sensitivity 0 lux with IR on
• Kompresja H.265+/H.265/H.264+/H.264
• Onvif - yes
• Lens 2.7-13.5mm MOTOZOOM
• Optical zoom x5
• Mechanical infrared filter (ICR)
• IR range up to 40m
• New generation LEDs
• Built-in memory slot: microSD up to 512GB (card not included)
• AWB, AGC, AES, BLC, WDR 120dB functions
• P2P(cloud) support - function that allows remote access without port forwarding and public IP address
• Built-in web server, operation via dedicated CMS software or mobile client
• Mobile application ( iOS , android )
• Application: outdoor and indoor
• Protection class IP67
• The camera is powered by 12 VDC and POE Standard IEEE 802.3af ( PoE 48VDC ) - power supply not included

IP67 waterproof outdoor housing made of robust materials ensures that the camera works efficiently in harsh weather conditions. This camera can be used both indoors and outdoors, and can be mounted to both horizontal (e.g. ceiling, soffit, etc.) and vertical (e.g. wall, facade, etc.) surfaces.

High-quality new generation CMOS image sensor provides clear images and high resolution of 5Mpx.


Day / Night color camera constructed in such a way that during the day it works in color mode, while at night it switches to black and white mode. A photoresistor built into the camera is responsible for switching between modes. The camera is also characterized by high sensitivity when infrared is turned on. The built-in illuminator has a range of up to 40m.


WDR 120dB (Wide Dynamic Range) digital wide dynamic range - a modern solution that allows the camera to achieve a wide dynamic range. The result is more effective reproduction of details located in the dark parts of the image. The function has a positive effect on image quality, allowing easier identification of objects.


3D DNR (Digital Noise Reduction) - it is a 3D filtering system enhancing digital noise reduction at lower light levels by increasing the signal-to-noise ratio (S/N) and horizontal resolution giving an improved image at very low light levels especially when combined with the Sens-Up function. This parameter reduces the amount of disk space occupied by the DVR for the camera signal (up to 70% with MPEG compression).


The IP camera has the ability to freely configure the operating parameters. Brightness, contrast, color saturation in the image and other functions allow to obtain the optimal quality of the generated image. The main and auxiliary streams can be independently configured (compression, speed, etc.).
Viewing the image using mobile devices and via the Internet:

The camera is equipped with an Ethernet interface. Simply connect an Internet cable to the camera and configure the connection accordingly. After such a procedure, it is possible to remotely view the view from the camera via a web browser or appropriate programs for your computer. With the appropriate permissions (password), it is possible to manage the configuration parameters of the device.

Applications have been created for the device to conduct monitoring using Apple iPhone, iPad, and Android mobile devices.


The camera also features:

BLC (Backlight Compensation) backlight control - thanks to this function, the camera automatically adjusts the bright light equalization so as to give more details on the dark areas of the image. With this function, the camera provides good vision in contrasting environments.

AES (Auto Electronic Shutter) automatic electronic shutter - this function is most often used in the camera to adjust changes in lighting without using an auto - iris lens.

AGC (Auto Gain Control) automatic gain level adjustment - this function adjusts the brightness level for optimum performance and highest image quality.

AWB (Auto White Balance) automatic white balance adjustment - this function preserves sharp images with intense and vivid color saturation in the full color palette.



Technical specifications:

Model	LV-IP5M4AFBL-III
Brand	KEEYO
System	PAL
Sensor	1/2.7" CMOS 5Mpx
Signal processor	DSP
Number of pixels	2592 x 1944
Sensitivity	0 Lux with IR on
Lens	2.7-13.5 mm Motozoom
Viewing angle	95° - 26° ( Manufacturer's data ) 93° - 30° ( Our tests )
Optical zoom	5x
Infrared illuminator	range up to 40m
Day/Night function	Mechanical infrared filter ICR
Backlight compensation	BLC, WDR 120dB
AGC (gain control):	Automatic/Manual
Other functions	Brightness, Sharpness, Contrast, Saturation
Compression	H.265+ H.265 H.264+ H.264
Onvif	Yes
Network interface	RJ-45 (10/100Base-T)
Access	via Internet Explorer (IE, Edge), CMS software (iVMS-320)
Access from cell phone applications with systems:	Android, iPhone
PoE	POE Standard IEEE 802.3af ( PoE 48VDC )
Memory card slot	Supports microSD cards up to 512GB (card not included)
Power supply	DC12V
Power consumption7	7W
Operating conditions	-20 deg. C ~ 55 deg. C , 0% ~ 90%RH
Housing	metal
Protection class	IP67
Dimensions	120 x 90 mm
Weight	800g
