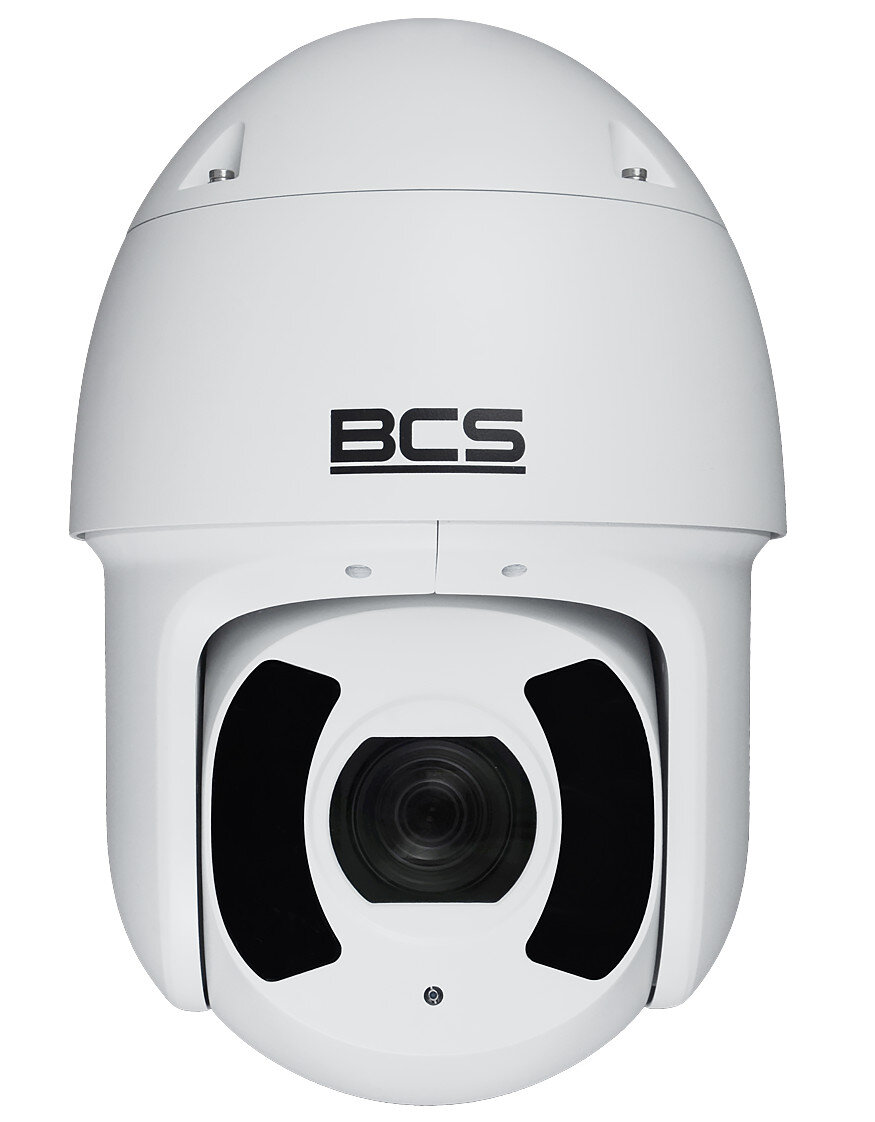

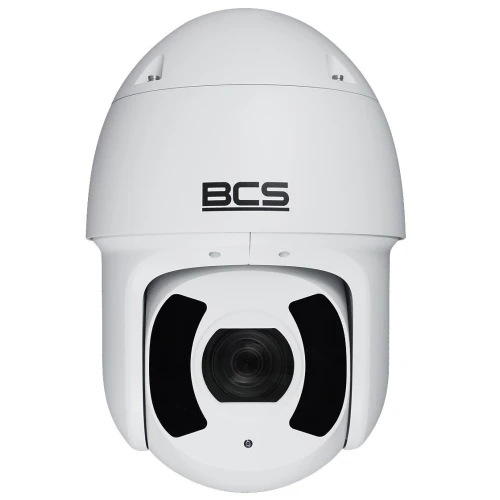

Full HD surveillance camera BCS-SDIP5445-IV with auto-tracking
Photo gallery
-
Manufacturer
-
Product Code
BCS-SDIP5445-IV
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Rotating
- Night visibility: up to 250 m
- Memory card slot: Yes
- Audio: Yes
Files attached to the product show files
Files for download
-
Size: 1,51 MB
-
Size: 0,57 MB
Price (Incl. VAT):
Archival product
Najniższy koszt dostawy: 12,98 zł
Do you represent a budgetary unit?
Check out the deferred payment option.
Related products
Product Description
- 1/2.8" 4Mpx PS STARVIS CMOS sensor
- H.265+/H.264+/MJPEG encoding
- Support for three encoding streams
- 3.95~177.75mm lens with 45× optical zoom
- Mechanical infrared filter
- Built-in Web server, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P
- Features AWB, AES, AGC, BLC, HLC, WDR(120dB), Ultra DNR, Defog, ROI, EIS
- Intelligent functions: line crossing, area intrusion, face detection, lost/left object, audio detection, object recognition, autotracking
- Max 30fps@4Mpx(2560×1440)
- Max operation speed 300°/s, PAN: 0° ~ 360°, TILT: -20° ~ 90°
- Infrared illuminator up to 250m
- Automation functions: 300 presets, 5 tracks, 8 routes, auto-scan, auto-pan
- Intelligent 3D positioning
- IP67, IK10 metal housing
- Operating temperature -40°C ~ +70°C
- Power supply AC24V, PoE(802.3at)
Technical Specifications:
| Model | BCS-SDIP5445-IV |
| Video system | IP |
| Scanning system | Progressive Scan |
| Sensor | 1/2.8" 4Mpx STARVIS CMOS |
| Number of pixels | 2560×1440 |
| Sensitivity | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; IR On: 0Lux@F1.6 |
| S/N ratio | >50dB |
| Lens | 3.95mm~177.75mm; F1.6 ~ F4.95; viewing angle H: 70.3°~1.8°, V: 69.3°~2°; optical zoom 45× |
| DORI(Detect/Observe/Recognize/Identify) | 3176m/1271m/635m/318m |
| White balance | (AWB) Auto/manual |
| Backlight compensation | BLC/HLC/WDR(120dB) |
| Shutter | 1/1~1/30000s |
| Gain control | (AGC) Auto/manual |
| Noise reduction | Ultra 2D/3D DNR |
| Motion detection | 4 areas (adjustable: size, position, sensitivity, threshold) |
| Privacy mask | 24 areas (adjustment: size, position) |
| Image rotation | Flip 180° |
| Sharpening | Auto/manually |
| Day/night | Mechanical IR filter (ICR) |
| Zoom | Optical 45×, digital 16× |
| PAN range | 0°~360° infinite |
| TILT range | -20°~90° |
| PAN speed | 0.1°~260°/s (300°/s in preset) |
| TILT speed | 0.1°~120°/s (200°/s in preset) |
| Automation functions | 300 presets, 5 tracks, 8 routes, auto-scan, auto-pan |
| Start/stop | Restore last PTZ position after power failure; activate preset, track, route after idle period |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Resolution | 4M(2560×1440) / 3M(2304×1296) / 1080P(1920×1080)/ 720P(1280×720) / D1(704×576) / CIF(352×288) |
| Main stream | 4M/3M/1080P/1.3M/720P (1~25/30fps) |
| Second stream | D1/CIF(1 ~ 25/30fps) |
| Third stream | 720P/D1/CIF (1~25/30fps) |
| Bitrate | H.265/H.264: 3 ~ 20480Kbps |
| Network connection | RJ-45 (10M/100MBase-TX) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter, QoS, Bonjour, 802.1x, P2P |
| Audio | 1 input / 1 output |
| Audio coding | G.711a/G.711Mu/AAC/G.722/G.726/G.729/MPEG2-L2 |
| Alarm | 2 inputs / 1 output |
| Compatibility | ONVIF Profile S&G, API |
| Users | Maximum of 20 logged in |
| Mobile users | iOS, android |
| Memory card slot | microSD up to 256GB |
| Power supply | AC24V/3A(±25%), PoE+(802.3at), Power consumption 13W (26W IR on). |
| Operating conditions | 40°C ~+70°C / 10~95%RH |
| Housing | Metal IP67, IK10 |
| Dimensions and weight | Φ209mm×337.4mm 5.9kg |
