Full HD Surveillance Camera BCS-P-424R3WSA-G-II
Photo gallery
-
Manufacturer
-
Product Code
BCS-P-424R3WSA-G-II
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Tube
- Night visibility: up to 50m
- Memory card slot: Yes
- Audio: Yes
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 1,07 MB
-
Size: 0,64 MB
Product Description

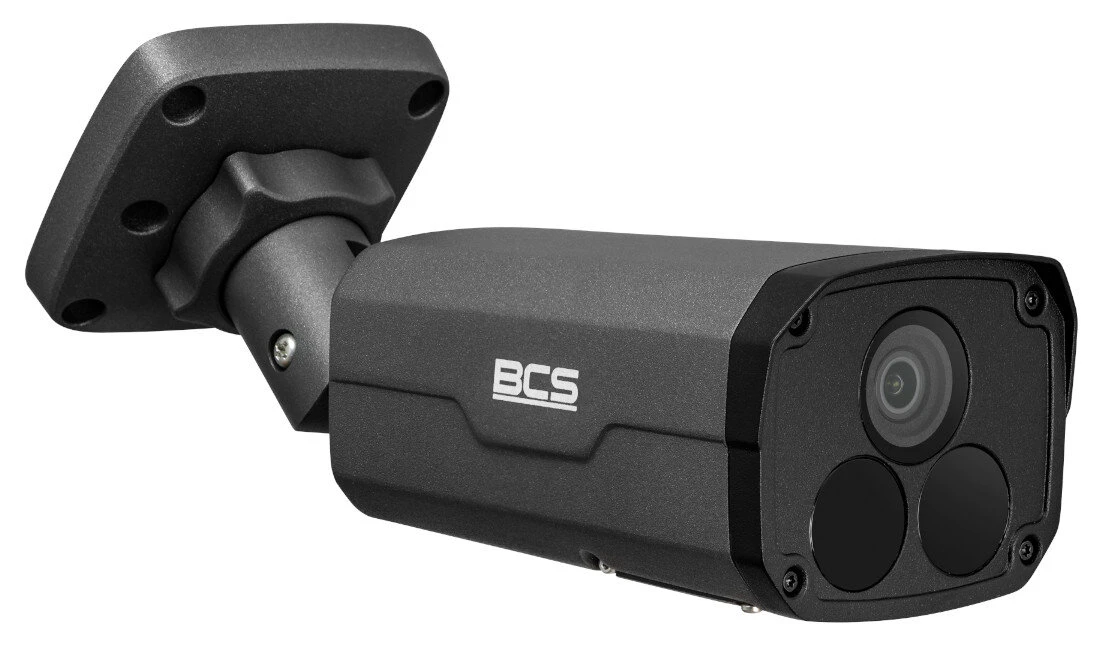

Full HD surveillance camera BCS-P-424R3WSA-G-II
4 Mpx horn camera with 4mm fixed lens with support for intelligent functions such as line crossing, area intrusion, audio detection, lost/left object and also allows motion detection and privacy mask configuration. In addition, the camera is equipped with an IR illuminator with a range of up to 50m and has built-in features to ensure high quality of the analyzed image, including: digital noise reduction Ultra DNR function that levels the noise created in low light, wide dynamic range WDR(120dB) - the ability to extract more details from a contrasting observation plan, ROI function, Defog and many others. Built-in memory slot allows the camera to connect a micro SD card with a capacity of up to 256GB. Outdoor, metal, vandal-resistant housing - IP67, IK10. Power supply: DC12V, PoE(802.3af).
- 1/1.8" 4Mpx PS CMOS sensor.
- H.265+/H.264+/MJPEG encoding
- Support for three encoding streams
- Mechanical infrared filter
- AWB, AGC, BLC, HLC, ROI, Defog, Ultra DNR, WDR(120dB) functions
- Motion detection, privacy masks
- Intelligent functions: line crossing, area intrusion, audio detection, missing/abandoned object
- Infrared illuminator with a range of up to 50m
- Fixed-focus lens 4mm F1.6
- IP67,IK10 metal outdoor housing
- 1 audio input and 1 audio output
- 1 alarm input and 1 alarm output
- Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), P2P, BCS mobile app(iOS, android), P2P
- MicroSD memory card slot up to 256GB
- Operating temperature -40°C ~ +60°C
- Power supply DC12V / PoE
Technical specifications:
| Video system | IP |
| Scanning system | Progressive Scan |
| Sensor | 1/1.8" 4Mpx CMOS |
| Number of pixels | 2688(H) × 1520(V) |
| Sensitivity | 0.001Lux/F1.6 (Color, AGC On) 0Lux(B/W, IR On). |
| S/N ratio | > 55dB |
| Lens | Fixed-focus 4mm F1.6 |
| Viewing angle | H: 94.7°, V: 49.6° |
| DORI(Detect/Observe/Recognize/Identify) | 60m/24m/12m/6m |
| White balance | (AWB) Auto/manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto/manual (1~1/100000s) |
| Gain control | (AGC) Auto / Manual |
| Noise reduction | 2D/3D DNR |
| Motion detection | 4 areas |
| Privacy zone | 8 areas |
| Image rotation | Mirror, flip |
| Sharpening | Fixed |
| Day/night function | Mechanical ICR filter |
| Infrared illuminator | Range up to 50m |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Resolution | 4M(2688×1520) / 4M(2560×1440) / 3M(2304×1296) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 4M(2688×1520)@25/30fps, 4M(2560×1440)@25/30fps, 3M/1080P@25/30fps |
| Second stream | 1080P/720P/D1/(640×360)/2CIF/CIF@30fps |
| Third stream | D1/(640×360)/2CIF/CIF@30fps |
| Network connection | RJ-45 (10/100Mbps) |
| Audio | 1 input / 1 output |
| Audio compression | G.711A / G.711U |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Alarm | 1 input / 1 output |
| Memory card slot | microSD up to 256GB |
| Compatibility | ONVIF(S/G/T), API |
| Users | Maximum of 10 logged in |
| Mobile users | iOS, android |
| Power supply | DC12V (±25%) / PoE(IEEE802.3 af) |
| Power consumption | Max 8.5W |
| Operating conditions | -40°C ~ +60°C, 10%~90% RH |
| Housing | IP67, IK10 |
| Weight | 0.9kg |
| Dimensions | 245.6x85.7x85.4mm(Φ12.1’’x3.4’’x3.4’’) |
