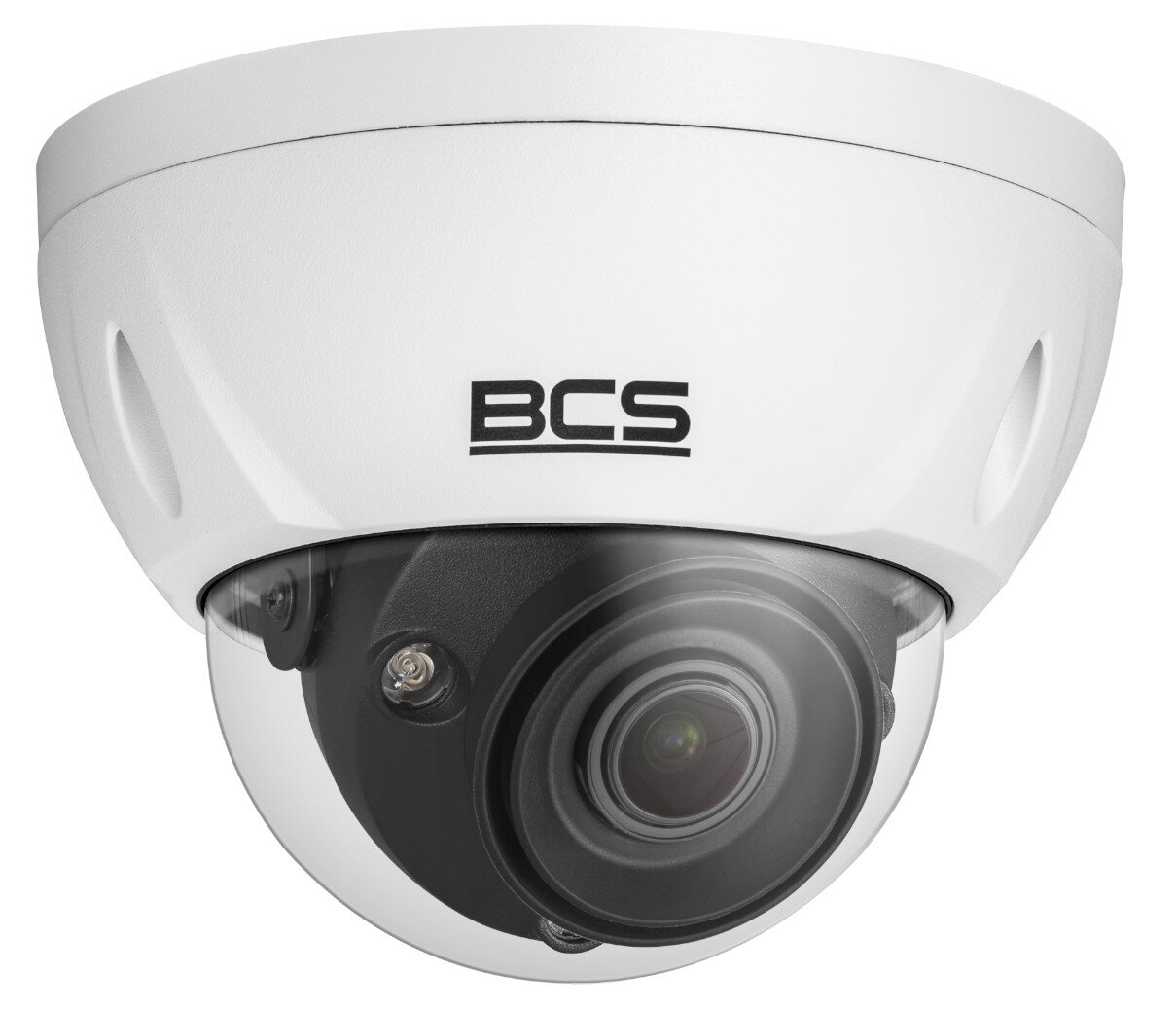

IP dome camera 8Mpx BCS-DMIP5801IR-Ai
Photo gallery
-
Manufacturer
-
Product Code
BCS-DMIP5801IR-Ai
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 40m
- Memory card slot: Yes
- Audio: Yes
Files attached to the product show files
Price (Incl. VAT):
Archival product
Najniższy koszt dostawy: 12,98 zł
Do you represent a budgetary unit?
Check out the deferred payment option.
Related products
Product Description
- Starlight technology
- H.265+/H.264+/MJPEG encoding
- Supports three encoding streams
- Motozoom lens 2.7~12mm F1.2
- Mechanical infrared filter ICR
- Built-in web service, compatibility with BCS-NVR, CMS(BCS Manager), BCS mobile app(iOS, android), P2P, Onvif
- Features AWB, AES, AGC, BLC, HLC, WDR(120dB), Ultra DNR, Defog, ROI, EIS
- Advanced analytics intelligent functions: perimeter protection, face detection, object recognition, metadata, real-time intelligent analysis and advanced search, people counting, lost/left object, audio detection
- Infrared illuminator up to 40m
- 1 audio input and 1 audio output
- 3 input1 and 2 alarm outputs
- Outdoor metal housing IP67, IK10
- Operating temperature -40°C ~ +60°C
- Support for microSD card up to 256GB
- Power supply DC12V, AC24V, PoE(802.3af), ePoE
Technical Specifications:
| Model | BCS-DMIP5801IR-Ai |
| Video system | IP |
| Scanning system | Progressive Scan |
| Sensor | 1/1.8" 8Mpx CMOS |
| RAM/ROM | 4GB/2GB |
| Pixel count | 3840×2160 |
| Sensitivity | 0.003Lux/F1.2( Color); 0Lux/F1.2(IR on) |
| S/N ratio | >50dB |
| Lens | Motozoom 2.7mm~12mm; F1.2 |
| Viewing angle | Horizontal: 114°(W)-47°(T) Vertical: 59°(W)-27°(T) Diagonal: 141° (W)-55°(T) |
| DORI(Detect/Observe/Recognize/Identify) | 2.7mm: 87m/35m/17m/9m; 12mm: 187m/75m/37m/19m |
| White balance | (AWB) Auto/manual |
| Background compensation | BLC/HLC/WDR(120dB) |
| Shutter | 1/3~1/100000s |
| Gain control | (AGC) Auto/manual |
| Noise reduction | Ultra 2D/3D DNR |
| Motion detection | 4 areas (adjustable: size, position, sensitivity, threshold) |
| Privacy mask | 4 areas (adjustment: size, position) |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Sharpening | Auto/manually |
| Day/night | Mechanical IR filter (ICR) |
| Radiant | 60m |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Resolution | 8M(3840×2160) / 6M(3072×2048/3072×1728) / 5M(2592×1944) / 4M(2688×1520) / 3M(2048×1536/2304×1296) / 1080p(1920×1080) / 1.3M(1280×960) / 720p(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 3840 × 2160 (1-25/30 fps) |
| Second stream | 704 × 576 (1-25/30 fps) |
| Third stream | 1920 × 1080 (1-25/30 fps) |
| Bitrate | H.264: 32 Kbps-16384 Kbps H.265: 12 Kbps-16384 Kbps |
| Network connection | RJ-45 (10/100Base-T) |
| Protocols | HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Bonjour |
| Audio | 1 input / 1 output |
| Audio coding | G.711a/ G.711Mu/ AAC/ G.726/G.723 |
| Alarm | 3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V AC |
| Compatibility | ONVIF(Profile S/Profile G/Profile T), CGI, P2P |
| Users | Maximum of 20 logged in |
| Mobile users | iOS, android |
| Memory card slot | microSD up to 256GB |
| Power supply | DC12V, AC24V, PoE(802.3af), ePoEP Power consumption <15.7W |
| Operating conditions | -30°C ~+60°C / 10~95%RH |
| Housing | Outdoor metal IP67, IK10 |
| Dimensions and weight | Φ159.0mm × 117.9mm, 0.95kg |
