All-in-one CCTV tester BCS-MS7.0LCD-II

A handheld all-in-one CCTV tester with a large touchscreen display and multiple input ports for versatile connectivity. The device features a rugged design with side grips and a strap for easy handling, along with a keypad for navigation and control.
A portable all-in-one CCTV tester with a large touchscreen display and multiple input ports for versatile connectivity. The device features a rugged design with side grips and a strap for easy handling and operation.
The image shows a portable all-in-one CCTV tester with a large screen and multiple input/output ports, including HDMI and USB. The device is designed for testing and troubleshooting security camera systems, featuring a rugged exterior with protective corners.
A versatile all-in-one CCTV tester featuring multiple input ports, including HDMI, BNC, and LAN, designed for comprehensive security system diagnostics. The device has a robust design with a large screen and protective rubber edges for durability.
A portable all-in-one CCTV tester with a robust design, featuring multiple input ports and a clear display screen. The device is equipped with a protective rubber casing and a convenient carrying strap for easy handling.

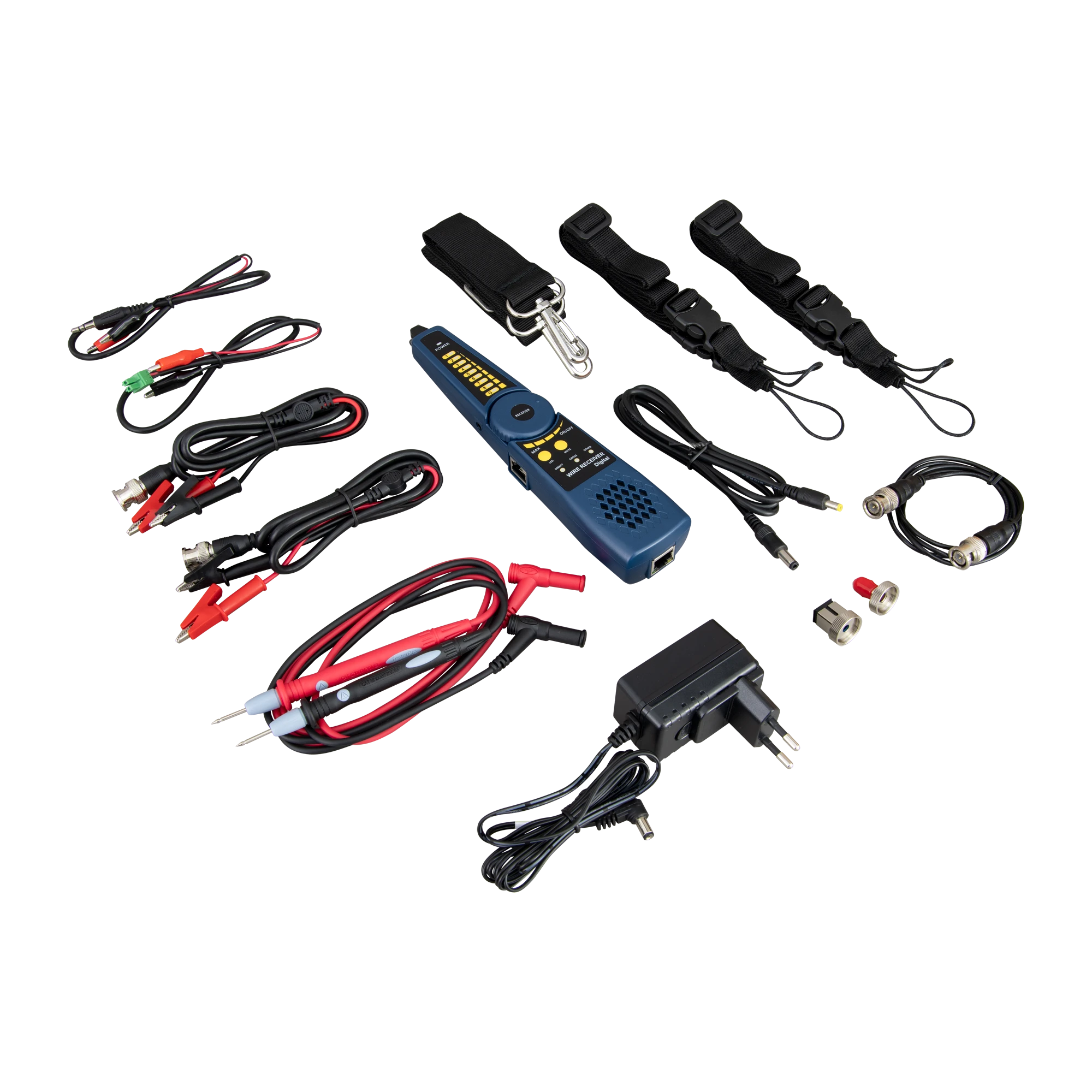

The image shows a comprehensive all-in-one CCTV tester kit, featuring a central blue testing device with multiple cables and connectors for various testing needs. The kit includes power adapters, alligator clips, and other essential accessories for efficient CCTV installation and maintenance.

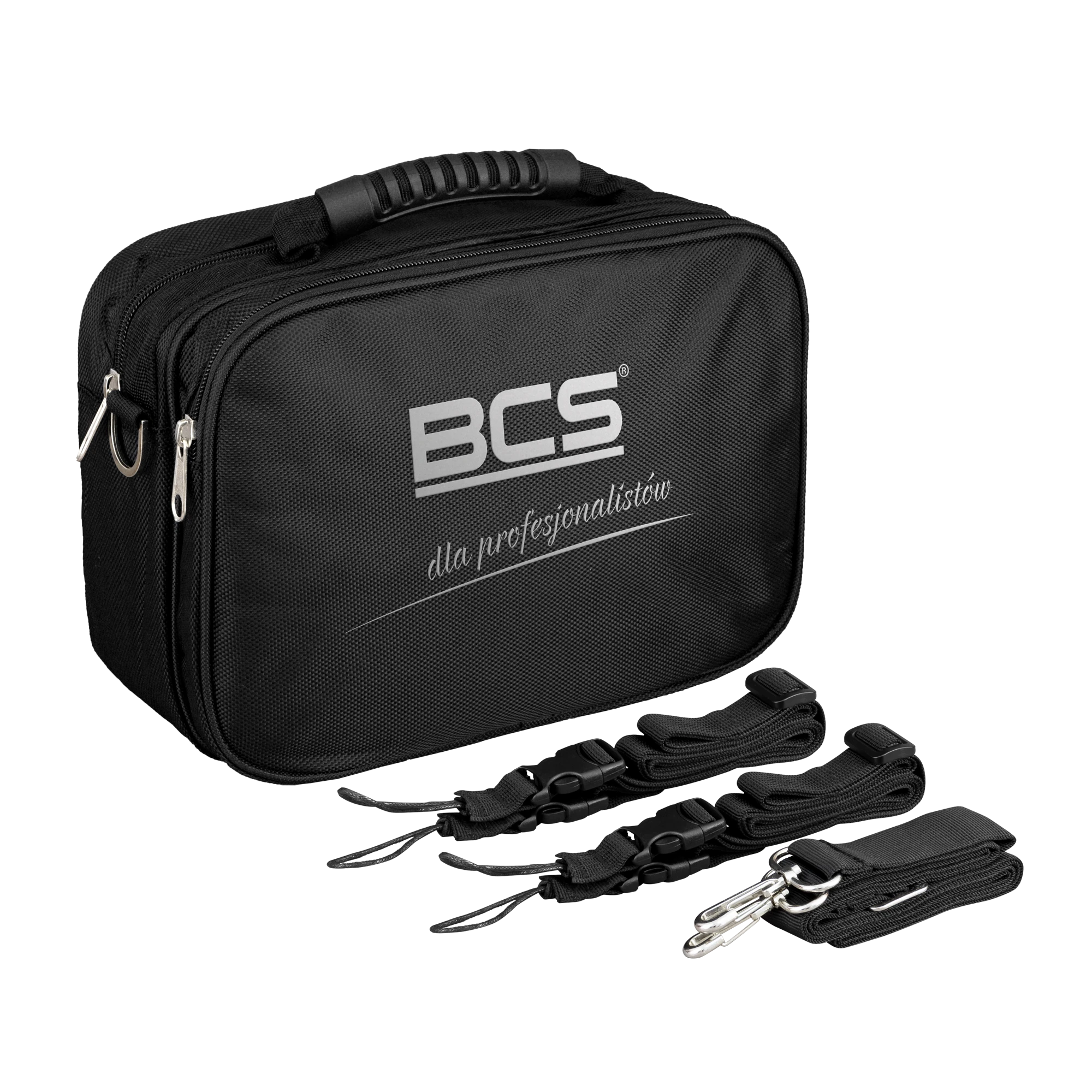

A black carrying case with the BCS logo and "dla profesjonalistów" text, designed for transporting and protecting a CCTV tester. The image also shows detachable straps with metal clips for easy carrying.

  • Manufacturer

    BCS

  • Product Code

    BCS-MS7.0LCD-II

  • Warranty

    36 miesięcy

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

Files attached to the product show files

Files for download

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

943,74 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

All-in-one CCTV tester BCS-MS7.0LCD-II.





Main Features:

  • Touch screen 7" resolution 1920×1200
  • PC Onvif test
  • Support and test of IPC cameras
  • Gigabit ethernet, two RJ45 LAN ports
  • 8Mpx CVI/AHD/TVI/SDI and CVBS video signal test
  • Display of H.265/H.264, 4K main stream
  • Wi-Fi support, Wi-fi network analyzer
  • HDMI 1080p input and HDMI 4K output
  • DC12V 3A, DC24V 2A, DC48V PoE output
  • USB DC5V/2A, audio input/output
  • Installed BCS applications for comprehensive network and CCTV maintenance and diagnostics, CCTV calculators, FTP support
  • Digital multimeter - V AC/DC, resistance, continuity, diode, capacitance
  • OPM optical power meter 1625/1550/1490/1310/1300/850nm, - 70~+10dBm
  • TDR UTP/RJ45 test, PoE test, Audio test, PTZ control, calbi test
  • Visual VFL 10mW/650nm/10KM optical fiber fault locator
  • Built-in flashlight
  • Wire pair finder included
  • 8GB microSD card
  • 12V DC power supply
  • 7.4V lithium-polymer battery with increased capacity of 7800mAh
  • Dimensions and weight 255mm x 160mm x 46mm / 0.95Kg
  • Cover to protect the screen from damage
