Distribution socket G-8

A white distribution socket with multiple coaxial outputs and a power input is shown. The device is designed for efficient signal distribution in electronic setups.
Front view of an 8-channel video power supply distributor with labeled BNC connectors for each channel. The device includes a power indicator light and a DC input terminal for efficient power management.
The image shows a multi-channel video distribution amplifier with eight BNC connectors on the top and corresponding numbered terminals below. The device features LED indicators for each channel, providing visual status updates for connectivity and power.

  • Manufacturer

    Delta

  • Product Code

    G-8

  • Warranty

    24 miesiące

  • Time for return

    30 days

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

29,40 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Shipping from: 1,20 €

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

G-8 is a passive device, designed for convenient connection of 8 CCTV cables of YAP type (coax + power supply) and orderly branching of power supply from one higher power supply. The G-8 receptacle splits the power supply to 8 outputs, each of which is protected by a fuse and has an LED indicating when it is blown (no light means the fuse is blown).


Standard:
  • AHD - 5 Mpx
  • HD-CVI - 8 Mpx 4K UHD
  • HD-TVI - 8 Mpx 4K UHD
  • CVBS - PAL / NTSC
Number of video outputs:8 pcs. BNC socket
Number of video inputs:8 pcs. Cable terminals
Number of power outputs:8 pcs. Cable terminals
Number ofpower inputs:2 pcs. 2.1/5.5mm socket / cable terminals
Maximum power supply current:8 A
Maximum current of a single output:1 A
Fuse-link type:1A/250V (5/20mm)
Mounting:To the wall
Housing:Plastic
Color:Ivory
Operating temperature / relative humidity:-50 °C ... 55 °C / < 95 %
Weight:0.29 kg
Dimensions:213 x 93 x 36 mm
Manufacturer / Brand:DELTA

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

DELTA-OPTI

Graniczna 10

60-713 Poznań

[email protected]

Zamknij

Powiadom o dostępności

Jeśli produkt którego szukasz nie jest obecnie dostępny, wpisz swój adres e-mail. Jak tylko się pojawi na stanie, od razu zostaniesz o tym poinformowany

Przepisz kod z obrazka

Zamknij

Similar products in this category

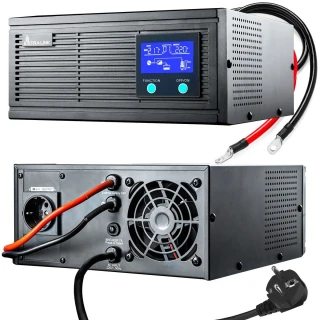

The image shows a black Extralink inverter with a digital display on the front panel, featuring function and power buttons. The back of the inverter displays various ports, a cooling fan, and attached cables with a European plug.

Product temporarily unavaliable

Extralink Thunder 600VA/480W | Inverter | Pure sine wave, battery voltage 12VDC

  • Wide range of input voltage from mains
  • Stable output voltage
  • LCD display with plenty of information
  • CPU control
  • Short switching time, high efficiency

113,01 €

szt

No product

Add to Watchlist

A compact DIN rail power connector with multiple green terminal blocks and a black DC input socket. The yellow mounting bracket provides easy installation and secure attachment.

Product temporarily unavaliable

Power Distribution Terminal Block LZ-1/DIN

LZ-1/DIN power connector

8,92 €

pcs.

No product

Add to Watchlist

The image shows a black UPS unit with a digital LCD display on the front panel, designed for providing backup power. The sleek design features ventilation slots on the side and the brand name "EAST" prominently displayed in red.

in stock Shipping 48h

AT-UPS1500S-LCD 1500VA EAST UPS Power Supply

292,77 €

szt

Add to Watchlist

A black rack-mounted power distribution unit with eight blue and green terminal blocks for efficient cable management. The unit is designed for organized power distribution in network or server environments.

Product temporarily unavaliable

Power connector LZ-8P/R19

Power connector LZ-8P/R19

38,55 €

pcs.

No product

Add to Watchlist

A black Ubiquiti PoE adapter with two Ethernet ports labeled "PoE" and "LAN" is shown alongside a power cable with a European plug. The compact design features the Ubiquiti logo on the top surface.

in stock Shipping 48h

UQ-POE-24-12W-G Switching Power Supply UBIQUITI

18,80 €

szt

Add to Watchlist

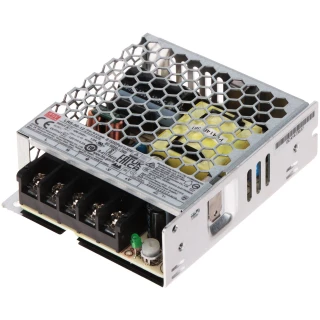

The image shows a compact, open-frame switching power supply with a metal mesh cover for ventilation. It features multiple connection terminals and various electronic components visible through the mesh.
