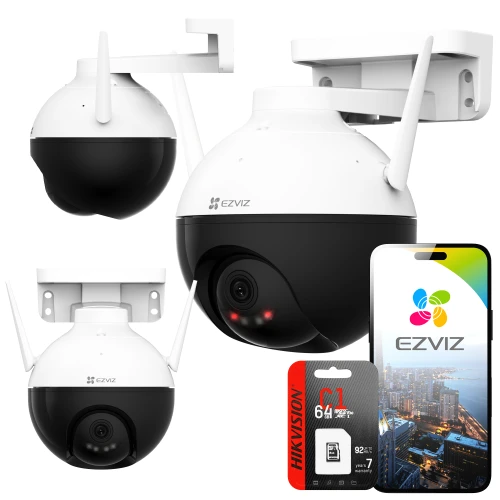

Wireless WiFi Full HD Rotating Camera Ezviz C8T 64GB

• Full HD rotating camera - C8T ( CS-C8T 1080P, 4mm )
• Memory card 64GB - storage device, used to save and store data
• Documentation - User manual, warranty card, adjustments
• Template - Small size template with mounting holes for the camera
• Power supply - A key electronic component that provides power to the device
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera's connectors from moisture

Ezviz products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.



High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The Ezviz C8T ( CS-C8T 1080P, 4mm ) camera records in Full HD resolution. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1MPx ) B: 1920x1080p ( 2MPx ) C: 2048x1536p ( 3MPx ) D: 2560x1440p ( 4MPx ) E: 2560x1960p ( 5MPx ) F: 3840x2160p ( 8MPx )



Motion detection C8T ( CS-C8T 1080P, 4mm ) has a built-in motion detection algorithm in the image. In addition, it allows you to send notifications to your phone or computer. In addition, you can freely set the area you are interested in, so that, for example: you can receive notifications only for motion from the entrance gate. In addition to recording 24/7, the cameras can also record only fragments when motion is detected, which will translate into lower hard drive consumption.



P2P function

In surveillance cameras is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

IP67 weatherproof design This housing protects the C8T ( CS-C8T 1080P, 4mm ) camera from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from your phone and desktop computer Ezviz systems allow you to configure, control and view using Ezviz applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video previews and play back recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

Wide Dynamic Range - That is, high quality in challenging conditions

The WDR (Wide Dynamic Range) function of the C8T ( CS-C8T 1080P, 4mm ) camera is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

Video and audio recording The audio recording function of the Ezviz C8T ( CS-C8T 1080P, 4mm ) camera allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Automatic day/night mode Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Pan-Tilt-Zoom A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of an image. With these functions, the C8T ( CS-C8T 1080P, 4mm ) camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Voice commands

The Ezviz C8T ( CS-C8T 1080P, 4mm ) camera is an advanced monitoring device that fits perfectly into the rapidly growing smart home ecosystem. With its compatibility with popular voice assistants such as Google Home and Amazon Alexa, the C8T camera becomes not only a surveillance tool, but also a focal point for smart home security management.

Micro SD card support

Technical specifications:

Image sensor	CMOS 1/2.7 inch with progressive scanning
Lens	4mm / F1.6 ( viewing angle 87 degrees horizontally / 105 degrees diagonally )
Shutter opening time	Adaptive shutter
Pan and tilt angle	Pan: 352 degrees / Tilt: 95 degrees
Minimum illumination	0.5lx ( F1.6, ARW ON ) / 0lx ( infrared )
Lens mount	M12
Day/night mode	Infrared filter with automatic switching
DNR	Yes
Digital WDR	Yes
Night mode ( Monochrome )	Up to 30 meters.
Video and audio
Max resolution	1920 x 1080
Frame rate	Max. 30fps, adaptive during network transmission
Video compression	Intelligent H.265 / H.264
Bit rate	Ultra HD, HD, Standard, Adaptive bit rate.
Maximum bit rate	2Mbps
Network
Wi-Fi standard	IEEE802.11b, 802.11g, 802.11n
Frequency range	2.4 GHz - 2.4835 GHz
Channel bandwidth	20 MHz
Security	64 / 128-bit WEP, WPA / WPA2, WPA-PSK . WPA2-PSK
Transmission speed	11b: 11Mbps / 11g: 54Mbps / 11n: 72Mbps
Wi-Fi pairing	Access point pairing
Protocol	EZVIZ proprietary cloud service protocol
Interface protocol	EZVIZ proprietary cloud service protocol
Wired network	RJ45 ( 10/100 Mbps adaptive Ethernet connector )
Storage of recordings
Local storage	MicroSD card slot up to a maximum of 256GB (card not included)
Cloud storage	Storage of EZVIZ Cloud service ( Optional paid subscription )
Features
Smart alarm	Intelligent person detection
Custom alarm area	Supported
Audio	Microphone
General features	Anti-Flicker / Dual stream / Control signal / Password protection / Watermarking
General
Ambient conditions	Temperature from -30 to 60 degrees / Humidity 95% or less ( no condensation )
Power supply	DC 12V / 1A
Power consumption	MAX 6W
Dimensions without packaging	158 x 157 x 149mm
