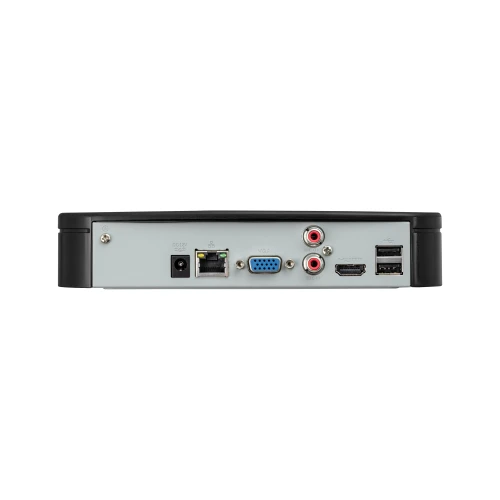

IP Recorder BCS-L-SNVR0801-4KE 8-channel

Here are the main features of the BCS-L-SNVR0801-4KE(2):

• Product line: BCS Line
• System: IP
• Pentaplex function: live viewing / recording / playback / archiving / remote access
• Channels: 8
• Disks: 1
• Disk Capacity: 20 TB maximum
• Recording mode: Continuous, manual, alarm, motion detection, schedule, Ai
• Maximum recording resolution: 12 Mpx
• Input bandwidth: 80 Mbps
• Output bandwidth: 60 Mbps
• Recording bandwidth: 80 Mbps
• Display performance:
  • 1×12M (30fps)
  • 1×8M (30fps)
  • 2×5M (30fps)
  • 3×4M (30fps)
  • 6×2M (30fps)
  • 1×8M Ai (30fps)
  • 1×5M Ai (30fps)
  • 2×4M Ai (30fps)
  • 4×2M Ai (30fps)
• Recording resolution: 12M / 8M / 5M / 4M / 3M / 2M / 720P / D1
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• HDMI output: HDMI 4K
• VGA output: VGA
• HDMI display resolution: 3840×2160 / 1920×1080 / 1280×1024 / 1280×720
• VGA display resolution: 1920×1080 / 1280×1024 / 1280×720
• Output split: 1/4/8/9
• Playback: 1/4/8 channels
• Archiving: Possibility of ripping footage to external media such as USB FLASH, USB HDD
• Users: Up to 128 users
• Interfaces: 2×USB2.0
• Audio input: 1
• Audio output: 1
• Audio compression: G.711A / G.711U / G.726 / PCM
• Support: Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF(S/G/T), support for third-party cameras
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Registration
• Power supply: 12V DC
• Power consumption (without drives): 10W max.
• Operating conditions: -10°C~+55°C, max 93% RH
• Enclosure: Smart
• Dimensions (W×D×H): 205×205×45 mm
• Weight (without drives): 0.5 kg
• Ai - Smart functions from the recorder: SMD Plus
• Ai - Smart functions from cameras: Perimeter protection, SMD Plus
• Ai - Perimeter protection: 4 channels from cameras
• Ai - SMD: 4 channels from cameras / 4 channels from DVR (person/motor vehicle recognition)
