Invisible curtains guarding windows and doors ACD-220 GD SATEL

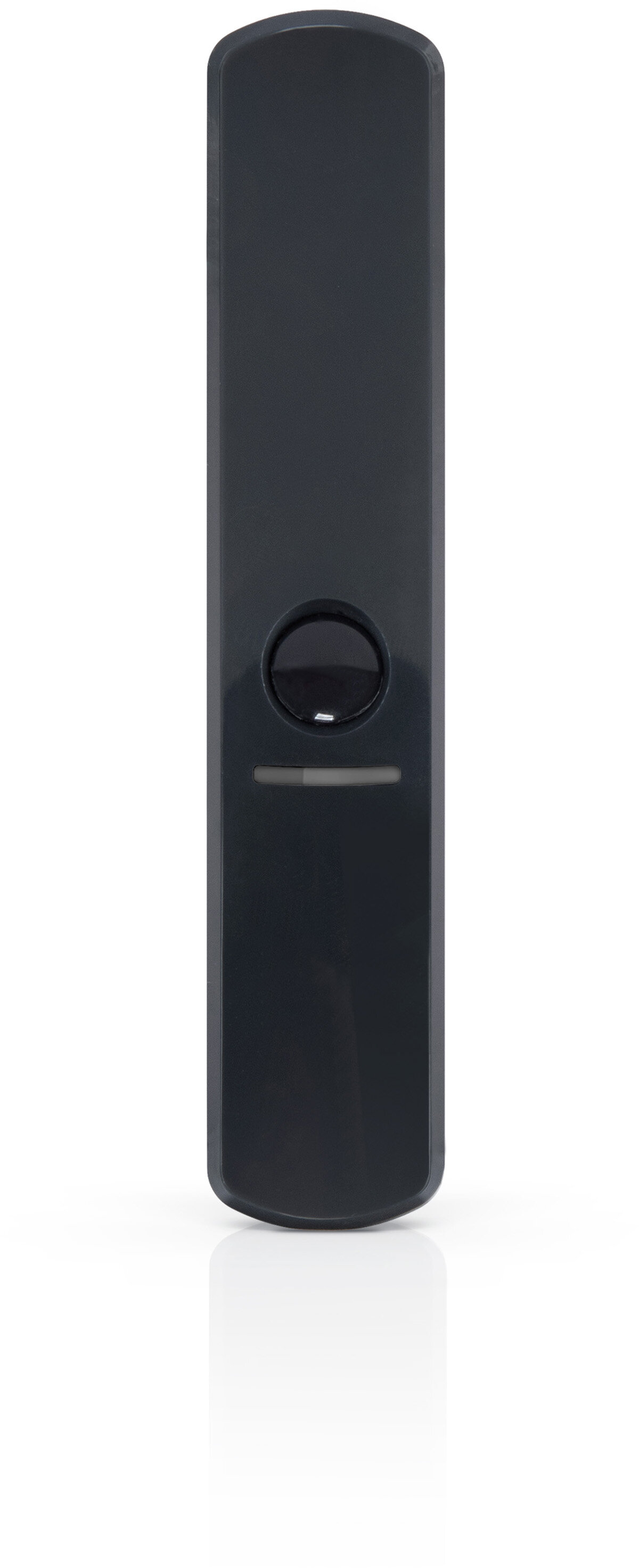

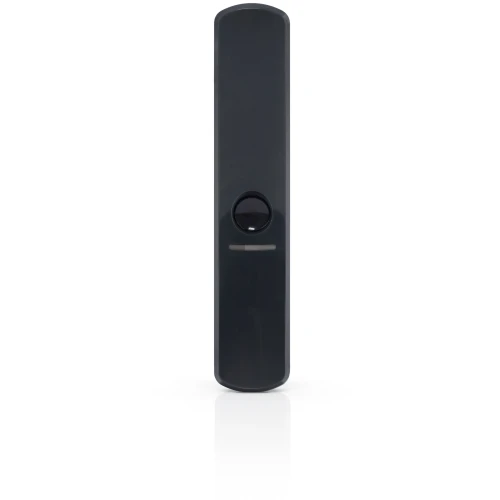

Invisible curtains guarding windows and doors ACD-220 GD

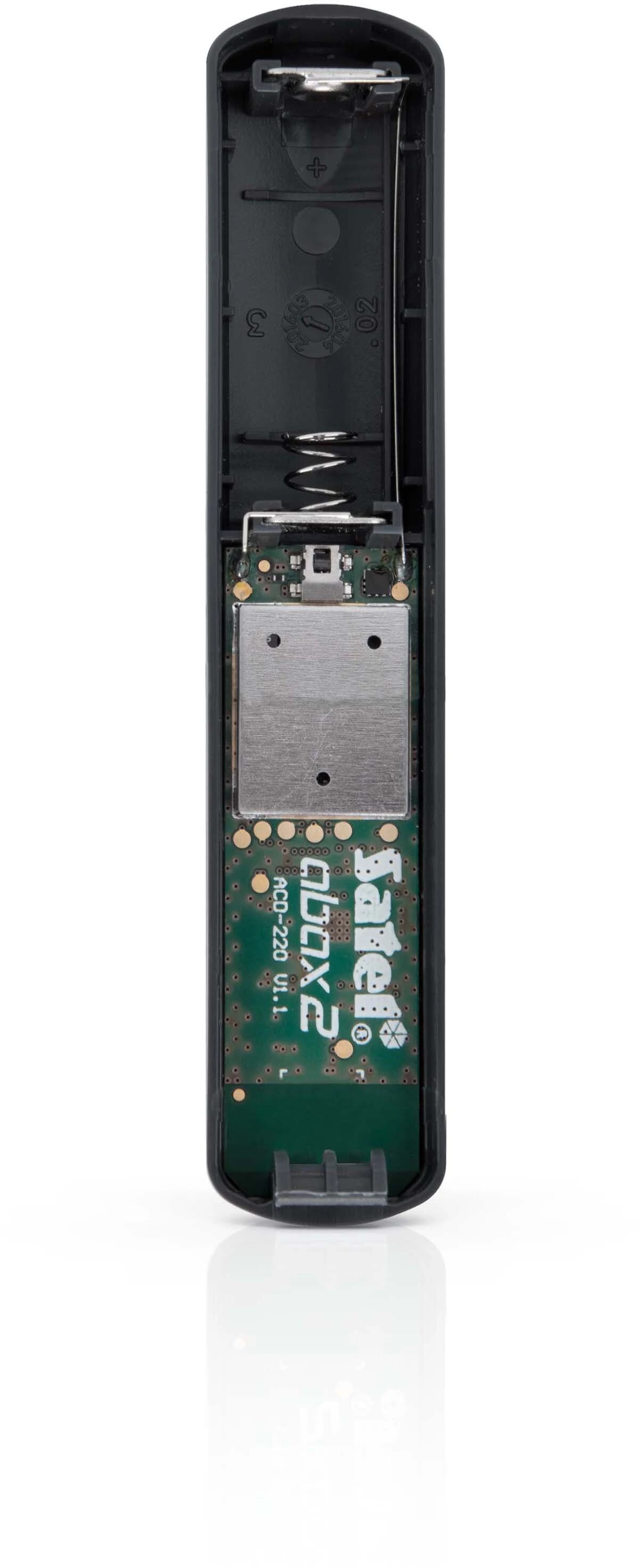

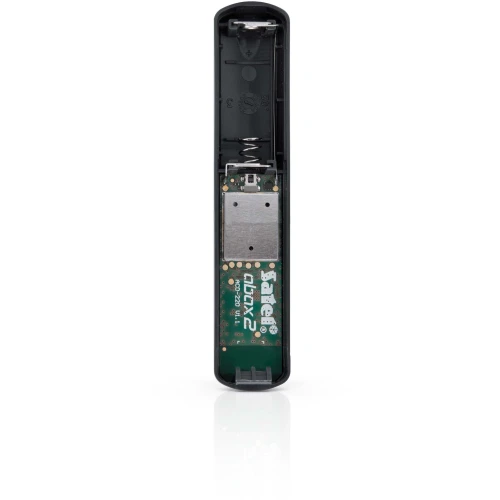

ACD-220 units are simple to install. Their housing is opened with a special tool supplied with the detectors, which prevents them from being scratched. The detectors come with appropriately sized components that allow them to be attached to most types of substrates. The ACD-220 detectors are designed to provide effective protection for the interior of a building without adversely affecting its aesthetics. Their small size makes it easy to install them in window recesses or near doors. The color of the housing can be chosen from three available variants: white, brown and dark gray, making it easy to match the interior design. Due to the nature of the object, it may be better to run wiring, and somewhere else - it may not be possible. Therefore, our indoor curtain detectors provide uncompromising protection wherever an "invisible curtain" is needed. ACD-220 is a wireless curtain motion detector. ACD-220 is designed for indoor use. The device operates as part of the ABAX 2 two-way wireless system.

Main features

• motion detection using a passive infrared (PIR) sensor
• adjustable sensitivity of motion detection
• digital motion detection algorithm
• digital temperature compensation
• lens designed specifically for SATEL short range curtain detectors
• encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
• diversification of transmission channels - 4 channels allowing automatic selection of the one that will allow transmission without interference with other signals in the 868 MHz frequency band
• remote update of detector software
• remote configuration
• built-in temperature sensor (temperature measurement from -10°C to +55°C)
• LED for signaling
• supervision of motion detection system
• "ECO" option for extended battery life
• battery monitoring
• tamper protection against opening the housing and against detachment from the ground
