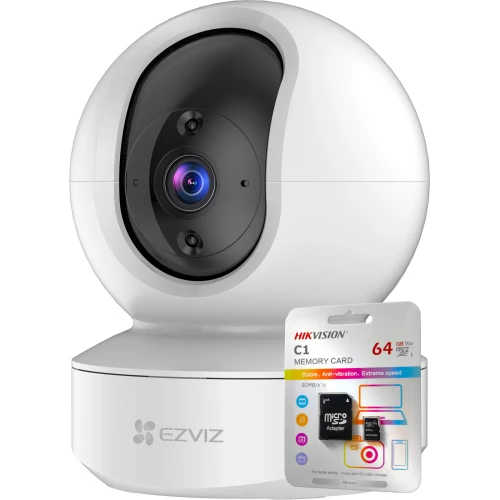

Rotating Full HD IP Camera EZVIZ TY1 360 degrees 64GB

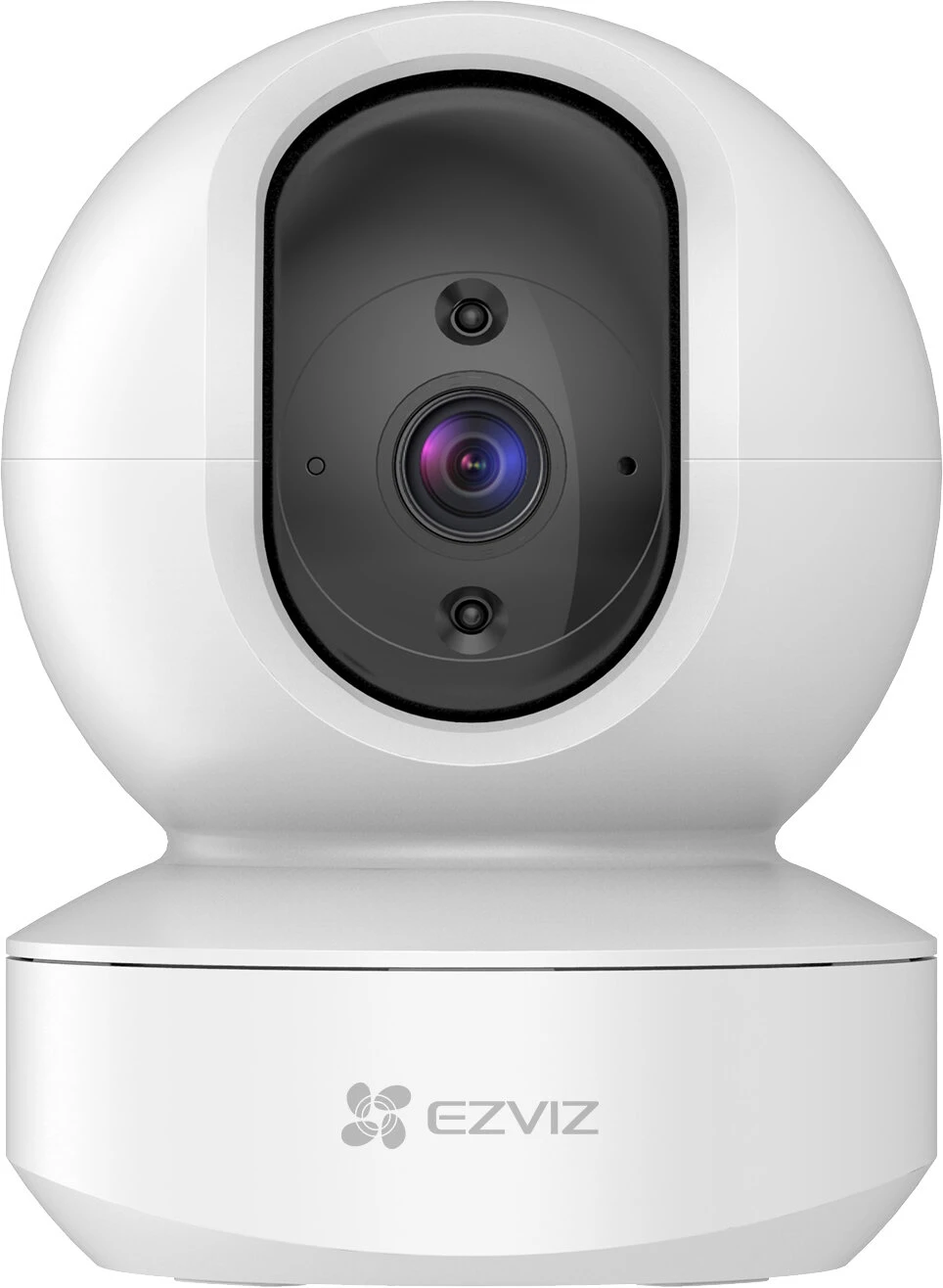

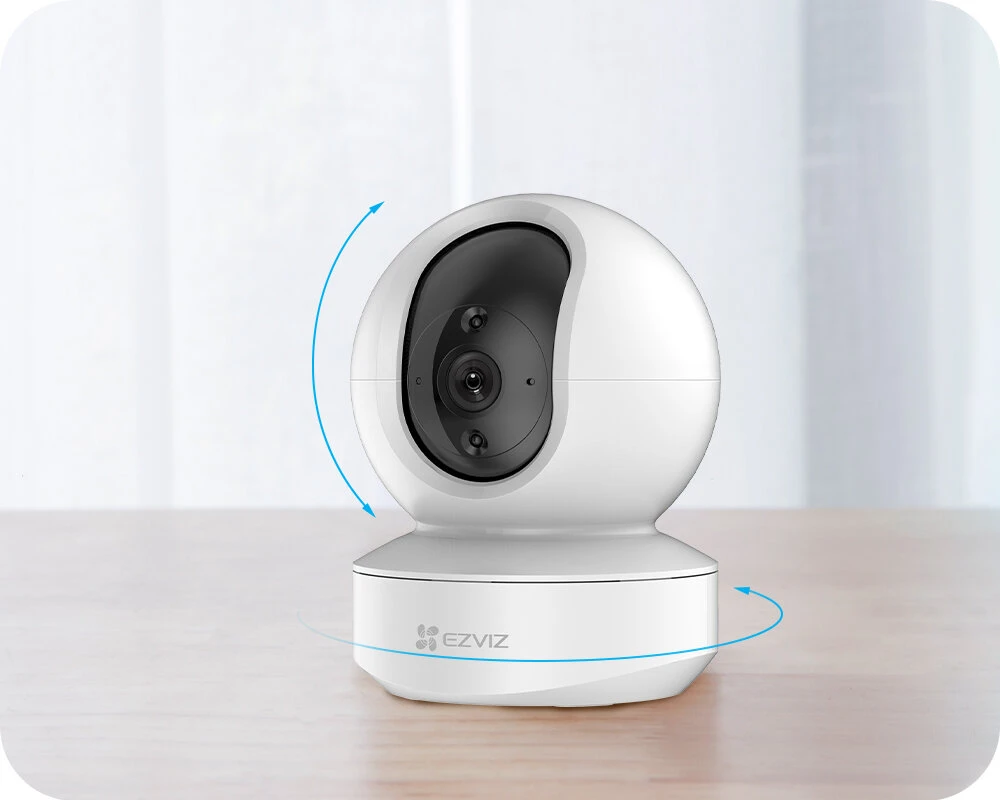

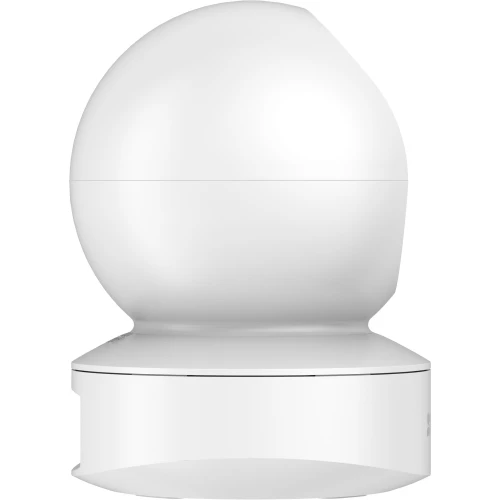

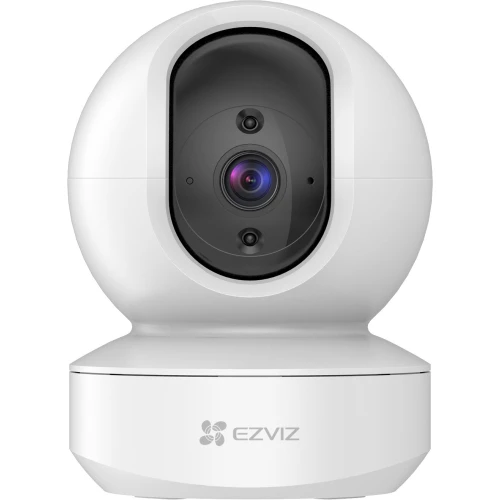

EZVIZ TY1 360-degree full HD IP camera

The EZVIZ TY1 is a great device for monitoring the rooms in your home. The design and compact size of the camera will make it fit into the decor of any room. The 2Mpx sensor is an uncompromising solution in a camcorder of this type, which will ensure that the video footage is captured in high quality with rich details. The camcorder's image orientation configuration allows it to work in almost any setting, whether the device is mounted on the ceiling or standing on furniture. The device also has motion detection, which works based on changes in the image. The tracking function, when motion is detected, starts following the subject, ensuring maximum security. The EZVIZ mobile app also makes the camera's configuration itself extremely simple and intuitive. Thanks to the Wi-Fi module, connecting the device to your home network happens in a flash. All this ensures that the device provides maximum convenience and comfort.

Main features

• 1/3-inch CMOS image sensor with progressive scanning
• Adaptive shutter
• Lens 4mm / F2.4, viewing angle: 85° diagonal, 75° horizontal, 45° vertical
• M12 lens mount
• Day/night mode - Infrared filter with automatic switching
• 3D DNR
• D-WDR
• H.264 video compression
• Video bit rate - Adaptive bit rate
• Maximum resolution - 1920 x 1080
• Frame rate - Maximum 15 frames per second; Adaptive during network transmission
• Smart alarm - Motion detection
• Wi-Fi pairing - Access point pairing
• Protocol - Proprietary protocol of EZVIZ Cloud service
• Interface protocol - EZVIZ Cloud service proprietary protocol

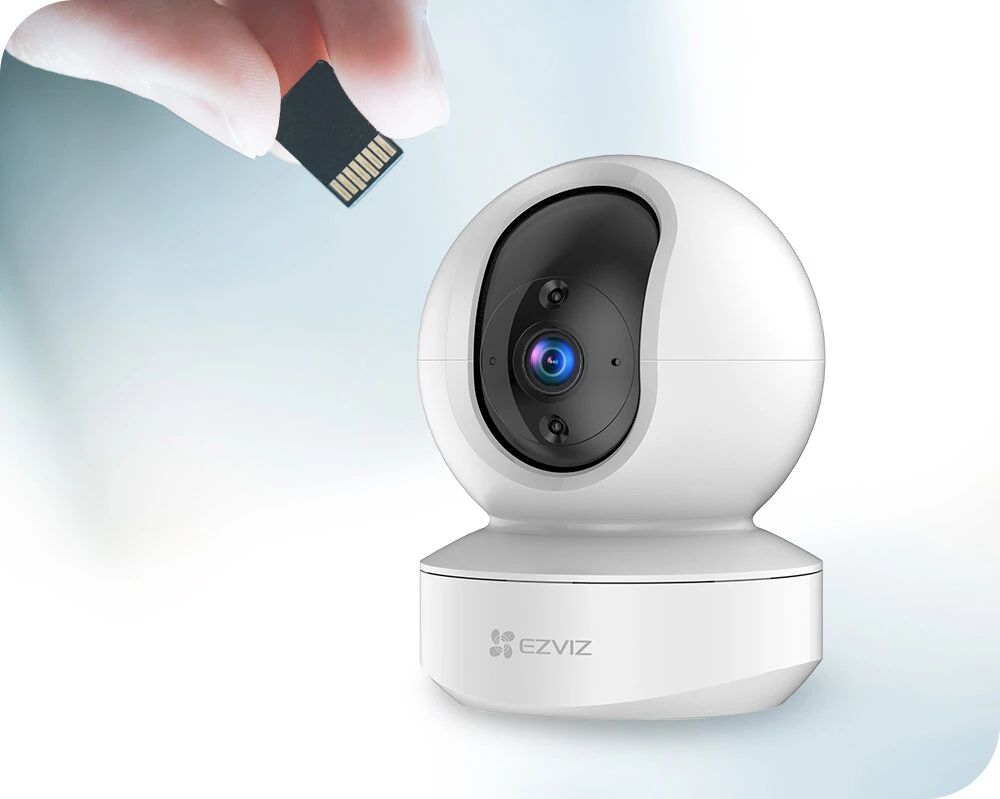

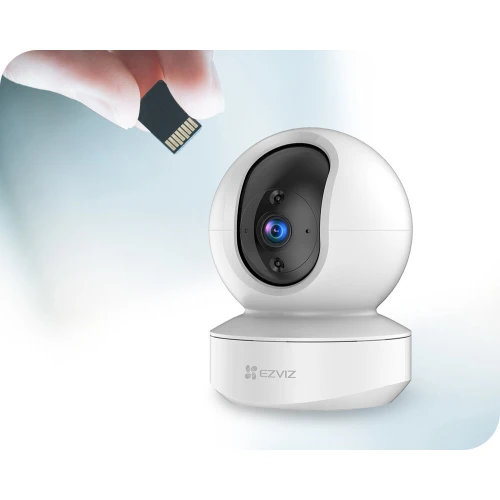

• Storage - MicroSD card slot with a maximum capacity of 256GB
• Power supply - MicroUSB

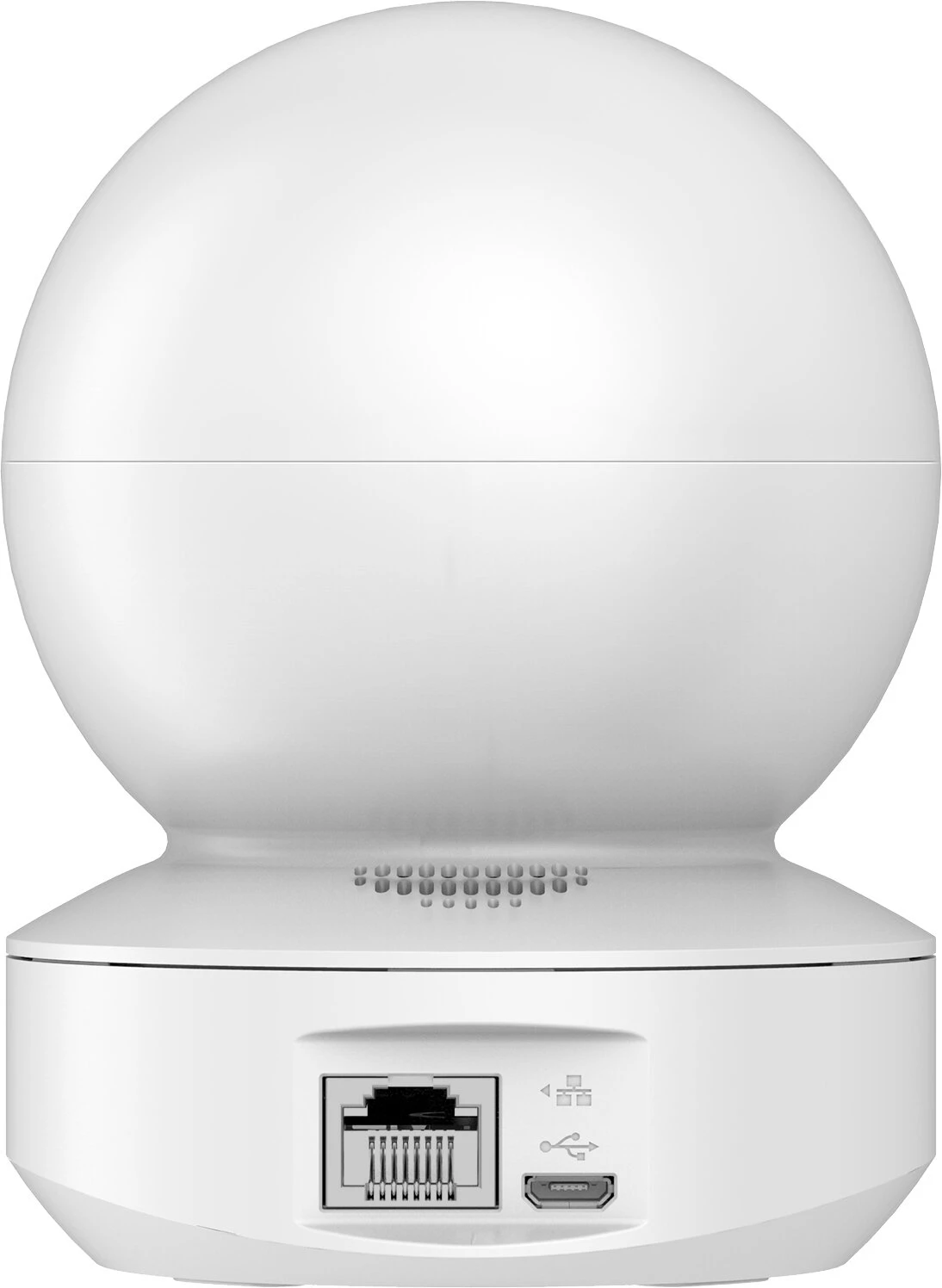

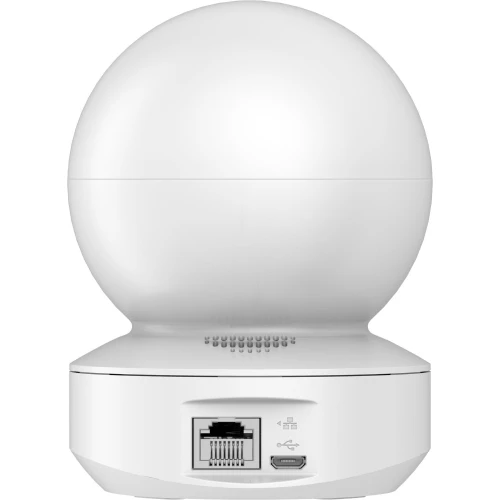

• Wired network - RJ45 X 1 (10/100 Mbps adaptive Ethernet connector )
• IEEE802.11b/g/n standard
• Frequency range: 2.4GHz - 2.4835GHz
• Channel bandwidth: 20MHz support
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission speed: 11b: 11Mb/s, 11g: 54Mb/s, 11n: 72Mb/s
• Temperature: -10C° to 45°C
• Humidity 95% or less
• Power supply 5V DC / 1A
• Power consumption Max. 5W
• Infrared range: 10 meters maximum.
• Dimensions: 88 x 88 x 118.7mm
• Net weight: 259g

TY1 was designed with the greatest possible comfort in mind, so it could not miss the Wifi module, which allows you to set up the camera anywhere without additional installation steps.

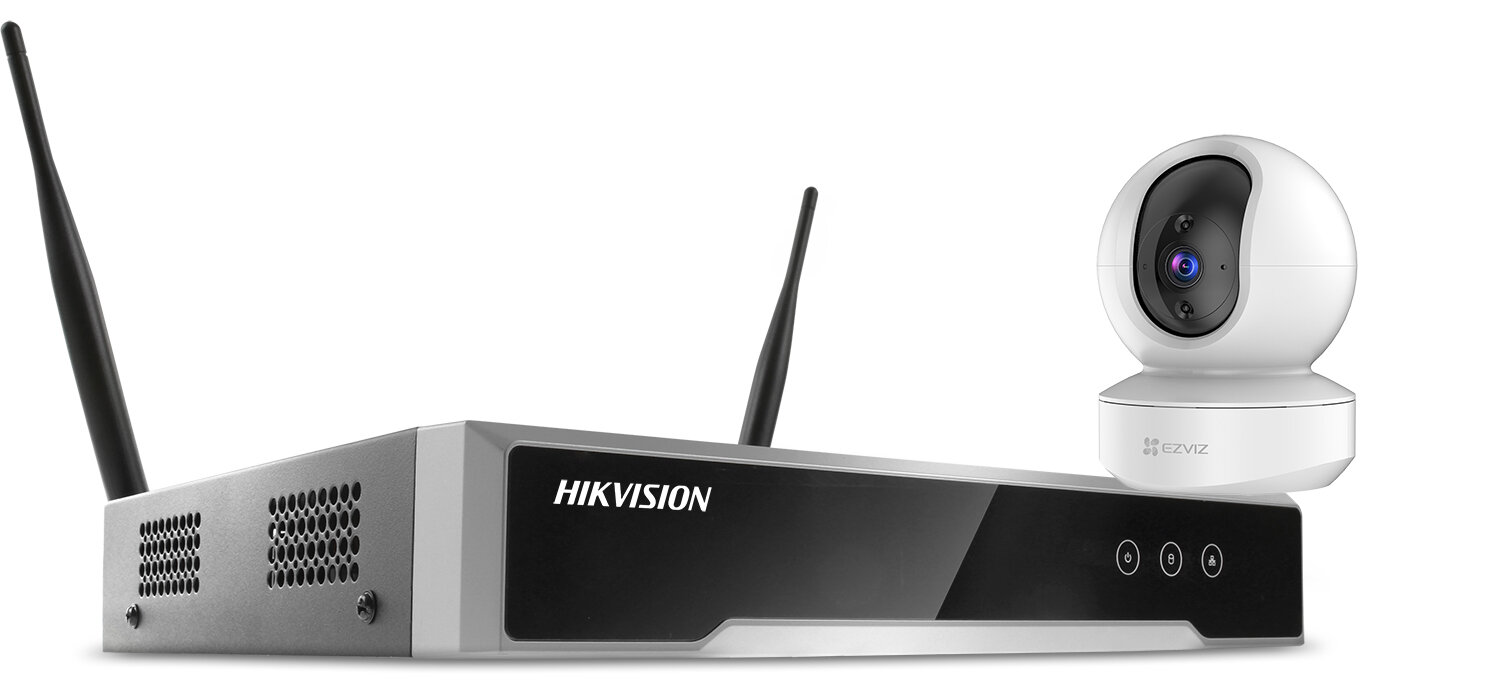

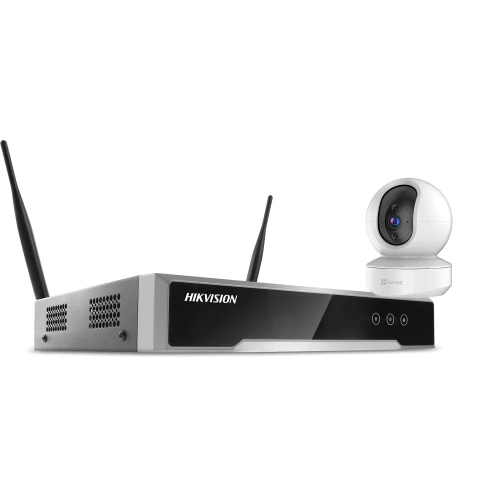

Hikvision DVRs

The camera also works with Hikvision-branded DVRs, so you can easily use it to complement your existing Hikvision monitoring. In addition, nothing prevents you from setting up a multi-camera monitoring system based on EZVIZ cameras and Hikvision DVR.

Voice commands

Works with Google Home and Amazon Alexa system

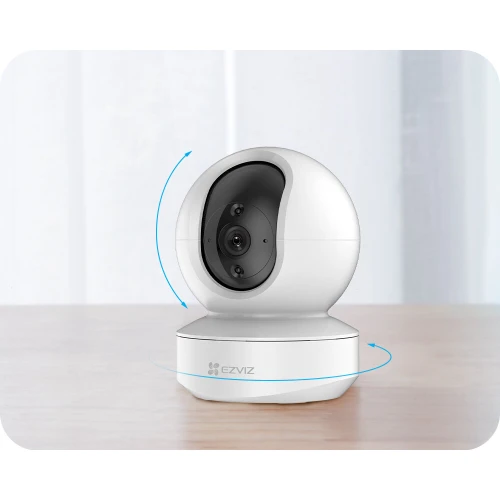

Tracking when motion is detected

The device, thanks to smart software, is able to track captured objects or people, for safer surveillance



Two-way audio communication

A microphone and speaker have been included in the camera, allowing the device to support two-way communication available in the user panel of the EZVIZ mobile app

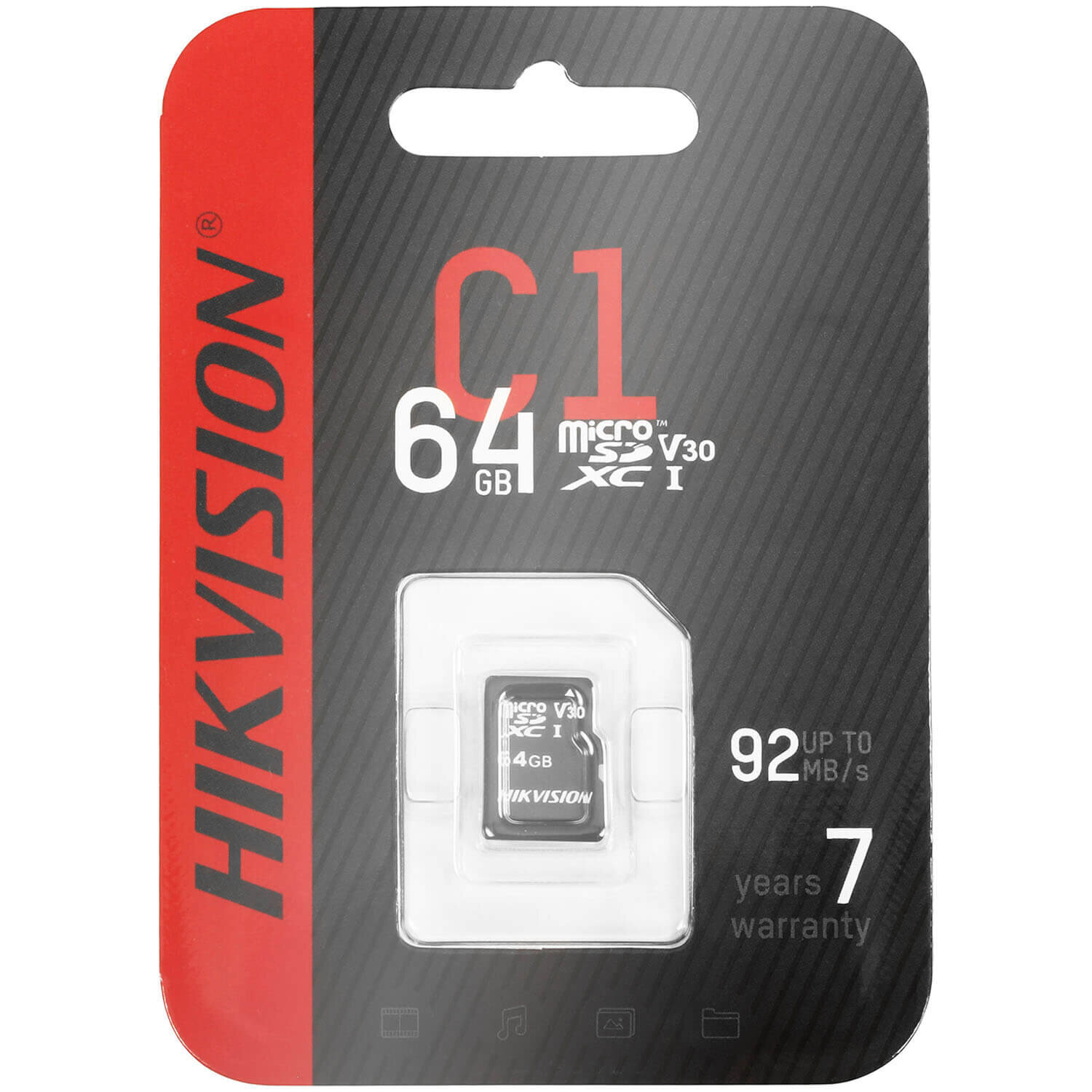

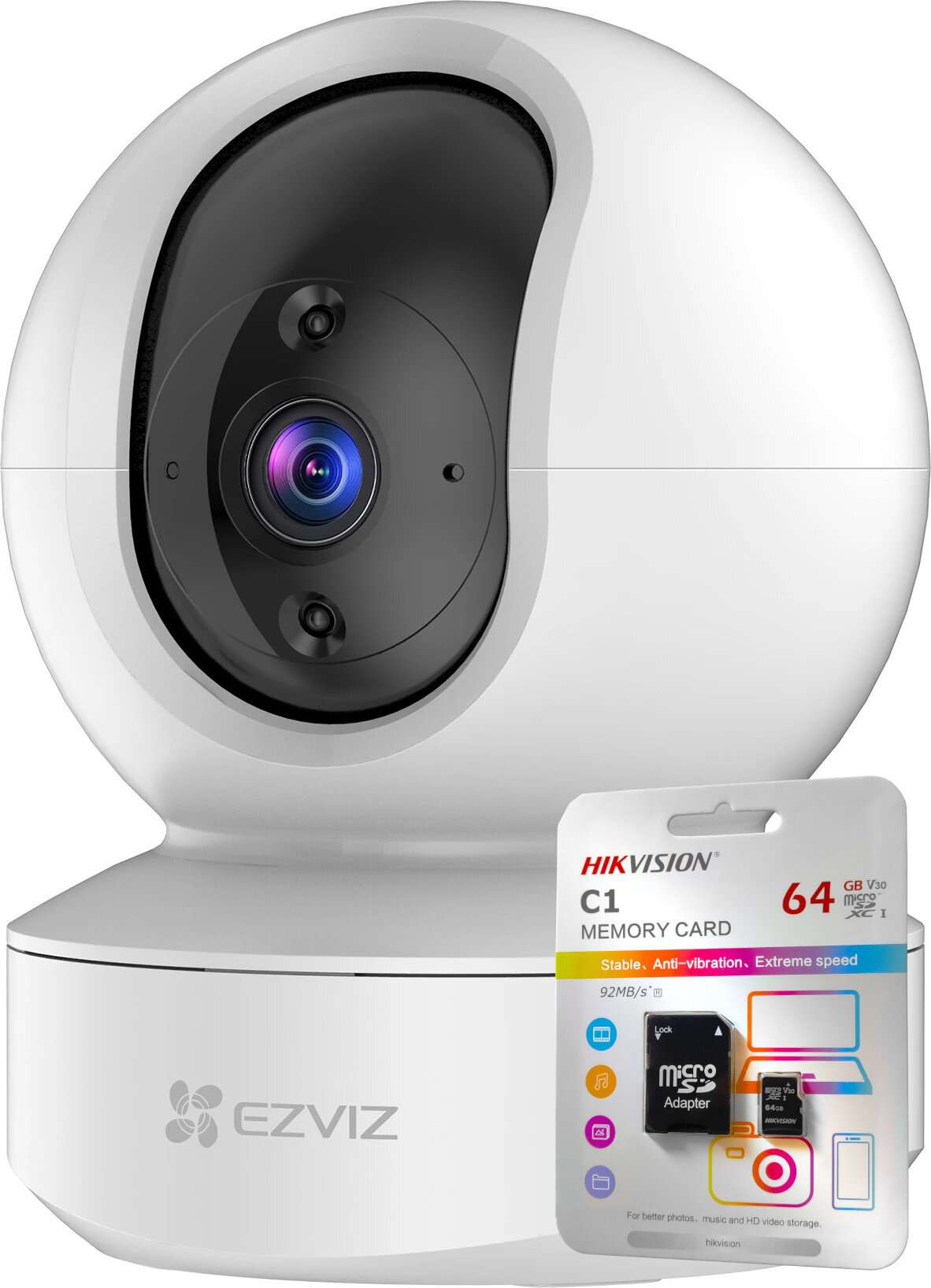

Hikvision HS-TF-C1(STD)/64G/Adapter 64GB microSD (SDHC) memory card
