EURA ADP-64A3 Intercom - white, four-family, hands-free, 2 entrance support, RFID reader

The image shows a sleek, modern intercom system with a brushed metal outdoor panel featuring four blue-lit buttons and a card reader. Accompanying the panel are four white indoor units with speaker grills and control buttons, along with a set of blue key fobs.
  • Manufacturer

    EURA
  • Product Code

    ADP-64A3

  • Warranty

    24 miesiące

  • Number of subscribers: 4

Ask about this product show form

Files attached to the product show files

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

173,67 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

Product Description

EURA ADP-64A3 intercom - white, four-family, hands-free, support for 2 entrances, RFID reader

Four-family intercom - Eura ADP-64A3, is equipped with four white hands-free uniphones, an external cassette with built-in proximity key reader, and a DIN rail power supply 12V DC 4,5A. The ADA-12A3 handsfree uniphone has the function of operating two entrances, thus allowing to open the gate and, for example, the gate. In addition, it is equipped with a button for discreet eavesdropping on the surroundings of the external cassette and call volume control. The ADA-64A3 four-way outdoor cassette of the intercom is designed for surface mounting. Made of aluminum alloy and protected by an additional canopy, it guarantees resistance to adverse weather conditions. Entrance to the premises can be made by means of a proximity reader supporting key fobs and cards working in the Unique RFID 125kHz standard.

Technical specification

Kit
Power supply voltage12 V DC
Power consumption - standby / operation1.5 W / 8 W
Number of connecting wires4 (for one of the premises)
Number of supported outputs2
External cassette
Power consumption (standby / operation)1.2W / 5W
Types of outputsOutput 1: 12V DC 350 mA
Door lock activation time1 s / 5 s (RFID reader control) or momentary pushbutton (uniphone control)
Max. number of tenants4
Housing materialAluminum alloy
Proximity key ring readerYes
Max. radiated power<5mW
Frequency of operation125kHz (UNIQUE)
Mounting method of the external cassetteSurface mounted
Protective canopyYes
Protection ratingIP44
Temperature range of the cassette-18ºC ~ +40ºC
Dimensions of external cassette (H x W x D)198 x 82 x 52 mm
Net weight of the cassette570 g
Uniphone
Number of gong melodies1
Power consumption (standby / operation)0.2W / 2W
Types of outputsOutput 1: N.O. 1A / 24V DC Max
Protection degreeIP20
Temperature operating range of uniphone0ºC ~ +55ºC
Uniphone dimensions (H x W x D)137 x 89 x 23 mm
Net weight of uniphone160 g
Logistics data
Package dimensions ( H x W x D)155 x 210 x 95 mm
Type of packagingCarton
Gross weight1500 g

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

The image shows a complete intercom system set, featuring a sleek, black outdoor panel with a keypad and display screen. Accompanying the panel are five white indoor units, a set of key fobs, a screwdriver, and an additional electronic component.

in stock Shipping 24h

Digital Intercom Set ELFON OP-255R-G Graphite Surface-Mounted, 6x OP-U7 White

  • 1x OP-255R-G panel module
  • 1x OP-ON1-G surface-mounted frame
  • 1x AC-20 power supply
  • 6x OP-U7 digital intercom
  • 6x 125kHz Unique RFID key fob

305,54 €

pcs.

Add to Watchlist

The image shows an analog intercom set featuring a sleek, gray outdoor unit with two nameplates and a speaker grille. Accompanying the outdoor unit are two white indoor handsets and a compact control module.

in stock Shipping 24h

ELFON KEN-2 Intercom Set Silver, 2x A-U1/3 White Handset, EWD-10 Power Supply

  • 1x KEN-2 panel module
  • 1x EWD10 power supply
  • 2x A-U1/3 digital intercom
  • 1x User manual

73,28 €

pcs.

Add to Watchlist

Digital intercom set featuring a sleek keypad panel with a display and multiple white indoor units. Includes key fobs, a screwdriver, and an additional module for enhanced functionality.

in stock Shipping 24h

ELFON OP-255R-P Gray Flush-Mounted Digital Intercom Set, 8x OP-U7 White

  • 1x OP-255R-P panel module
  • 1x AC-20 power supply
  • 8x OP-U7 digital intercom
  • 8x ATLO-504/G proximity key fob
  • 1x ELFON service key

395,82 €

pcs.

Add to Watchlist

The image shows a digital intercom set featuring a sleek, gray keypad panel with a display screen and multiple white indoor units. Included are key fobs, a screwdriver, and an additional electronic component for installation.

in stock Shipping 24h

Digital Intercom Set ELFON OP-255R-P Gray Surface-Mounted, 6x OP-U7/3 White

  • 1x OP-255R-P panel module
  • 1x OP-ON1-P surface-mounted frame
  • 1x AC-20 power supply
  • 6x OP-U7/3 digital intercom
  • 6x ATLO-504/G proximity key fob

312,89 €

pcs.

Add to Watchlist

The image shows a digital intercom set featuring a sleek keypad panel with a display screen and six white indoor units. Included are key fobs, a screwdriver, and an electronic module for installation.

in stock Shipping 24h

Digital Intercom Set ELFON 2x OP-SL255R-G Graphite Flush-Mounted, 6x OP-U7 White

  • 2x OP-255R-G panel module
  • 1x AC-20 power supply
  • 6x OP-U7 digital intercom
  • 6x ATLO-504/G proximity key fob
  • 1x ELFON service key

596,60 €

pcs.

Add to Watchlist

The image shows a digital intercom set featuring a sleek, black keypad panel with a display screen and four white indoor units. Included are four key fobs, a screwdriver, and a power supply module.

in stock Shipping 24h

ELFON OP-255R-G Graphite Flush-Mounted Digital Intercom Set, 4x OP-U7/3 White

  • 1x OP-255R-G panel module
  • 1x AC-20 power supply
  • 4x OP-U7/3 digital intercom
  • 4x ATLO-504/G proximity key fob
  • 1x ELFON OP-ON1-G surface-mounted frame

342,75 €

pcs.

Add to Watchlist

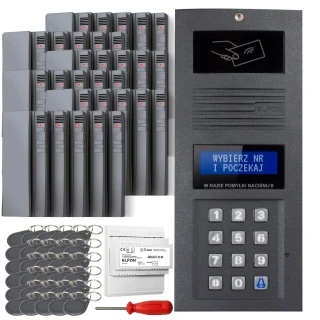

The image shows a complete intercom system set, featuring a sleek, metallic keypad panel with a card reader and multiple key fobs. Included are several mounting components and a screwdriver for installation.

in stock Shipping 24h

Digital Intercom Set ELFON OP-255R-G Graphite Flush-Mounted, 30x OP-U7-S Gray

  • 1x OP-255R-G panel module
  • 1x AC-20 power supply
  • 30x OP-U7 digital intercom
  • 30x ATLO-504/G proximity key fob
  • 1x ELFON OP-ON1-G surface-mounted frame

729,84 €

pcs.

Add to Watchlist

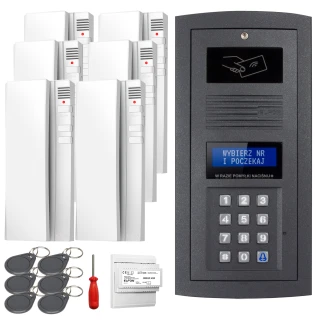

The image shows a digital intercom set featuring a sleek black keypad panel with a display screen and multiple white indoor units. Included are key fobs, a screwdriver, and an electronic module for installation.
