Switch POE GTX-B1-26-242G 24-PORT

The image shows a black 24-port PoE network switch with a sleek, rectangular design. It features multiple Ethernet ports on the front panel for efficient connectivity and network management.
The image shows a black 24-port PoE network switch with a sleek, rectangular design. It features multiple Ethernet ports on the front panel for efficient connectivity and network management.

Photo gallery

  • Product Code

    GTX-B1-26-242G

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

284,63 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

GTX-B1-26-242G 24-PORT POE Switch.

Thanks to its reliability and provision of high-quality transmission, the GTX-B1-26-242G 24-port PoE switch is an ideal solution for IP CCTV applications. The ability to power PoE, according to the 802.3af/at standard, makes the device even more versatile and easier to install. Note: Enabling the Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps.


Technical specifications:



LAN ports:
  • 24 x RJ45 ( 24 x PoE (802.3af/at) ),
  • 2 x RJ45 - Uplink
Web / console management:No
LEDs:Power, PoE, Link/Act, Speed
Transmission speed:
  • 10 / 100 / 1000 Mbps : 2 x LAN Port - Uplink,
  • 10 / 100 Mbps : 24 x LAN Port & PoE
Operating modes:
  • NOM - Normal - the device works like a normal PoE switch.
  • VLAN - ports 1 ... 24 are isolated from each other and work separately with ports 25, 26
  • SUPM - Extend - Range : 250 m @ 10 Mbps
Maximum output power:30 W / PoE port - Ports 1 ... 24
Maximum total power:300 W
MAC address table:8k
Selected features:
  • Auto MDI/MDI-X detection - automatically detects data transmission mode
  • Full Duplex : IEEE802.3x,Half Duplex : Back Pressure
  • Supports Auto-learning and Auto-aging of MAC addresses
  • PD Alive mode - monitors ports that are powering PoE devices and automatically restarts by cutting off power when an unresponsive device is detected
  • MTBF (mean time between failures): 50000 h
Certifications:CE, FCC Class B
Protections:Surge protection ± 4 kV
Power supply:100 ... 265 V AC
Operating temperature:-10 °C ... 45 °C
Weight:3.37 kg
Dimensions:440 x 290 x 45 mm, RACK 19", 1U

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

Zamknij

Powiadom o dostępności

Jeśli produkt którego szukasz nie jest obecnie dostępny, wpisz swój adres e-mail. Jak tylko się pojawi na stanie, od razu zostaniesz o tym poinformowany

Przepisz kod z obrazka

weryfikator

Zamknij

Similar products in this category

The image shows a Hikvision 4-Port 10/100M PoE switch, designed for efficient power and data transmission over Ethernet cables. The compact, gray device features four PoE ports and one uplink port, ideal for small network setups.

in stock Shipping 24h

Switch POE DS-3E0106P-E/M 4-port Hikvision

  • High priority ports : port 1, 2
  • PoE power mode : The device supports 8 - pin power supply

36,53 €

pcs.

Add to Watchlist

A sleek, black metal enclosure designed for housing network equipment, featuring a minimalist design with a small label on the front. The unit is suitable for organizing and protecting electronic components in a professional setting.

in stock Shipping 24h

Switch PoE BCS-UPS/IP16Gb/E-S/RACK5U

  • space for 2 18 Ah batteries
  • space for a video recorder (NVR)
  • up to 40W power on the remaining PoE ports (LAN_1 to LAN_8)
  • possibility to turn off power on selected PoE ports

750,21 €

pcs.

Add to Watchlist

The image shows a black, five-port unmanaged network switch with LED indicators for power and activity status. It features multiple Ethernet ports, including one with PoE capability, suitable for various networking needs.

in stock Shipping 24h

5-port unmanaged switch (PoE) BCS-L-SP0401G-1SFP(2)

  • Unmanaged PoE switch
  • Number of ports: 4x PoE
  • Throughput: 6.8 Gbps
  • Max power: 60W
  • Power supply: 53V DC input

105,90 €

pcs.

Add to Watchlist

Two black metal connectors with a textured grip and threaded interior are shown. Each connector features a sealing rubber gasket for secure attachment.

in stock Shipping 24/48h

Plug with sealing rubber F/6.8-OXY*P100

14,24 €

szt

Add to Watchlist

A sleek, circular UniFi U6 Lite access point with a minimalist design and a subtle logo in the center. The device features a smooth, white finish, ideal for blending into modern interiors.

Product temporarily unavaliable

UNIFI-U6-LITE UBIQUITI Access Point

  • Frequency range: 2.4 GHz / 5 GHz
  • Can be mounted on the wall or ceiling
  • UniFi WiFi Enterprise System
  • Room and range maps
  • PoE power supply

165,63 €

pcs.

No product

Add to Watchlist

The image shows a black industrial PoE switch with 24 Ethernet ports and 2 SFP ports, designed for efficient network connectivity. The front panel features LED indicators for easy monitoring of network activity.

Product temporarily unavaliable

Dahua PoE Switch 24-Port S4101-24ET2GF-360-C

  • Transmission speed:
    • 10 / 100 Mb/s : 24 LAN & PoE Ports,
    • 10 / 100 / 1000 : 2 RJ45 Ports (Uplink),
    • 1000 : 2 SFP Ports (Uplink)
  • Maximum total power: 360 W
  • MAC address table: 16k

756,26 €

szt.

No product

Add to Watchlist

A compact black industrial network switch featuring five Ethernet ports and LED indicators for power and connectivity status. The device is designed for efficient data management in industrial settings, with a robust metal casing for durability.

in stock Shipping 24/48h

Industrial Switch PFS3005-5GT-V2 5-port Dahua

  • Power supply: 5 VDC/ 300 mA
  • Number of ports: 5 xRJ45- 10/100/1000
  • Electrostatic discharge protection

19,07 €

szt

Add to Watchlist

The image shows a Hikvision network switch with 24 Ethernet ports and additional SFP slots for fiber connectivity. The device has a sleek, rectangular design with a dark gray finish and ventilation on the sides.

Product temporarily unavaliable

Switch DS-3E0524TF 24-port SFP Hikvision

405,93 €

szt

No product

Add to Watchlist

A sleek black PoE switch featuring four Ethernet ports and LED indicators for connectivity status. The compact design is ideal for efficient network management in various settings.

in stock Shipping 24/48h

Switch POE GTX-A1-06-42 4-PORT

43,19 €

szt

Add to Watchlist

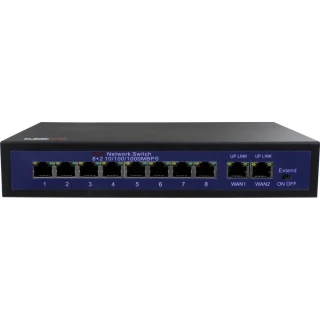

The image shows a 10-port network switch with eight PoE ports and two uplink ports, supporting speeds of 10/100/1000 Mbps. The front panel features labeled ports for easy connectivity and an on/off switch for power management.
