Electromagnetic latch R4-12.10

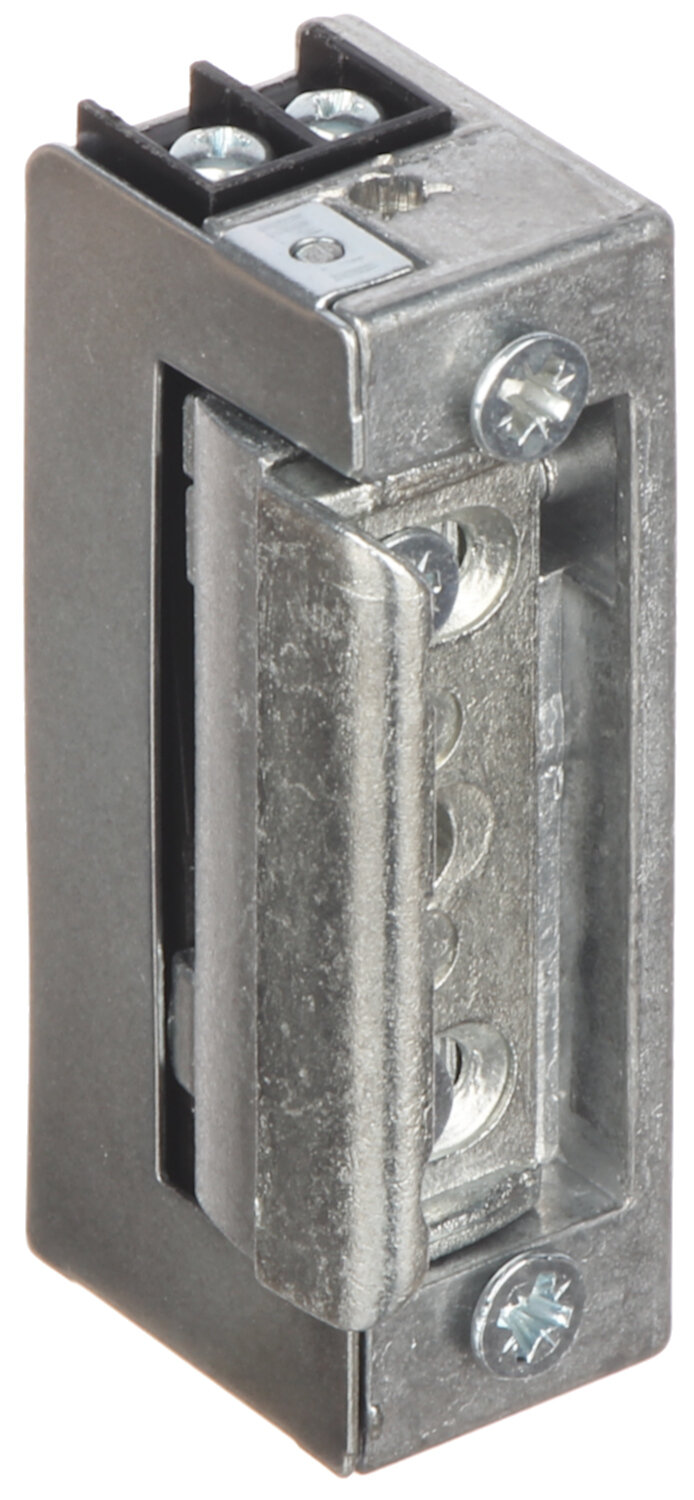

The image shows a metallic electromagnetic door strike with a robust design, featuring screw terminals for secure electrical connections. It is designed for use in access control systems, providing reliable locking and unlocking mechanisms.
The image shows a metallic electromagnetic door strike with a robust design, featuring screw terminals for secure electrical connections. It is designed for use in access control systems, providing reliable locking and unlocking mechanisms.

Photo gallery

  • Product Code

    R4-12.10

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

17,46 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

A sturdy, rectangular metal mounting bracket with a sleek, gray finish designed for secure installation. It features pre-drilled holes and bolts for easy attachment and stability.

R3-KAS.U-M cassette

A metallic door strike plate with a rectangular cutout and multiple screw holes for secure installation. The sleek, silver finish enhances durability and complements modern door hardware.

R3-KAS.US-C label cassette

Product Description

Electromagnetic catch R4-12.10

Electromagnetic catch type R4-12.10 is designed for doors and wickets made of metal sections, for cooperation with latch and lock or latch lock.


Technical specifications:



Rated voltage:10 V ± 2 V AC/DC
Current consumption:530 mA AC / 660 mA DC
Application:right hand door / left hand door
Locking latch:No
Memory function:No
Reverse operation:No
Slackadjustment:Yes
Permissible pressure on the door during latch release:30 N
Permissibledoor load acting on the striker:3000 N
Permissibletime of continuous operation:30 minutes
Weight:0.16 kg
Dimensions:21 x 29 x 67 mm
