DRL-24V120W-1EN LYTE II Switching Power Supply

The image shows a Delta Lyte II 120W power supply with a sleek, metallic casing and ventilation holes on the side. It features adjustable voltage settings and multiple connection terminals for efficient power management.
  • Product Code

    DRL-24V120W-1EN

  • Warranty

    24 miesiące


Ask about this product show form

    Price (Incl. VAT):

    41,81 €

    Add to Watchlist

    Do you represent a budgetary unit?
    Check out the deferred payment option.

    CA Raty

    Product Description

    Switching power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

    Power supply type:Impulse
    Power supply voltage:90 ... 264 V AC
    Output voltage:24 V DC
    Output voltage adjustment:21.6 ... 26.4 V DC
    Current capacity of the power supply:5 A
    Power supply output:120 W
    Number of outputs:2 pcs.
    Efficiency:88.5 %
    Housing type:DIN
    Protections:
    • Short circuit
    • Overload
    • Surge protection
    • Temperature
    Operating temperature / relative humidity:-40 °C ... 70 °C / 20 ... 95 %
    Weight:0.45 kg
    Dimensions:123.6 x 116.8 x 30 mm

    Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

    Similar products in this category

    A black power strip featuring three European-style sockets and two USB ports, accompanied by a long power cord with a plug. The strip includes a red power switch for easy on/off control.

    in stock Shipping 24/48h

    Power Strip PR-1.5M-3G-SW/USB/B (3 OUTLETS + 2 USB) 1.3m

    • Rated voltage: 220 ... 240 V AC / 50 Hz
    • Total maximum current: 10 A
    • Maximum total load: 2500 W
    • Cable length: 1.3 m
    • Wire cross-section: 3 x 1.5 mm²

    9,19 €

    szt.

    Add to Watchlist

    A rectangular, gray power supply unit with input and output specifications printed on its surface, featuring red and blue wires for connectivity. The unit is designed for converting AC to DC power, suitable for various electronic applications.

    in stock Shipping 24/48h

    Switching power supply 24V/1.5A/GPV

    12,63 €

    szt

    Add to Watchlist

    A black CyberPower UPS with a sleek design features LED indicators and multiple ports for connectivity. The unit is designed to provide reliable power backup and protection for electronic devices.

    in stock Shipping 24/48h

    UPS power supply UT2200EG-FR/UPS 2200VA CyberPower

    276,82 €

    szt

    Add to Watchlist

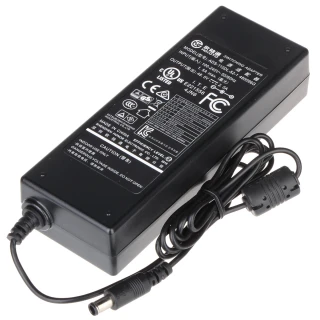

    The image shows a black rectangular switching adapter with various certification labels and specifications printed on its surface. It features a connected power cord with a cylindrical connector at the end.
