Puvire PE13.5 13.5kW 3-phase power generator unit

Puvire generators

Generators are some of the most indispensable devices in both households and businesses. Nowadays, securing the supply of electricity is becoming essential for peaceful operation or business. To meet the expectations of our customers, based on the range of Yamaha industrial engines, we have designed and developed generators for professional use. Powered by a 4-stroke OHV engine with capacities of 402 or 720 cm³, they provide quiet, ecological and more efficient operation than other solutions available on the market. Their main advantages include the use of top-of-the-line Yamaha engines, MeccAlte alternators and numerous high-quality components. Designs from the ground up and many hours of testing by both engineers and end users have led to the introduction of many practical and innovative solutions. Noteworthy is the external fuel tank, providing hours of operation and the ability to maintain a supply of fuel without overflowing. The high versatility of Puvire units makes it easy to customize them for individual applications, such as automatic start-up during power shortages or adaptation to gaseous fuel.

Characteristics:

• Maximum power of the combustion engine: 17.2 kW/ 23.3 hp@3600 rpm
• Maximum power for 400 V AC: 14.2 kVA (cos φ 0.8)
• AC sockets for 400 V AC: 1 x 32A/400V - IP44
• AC sockets for 230 V AC : 2 x 16A/230V 2P+Z - IP44 and 1 x 16A/230V 3P - IP44
• Generator: MeccAlte ET20F-200
• Internal combustion engine: Yamaha EH 72
• Engine capacity: 720 cm³
• Fuel tank capacity: replaceable 20 dm³ canister
• Operating time for 75-85% power: gasoline, about 4-5 hr
• Dimensions (L x W x H): 850 mm (1024 with tank) x 570 mm x 700 mm
• Dry weight (without fuel): 138 kg

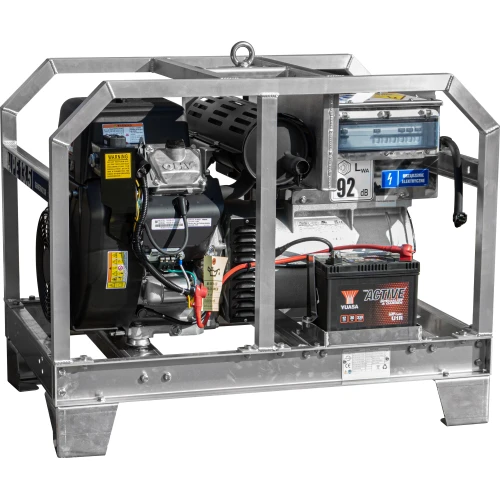

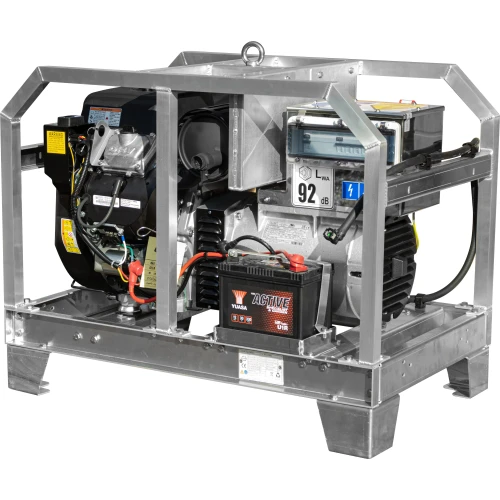

Puvire PE13.5

Powerful single-phase and three-phase power unit, based on a Yamaha EH series engine manufactured in Japan, with a capacity of 720 cm³. The model comes standard with electric start and a portable fuel tank with a capacity of 20 liters. Factory equipped with four AC outlets with built-in automatic voltage regulation - AVR. One of the most efficient and economical units in its class. The use of a combination of welded and bolted frame ensures not only ease of handling by removing the top section, but also allows optimal load distribution during transport.

Additional equipment:

• Hour counter
• Oil alarm

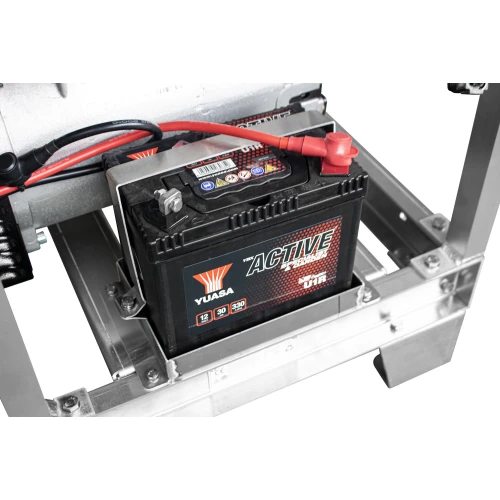

• Battery
• Overload protection
• Residual current circuit breaker, 3-phase
• Yamalube oil

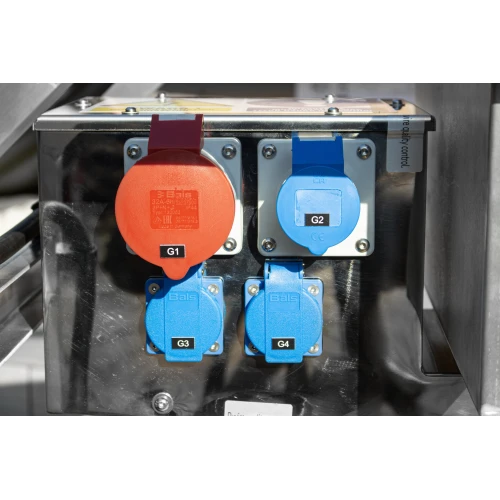

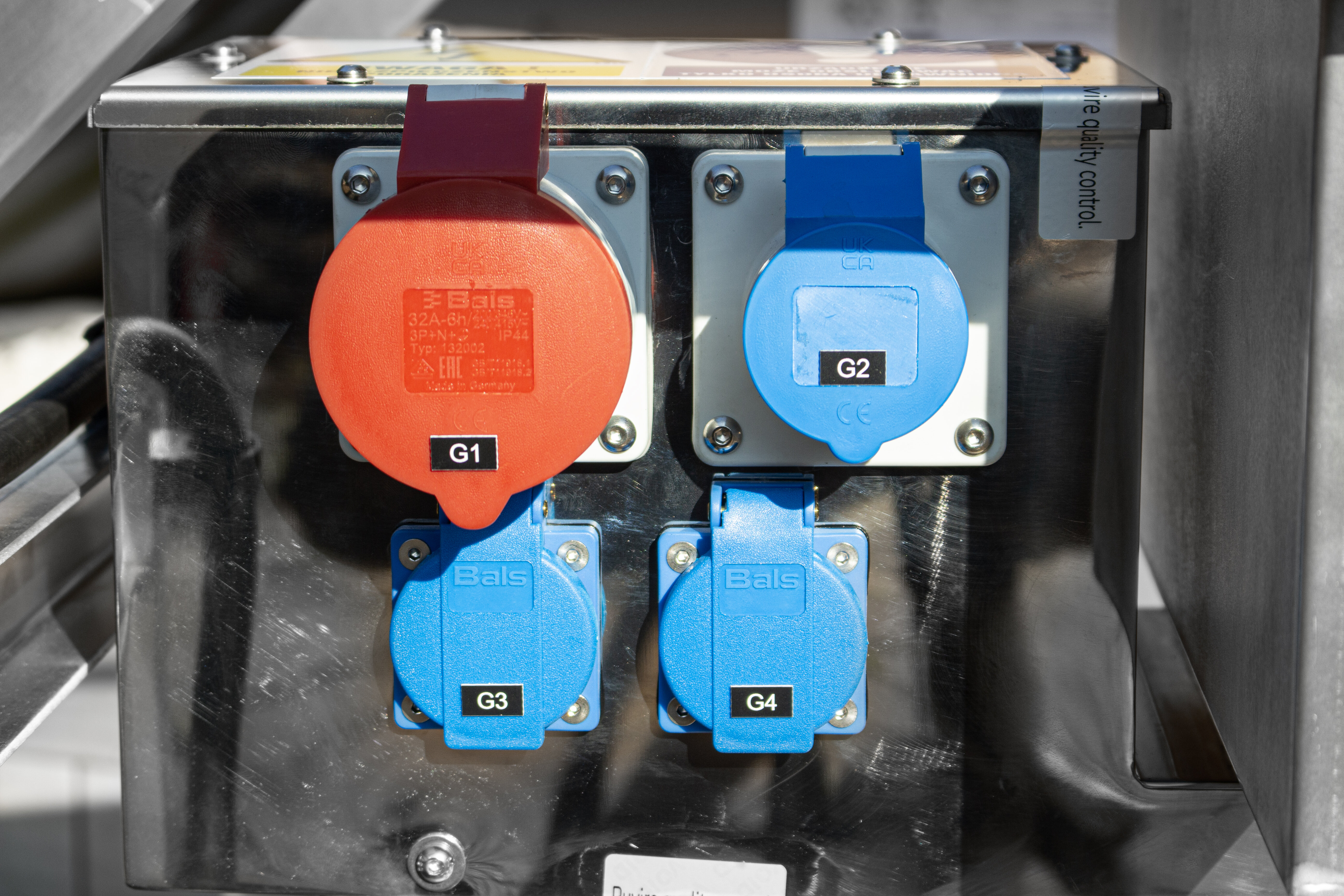

Ready for anything

The PE13.5's use of as many as four electrical outlets, including three-phase, significantly increases versatility of use

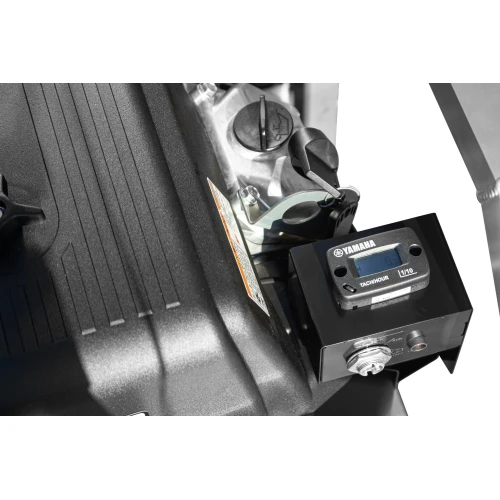

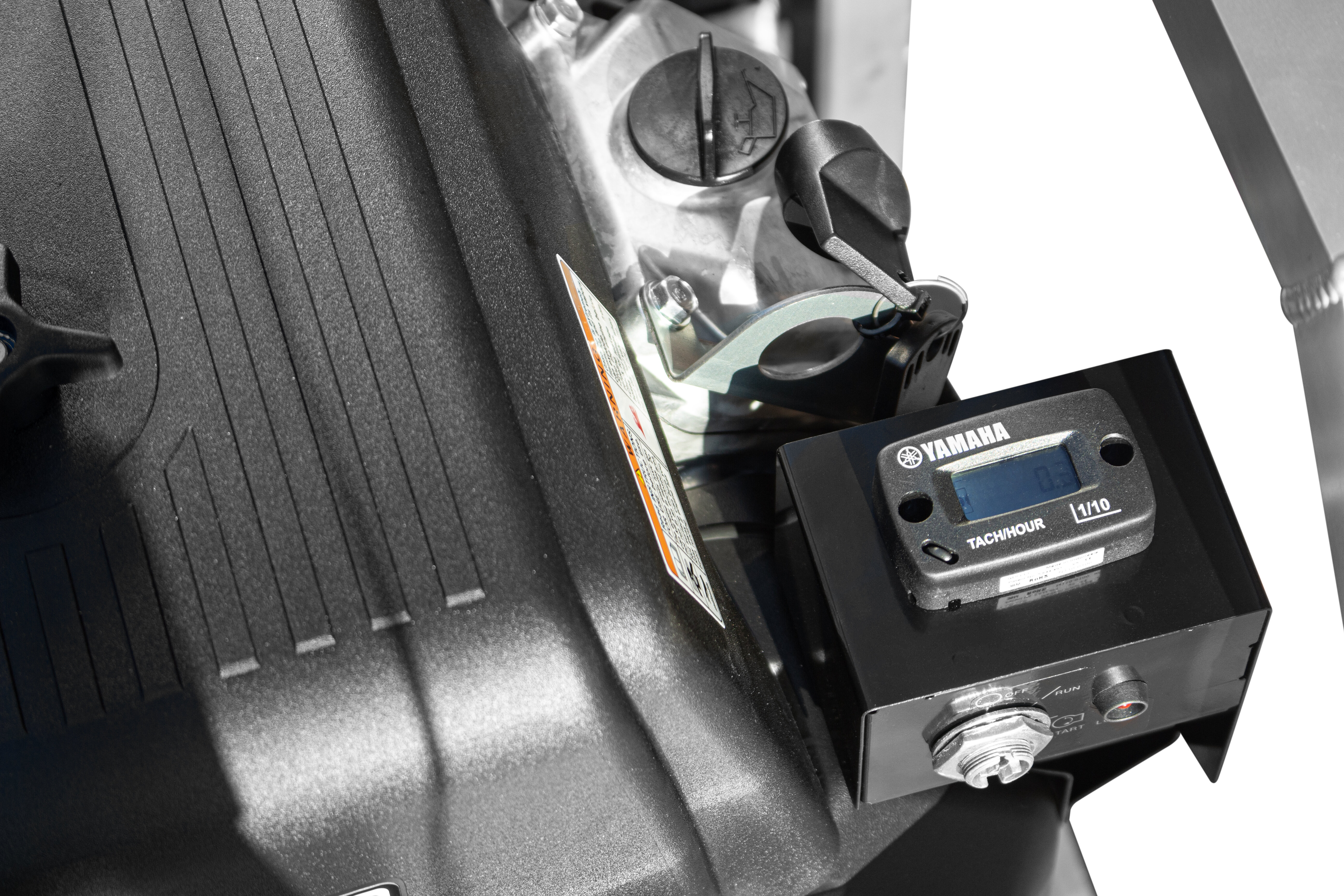

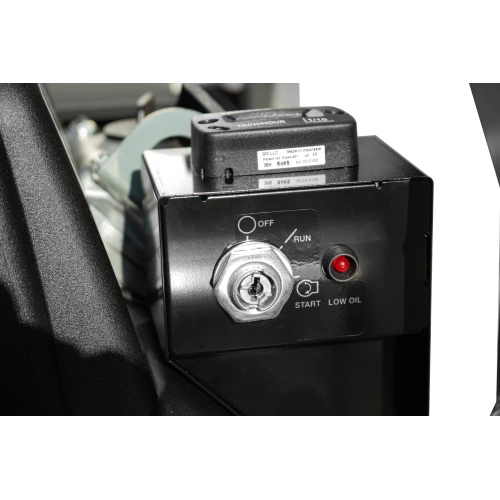

Check how much time your genset has worked

Genuine Yamaha digital hour meter and RPM counter allows you to fully control the genset's operation

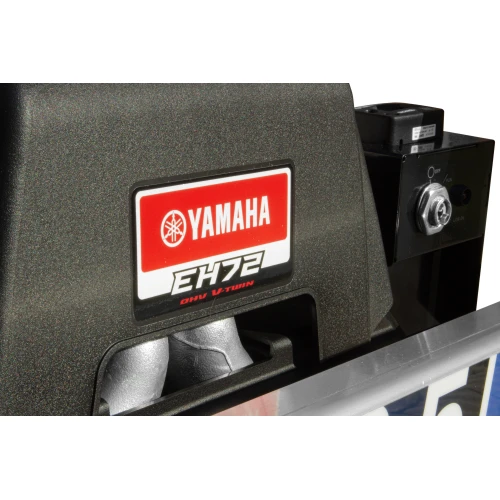

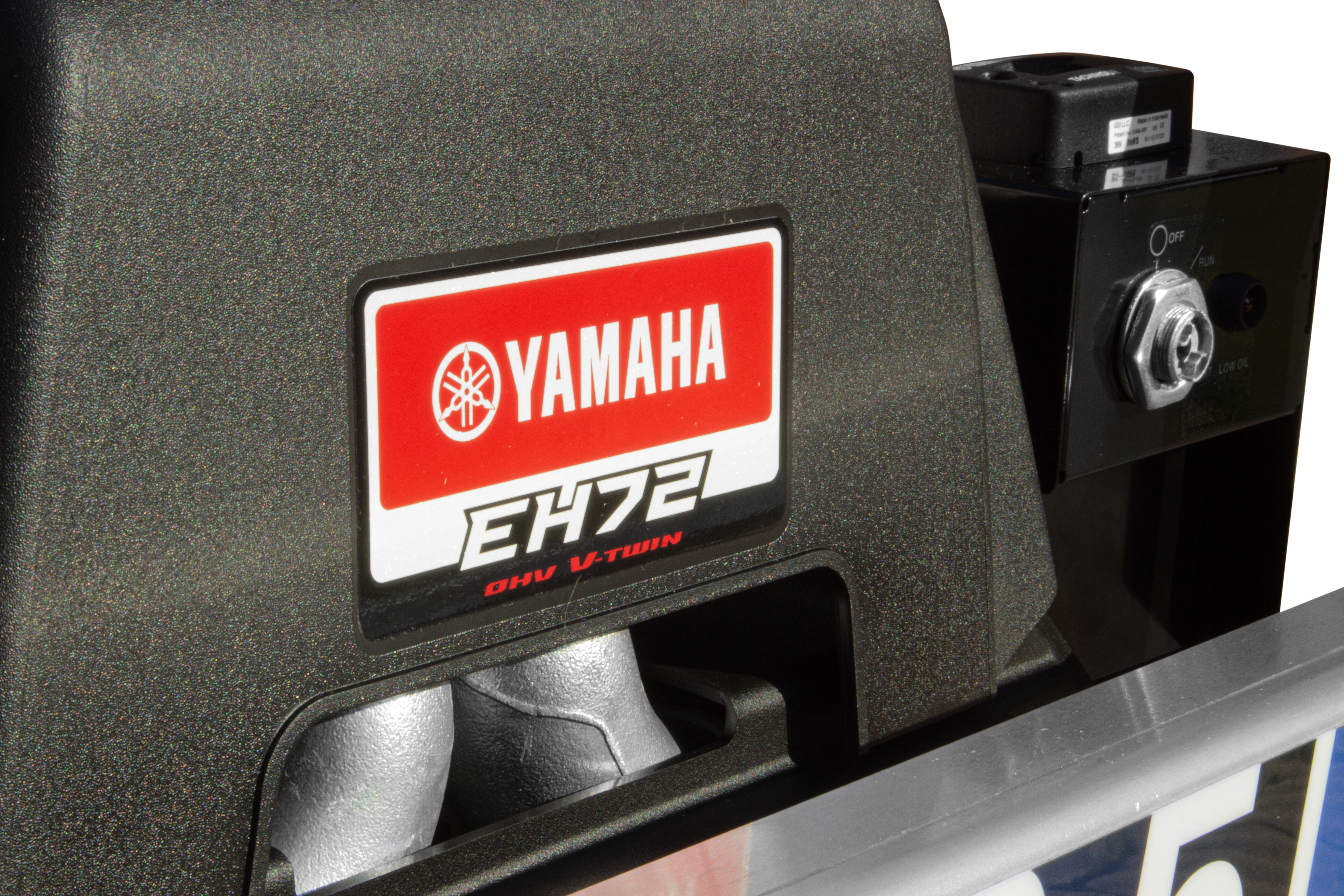

Japanese quality

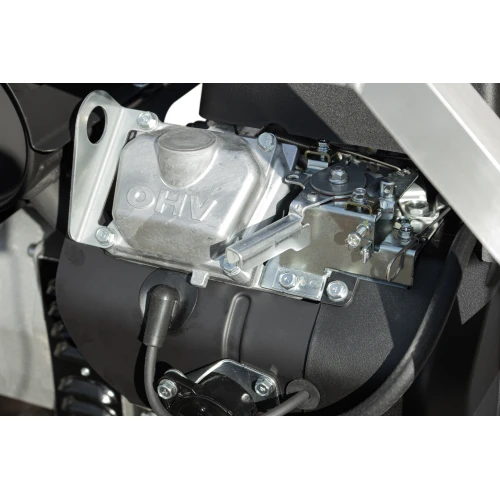

Top-class Yamaha industrial engine characterized by forged and hardened crankshaft, mounted on a double ball bearing

Why choose a genset with a Yamaha engine?

Yamaha industrial engines are a solution of the highest quality. The solutions used in them, such as forged, hardened crankshaft set on a double ball bearing and cast iron cylinder liners, significantly contribute to the durability and reliability of engine operation. The optimal shape of the valves and combustion chamber ensures clean and efficient operation for many hours. For convenient use and operation, the PE6.5 uses a polymer starter housing for protection against corrosion, and the starting handle itself is set at an optimal 45° angle for the user. The PE13.5 model already has a convenient electric start. Both models are equipped with a simple and easy-to-read Yamaha engine hour and RPM meter and easily accessible, top-mounted air filters. With two, large and easily accessible oil drain plugs, operating the Puvire unit becomes a pleasure. With simple use in mind, the fuel valve and throttle control are close at hand, near the starter. With the PE6.5 genset, it is possible to use the built-in fuel tank with a capacity of 6.1 liters or a portable one with a capacity of 20 liters. Both models are made on a lightweight and durable aluminum frame, equipped with a convenient lifting eye and spacing that allows for the use of a forklift or pallet truck.

Technical specifications:
