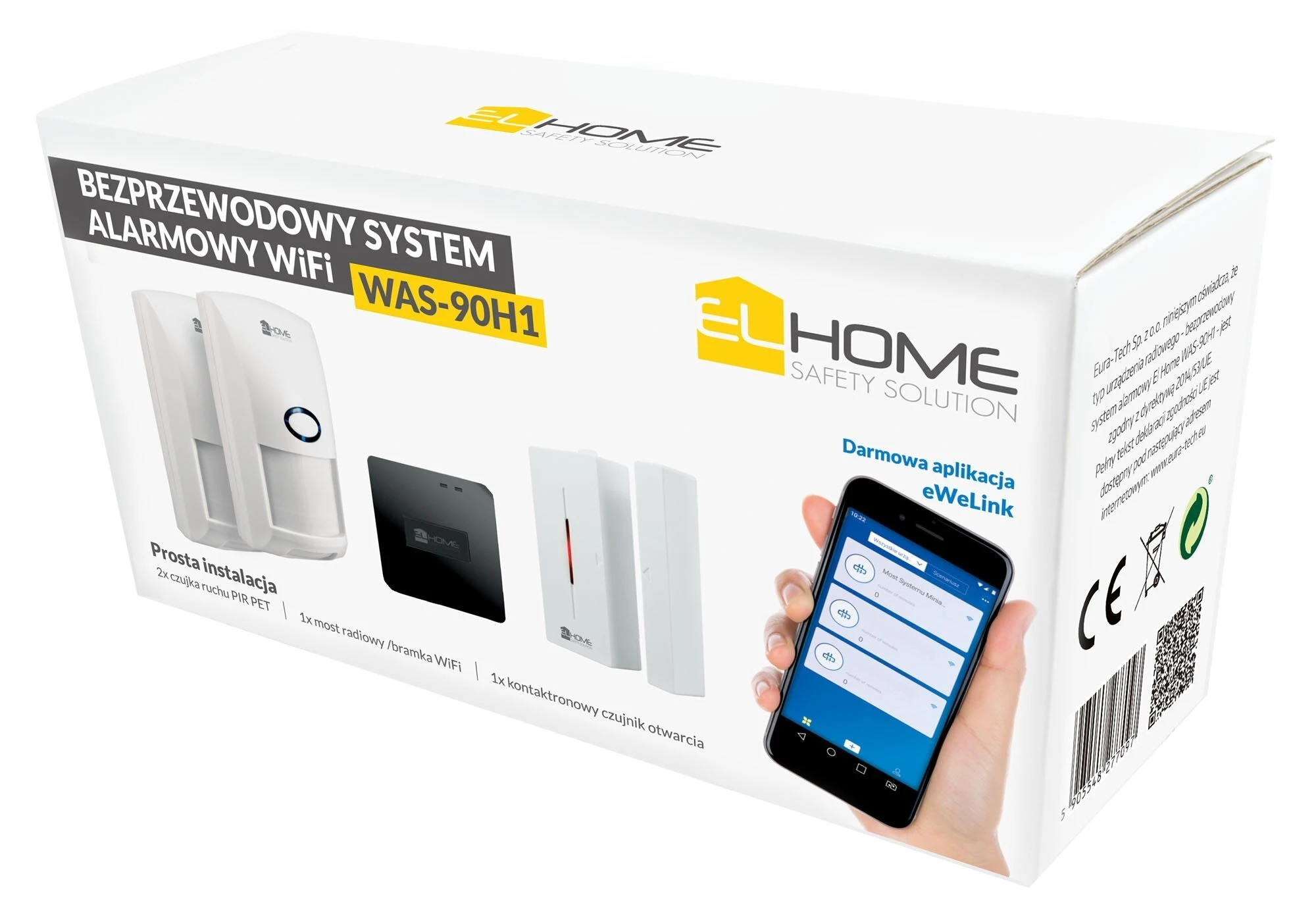

Wireless alarm system EL HOME WAS-90H1 - WiFi gateway, contact sensor, 2x PIR motion sensor

Main features:

• Power supply voltage: 5V DC
• Radio frequency: 433.93MHz
• Radio range: up to 50m (open area)
• WiFi standard: 2.4GHz
• Wireless communication interface: IEEE 802.11 b/g/n
• Support via app (Android/iOS): Yes
• Max WiFi transmitter radiation power: <2 mW
• Radio frequency: 433.93MHz
• Motion detection range: up to 12m
• Motion detection angle: 110°
• Pet immunity: up to 20kg

Kit contents:

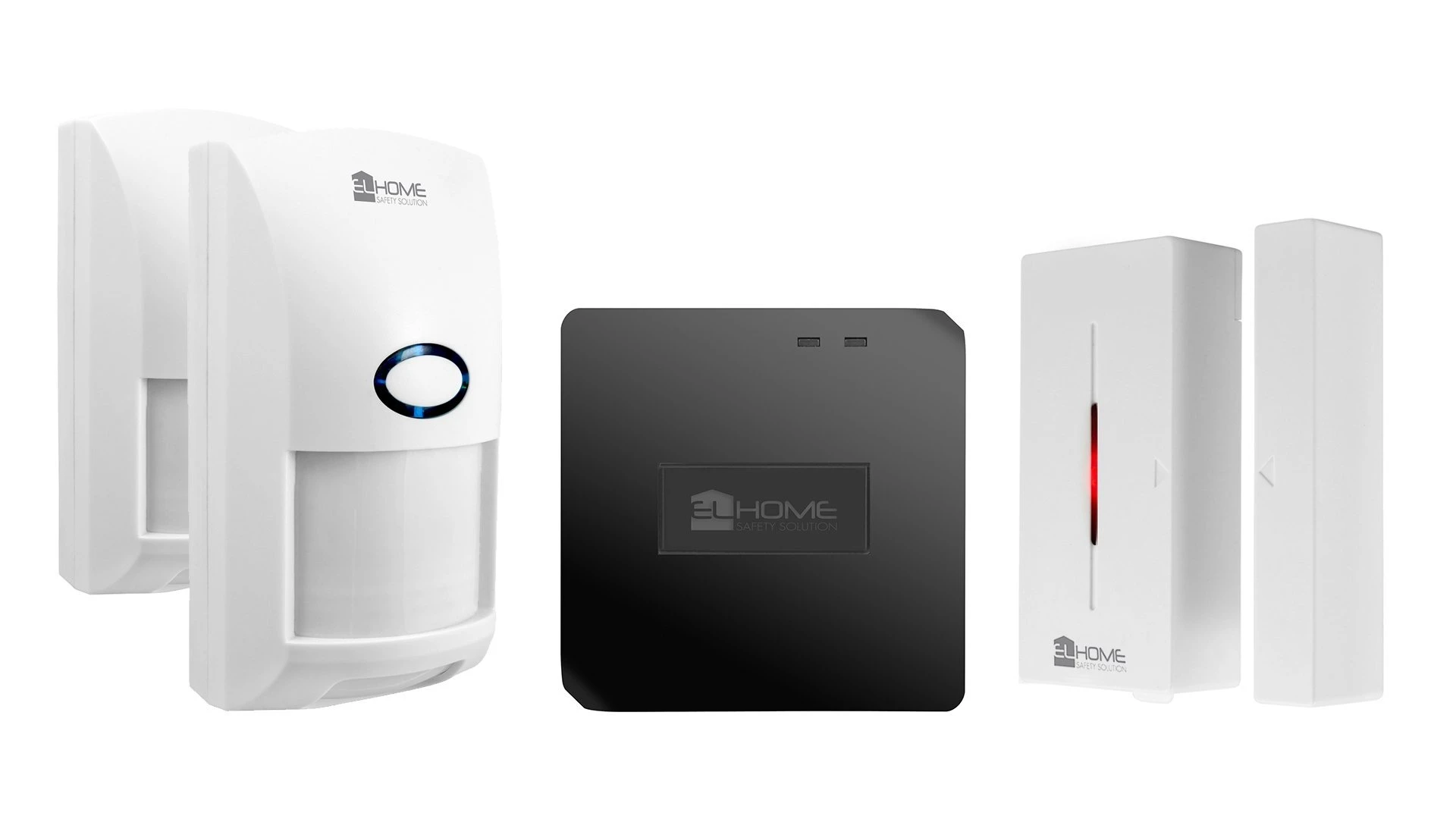

Wireless alarm system "El Home" WAS-90H1 is characterized by a clear and intuitive user interface, which makes daily operation a pleasure. Modern solutions used in the device allow you to receive notifications from the eWeLink mobile application dedicated to iOS and Android smartphones and tablets. The set consists of RB-80H1 radio bridge along with DC 5 V power supply, 2 MD-80H PIR motion sensors and 1 reed switch opening sensor. A permanent connection to an Internet-connected WiFi network is required for the system to work properly.

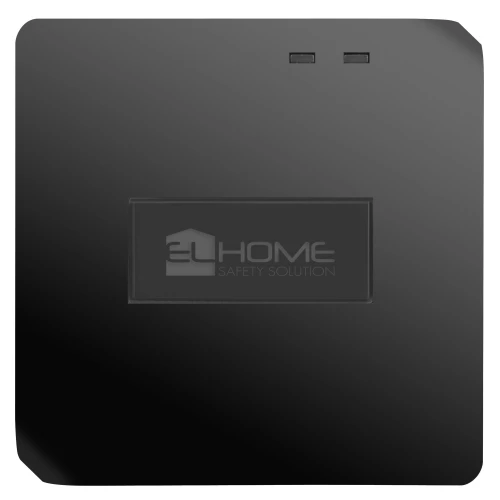

Wireless bridge - El Home RB-80H1

The El Home RB-80H1 wireless bridge is used for communication between radio devices operating in the 433 MHz band and the eWeLink mobile application. One bridge supports up to 4 devices, but it is possible to add multiple bridges to one application. Together with EL Home MD-80H1 and El Home MA-91A1 wireless detectors, it can create a simple alarm system that sends notifications to mobile devices. In addition, the RB-80H1 bridge works with most devices operating in the 433 Hz band controlled by remote control, such as El Home RCS-31C8, RCS-32C8 and CS-33C8 radio outlets or RCB-40C8 light bulb.

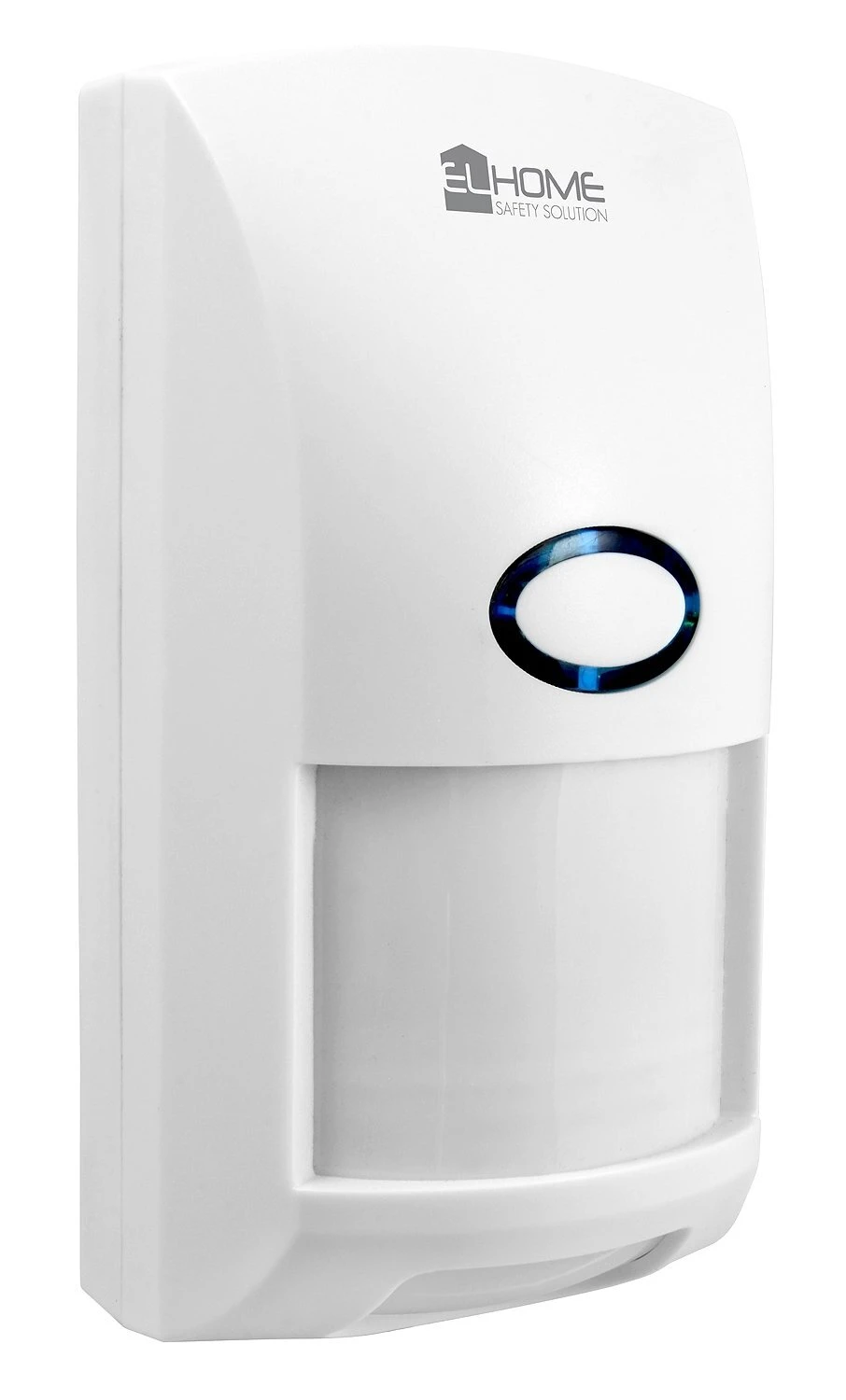

PIR motion sensor - El Home MD-80H1

The El Home MD-80H1 wireless PIR detector uses a passive infrared sensor. In the PIR detector, motion detection is based on the principle of measuring the change in ambient temperature in the set sector of the sensor's visibility, as a result of the movement of a person located there. If a person appears in the sensor's sector of visibility, an alarm is automatically triggered. Through the El Home RB-80H1 converter, operating in the 433MHz band, the detector connects to the eWeLink application, which is responsible for displaying zone violation messages.

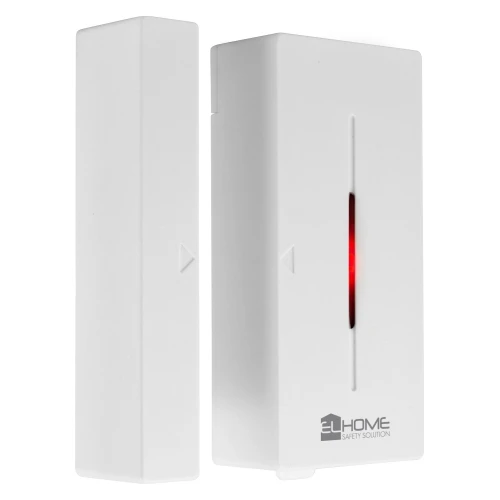

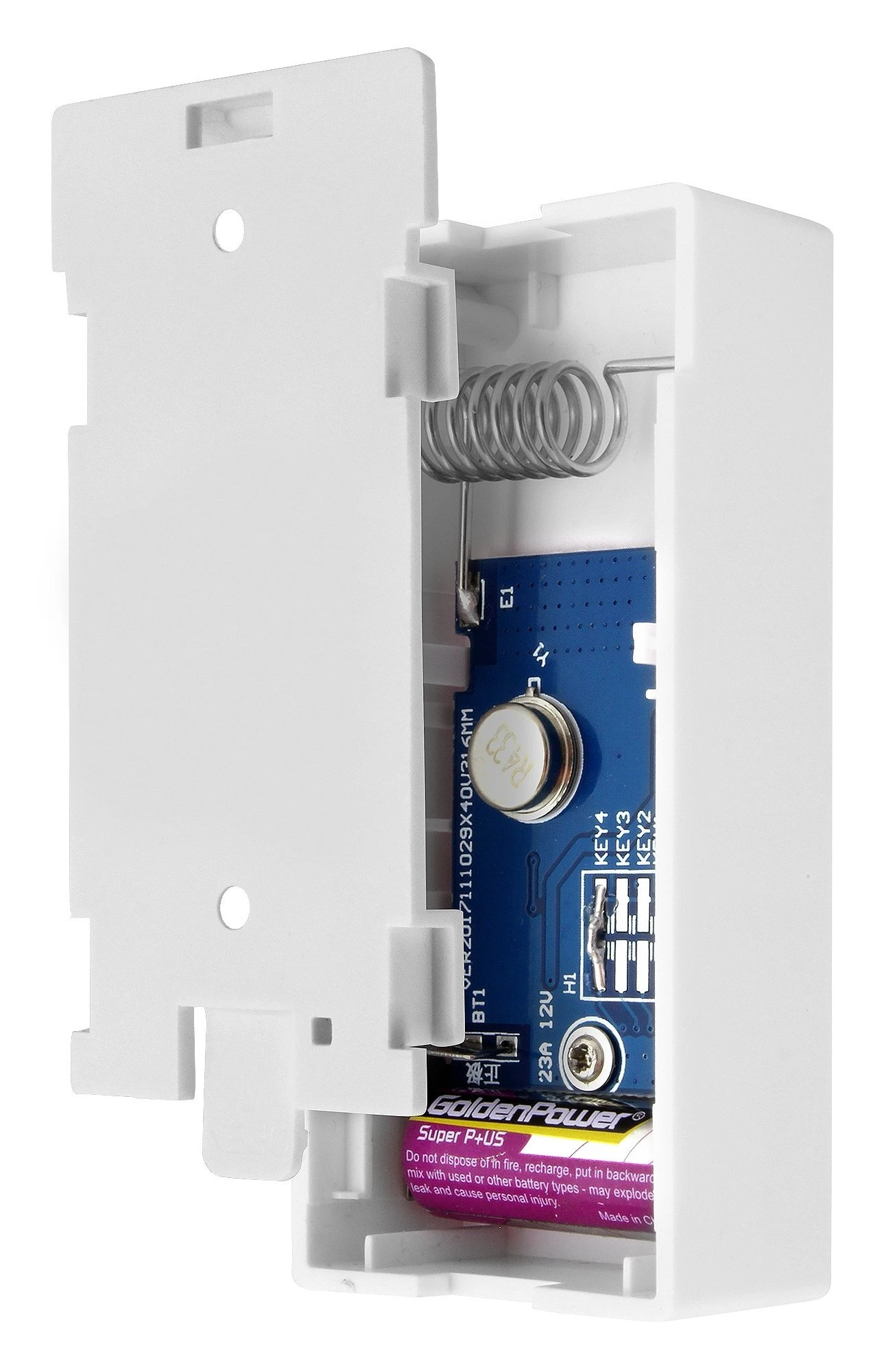

Reed-side opening detector - MA-91H1

Contactron opening detector MA-91H1 is used to protect a window or door. It works with the El Home RB-80H1 converter operating in the 433MHz band. The detector allows you to build a simple and effective mini alarm system.

Instructional video, demonstrating the product:

Technical specifications:
