Internal Panel VTH5422HW-W IP / Wi-Fi / 2-Wire Dahua

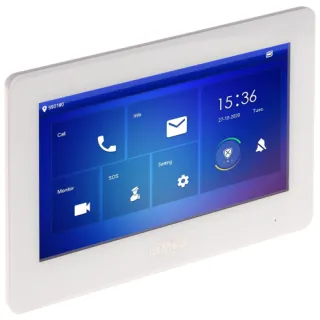

The image shows a sleek, white Dahua indoor panel with a touchscreen interface displaying various icons for call, info, and settings. The panel features a modern design with a clear, vibrant display, suitable for smart home integration.
A sleek, white digital display screen with a black central panel and the Dahua Technology logo at the bottom. The minimalist design is ideal for modern home or office environments.
The image shows the back view of a white electronic device with multiple ports and connectors, including LAN and other interface options. The device features a sleek design with mounting holes and a label indicating technical specifications.
The image shows the back view of a white electronic device featuring multiple ports, including USB and LAN connections, along with a speaker grille. The device has a sleek design with mounting slots and a label indicating technical specifications.
The image shows the underside of a white electronic device featuring various ports and connectors, including a LAN port and multiple pin connectors. The device also has a label with technical specifications and compliance information.
The image shows the back view of a white electronic device with multiple connection ports and a diagram for installation guidance. The device features a sleek, rectangular design with visible mounting screws at the corners.
The image shows a black mounting bracket accompanied by a set of flat ribbon cables and a small connector. These components are likely used for electronic or hardware installations, providing connectivity and support.
  • Manufacturer

    Dahua
  • Product Code

    VTH5422HW-W

  • Warranty

    36 miesięcy

  • Memory card slot: Yes
  • Display size [inch]: 7

Ask about this product show form

Files attached to the product show files

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

410,63 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

Product Description

Main features:


  • Compatibility: Dahua
  • Screen: 7 " capacitive touch screen
  • Resolution: 1024 x 600
  • Memory card slot: Micro SD card support up to 64GB (local recording possible)
  • Wi-Fi Module - 2.4 GHz IEEE 802.11 b/g/n,
  • Built-in microphone,
  • Built-in speakers,
  • Two-way communication,
  • Infinitely adjustable monitor parameters: image brightness, ringer and call volume,
  • Ability to automatically take and save pictures in case of a missed call,
  • Ability to record a short video message in case of no answer to the call button
  • Cooperation with Dahua IP cameras
  • Possibility of direct communication between two or more panels ,
  • Alarm inputs: 6 ( 1 - as a bell)
  • Alarm outputs: 1
  • Power supply: PoE (802.3af), 2-Wire IP interface

The VTH5422HW-W panel is designed to create a simple and effective local communication system. The device works with video intercoms, and other Dahua panels It can also act as a simplified control panel, or notification module by supporting 6 alarm inputs. Note: When selecting 2-wire devices, check the compatibility list available at the bottom of the page in the "files" section. This is a hybrid module, it can work in 2-Wire installation or as a standard IP video intercom.



Technical specifications:

Compatibility: Dahua
Screen: 7 " capacitive touch screen
Resolution: 1024 x 600
Internal memory: No
Memory card slot: Micro SD card support up to 64GB (local recording possible)
Selected features:
  • Wi-Fi module - 2.4 GHz IEEE 802.11 b/g/n,
  • Security: WEP 64/128-bit, WPA/WPA2, WPA-PSK/WPA2-PSK,
  • Built-in microphone,
  • Built-in speakers,
  • Two-way communication,
  • Infinitely adjustable monitor parameters: image brightness, ring and call volume,
  • Ability to automatically take and save pictures in case of a missed call,
  • Ability to record a short video message in case of no answer to the call button,
  • Cooperation with Dahua IP cameras,
  • RS-485 interface,
  • Possibility of direct communication between two or more panels ,
Controls: capacitive touch screen
Alarm inputs: 6 ( 1 - as a bell)
Alarm outputs: 1
Power supply:
  • PoE (802.3af),
  • 2-Wire IP interface
Power consumption:
  • ≤ 6 W (operation)
  • ≤ 2 W (standby)
Operating temperature: -10 °C ... 55 °C
Color: White
Weight: 0.36 kg
Dimensions: 189 x 130 x 26 mm
Supported languages: Polish, English
Manufacturer / Brand: Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
