Extralink 12U 600x600 AZH Black | Rack cabinet | wall-mounted, two-section
Photo gallery
-
Manufacturer
-
Product Code
EX.12905
Ask about this product show form
Files attached to the product show files
Related products
Product Description
Main features
- Standard 19'' mounting, welded frame, reliable construction
- Self-assembly frame design - easy to carry and transport, reducing shipping costs
- Wall mount or upright installation
- Easy assembly (patent)
- Removable side panels
- Cable entry holes on both top cover and bottom panel
- Tempered glass front door with a rotation angle exceeding 180 degrees
- Two-section design
Two-section rack cabinet by EXTRALINK - AZH, 12U, 600 × 600
Extralink's rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The outer walls are made of cold-rolled steel sheet. Equipped with a pane of tempered glass, the front door can open to the left or right side. The two-section cabinet design facilitates access from the rear to installed components.
Clearly marked height
The vertical rails are properly marked for height, which is 12U (from unit), while the total height of the cabinet is 64 cm.
Easy removal of the side walls
The latches on the side walls allow their removal. Locks and keys are included.
The ceiling of the cabinet adapted for the installation of fans
On the ceiling of the cabinet, 2 places are prepared for installing fans for better cooling of the equipment, 2 additional grommets for cable pulling are also placed there.

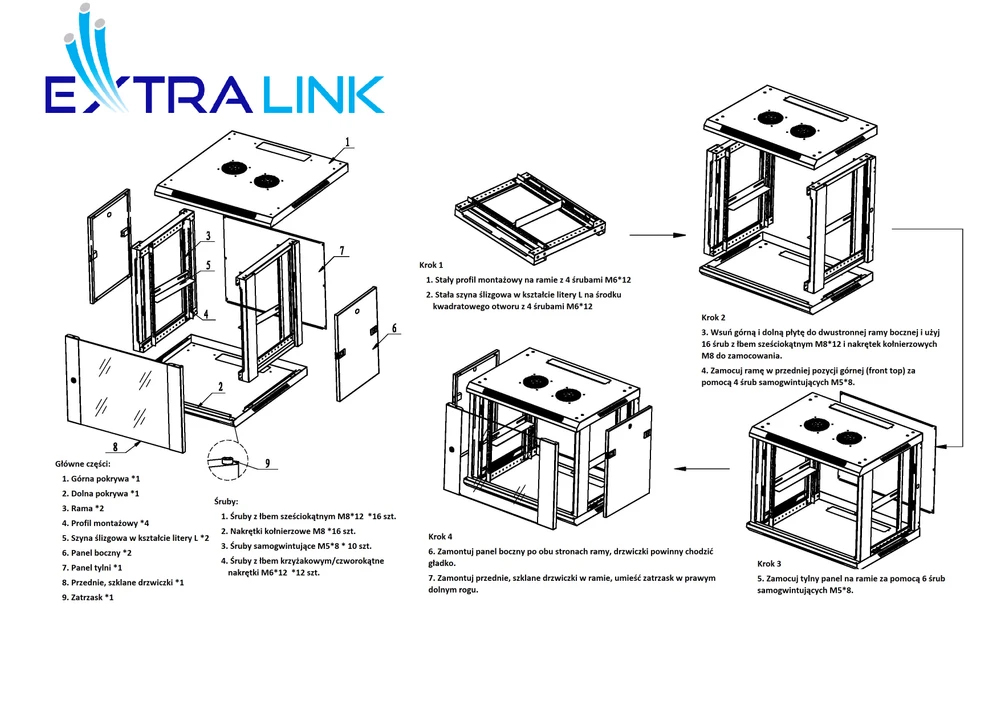

Construction of the cabinet - drawing
Technical specifications:
| Height of the cabinet | 12U |
| Product depth | 750 |
| Color | Black |
| Product Color | Black |
| Front door construction | Glass/steel |
| Rear door construction | Steel |
| Side panel construction | Steel |
| Number of fans | 2 |
| Maximum weight | 60 |
| Materials | Glass, Steel |
| Model | Hanging cabinet |
| Side panels included | Yes |
| Rack capacity | 12U |
| Rails | Yes |
| Door type | Glazed |
| Frame type | Closed |
| Size | 48,3 |
| Width | 600mm |
| Product width | 600 |
| Removable side panels | Yes |
| Product height | 640 |
| Lock | Yes |
| Front door key lock | Yes |
| Rear door key lock | No |
| Side panel key lock | Yes |
| Removable front door | Yes |
| Removable rear door | No |
