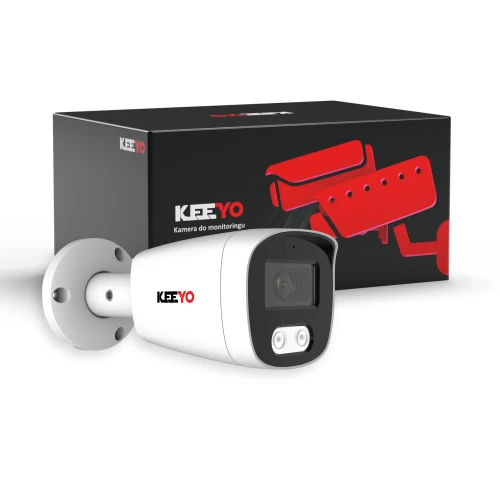

IP Tube Camera 5Mpx IR25m KEEYO LV-V-IP5M25TF-B

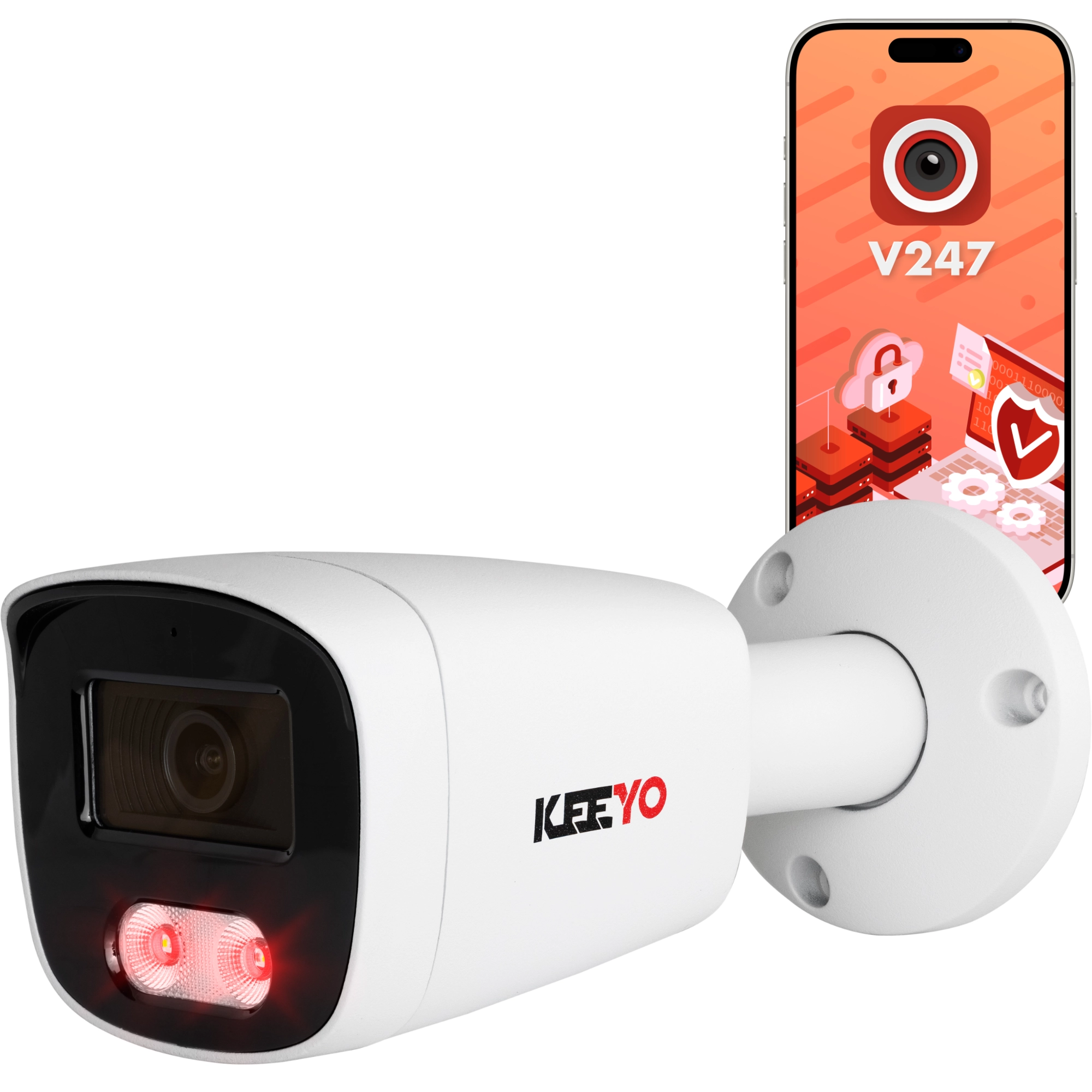

The mobile app is a quick and easy way to operate your property's video surveillance system, with it you will be able to:

✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Support popular browsers

The WEB server on Keeyo cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, provide images of high quality and excellent sharpness compared to lower resolution cameras. The device records at 5MPx resolution ensuring that even the smallest detail is captured on the footage.

Sony sensor

The camera uses the highest quality sensor created by the Sony brand. Thanks to it, the camera's capabilities have been pushed to the limit to give you the best protection for your property.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide Dynamic Range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Resistant to weather conditions

The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Camera
Image sensor	1/2.8" SONY Starvis Back-illuminated CMOS
Resolution	5MP
Effective pixels	2616 (H)*1964 (V)
Compression	H.264/H.265/JPEG/AVI
Audio compression	G711A/U
TV system	PAL/NTSC
Electronic shutter speed	Auto: 1/3-1/100000 s
Minimum illumination	Color: 0.006 lux @ (F1.6, AGC ON), B/W: 0 lux with IR
Signal-to-noise ratio	60 dB
Scanning system	Progressive
Video output	Network
Reset button	No
Lens
Focal length and field of view	2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Type of lens	Fixed focal length, 2.8mm
Focus control	Fixed
Aperture	F1.6
Pixels	5MP
Night vision
Infrared diode	42µ x 2 SZT
Infrared range	25 m
Infrared status	Automatic control
Turn on infrared	Intelligent, manual and timer mode
Network
Ethernet	RJ-45 (10/100Base-T)
Login information:	login: admin password: admin
Wireless	N/D
Protocol	TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, QoS, 802.1x
ONVIF	Support for ONVIF 19.12 (S/T/G profile)
P2P	YES
POE	Internal, support IEEE 802.3af
Video delay	0.3 s (on LAN)
Main stream 1	2592*1944@30 fps
Main stream 2	2560*1440@30 fps
Main stream 3	"1920*1080@30 fps
	1280*720@30 fps"
Additional stream 1	1280*720@30 fps
Additional stream 2	720*480@30 fps
Additional stream 3	N/D
Three-stream	N/D
Web browser	IE8-11, Google Chrome, Firefox, Mac Safari
Smartphone	iPhone, Android
AI features
Intelligent analysis	Intrusion detection, line crossing, circling, people focusing (based on human detection), motion detection, vehicle detection
Camera functions
Day/Night	Color/Black & White (IR-CUT)
Image configuration	Saturation/brightness/contrast/sharpness, mirroring, 3D NR, white balance, flicker control, cover detection, HLC
Full color	N/D
Corridor mode	Support
Anti-fog mode	N/D
ROI	Support
BLC	Support
WDR	Support
Motion detection	Support (detection based on human movement only)
Privacy masking	3 rectangular zones
Recording mode	NVR/CMS/Web
Language	"Simplified Chinese, Traditional Chinese, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese."
Interface
Alarm	N/D
SD card slot	Internal, support up to 1 TB
RS485	N/D
General
Housing	Metal, IP67
Anti-sabotage handle	NO
Infrared filter	YES
Working temperature	-20°C to +60°C, maximum humidity 95%
Storage temperature	-20°C to +60°C, maximum humidity 95%
Power source	DC12V±10%, 700mA
Dimensions	70 (W) x 67.5 (H) x 169 (L) mm
Weight	600 g
