IP video intercom with PoE, Wi-Fi, VTH2621GW-WP monitor and VTO2311R-WP panel
Photo gallery
-
Manufacturer
-
Product Code
ZK29098
-
Warranty
24 miesiące
- Number of subscribers: 1
Ask about this product show form
Files attached to the product show files
Related products
Product Description
Key features of the video intercom:
- High quality 2Mpx image
- Support for wicket, gate ("Using a special module")
- Support for Mifare 13.56MHz key fobs and proximity cards
- Wide angle lens with 110° field of view
- Support in DMSS mobile application
- 7'' diagonal monitor
- Panel designed for flush and surface mounting
- Devices powered by PoE or 12V

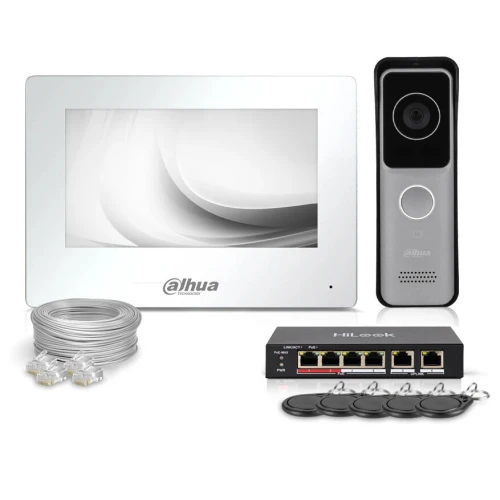

The set includes:
- IP / WiFi gateway panel VTO2311R-WP 1x pcs.
- IP / Wi-Fi monitor Dahua VTH2621GW-WP 1x pcs.
- PoE switch Dahua DH PFS3006-4ET-60 x1 pcs.
- BS-12BK key ring x5 pcs.
- UTP cable 20x m.
- RJ-45 connector 4x pcs.
Optional to buy:
- 1-door module, gateway: DEE1010B-S2 1 pcs.
- Dahua IP / Wi-Fi monitor VTH2621GW-WP
Dahua video intercom set is a high-end device for the most demanding users. Control the opening of the gate and gate from the mobile application on your smartphone. The application is free and available for download for iOS and Android devices. In addition, answer incoming audio calls with it, even when you are not at home. Access to power is all you need to run the doorphone and monitor, the devices communicate with each other via twisted-pair cable or wireless network, making the set installation much easier. In addition, the monitor via Wi-Fi can preview Dahua network cameras if they are available.
Dahua video door entry system is a complete solution for quick and easy implementation of video access control structures. The devices available in the manufacturer's offer enable the creation of both single-subscriber and multi-family video door entry systems operating in TCP/IP, SIP technology.
Dahua video intercoms allow you to use the internal intercom and conduct direct conversations with other monitor units, which are located in a common installation. The devices also allow you to quickly view images from door stations, automatically archive the image of visitors, independently assign access to the property, remotely view IP CCTV cameras, as well as expand the installation with the properties of other security system devices. The video intercom can be operated from the monitor, as well as from the application environment installed on the computer and cell phone.
DMSS mobile applicationThe video intercom for remote operation should be added to the DMSS mobile application. It can be downloaded for free on Android and iOS devices. DMSS allows you to get an instant live view of the door phone, but also to play back recorded motion detection images. For IP cameras, with panning or audio communication, you can also conveniently use their functions in the DMSS app. |
|
VTH2621GW-WP - video door entry monitorThe VTH2621GW-WP / VTH2621G-WP monitor features a 7" color capacitive touchscreen that displays clear and detailed content with a resolution of 1024x600 pixels. The monitor is controlled via an intuitive user interface accessible directly from the touch screen. The presented unit has one relay output (NO) and six alarm inputs of NO / NC type for integration with an alarm system. A great convenience is also the ability to power the device using PoE 802.3af technology and a built-in Wi-Fi module for wireless communication. |
|
VTO2311R-WP - IP / Wi-Fi door stationModern gate station, used for operation as part of Dahua video door entry systems. The device is designed to implement round-the-clock access control, for example, in single-family homes. The aesthetic appearance of the housing, highlighted by the modern design of the front panel, ensures easy adaptation of the device to the existing architectural style of the target installation site. |
|
Two types of installationThe basic method of connection is Wi-Fi, while if you already have an installation laid, under the video intercom, or the distance between the gate and the house does not allow you to use this option, the devices can also be connected by twisted-pair cable with PoE power supply. With it, you only need one cable to supply power and signal to the doorphone, and the same applies to the indoor monitor. |
 |
Montaz 1-door module, gateway: DEE1010B-S2
Technical Specifications: Kit
| VTO2311R-WP - IP door station | |
| Camera | CMOS 2Mpx |
| Resolution | 1920x1080 FullHD |
| IR illuminator | yes, built-in |
| BLC | Supports |
| DNR | Supports |
| WDR | WDR 120dB |
| FOV (viewing angle) | Horizontal: 110° Vertical: 62° |
| Compression standard | H.264; H.265 |
| Dual stream | Yes |
| Framerate |
|
| Stream resolution |
|
| Motion detection | Supports |
| Communication | Two-way voice |
| Audio input | Microphone - built-in, omnidirectional |
| Audio output | Speaker - built-in |
| Audio compression | G.711 U @64 Kbps |
| Additional features | Noise reduction, echo cancellation |
| Network interface | 1x RJ45 Ethernet 10/100 Mbps |
| Network protocols | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
| Client software | N/A |
| Supported WEB browsers | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| RS-485 | N/A |
| WiFi | Yes, built-in |
| DEBUG port | 1 |
| SD slot | Up to 128Gb |
| Alarm inputs | 0 |
| GND | 1 |
| Physical button | 1 |
| TAMPER switch | 1 |
| Reading frequency | 13.56 MHz |
| Transponder type | Mifare |
| Relay | 1 |
| Protection class | IP65 |
| Material | Aluminum |
| Status indicator | 2 x LED |
| Power supply | PoE (IEEE802.3af), 12 VDC |
| Power consumption | <6 W |
| Operating temp. | -40° C to +60° C |
| Permissible humidity | 10% to 95% |
| Mounting | Surface mounted |
| Dimensions | 138 mm × 65 mm × 27 mm |
| Screen type | Capacitive, touchscreen |
| Display | 7" color TFT-LCD |
| Resolution | 1024x600 |
| Video compression | Support for H.264 / H.265 |
| Audio compression | G.711a / G.711u / PCM |
| Audio input | Surround microphone |
| Audio output | Built-in speaker |
| Audio mode | Two-way voice connection |
| Audio amplification | Echo suppression |
| Audio transmission | 16kHz, 16-Bit |
| VTH2621GW-WP video door entry monitor | |
| Communication method | Fully digital |
| Information display | Receive and view text messages issued by the center |
| Do not disturb (DND) mode | Support (time and mode can be set) |
| Internal calls | Villa: 9 Apartments: 4 |
| Standard support | IEEE 802.11b/802.11g/802.11n |
| Wireless frequency | 2.4GHz |
| Wireless connection security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Housing material | Plastic PC + ABS |
| Alarm input | 6x port (IN1 / IN2 / IN3 / IN4 / IN5 / IN6) Inputs for NO/NC type sensors, including doorbell |
| Alarm output | 1x port NO/COM relay output |
| Doorbell | Yes (by using 1 alarm input) |
| Communications | Ethernet: 1x RJ45 10/100Mbps |
| SOS alarm support | Yes |
| Certifications | CE, FCC 2022-01-17 |
| Installation type | Surface-mounted |
| Color | White (VTH2621GW-WP) Black (VTH2621G-WP) |
| Number of IPC cameras supported | 32 |
| Installation range | TCP/IP, SIP: monitor and door station to switch - 100m (cat.5e) |
| Power supply | DC 12V/1A PoE standard DC 36V~57V (802.3af) |
| Power consumption | Max. 2W (during standby) max. 6W (during operation) |
| Operating temperature | -10°C ~ +55°C |
| Operating humidity | 10% ~ 95% (non-condensing) |
| Weight | 340g |
| Dimensions (W / L / H) | 189.6x26x134.6mm (7.50" x 1.00" x 5.30") |
| Warranty | 36 months |

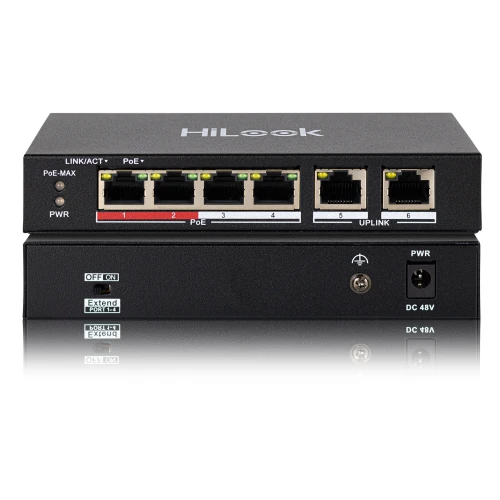

| PFS3006-4ET-60-V2 - PoE 4-port + 2 RJ45 switch | |
| Managed switch | No |
| Throughput | 1.8 Gbps |
| Transmission speed | 890 Kpps |
| Buffer storage | 1 Mbit |
| MAC table size | 2K |
| Support for standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| PoE budget | Port1: ≤60W Port2 ~ Port4: ≤30W Total: ≤60W |
| PoE pins | 1, 2, 4, 5 (V+) 3, 6, 7, 8 (V-) |
| PoE protocol support | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| PoE transmission over long distance | Support (up to 250m @ 10Mbps) - Extend mode (managed by DIP switch) |
| Ethernet ports | 4x PoE + 2x Uplink |
| Ethernet port speed | 100 Mbps (PoE) 100 Mbps (Uplink) |
| Port numbers | Port 1 ~ 4: 4x RJ45 10/100Mbps (PoE) Port 5 ~ 6: 2x RJ45 10/100Mbps (Uplink) |
| PD Alive (PoE Watchdog) | Automatically reset PoE power to the device connected to the switch (managed by DIP switch) |
| Against lightning discharges | Common mode (2kV), differential mode (1kV) |
| ESD protection | Non-contact discharge: 8kV Contact discharge: 6kV |
| LED optical signaling | Yes |
| Housing type | Desktop |
| Power supply | 53V DC (power adapter included) |
| Power consumption | No load: 1.5W Max. 60W |
| Operating temperature | -10°C ~ +55°C |
| Operating ambient humidity | 5 ~ 95% RH |
| Storage humidity | 5 ~ 95% RH |
| Weight | 300g |
| Dimensions (W/D/H) | 130x85x26mm |
| Info | 2021-03-10 |
| Warranty | 36 months |
