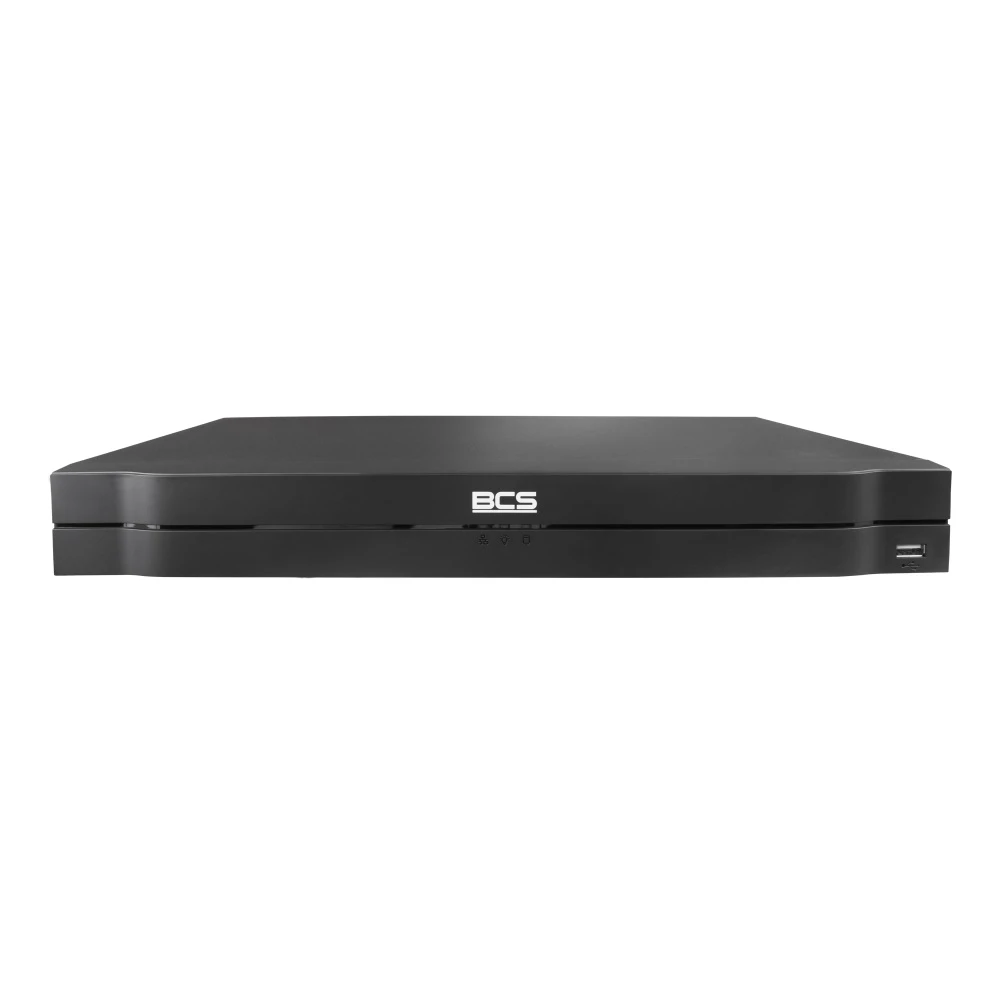

IP Recorder BCS-L-NVR3202-A-4K 32-channel 2-disk, 32Mpx, HDMI, 4K, BCS Line
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-NVR3202-A-4K
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 32
- Built-in POE switch: No
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,38 MB
-
Size: 5,88 MB
-
Size: 1,47 MB
Product Description
Main features:
|
|
BCS-L-NVR3202-A-4K DVR is an advanced IP device with 32 channels, 16TB capacity and up to 32 Mpx resolution. It supports intelligent functions such as face detection and identification, perimeter protection, metadata and motion analysis. It has USB 2.0, USB 3.0, HDMI 4K and VGA interfaces, and operates in conditions from -10°C to +55°C.
xx
Technical specifications:
| Device Name | BCS-L-NVR3202-A-4K |
| Product line | BCS Line |
| System | IP |
| Pentaplex function | Live viewing / recording / playback / archiving / remote access |
| Channels | 32 |
| Drives | 2 |
| Disk capacity | 16 TB |
| Max recording resolution | 32 Mpx |
| Input bandwidth | 384Mbps(200Mbps Ai) |
| Output bandwidth | 384Mbps(200Mbps Ai) |
| Display performance | 2×32/24M(20fps) / 4×16M(30fps) / 5×12M(30fps) / 8×8M(30fps) / 12×5M(30fps) / 16×4M(30fps) / 32×2M(30fps) / 1×32/24M Ai(20fps) / 2×16M Ai(30fps) / 4×12M Ai(30fps) / 4×8M Ai(30fps) / 8×5M Ai(30fps) / 12×4M Ai(30fps) / 24×2M Ai(30fps) |
| Recording resolution | 32M / 24M / 16M / 12M / 8M / 5M / 4M / 2M / 1.3M / 720P / D1 |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| Video outputs | HDMI4K/VGA |
| HDMI display resolution | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolution | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Output split | 1/4/8/9/16/25/36 |
| Playback | 1/4/9/16 |
| Archiving | Possibility of ripping footage to external media such as USB FLASH, USB HDD |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Serial port | RS232, RS485 |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm input | 4 |
| Alarm output | 2 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Networking | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support for third-party cameras |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration |
| Power supply | 12V DC |
| Power consumption (without drives) | max. 10W |
| Operating conditions | -10°C~+55°C max 93% RH |
| Enclosure | 1U |
| Dimensions (W×D×H) | 375×281.5×53mm |
| Weight (without drives) | 1.6 kg |
| POS | Posnet |
| Ai - Intelligent functions from the recorder | Face detection, face identification, perimeter protection (person/vehicle recognition mechanical), SMD Plus |
| Ai - Smart functions from cameras | Face detection, face identification, metadata (person/motor vehicle recognition), perimetric protection, SMD Plus, crowd detection, people counting, ARTR, vehicle traffic volume, heat map |
| Ai - Perimetric protection | 4 channels from DVR, 10 rules per channel / 16 channels from cameras |
| Ai - Face detection | 2 channels from DVR (12 images/s) / 16 channels from cameras / face attributes (gender, age, glasses, facial expression, mask, facial hair) |
| Ai - Face identification | 16 channels of detection from camera + identification from DVR (16 images/s) / 2 channels of detection from DVR + identification from DVR (12 images/s) / 16 channels of identification from cameras / up to 20 databases face data, 20 thousand images, up to 2.5GB |
| Ai - Metadata | 8 channels from cameras / Person attributes (color of clothes, type of clothes, headgear, bag, age, gender, umbrella) / Motor vehicle attributes (license plate, color of plate, type of vehicle, logo, phone, number of people, helmet) |
| Ai - ARTR | 8 channels from cameras / black and white list of 20 thousand items |
| Ai - SMD | 8 channels from DVR / 16 channels from cameras |
