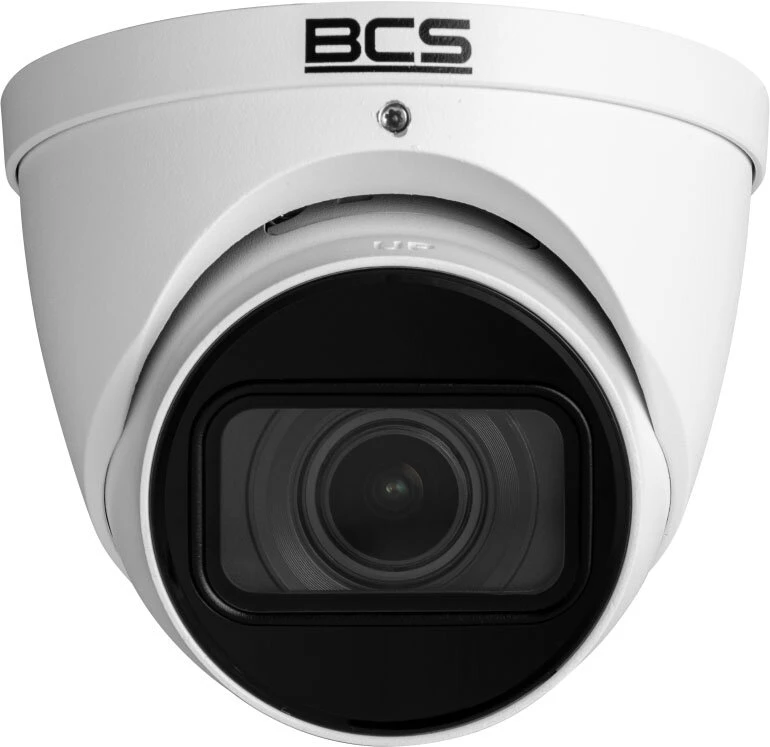

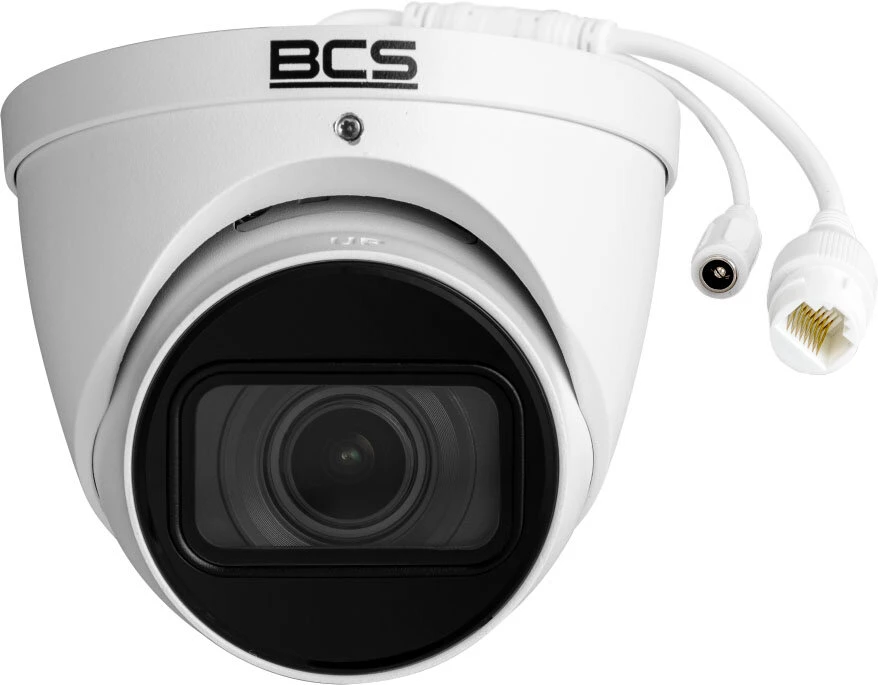

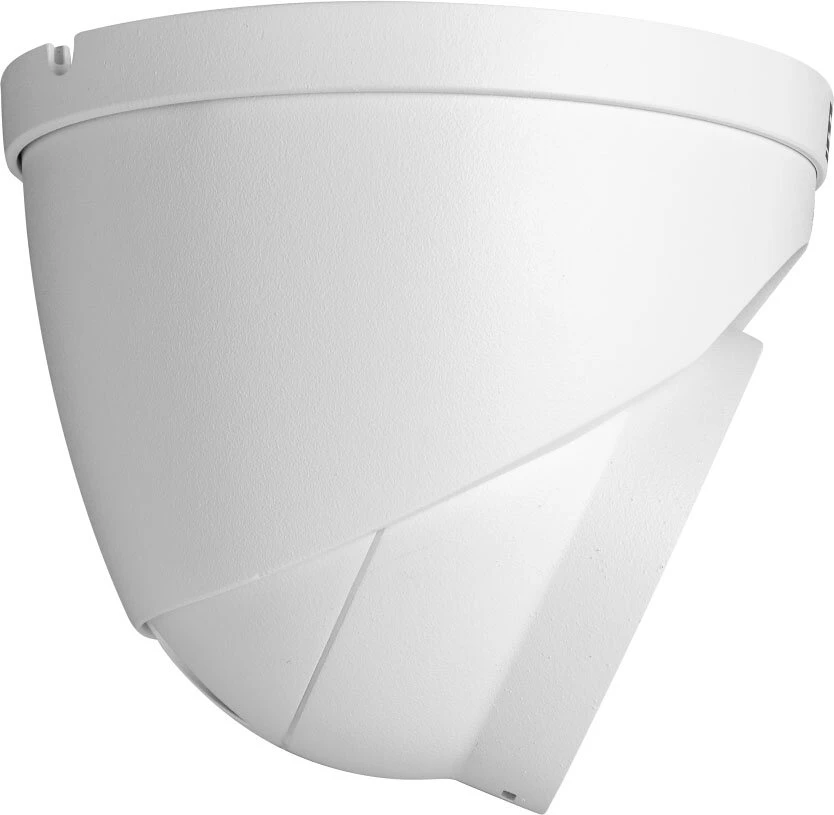

IP dome camera BCS-L-EIP48VSR4-AI1, 8 Mpx, 1/2.7" CMOS 2.7...13.5mm
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-EIP48VSR4-AI1
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 40m
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Files attached to the product show files
Product Description
Main features:
|
|
The BCS-L-EIP48VSR4-Ai1 camera has an image resolution of 8 megapixels, and its sensor is 1/2.7 inches. The camera is equipped with a motozoom lens with a focal length of 2.7~13.5 mm and an aperture of F1.5. The optical zoom is 5x and the digital zoom is 16x. The camera offers various video streams using H.265 / H.264 / MJPEG compression. It also features smart functions such as object recognition (person/vehicle), perimeter protection and SMD Plus technology. The camera is weatherproof, with an IP67 rating, and has an operating temperature range of -30°C to +60°C with a maximum humidity of 95% RH. The dimensions of the camera are Ø122×108.3 mm, and its weight is 0.86 kg.
Technical specifications:
| Device Name | BCS-L-EIP48VSR4-Ai1 |
| Product Line | BCS Line |
| Camera type | Dome |
| Resolution | 8 Mpx |
| Sensor | 1/2.7'' |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| RAM | 256MB |
| ROM | 128MB |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.5 |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 5× |
| Digital zoom | 16× |
| Viewing angle | H: 113°~31° V: 58°~18° D: 138°~36° |
| DORI | Detect 85~280m / Observe 34~112m / Recognize 17~56m / Identify 8~28m |
| Camera sensitivity | 0.008Lux(F1.5,30IRE) 0.0008Lux(F1.5,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Number of streams | 2 |
| Resolutions | 8M(3840×2160) / 6M(3072×2048) / 5M(3072×1728)(2592×1944) / 4M(2688×1520) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704× 480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 3840×2160(1~20fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR |
| Illuminator type | IR |
| Illuminator | 40m |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |

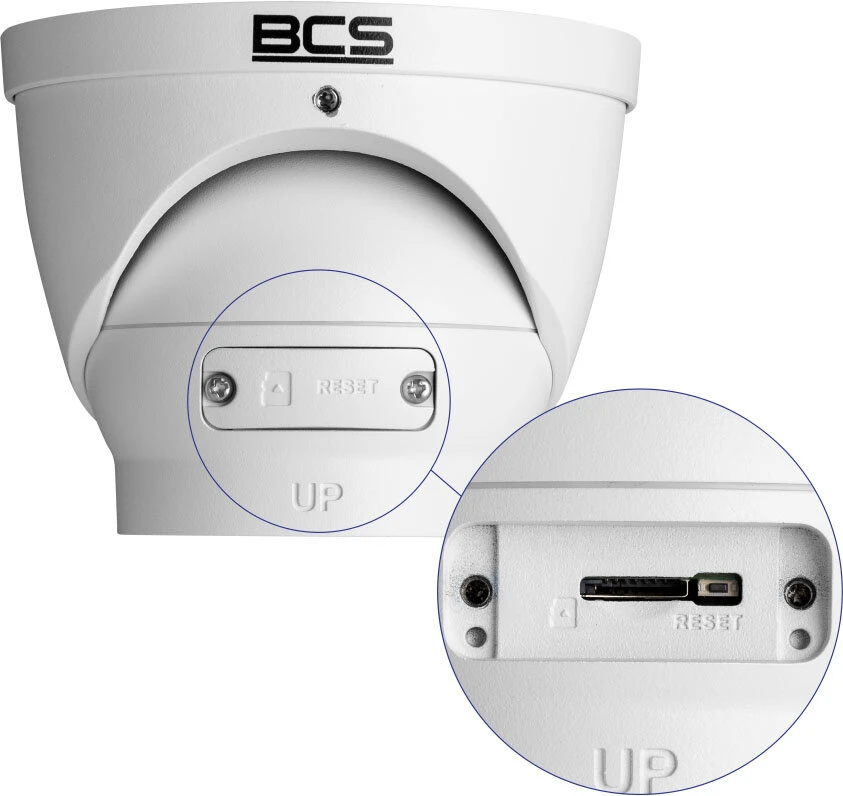

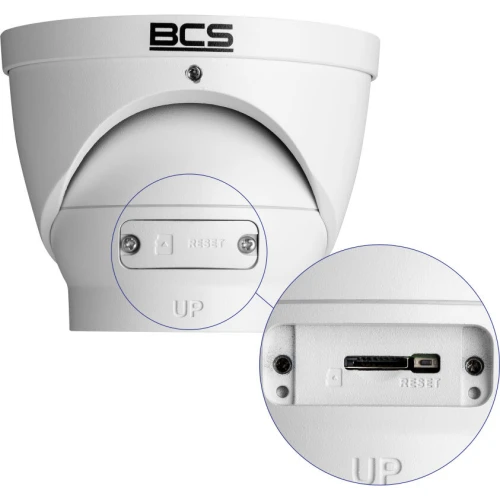

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detection | 4 |
| Privacy masks | 4 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 7.6W |
| Housing color | White |
| IP protection class | IP67 |
| Operating conditions | -30°C~+60°C max 95% RH |
| Dimensions | Ø122×108.3mm |
| Weight | 0.86 kg |
| Ai - Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms |
| Ai - Perimeter protection | Intrusion into the area, crossing the line |
| Ai - Object recognition | Person/vehicle recognition for area intrusion, line crossing reduces false alarm triggering. |
| Ai - SMD | SMD Plus |
