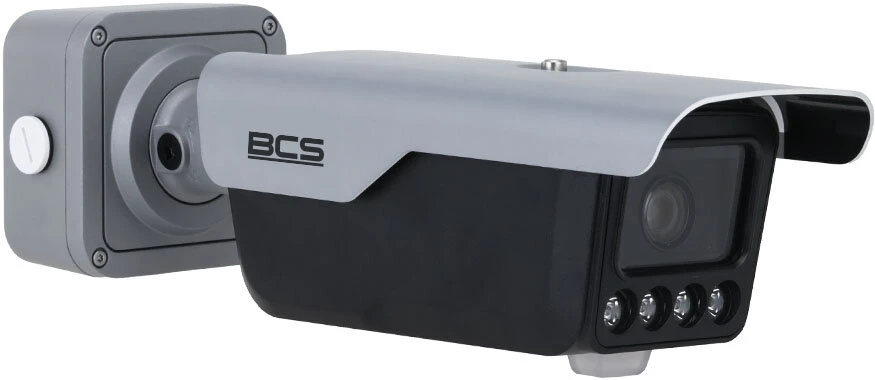

IP tubular camera BCS-L-TIP74VSR3-ITC-AI3 4 Mpx, 1/1.8", 2.7 ... 12mm
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-TIP74VSR3-ITC-AI3
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Tube
- Night visibility: up to 30m
- Memory card slot: Yes
- Audio: Yes
- Color: Czarny
Ask about this product show form
Files attached to the product show files
Product Description
Main features:
|
|
This is an advanced camera with high image quality, offering 4x optical zoom and 16x digital zoom. It has a wide viewing angle and the ability to recognize objects at different distances. It features very low light sensitivity, allowing it to operate even in low-light conditions. It has advanced features such as automatic white balance, 140dB dynamic wide range, 3D DNR noise reduction. It is possible to record in various resolutions, including up to 4M. The camera supports various interfaces, including audio, alarm and microSD memory cards up to 256GB. In addition, built-in artificial intelligence features enable license plate recognition, image analysis and other advanced functions. The camera is also rugged, with weather (IP67) and impact (IK10) resistance.
Technical specifications:
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| Viewing angle | H: 92°~46.1° V: 49°~26° D: 109°~52.8° |
| DORI | Detect 60~129m / Observe 24~52m / Recognize 12~26m / Identify 6~13m |
| Camera sensitivity | 0.001Lux(F1.4,30IRE) 0.0002Lux(F1.4,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 140dB |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Shutter | Auto / manual 1/25~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Number of streams | 2 |
| Resolutions | 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / 960H(960×576/960×480) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Main stream | 2688×1520(1~25/30fps) 1920×1080(1~25/30fps) 1280×720(1~25/30fps) |
| Second stream | 1280×720(1~25/30fps) 960×576(1~25fps) 960×480(1~30fps) 704×576(1~25fps) 704×480(1~30fps) 352×288(1~25fps) 352×240(1~30fps) |
| Bitrate | H.264B: 2,179 kbps-13,074 kbps H.264M: 2,179 kbps-13,074 kbps H.264H: 2,179 kbps-13,074 kbps H.265: 2,179 kbps-13,074 kbps MJPEG: 6,537 kbps-39,223 kbps |
| Video compression | H.265, H.264H, H.264B, H.264M, MJPEG |
| Day/night | ICR |
| Illuminator type | IR |
| Illuminator | 30m |
| Microphone | Yes |
| Speaker | Yes |
| Audio output | 1 |
| Alarm input | 2 |
| Alarm output | 2 |
| Memory card slot | microSD 256GB |
| Additional interfaces | RS485, Wiegand SHA-1 26 bit |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Networking | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | HTTP, Https, 802.1x, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, NTP, SFTP,DDNS, SNMP, PPPoE |
| Power supply type | 12VDC / PoE(802.3at) |
| Power consumption | max. 20W |
| Housing color | Graphite |
| IP protection class | IP67 |
| IK10 | Yes |
| Operating conditions | -40°C~+70°C max 95% RH |
| Dimensions | 396×120.8×127.8mm |
| Weight | 2.3 kg |
| Ai - Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms |
| Ai - ARTR | License plate recognition, photo, tracking, max speed 80km/h, black and white list of 110 thousand items, attributes (license plate number, vehicle type, vehicle color, logo) |
