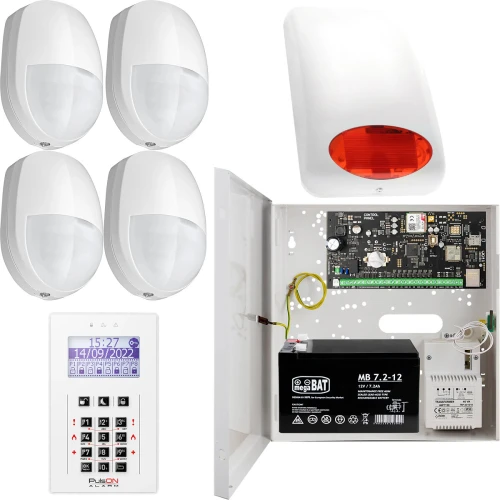

PulsOn CP80 2G/4G Alarm Set, 1x Siren, 4x Motion Detector, 1x Keypad, accessories

PulsOn CP80 2G/4G alarm kit, 1x Sounder, 4x Motion Detector, 1x Keypad, 1x Battery, 1x AWO150 enclosure.

Kit composition:

Main features of PulsON CP80 2G/4G:

The PulsON Alarm 2G/4G, Ethernet/WiFi control panel is the main board of the PulsON Alarm hybrid alarm system, designed for securing small and medium-sized objects - both houses or apartments and smaller public institutions. It provides protection in accordance with the Grade 2 requirements of EN50131-1.

Main features of SPIRIT-PIR PIR detector:

Spirit-PIR is a wired indoor detector equipped with a passive dual pyroelement and 3D Fresnel lens technology. The 3D lens has 52 detection zones to provide full coverage with no dead angle and no approach from below. The maximum detection range is 18m. Using advanced IFT technology, the detector automatically adjusts alarm trigger thresholds when electromagnetic or electrical interference is detected, minimizing the risk of false alarms. The functions of digital temperature compensation and automatic sensitivity make the detector adapt itself to changing environmental conditions to maintain stability and effectiveness in detecting intruders.

Main features of SPL-5010 R:

There is a choice of one of three types of modulated sound signaling with an intensity of 120 dB. The sounder's housing is made of polycarbonate, which ensures high mechanical strength and an aesthetic appearance of the device that remains unchanged despite the passage of years. The simple yet attractive design of the housing will be perfect even on a modern facade.

Main features of the 12V 7.2Ah gel battery:

The battery made with AGM (Absorbed Glass Mat) technology has the electrolyte absorbed into the highly porous fiberglass separators between the plates. A maintenance-free battery, it does not require water refilling and constant maintenance of the electrolyte. This type of battery can also be used as a power source in portable devices.

Main features of PulsON LCD/C WH:

The PulsON LCD/C WH sensory LCD keypad is a keypad with rubber buttons designed to operate the PulsON Alarm system. Thanks to the LCD display used, it presents clear information about the current status of the system. In addition, it has 6 function buttons for quick recall of the function specified by the installer and 3 special alarm buttons such as fire, panic, medical alarm. Each keypad is equipped with an additional 2 zone inputs. The keypad, like each of the devices we offer, has been designed in accordance with the requirements set by the EN-50131 standard for Grade2.

Main features:

Pulsar AWO 150 7/TRP40/DSPR is a surface-mounted metal enclosure designed to mount SATEL, Risco, DSC, Paradox, Pyronix, Crow, Roel, EBS, Telmor, Pulsar, Roger, Pulson control panels and modules indoors (IP20). The enclosure has space for a battery with a maximum capacity of 7Ah/12V, an installed TRP 40VA/16V/18V transformer and tamper protection to prevent unauthorized opening of the enclosure. The AWO150 has an 8mm distance from the wall, which makes it possible to easily feed cables to the devices mounted in it. The enclosure is closed by bolting, but there is also the possibility of installing a lock.

Technical specifications of PulsON CP80:

SPIRIT-PIR Technical Specifications:

Technical specifications SPL-5010 R:

Technical specifications 12V 7.2Ah gel battery:

Technical specifications of PulsON LCD/C WH:

AWO150 Technical Specifications:
