ATLO-KRMD-510 CODE LOCK

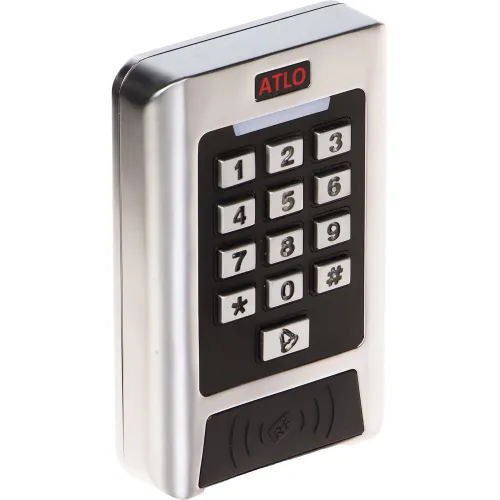

A sleek, metallic keypad lock with a numeric pad and RFID reader, designed for secure access control. The device features a modern design with a black and silver finish, and an illuminated display for easy use.

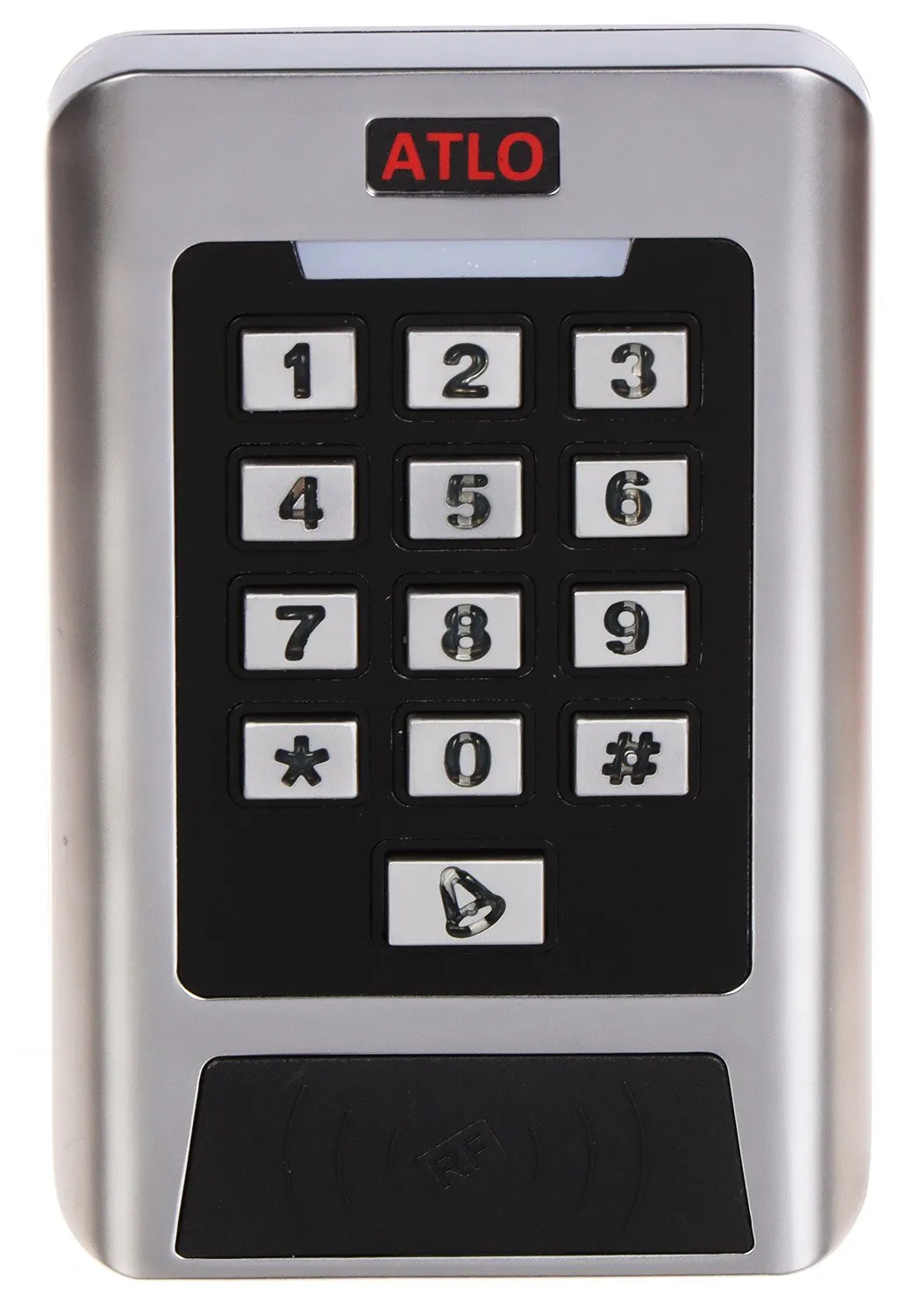

A sleek, metallic access control keypad with a numeric pad and RFID reader, designed for secure entry systems. The device features a black and silver finish with a prominent red "ATLO" label at the top.

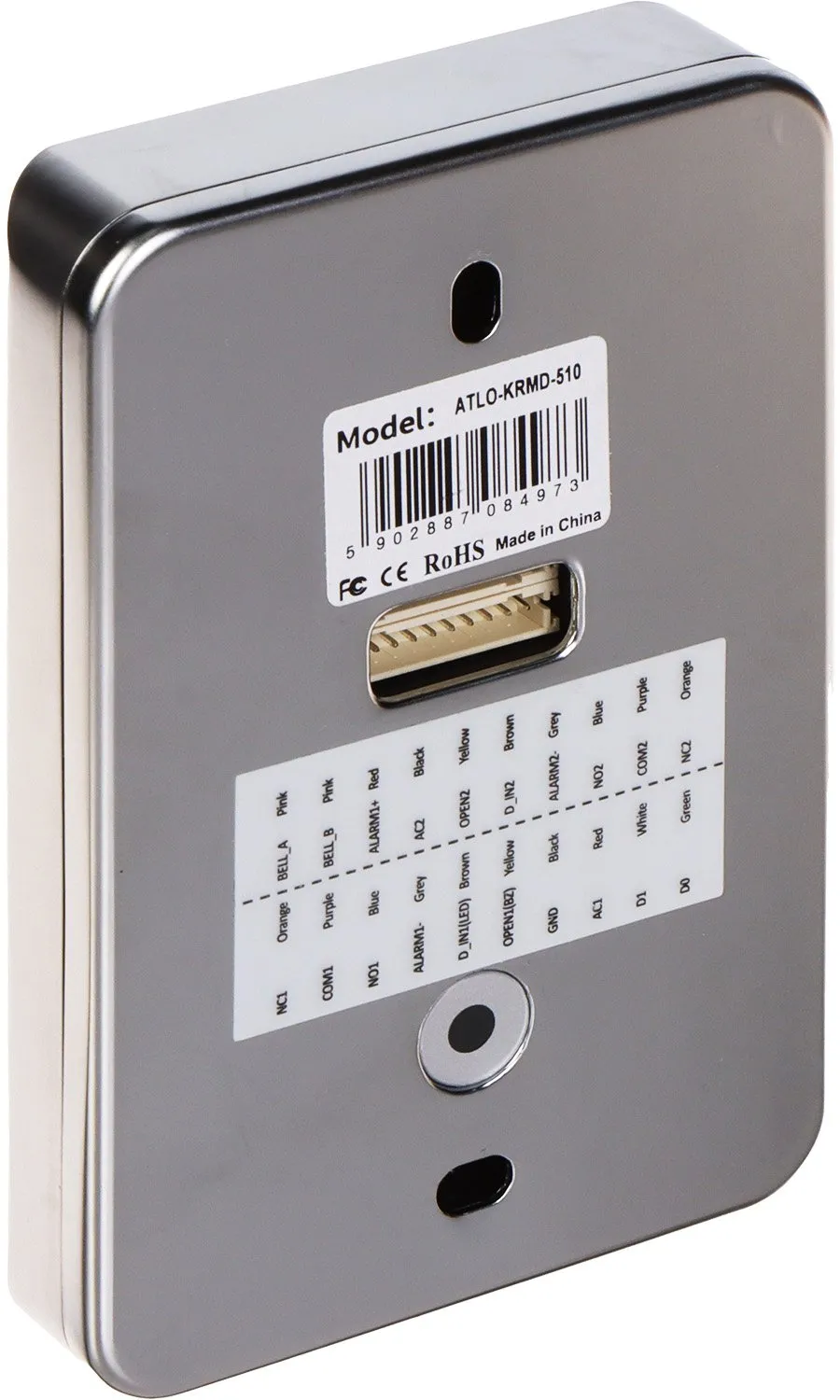

The image shows the back view of a sleek, rectangular electronic device with a metallic finish, featuring a central connector port and labeled diagrams for wiring. It includes mounting holes for easy installation and compliance markings indicating standards and manufacturing details.

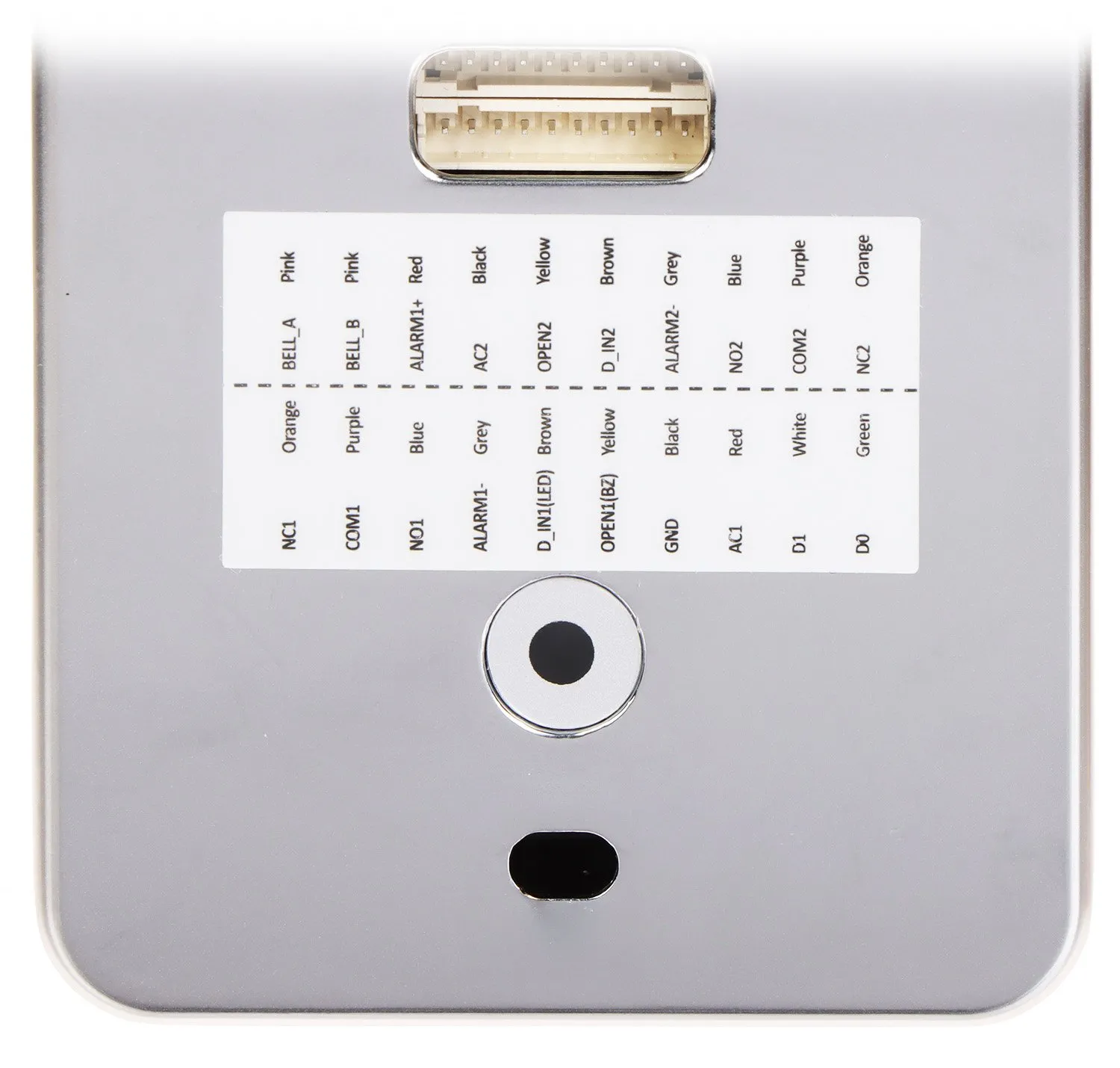

The image shows a close-up of a connector panel with labeled ports and a central circular opening, designed for electronic device integration. The labels indicate various connection points for functions such as alarms and communication interfaces.
The image shows a two-piece metallic enclosure with a sleek, reflective finish, designed for housing electronic components. One side features a connector and mounting points, while the other is a plain cover with pre-drilled holes for easy installation.

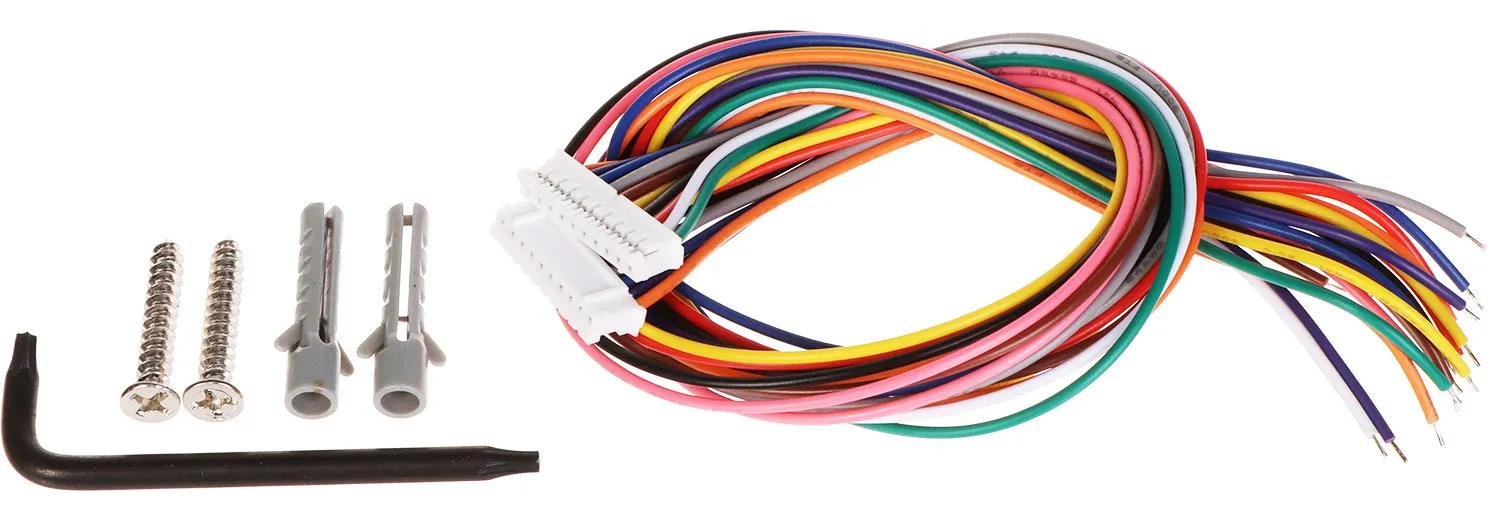

A set of colorful electrical wires with connectors is accompanied by screws, wall plugs, and an Allen wrench. The components are arranged neatly, showcasing their variety and utility for electrical installations.

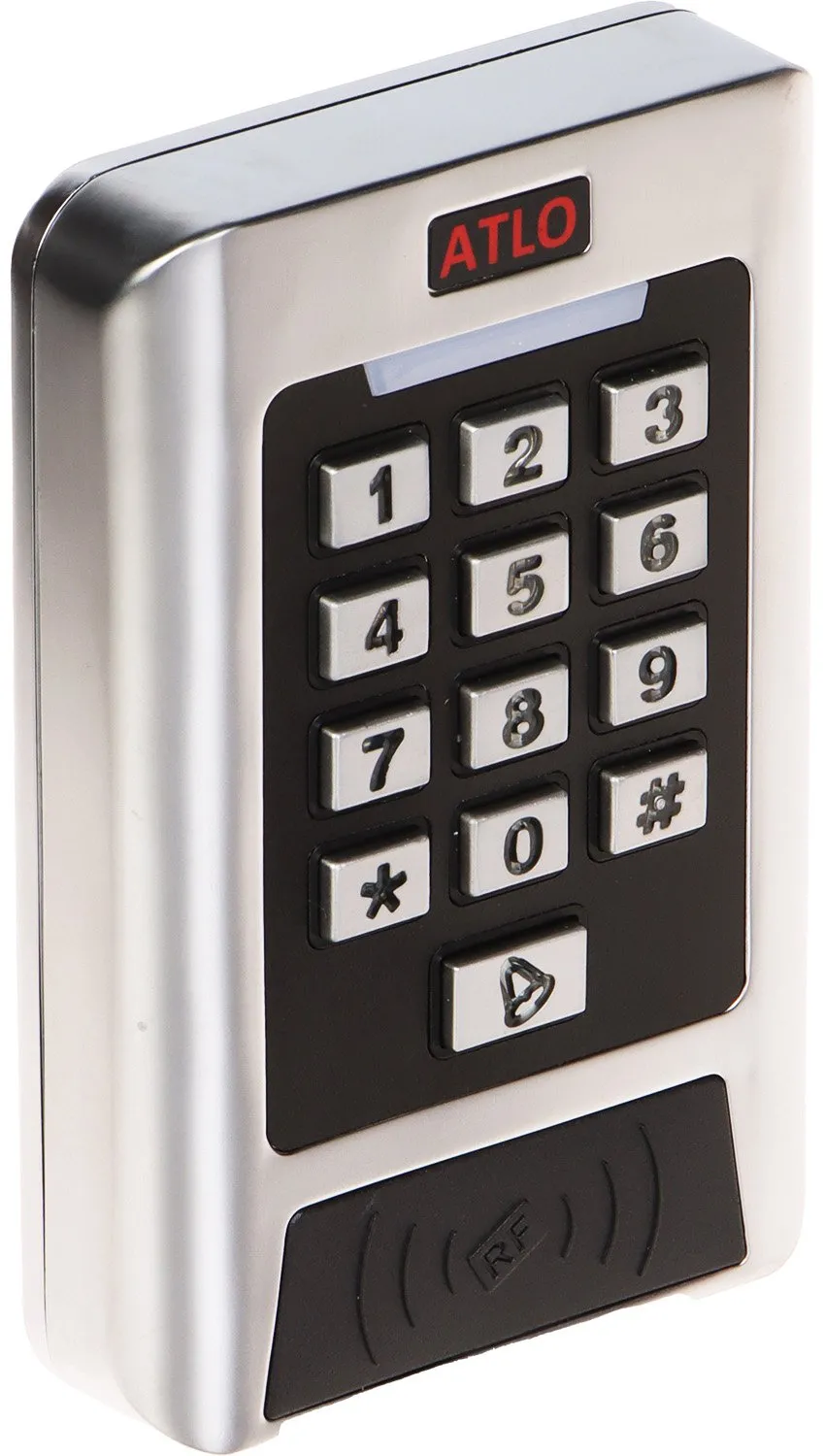

A sleek, metallic keypad lock with a numeric pad and RFID reader, designed for secure access control. The device features a modern design with a black and silver finish, and an illuminated display for easy use.

Photo gallery

A sleek, metallic access control keypad with a numeric pad and RFID reader, designed for secure entry systems. The device features a black and silver finish with a prominent red "ATLO" label at the top.
The image shows the back view of a sleek, rectangular electronic device with a metallic finish, featuring a central connector port and labeled diagrams for wiring. It includes mounting holes for easy installation and compliance markings indicating standards and manufacturing details.

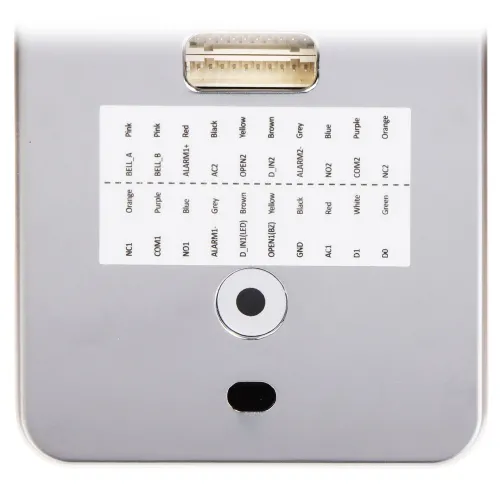

The image shows a close-up of a connector panel with labeled ports and a central circular opening, designed for electronic device integration. The labels indicate various connection points for functions such as alarms and communication interfaces.
The image shows a two-piece metallic enclosure with a sleek, reflective finish, designed for housing electronic components. One side features a connector and mounting points, while the other is a plain cover with pre-drilled holes for easy installation.
A set of colorful electrical wires with connectors is accompanied by screws, wall plugs, and an Allen wrench. The components are arranged neatly, showcasing their variety and utility for electrical installations.

  • Manufacturer

  • Product Code

    ATLO-KRMD-510

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

103,84 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

External standalone combination lock with RFID reader

Autonomous operation of the device allows the user to:
Opening with a card or PIN
Storing stored cards or PINs
Signaling of left open doors
Sound and visual signaling


Administrator capabilities are as follows:
Programming using the keypad
Adding a new card using the keypad
Adding a new card and entering the PIN
Changing the user's PIN
Deleting the user's PIN
Setting the lock release time
Restoring the default settings

Card support:Unique EM 125kHz
Card reading range:max. 4 cm
Standalone operation:Yes
Built-in keyboard:Yes
Bell button:Yes
Tamper output:No
Number of access zones:2
Communication:Wiegand 26
Power supply:12 V AC/DC
Maximum current consumption:
  • 25 mA (standby mode)
  • 60 mA (operation)
Number of contacts:2 pcs.
Load capacity of relay contacts:1 A / 12 V
Selected features:
  • Support for up to 2,000 users total for 2 zones
  • Identification: card and/or PIN
  • Blue backlighting of buttons
  • Operation with opening sensor and exit button
  • 2 x NO/NC output
  • Possibility to use codes without associated cards
  • Number of relay outputs : 2,
  • Support for electric strikes and electromagnetic jumpers
  • Support for reverse locks
  • Blue backlighting
Operating temperature:-45 °C ... 55 °C
Permissible relative humidity of the environment:0 ... 95 % (without condensation)
Housing:Metal
Color:Silver + Black
Waterproof class:IP68
Vandal resistant:Yes
Weight:0.49 kg
Dimensions:80 x 120 x 24 mm
Manufacturer/Brand:ATLO
