4x Monitoring Kit BCS-L-TIP35FSR8-Ai2, WDR 120dB, 0.0009Lux, 5Mpx, IR 80m, SMD 3.0 BCS

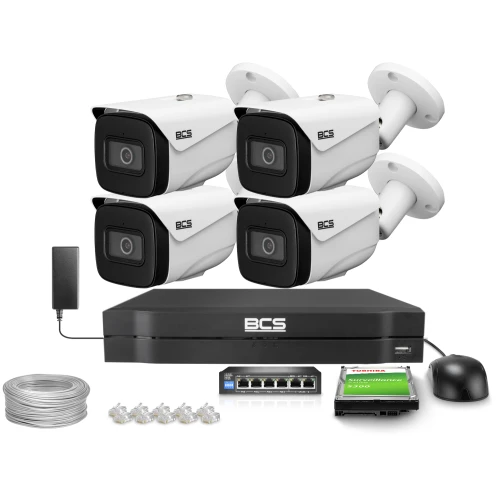

The kit includes:

• BCS-L-NVR0801-4KE(2) DVR ( 1pc ).
• BCS-L-TIP35FSR8-Ai2 camera ( 4pcs ).
• PoE switch BCS-B-SP0402 ( 1pc ).
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cat.5e cable ( 20m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of RJ45 plugs

Main features:

• Complete monitor kit with 4 cameras, DVR and all necessary accessories.
• High image quality 2960x1688p pixels (5Mpx)
• Viewing angle of cameras: H: 111° V: 58° D: 132°
• Outdoor/indoor mountable camera
• Intelligent image analysis with silhouette and vehicle recognition
• Enhanced recording performance with H.265+ codec
• Infrared light range - 80m
• Cameras meeting IP67 waterproof rating
• Audio recording with the cameras' built-in microphone
• 120dB hardware WDR
• 1TB hard drive, dedicated for use in video surveillance systems
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address

BCS-L-TIP35FSR8-Ai2 horn camera

• Sensor type: 1/1.7" CMOS,
• Pixel count: 5Mpx,
• Resolution: 2960(H)×1688(V)
• Lens focal length: 2.8mm /F1.6,
• Field of view: H: 111° V: 58° D: 132°
• Lens type: Fixed
• IR illuminator range: up to 80 meters,
• Functions: AWB / BLC / HLC / WDR (120dB) / AGC / 3D DNR /.
• Built-in MicroSD card input max. 512GB
• AI functions: perimeter protection, object recognition, Intelligent detection
• objects, face detection, people counting, metadata, heat map, SMD 3.0
• Protection class: IP67,
• Vandal-resistant class: IK10,
• Alarm input/output: 1/1,
• Audio input/output: 1/1,
• Built-in microphone
• Color: White
• Power supply: 12VDC / PoE (802.3af) / ePoE

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-TIP35FSR8-Ai2 records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2960x1688p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

P2P function

In BCS-L-TIP35FSR8-Ai2 is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without going through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function of the BCS-L-TIP35FSR8-Ai2 is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

BCS-L-NVR0801-4KE(2) 8 channel IP DVR from BCS Line

• Features: Pentaplex - live viewing, recording,
• playback, archiving, remote access.
• Channels: 8 IP channels.
• Capacity: Support for 1 drive up to 16 TB.
• Resolution: Up to 16 Mpx of recording.
• Bandwidth: 80Mbps input/output.
• Compression: H.265+, H.265, H.264+, H.264, MJPEG.
• Video output: HDMI 4K, VGA.
• AI functions: face detection and identification, protection
• perimeter, SMD Plus.
• Network support: ONVIF, various protocols, mobile applications,
• compatibility with third-party cameras.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

IP67 weatherproof design This housing protects the BCS-L-TIP35FSR8-Ai2 from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from phone and desktop computer BCS systems allow you to configure, control and view via apps that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back recorded footage Save parts of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

Wide dynamic range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) function of the BCS-L-TIP35FSR8-Ai2 is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in BCS-L-TIP35FSR8-Ai2 is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Video and audio recording The audio recording function of the BCS-L-TIP35FSR8-Ai2 allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as surveillance cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, car or other object.
• Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Automatic day/night mode Adapted to work in all lighting conditions with visibility up to 80m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

For whom will this monitoring kit be suitable?

This is a modern solution with a wide range of applications. Reach for this universal set if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

• monitoring of a store,
• monitoring of a wholesale and warehouse, as well as a production hall,
• monitoring of a school, monitoring of a kindergarten or other educational institutions,
• monitoring of a backyard, sports field or playground,
• monitoring of a private home,
• monitoring of a bar and restaurant,
• monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.
