Electromagnetic Cabinet Catch ATLO-DT-L08

Electromagnetic cabinet lock with a metallic finish, featuring a compact design and two mounting holes. Includes a black latch and red and black wiring for easy installation.
A compact metal lock mechanism with a sleek design is held in the palm of a hand, showcasing its small size. It features a red and black wire with a connector for easy installation.

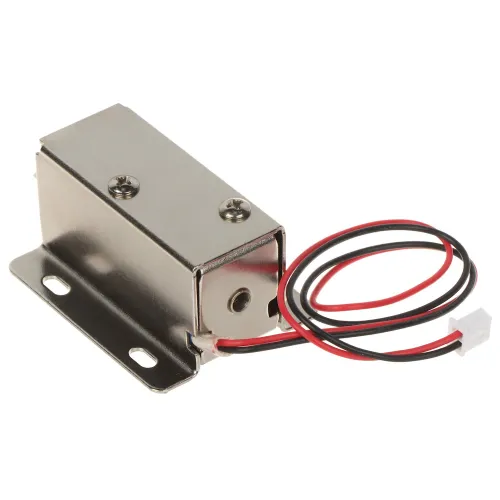

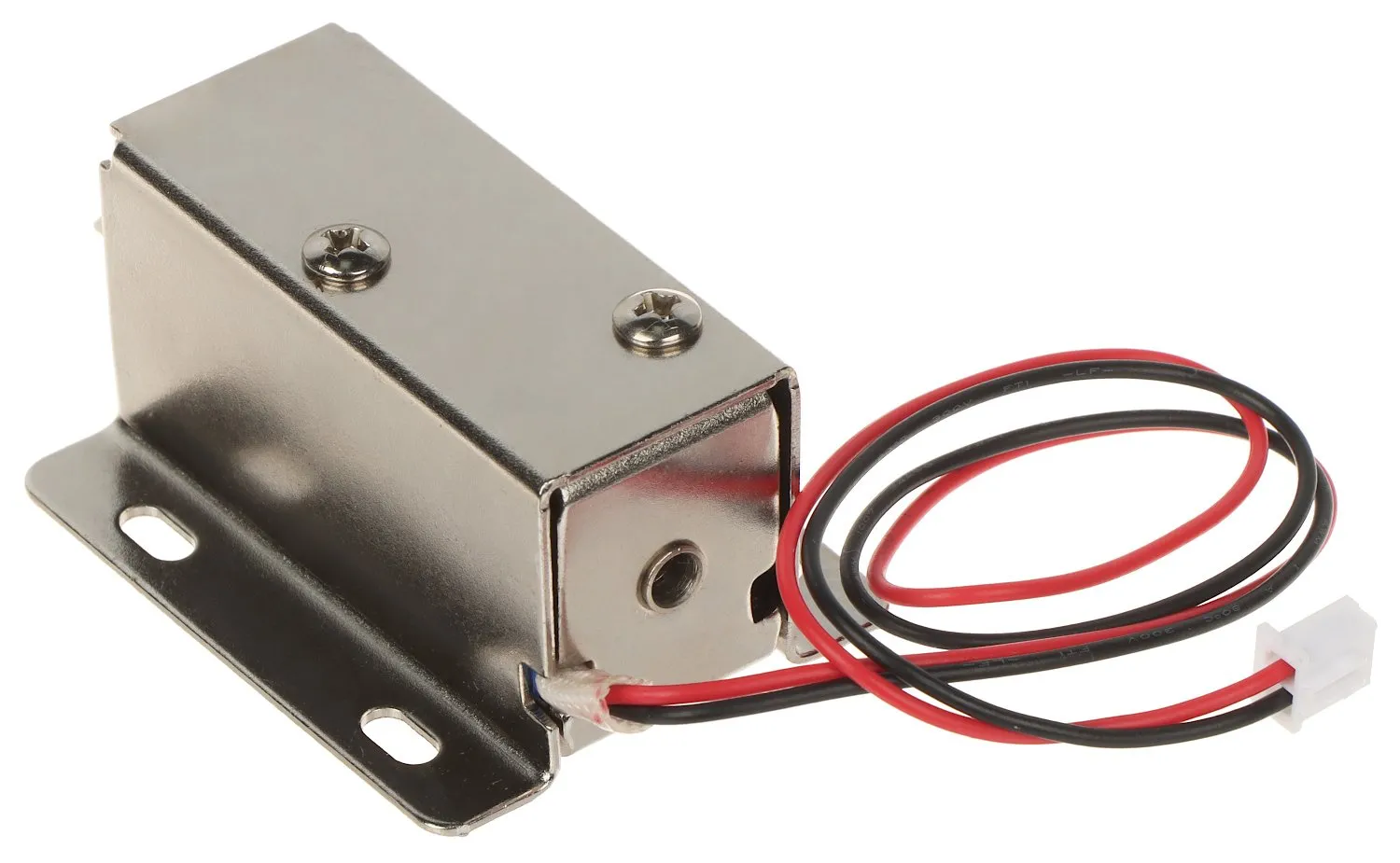

A compact, rectangular metal electric lock with a silver finish, featuring two mounting holes on the side bracket. It includes red and black wires with a white connector for easy installation.

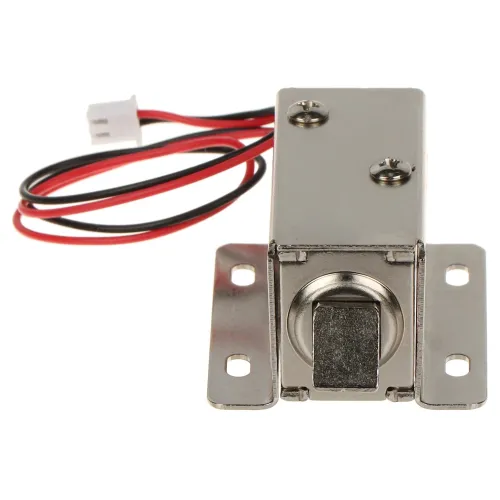

A rectangular metal electric lock with a visible latch and mounting holes on either side. It features red and black wires for electrical connection.

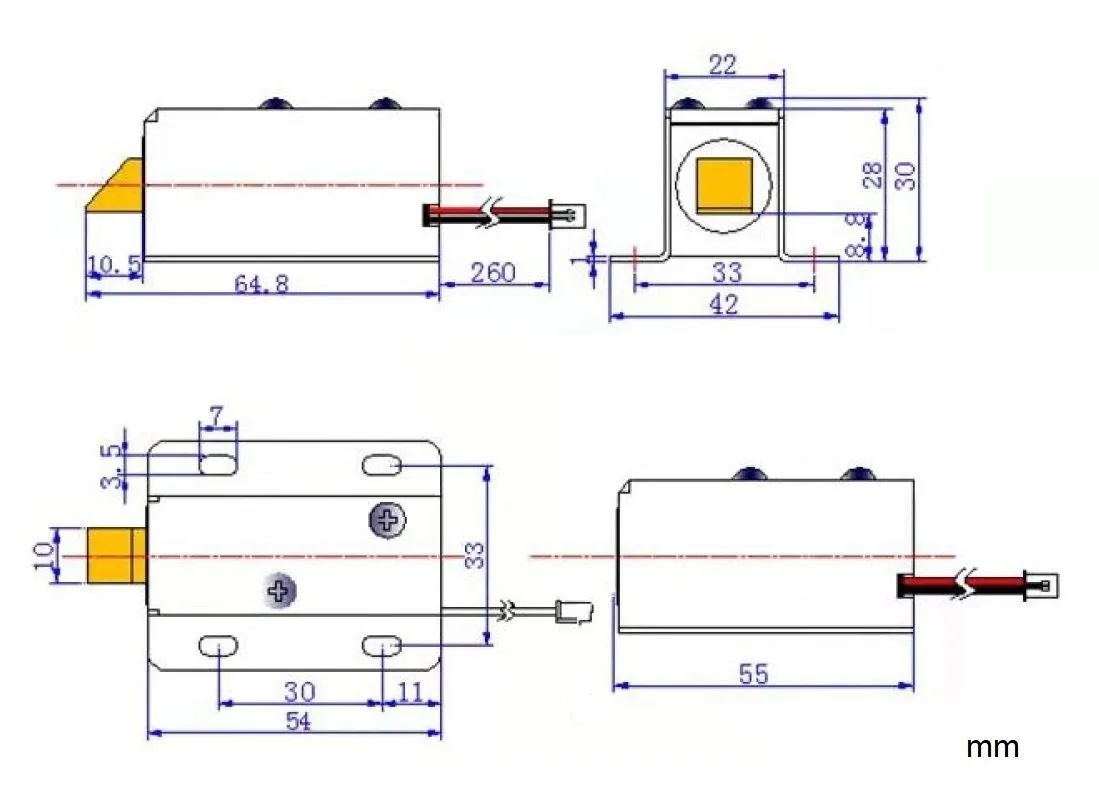

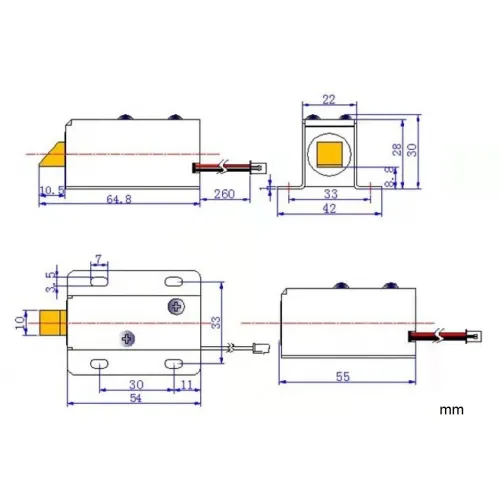

Technical diagram showing the dimensions of a compact sensor with a rectangular shape, featuring a yellow front and a cable extending from the side. The measurements are provided in millimeters, detailing the length, width, and height from multiple angles.

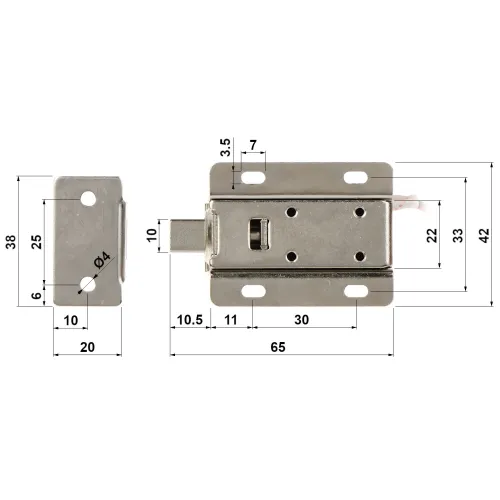

The image shows a metal electric strike lock with precise measurements indicated for installation. It features a rectangular design with a latch mechanism and multiple mounting holes for secure attachment.
A close-up of a two-pin white connector attached to red and black wires. The connector is designed for electrical connections in small electronic devices.

  • Manufacturer

  • Product Code

    ATLO-DT-L08

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

10,38 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The ATLO-DT-L08 locker lock allows convenient and secure management of access to lockers or deposit boxes in places such as airports, shopping malls, swimming pools, gyms, sports halls, etc.


Thanks to its design, the lock remains closed in the event of a power outage

Rated voltage:12 V DC
Current consumption:0.8 A
Application:right hand door / left hand door
Locking latch:No
Memory function:No
Reverse operation:No
Slack adjustment:No
Selected features:
  • Lock remains closed when not powered - pin extended
  • Pin ejection distance : 10.5 mm
  • Opening by voltage pulse : < 1 s ... max. 10 s
Permissible time of uninterrupted operation:≤ 10 s
Weight:
  • 0.152 kg - Electric strike
  • 0.014 kg - Lock
Dimensions:
  • 54 x 42 x 28 mm - Electric striker
  • 38 x 20 x 29 mm - Skobel
Manufacturer / Brand:ATLO
