Power Adapter POE SDIP-20-AD0 ATTE

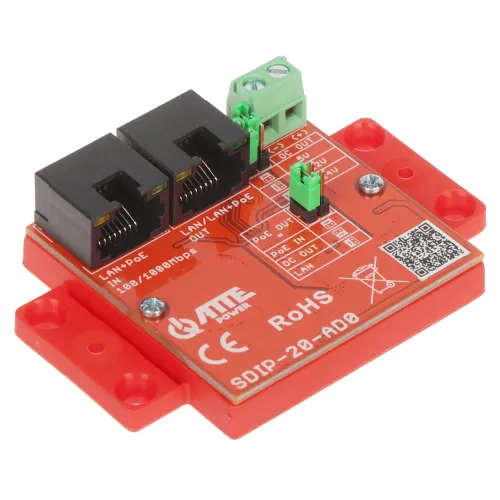

The image shows a red PoE power adapter with two Ethernet ports and multiple connection terminals. The adapter is designed for efficient power and data transmission, featuring clear labeling and a compact design.

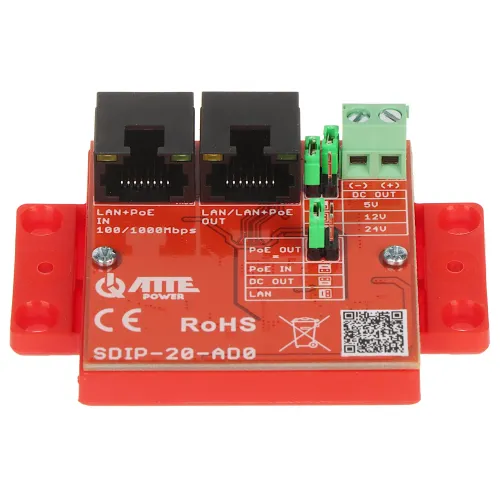

A red electronic module with two black Ethernet ports and multiple green connectors is displayed. The device features a QR code and various technical labels on its surface.

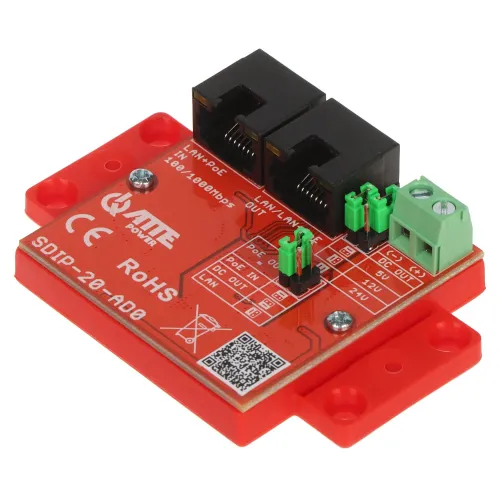

The image shows a red electronic module designed for power over Ethernet (PoE) applications, featuring two LAN ports and multiple DC output options. The module is labeled with technical specifications and compliance markings, including RoHS certification.

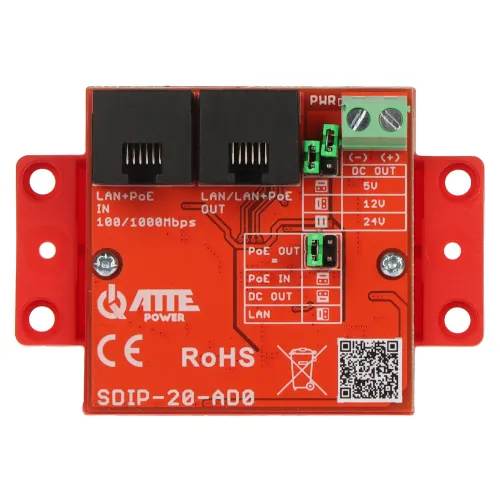

The image shows a red circuit board with two Ethernet ports labeled "LAN/PoE IN" and "LAN/PoE OUT," designed for power over Ethernet applications. It features multiple power output options, including 5V, 12V, and 24V, with clear labeling for easy installation.

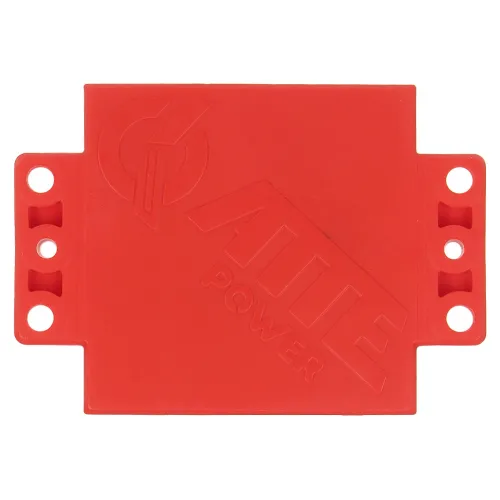

Red plastic mounting bracket with four screw holes on each side, featuring a raised logo and the word "POWER" embossed on the surface. The design is simple and functional, suitable for securing electronic components.

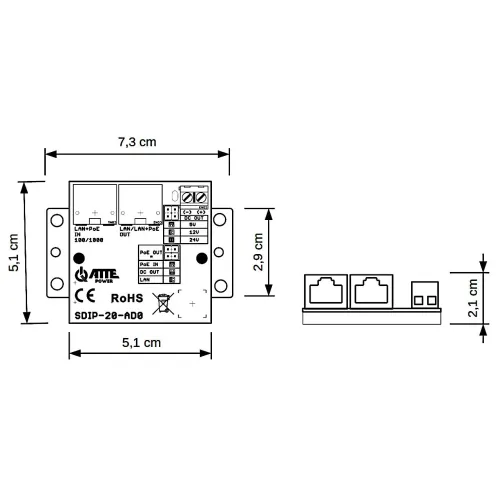

The image shows a compact electronic module with labeled ports and dimensions, featuring LAN/PoE inputs and outputs. It includes detailed measurements for installation, highlighting its RoHS compliance and ATTE Power branding.

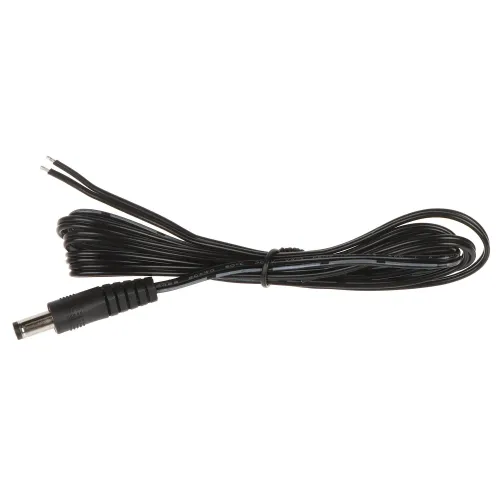

A black DC power cable with a cylindrical connector on one end and two exposed wires on the other. The cable is neatly coiled and secured with a twist tie.

  • Manufacturer

    ATTE

  • Product Code

    SDIP-20-AD0

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Save -33%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

18,84 € 28,26 €

Add to Watchlist

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

SDIP-20-AD0 adapter is designed to power additional devices via PoE line or to reduce PoE voltage present in RJ45 plug at 10/100/1000 Mbps throughput Suitable combinations of jumpers allow to choose the right configuration of PoE power supply at the output as well as the output voltage level from the converter


The device can be powered from PoE 802.3af / PoE 802.3at or PoE PASSIVE switch

Output power:max. 20 W
Number of inputs:1 pcs. RJ-45
Input voltage:44 ... 56 V DC - PoE
Output voltage:
  • Twisted terminals : 5 V DC / 12 V DC / 24 V DC - Jumper-settable.
  • LAN OUT port - Set by jumpers - according to the user manual
Indicator LEDs:Indicates the presence of output voltage
Selected features:
  • Configuration of output voltages is done with jumpers
  • Protection class: IP20
Protections:No
Housing:Plastic
Color:Red
Operating temperature:-25 °C ... 50 °C
Weight:0.04 kg
Dimensions:73 x 52 x 21 mm
Manufacturer / Brand:ATTE

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
