SWITCH POE CS4220-16GT-240 16-PORT SFP Dahua

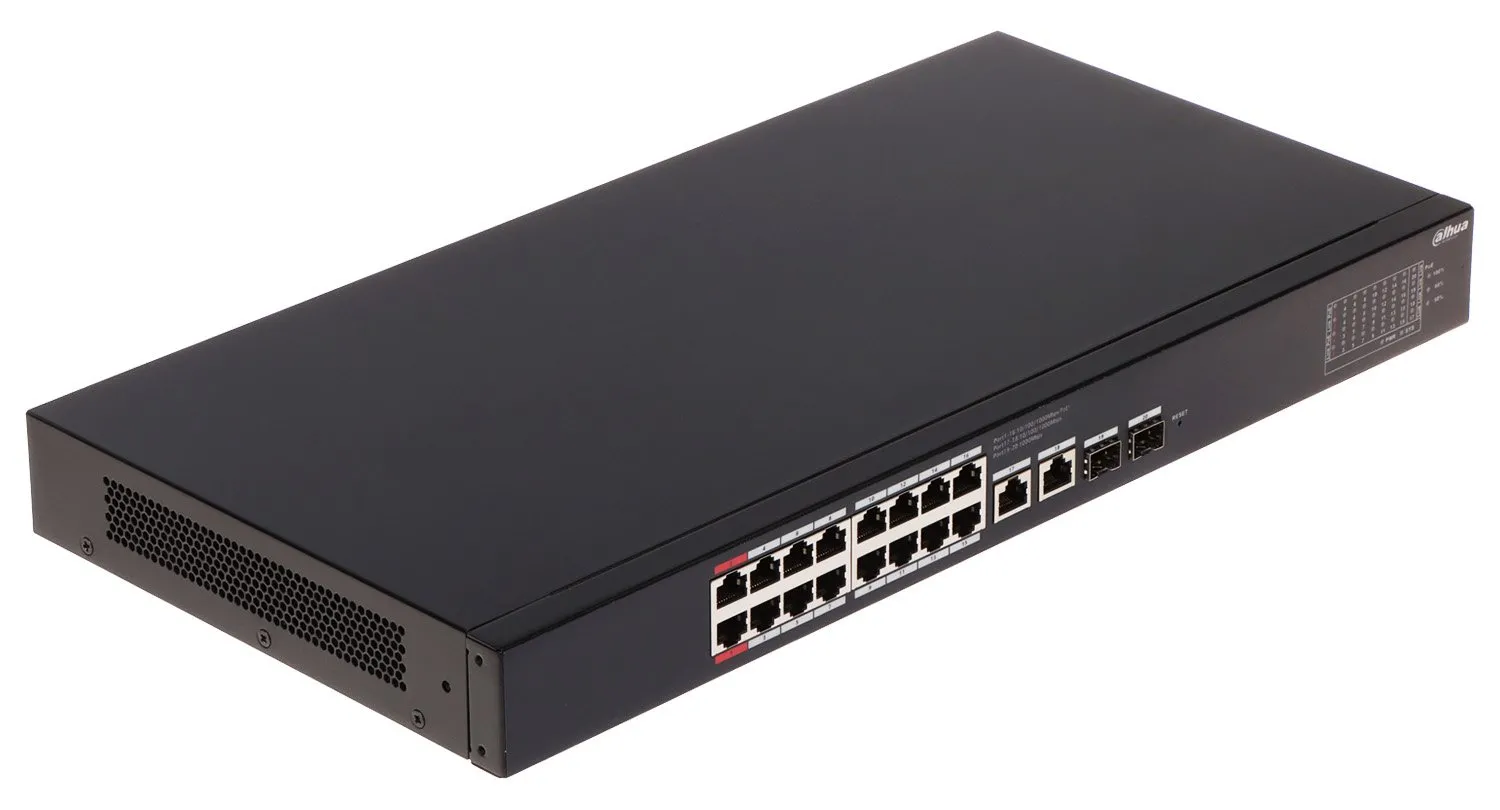

The image shows a sleek, black network switch with 16 Ethernet ports and additional SFP slots for fiber connectivity. The device features a compact design suitable for efficient network management in professional settings.
The image shows a Dahua network switch with 16 Ethernet ports and 2 SFP ports, designed for efficient data management and connectivity. The sleek black design features LED indicators for easy monitoring of network activity.

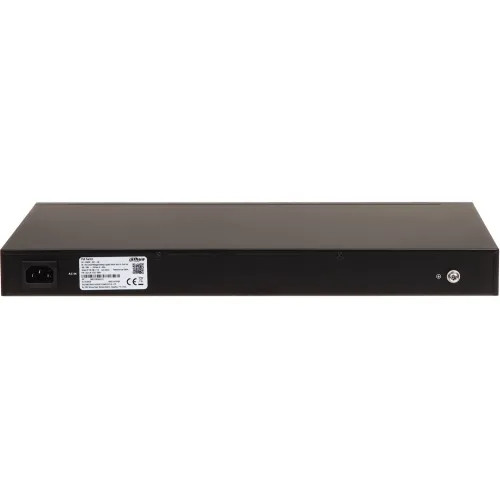

The image shows the back view of a black electronic device, featuring a power input and a network port. It has a sleek, rectangular design with a label displaying technical specifications and certifications.

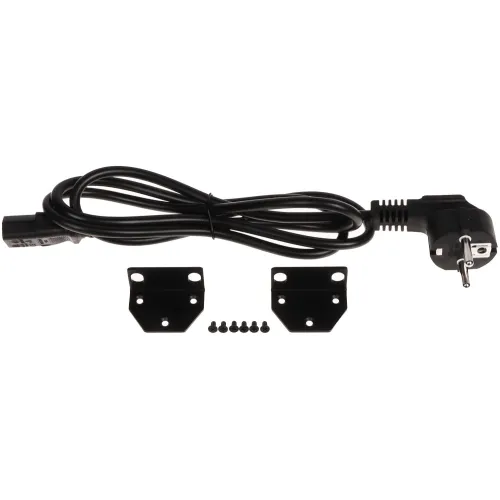

The image shows a black power cable with a right-angle plug, accompanied by two metal mounting brackets and six small screws. The cable is neatly coiled, and the brackets are positioned below it, ready for installation.
  • Manufacturer

    Dahua
  • Product Code

    CS4220-16GT-240


Ask about this product show form

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

807,57 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

With reliability and ensuring high quality transmission, the CS4220-16GT-240 16-port 10/100/1000 Mbps desktop PoE switch is an ideal solution for expanding home or office networks 16 ports support Power over Ethernet (PoE) function. The switch is manageable via the web and via the cloud (DoLynk Care application). Note: SFP port requires the purchase of an SFP module, which is available in our offer

LAN ports:
  • 16 x RJ45 10/100/1000 Base-T ( 2 x Hi-PoE (802.3bt) + 14 x PoE (802.3af/at) ),
  • 2 x RJ45 10/100/1000 Base-T - Uplink,
  • 2 x SFP 1000 Base-X - Uplink
Management:Yes
Default IP address:192.168.1.110
Default admin login/password.:admin / -
Administrator password should be set at first startup
LEDs:Link, PoE, Power, System, 50% PoE, 80% PoE, 100% PoE
Transmission speed:
  • 10 / 100 / 1000 Mbps : 16 LAN & PoE Ports,
  • 10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) Ports,
  • 1000 Mbps : 2 SFP ports (Uplink)
Maximum output power:
  • 90 W / port Hi-PoE / PoE 802.3bt - Ports 1, 2
  • 30 W / port PoE 802.3af/at - Ports 3 ... 16
Maximum total power:240 W
MAC address table:8k
Operation modes:
  • Long Distance PoE On : 250m, 10 Mbps @ UTP cat. 5e, 6
Selected features:
  • The switch is manageable via the web and via the cloud (DoLynk Care app)
  • PoE power mode : The device supports 8-pin power supply - wires : 1-2(+), 3-6(-), 4-5(+), 7-8(-)
  • Intelligent power supply output stage management
  • Protection against lightning and potential differences between devices
  • PoE watchdog
  • Loop Protection
  • Compatibility with LLDP protocol
  • Spanning Tree STP/RSTP
  • Port Based VLAN : 32
  • Data flow control (802.3x)
  • DHCP Client
  • RESET button
  • 19" rack mountable
Certifications:CE
Protections:
  • Lightning protection (common/differential) : 4 / 2 kV
  • Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV
Enclosure:Metal
Power supply:100 ... 240 V AC @ 47 ... 63 Hz
Power consumption:max. 265 W
Operating temperature:-10 °C ... 55 °C
Weight:2.41 kg
Dimensions:440 x 220 x 44 mm, RACK 19", 1U
Manufacturer / Brand:Dahua
