SWITCH POE CS4228-24GT-240 24-PORT SFP Dahua

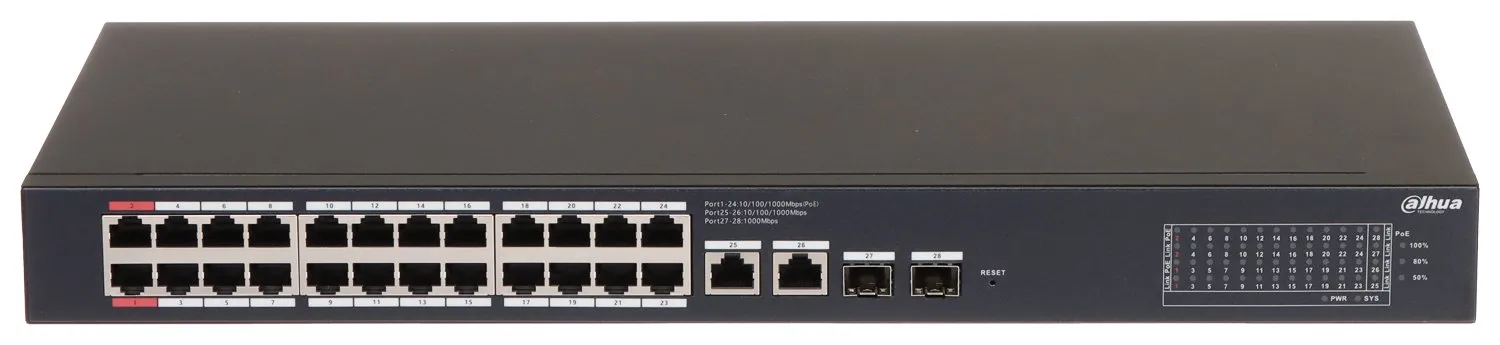

The image shows a Dahua 24-port PoE switch with a sleek black design, featuring multiple Ethernet ports and SFP slots for network connectivity. The front panel displays LED indicators for easy monitoring of network activity.

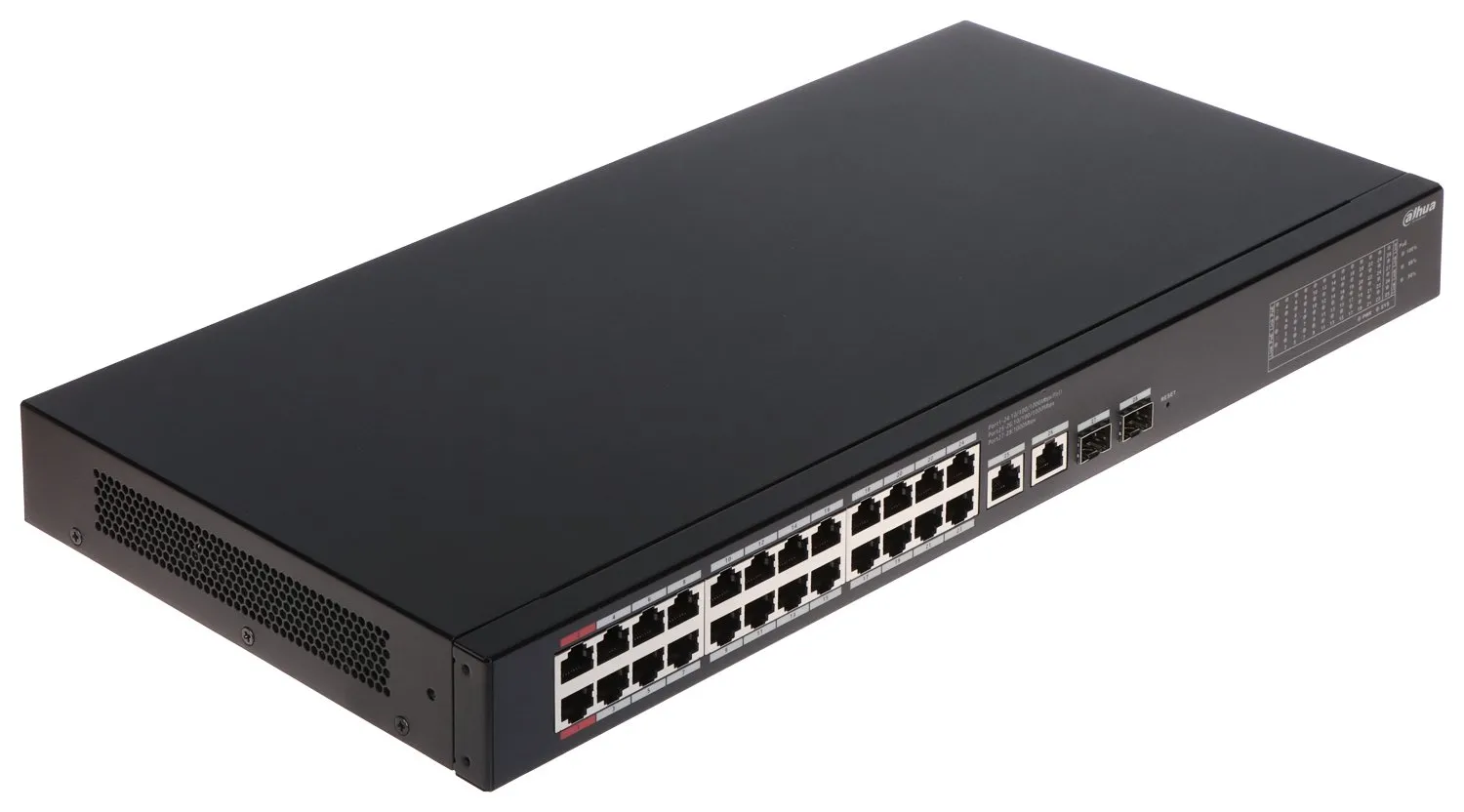

The image shows a Dahua network switch with 24 Ethernet ports and 2 SFP ports, designed for efficient data management and connectivity. The front panel includes LED indicators for easy monitoring of network activity.
The image shows the rear view of a sleek, black electronic device featuring a power input on the left side and a small label with specifications in the center. The device has a minimalist design with a smooth surface and a few visible screws for assembly.
A black power cable with a right-angle plug is accompanied by two metal mounting brackets and six small screws. The set is designed for secure and organized installation of electronic devices.
  • Manufacturer

    Dahua
  • Product Code

    CS4228-24GT-240


Ask about this product show form

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

920,61 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Thanks to its reliability and provision of high-quality transmission, the CS4228-24GT-240 24-port 10/100/1000 Mbps desktop PoE switch is an ideal solution for expanding a home or office network The 24 ports support Power over Ethernet (PoE). The switch is manageable via the web and via the cloud (DoLynk Care application). Note: SFP port requires the purchase of an SFP module, which is available in our offer

LAN ports:
  • 24 x RJ45 10/100/1000 Base-T ( 2 x Hi-PoE (802.3bt) + 22 x PoE (802.3af/at) ),
  • 2 x RJ45 10/100/1000 Base-T - Uplink,
  • 2 x SFP 1000 Base-X - Uplink
Management:Yes
Default IP address:192.168.1.110
Default admin login/password.:admin / -
Administrator password should be set at first startup
LEDs:Link, PoE, Power, System, 50% PoE, 80% PoE, 100% PoE
Transmission speed:
  • 10 / 100 / 1000 Mbps : 24 LAN & PoE Ports,
  • 10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) Ports,
  • 1000 Mbps : 2 SFP Ports (Uplink)
Maximum output power:
  • 90 W / port Hi-PoE / PoE 802.3bt - Ports 1, 2
  • 30 W / port PoE 802.3af/at - Ports 3 ... 24
Maximum total power:240 W
MAC address table:8k
Operation modes:
  • Long Distance PoE On : 250m, 10 Mbps @ UTP cat. 5e, 6
Selected features:
  • The switch is manageable via the web and via the cloud (DoLynk Care app)
  • PoE power mode : The device supports 8-pin power supply - wires : 1-2(+), 3-6(-), 4-5(+), 7-8(-)
  • Intelligent power supply output stage management
  • Protection against lightning and potential differences between devices
  • PoE watchdog
  • Loop Protection
  • Compatibility with LLDP protocol
  • Spanning Tree STP/RSTP
  • Port Based VLAN : 32
  • Data flow control (802.3x)
  • DHCP Client
  • RESET button
  • 19" rack mountable
Certifications:CE
Protections:
  • Lightning protection (common/differential) : 4 / 2 kV
  • Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV
Enclosure:Metal
Power supply:100 ... 240 V AC @ 47 ... 63 Hz
Power consumption:max. 265 W
Operating temperature:-10 °C ... 55 °C
Weight:2.52 kg
Dimensions:440 x 220 x 44 mm, RACK 19", 1U
Manufacturer / Brand:Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
