12-MODULE Flush-Mounted Distribution Board MSF-1X12/PT/W/EPN Elektro-Plast

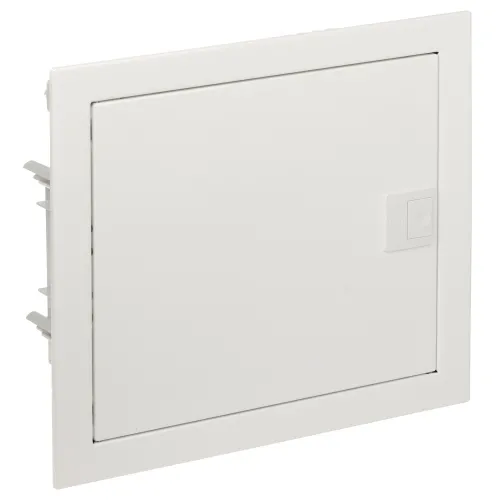

Underfloor distribution box with a sleek, white finish designed for 12 modules. The unit features a minimalist front panel with a discreet handle for easy access.
Front view of a white electrical distribution box with a transparent hinged cover, featuring a green "epn" logo on the top right corner. The box is designed for housing circuit breakers and electrical components, providing organized and secure installation.
The image shows a white electrical junction box with a green terminal strip inside, designed for organizing and securing electrical connections. The box features multiple slots and compartments for efficient cable management.
The image shows a white electrical distribution box with multiple cable entry points and mounting brackets. It features a modular design suitable for organizing and securing electrical connections in residential or commercial settings.

  • Manufacturer

  • Product Code

    MSF-1X12/PT/W/EPN

see description

    Price (Incl. VAT):

    Archival product

    Najniższy koszt dostawy: 21,24 zł

    Do you represent a budgetary unit?
    Check out the deferred payment option.

    Product Description

    Flush-mounted 1-row 12-module electrical switchboard

    Mounting method:Flush-mounted
    Number of mounted modules:12 + 2 x 1 row, 17.5 mm
    Distance between TH 35 brackets:No
    Transparent door:No
    Selected features:
    • Metal door
    • Door can be equipped with a lock
    • Removable top and bottom panel
    • Can be installed in both hollow walls (plasterboard) and masonry walls
    Equipment:Connection strips :
    • 1 pcs. N : 13 x 16 mm²
    • 1 pcs. PE : 13 x 16 mm²
    Construction material:Plastic + Steel
    Color:White
    Leakage class:IP30
    Mechanical resistance class:IK05
    Compliance with standards:PN-EN 62208:2011, PN-EN 60670-24:2013
    Weight:2.32 kg
    Dimensions:358 x 329 x 94 mm ,
    330 x 301 x 91 mm - flush box
    Manufacturer / Brand:Elektro-Plast Nasielsk
