INDUSTRIAL POE SWITCH GTX-PLM1-10-8G2SFP 8-PORT SFP

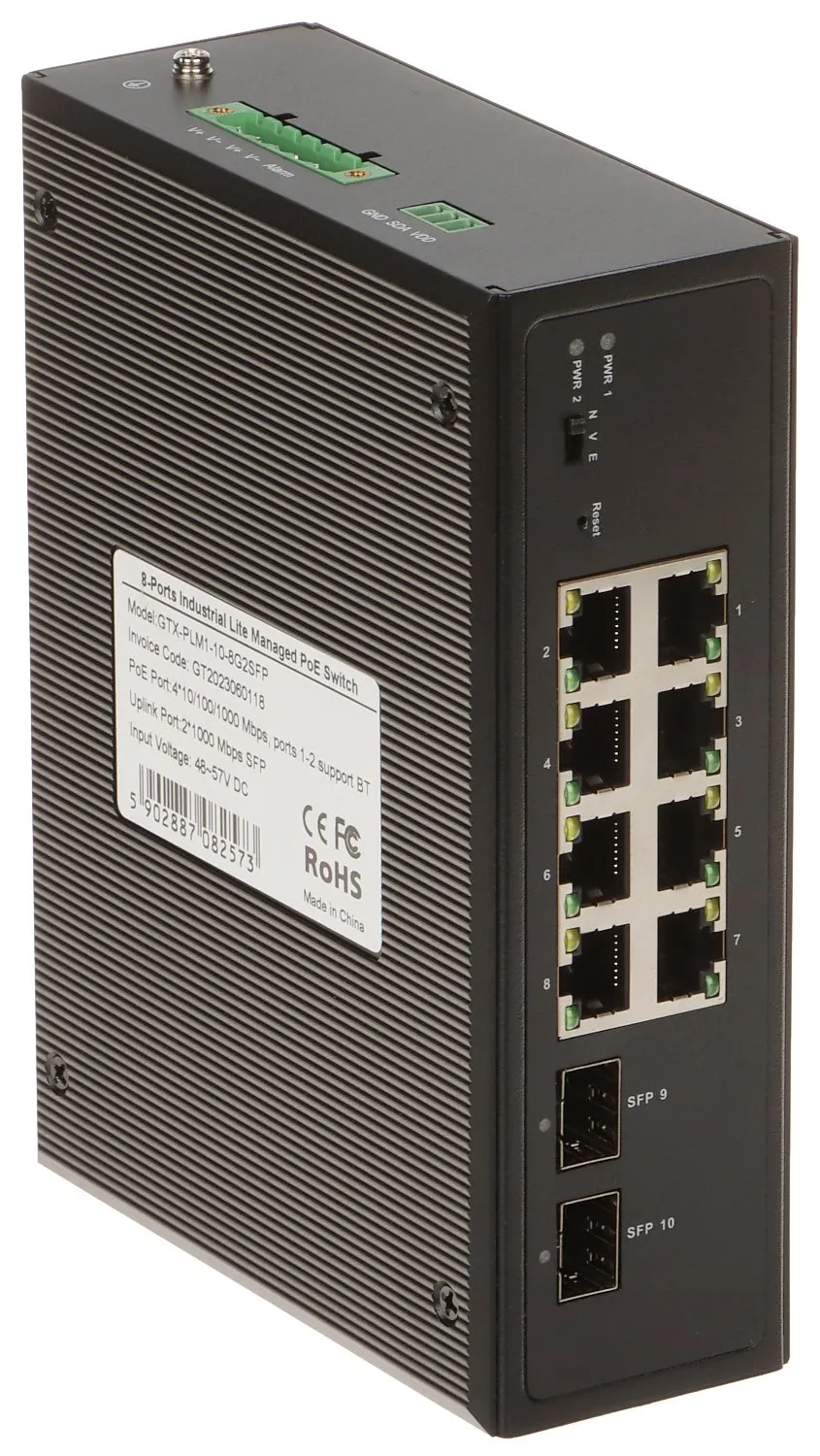

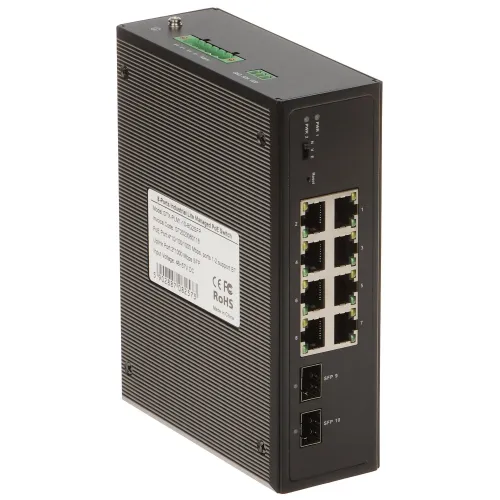

The image shows an 8-port industrial PoE switch with a robust metal casing, featuring eight Ethernet ports and two SFP slots for fiber connectivity. The device is designed for high-performance network management in industrial environments.

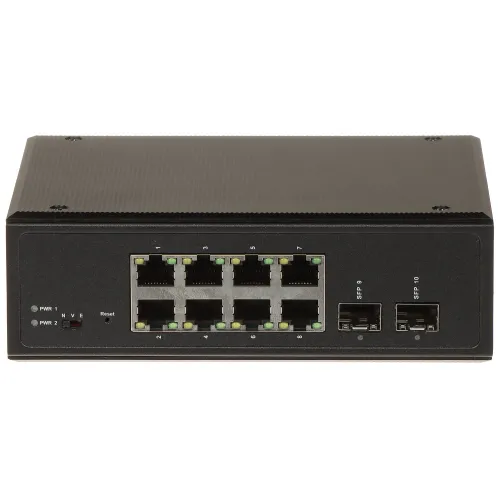

The image shows a black network switch with eight Ethernet ports and two SFP ports on the front panel. It features LED indicators for each port and power status lights on the left side.

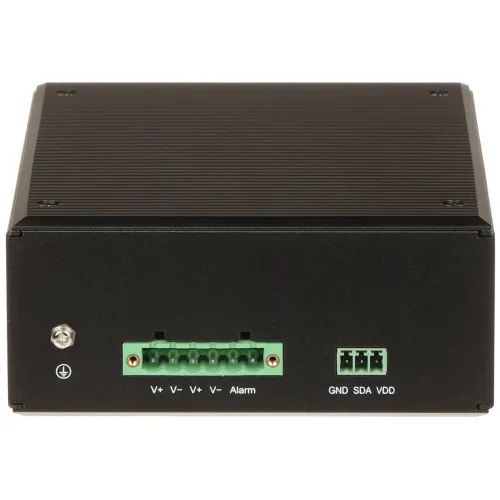

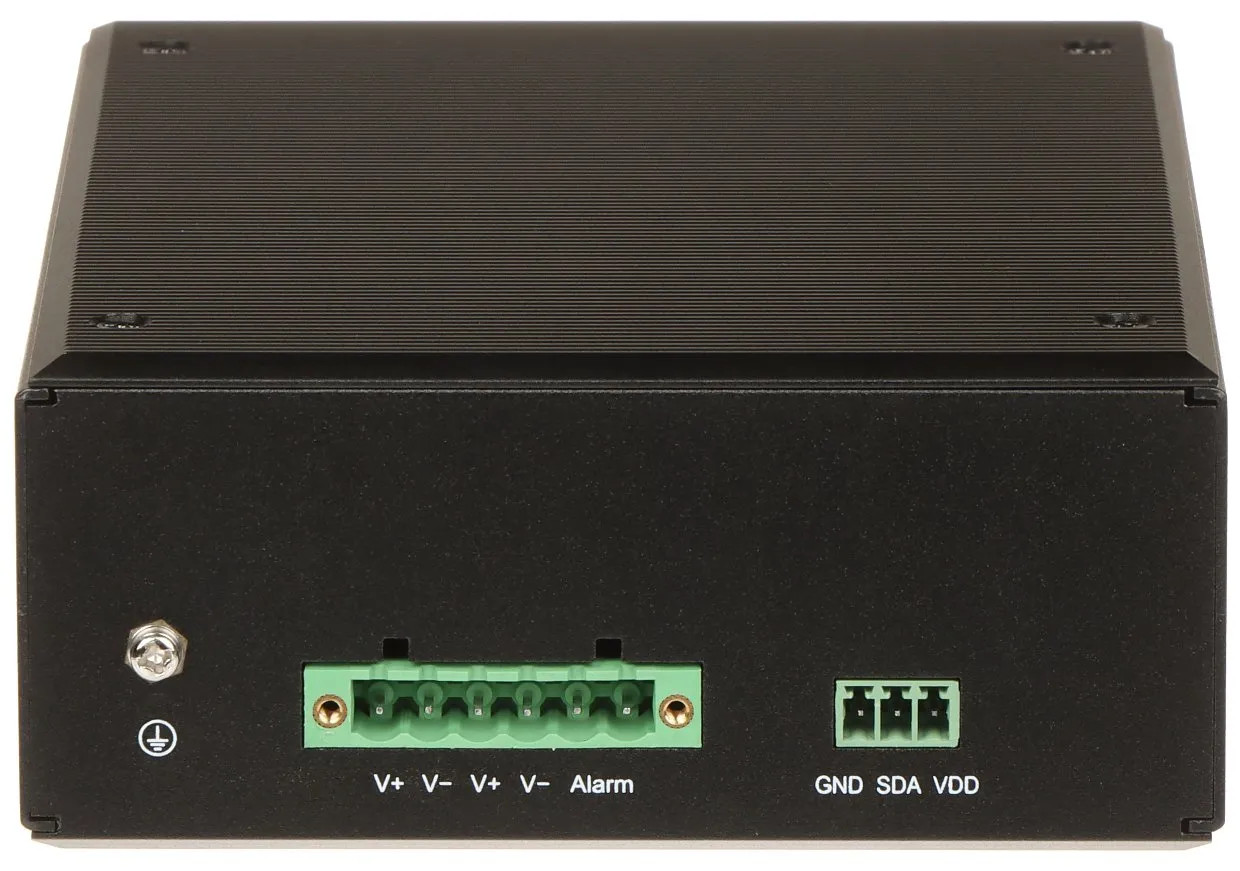

A black electronic device with a ribbed surface features multiple connection ports, including a green terminal block labeled with power and alarm indicators. The side panel also includes additional ports labeled GND, SDA, and VDD for various connectivity options.

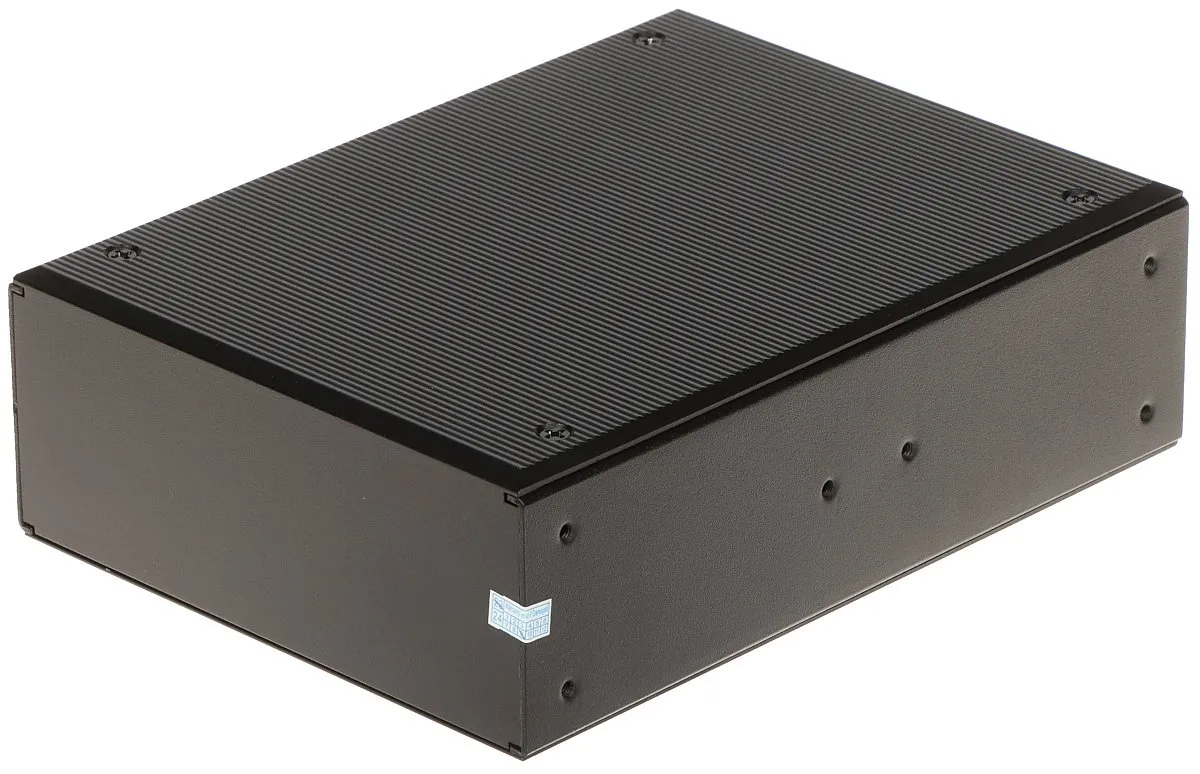

A black, rectangular electronic enclosure with a ribbed top surface and smooth sides, featuring multiple screw holes for secure mounting. The design is sleek and minimalistic, suitable for housing various electronic components.
The image shows a set of electronic components including a green terminal block connector, a black mounting bracket, and a black plastic casing with red, yellow, and black wires. The components are arranged neatly, highlighting their individual features and connection points.
The image shows an 8-port industrial PoE switch with a robust metal casing, featuring eight Ethernet ports and two SFP slots for fiber connectivity. The device is designed for high-performance network management in industrial environments.

Photo gallery

The image shows a black network switch with eight Ethernet ports and two SFP ports on the front panel. It features LED indicators for each port and power status lights on the left side.
A black electronic device with a ribbed surface features multiple connection ports, including a green terminal block labeled with power and alarm indicators. The side panel also includes additional ports labeled GND, SDA, and VDD for various connectivity options.
A black, rectangular electronic enclosure with a ribbed top surface and smooth sides, featuring multiple screw holes for secure mounting. The design is sleek and minimalistic, suitable for housing various electronic components.
The image shows a set of electronic components including a green terminal block connector, a black mounting bracket, and a black plastic casing with red, yellow, and black wires. The components are arranged neatly, highlighting their individual features and connection points.

  • Product Code

    GTX-PLM1-10-8G2SFP

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

207,67 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

PoE Switch GTX-PLM1-10-8G2SFP is an industrial type device providing smooth network transmission at 10 / 100 / 1000 Mbps Devices of this type can be used in installations carried out in industrial facilities in adverse conditions such as high or low temperature. Note: SFP port requires the purchase of SFP module, which is available in our offer. Note: No power supply included

LAN ports:
  • 2 x SFP 1000 Base-X Uplink port,
  • 8 x RJ45 10/100/1000 Base-T ( PoE 802.3af/at ) ,
Management:Yes
Default IP address:192.168.2.1
Default admin login / password:admin / admin
Transmission speed:
  • 10 / 100 / 1000 Mbps - 8 LAN & PoE Ports,
  • 1000 Mbps - 2 SFP Ports.
Maximum power output:
  • 90 W / port PoE 802.3bt : 1 ... 2,
  • 30 W / PoE port : 3 ... 8 ,
Maximum total power:120 W
MAC address table:8K
Selected features:
  • Data flow control
  • One programmable relay output
  • QoS - mechanisms and standards that ensure high quality transmission
  • DHCP client/server support
  • EXTEND mode - PoE ports1 ... PoE8 support transmission up to 250m
  • VLAN mode
  • Protection against lightning and potential differences between devices
  • Designed for industrial applications in a wide temperature range.
  • Can be mounted on a wall, or on a DIN TS-35 rail
  • RESET button
  • Temperature and humidity sensor
  • Possibility to connect an external WZ trip indicator
LEDs:PWR 1, PWR 2, PoE, Link/Act
Certifications:CE, FCC, RoHS
Power supply:48 ... 57 V DC, Possibility to connect two power supplies - redundant power supply
Housing:Metal
Operating temperature:-40 °C ... 75 °C
Weight:0.7 kg
Dimensions:165 x 123 x 52 mm
