ESP-P-WROOM32 PROGRAMMER FOR ESP32-WROOM-32 SERIES MODULES

The image shows an ESP-WROOM-32 adapter designed for ESP32 series modules, featuring multiple pin connectors and a micro USB port for easy integration. The compact black circuit board is equipped with labeled pins for efficient connectivity and programming.

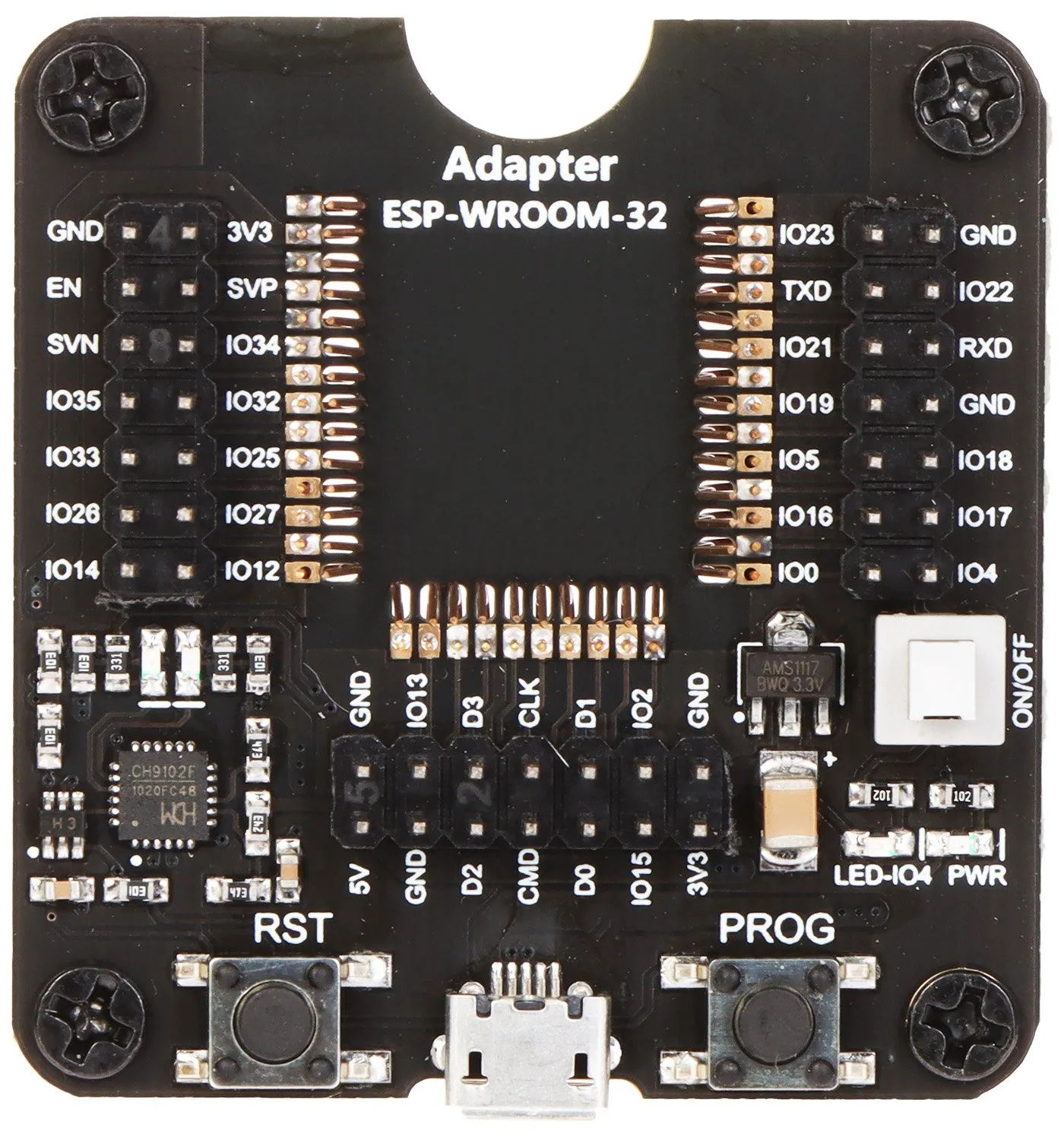

Top view of a black ESP-WROOM-32 adapter board featuring multiple labeled pins and connectors for easy integration. The board includes a reset button, a programmable button, and an on/off switch for efficient control.
The image shows an ESP-WROOM-32 adapter with multiple pin connectors and a USB port, designed for easy integration with various electronic projects. The adapter features labeled pins and two buttons for enhanced functionality and user interaction.
A transparent electronic adapter with visible copper connectors and multiple pin slots is shown from a bottom view. The adapter features a clear casing, allowing a detailed look at its internal components and design.

  • Product Code

    ESP-P-WROOM32

  • Warranty

    24 miesiące

see description

    Price (Incl. VAT):

    Archival product

    Najniższy koszt dostawy: 12,98 zł

    Do you represent a budgetary unit?
    Check out the deferred payment option.

    Product Description

    The programmer makes it possible, for example, to save your own program in the memory of the connected controller, or for the computer to communicate with the module via the USB port. The interface has been equipped with a dedicated place for the board, surrounded by spring-loaded pins Such a solution ensures the proper connection of the module's pins with the derived goldpin connectors, by the way, allowing a secure, temporary installation of the programmed module An additional convenience for programming and testing the module are the function buttons, thanks to which there is no need to manually short-circuit the corresponding pins of the module. The programmer is powered from the USB port and requires no external power supply

    Compatibility:ESP32-WROOM-32
    Connector type:
    • 1 x Micro USB socket,
    • Spring pin temporary board mounting location
    • 42 x Goldpin connector - Pin-out.
    Output signal level:3.3 V
    Power output:3.3 V, 5 V
    Selected features:
    • ON/OFF button,
    • RESET button,
    • PROGRAM button
    Power supply:5 V - from USB port
    Weight:0.02 kg
    Dimensions:50 x 47 x 15 mm
