HDMI+USB-EX-70-4K-PRO EXTENDER

The image shows a pair of black HDMI KVM extenders designed for extending HDMI and USB signals over long distances. Each unit features multiple ports, including HDMI, USB, and Ethernet, for versatile connectivity options.

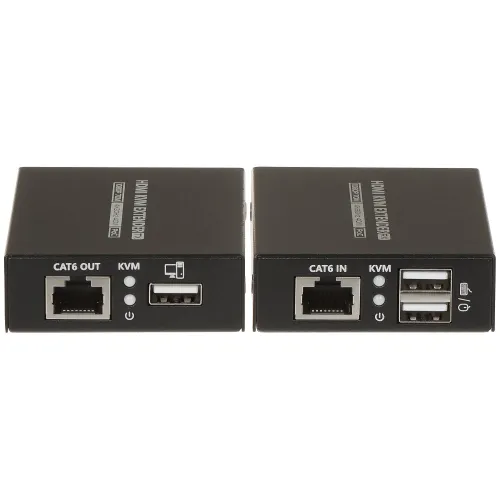

The image shows two black HDMI KVM extenders, each featuring multiple ports including USB and Ethernet connections. The extenders are labeled for transmitter (TX) and receiver (RX) functions, designed for extending HDMI signals over long distances.

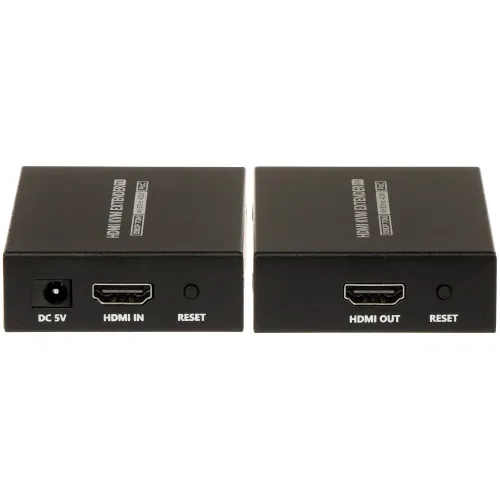

The image shows a pair of black HDMI KVM extenders, with one unit featuring a DC 5V power input, HDMI input, and reset button, and the other unit displaying an HDMI output and reset button. Both devices are designed for extending HDMI signals over long distances.
The image illustrates a connection diagram for an HDMI extender setup, showing the transmission of signals from a PC and camera through a transmitter (TX) to a receiver (RX) over a 70-meter distance. The setup includes connections for a mouse and keyboard, with the output displayed on an HDMI screen.

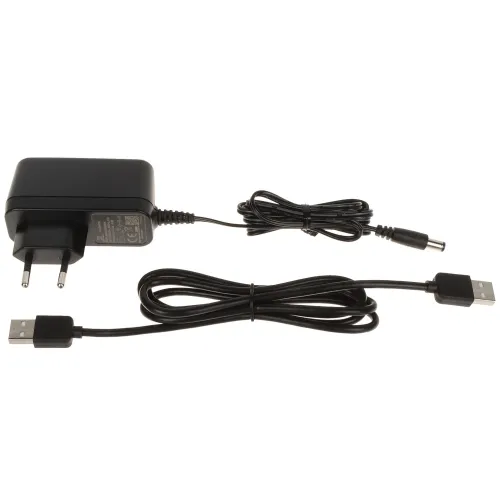

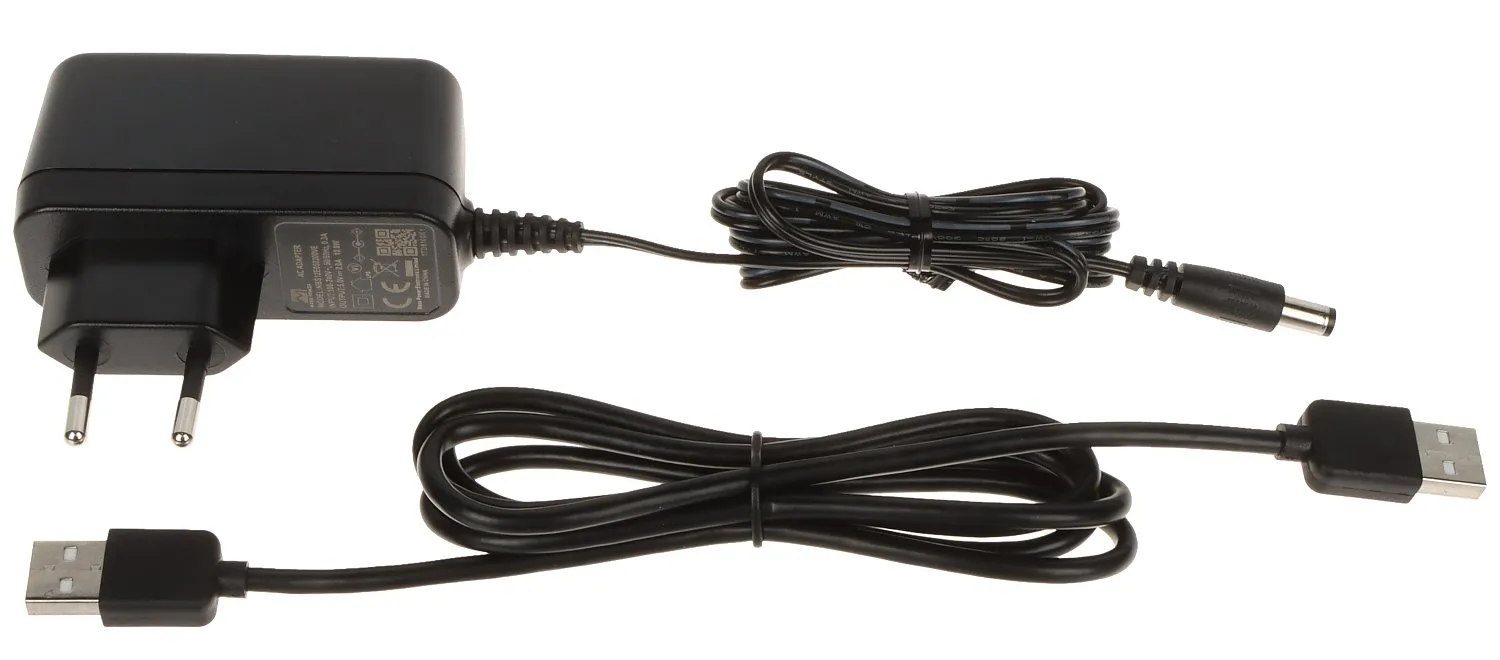

A black power adapter with a European plug is shown alongside two USB cables, one with a standard USB connector and the other with a DC barrel connector. The cables are neatly coiled, highlighting their length and flexibility.

  • Product Code

    HDMI+USB-EX-70-4K-PRO

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

92,75 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The device allows you to transmit a high-definition signal to a TV set equipped with an HDMI connector via CAT 6 / 6A / 7 twisted-pair cable Extender also allows you to extend the USB 2.0 port, for example, to control the DVR with a mouse Only one twisted-pair cable needs to be brought to the TV set, which makes the device easier to install and improves the aesthetics of the installation

Supported HDMI resolutions:max. 4K UHD @ 30 Hz
Maximum transmission range:
  • 40 m - UTP cat. 6, 6A, 7 @ 4K UHD,
  • 70 m - UTP cat. 6, 6A, 7 @ 1080p
Selected features:
  • The extender also allows you to extend the USB 2.0 port, for example, to control the DVR with a mouse
  • Support for KVM functions,
  • HDMI 1.4
  • HDCP 1.4
  • HDR support,
  • Audio support: DTS, DTS-HD, PCM, LPCM
  • PoC support - power supply required for TX module only
  • ESD protection - IEC 61000-4-2, ±4kV contact, ±8kV air
Selected features:
  • Very good image quality with no visible noise due to compression,
  • No delay in video transmission,
  • No delay in mouse control
  • Dedicated to 24/7 continuous operation
  • USB-A / USB-A cable included
Power supply:5 V DC / 2 A (power adapter included)
Operating temperature:-20 °C ... 60 °C
Permissible relative humidity of the environment:0 % ... 90 % (without condensation)
Weight:
  • 0.12 kg - Transmitter
  • 0.13 kg - Receiver
Dimensions:77 x 60 x 20 mm - Dimensions of transmitter or receiver
