BATTERY VOLTAGE BALANCER IPS-BB-48

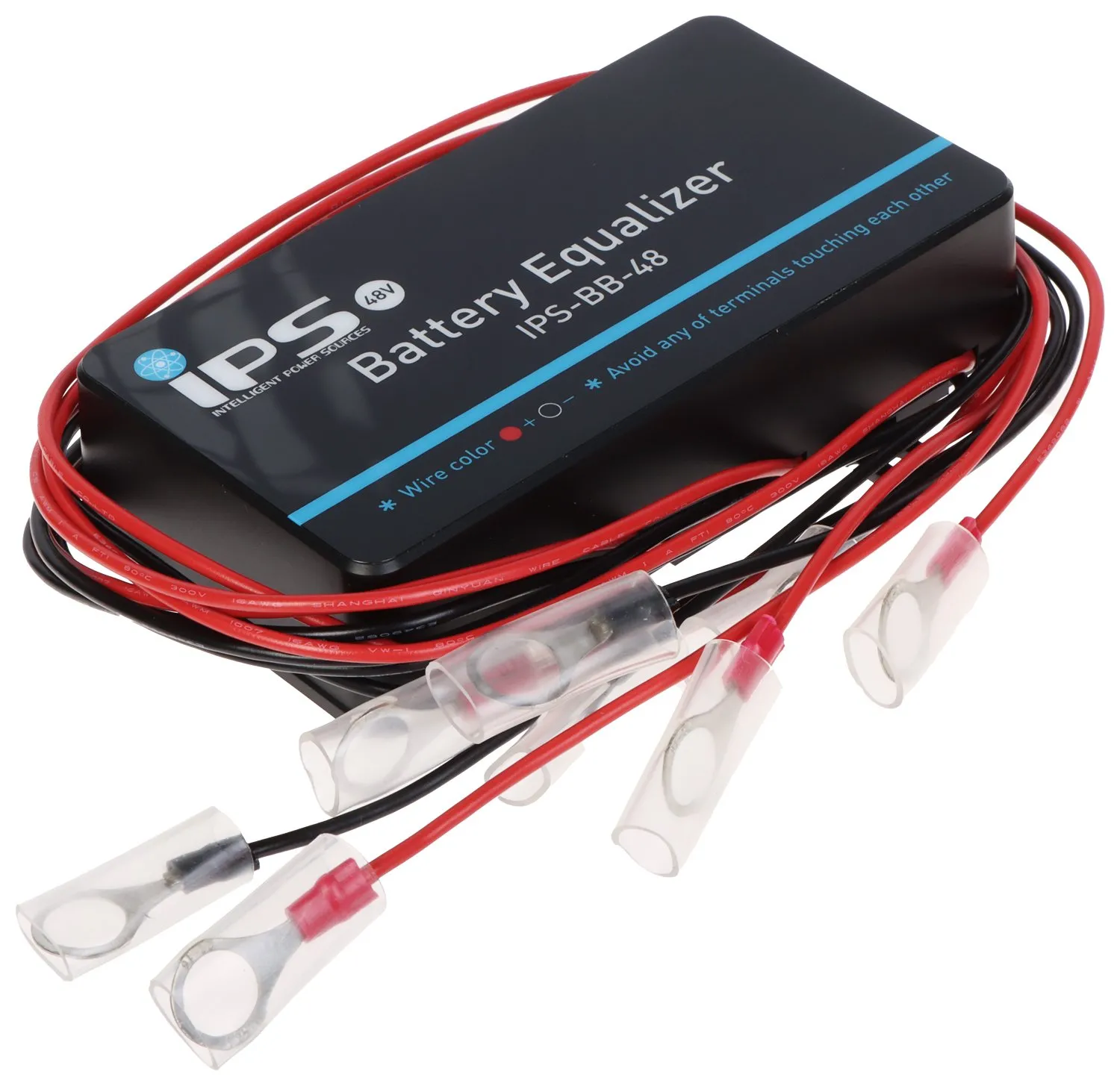

The image shows a battery equalizer designed for balancing the voltage of batteries, featuring a sleek black casing with the IPS logo. It includes multiple red and black wires with ring terminals for easy connection.
The image shows a black IPS Battery Equalizer designed for 48V systems, featuring a sleek rectangular shape with mounting tabs on top. It has multiple red and black wires extending from the bottom, with clear labeling for wire color and safety instructions.
Diagram illustrating the installation of an IPS Battery Equalizer, showing two configurations labeled A and B. The image highlights wiring connections to multiple batteries, emphasizing proper setup to avoid terminals touching each other.

  • Manufacturer

  • Product Code

    IPS-BB-48

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

98,88 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

IPS-BB-48 is a voltage equalizer for AGM, GEL, VRLA, NiCd, NiMH, LiFePO batteries of 2.4V / 3.6V / 9V / 12V, which are connected in series or parallel. Equalizing the voltage on the batteries during operation prolongs their life The balancer starts equalizing the voltage as early as 10mV difference

Operating voltage:
  • 48 V DC ( 4 x 12 V DC )
  • 4 x 2.4 V / 3.6 V / 9 V / 12 V DC
Trigger threshold:10mV
Rated current:0 ... 10 A
Current consumption:< 5 mA @ 12 V
< 1.2 mA @ 2.4 V
Battery type:AGM, GEL, VRLA, NiCd, NiMH, LiFePO4
Nominal operating system:48 V DC
Secondary operating system:4 x 2.4 V / 3.6 V / 9 V / 12 V DC
Operating status indication:No
Battery charge level:No
Protections:
  • Reverse polarity protection.
  • Deep discharge battery protection : 1.8V
Selected features:
  • Equalization of battery voltage during operation (e.g. in campers, yachts, photovoltaics)
  • Extend the life of the battery
  • Works with both series or parallel connection of batteries
Wire description:
  • 4 x Red : positive terminal
  • 4 x Black : negative terminal
  • Cable length : 40 cm
  • Connectors : M10
Weight:0.448 kg
Dimensions:129 x 69 x 28 mm
Manufacturer / Brand:IPS
