MEAN WELL LRS-100-24 SWITCHING POWER SUPPLY

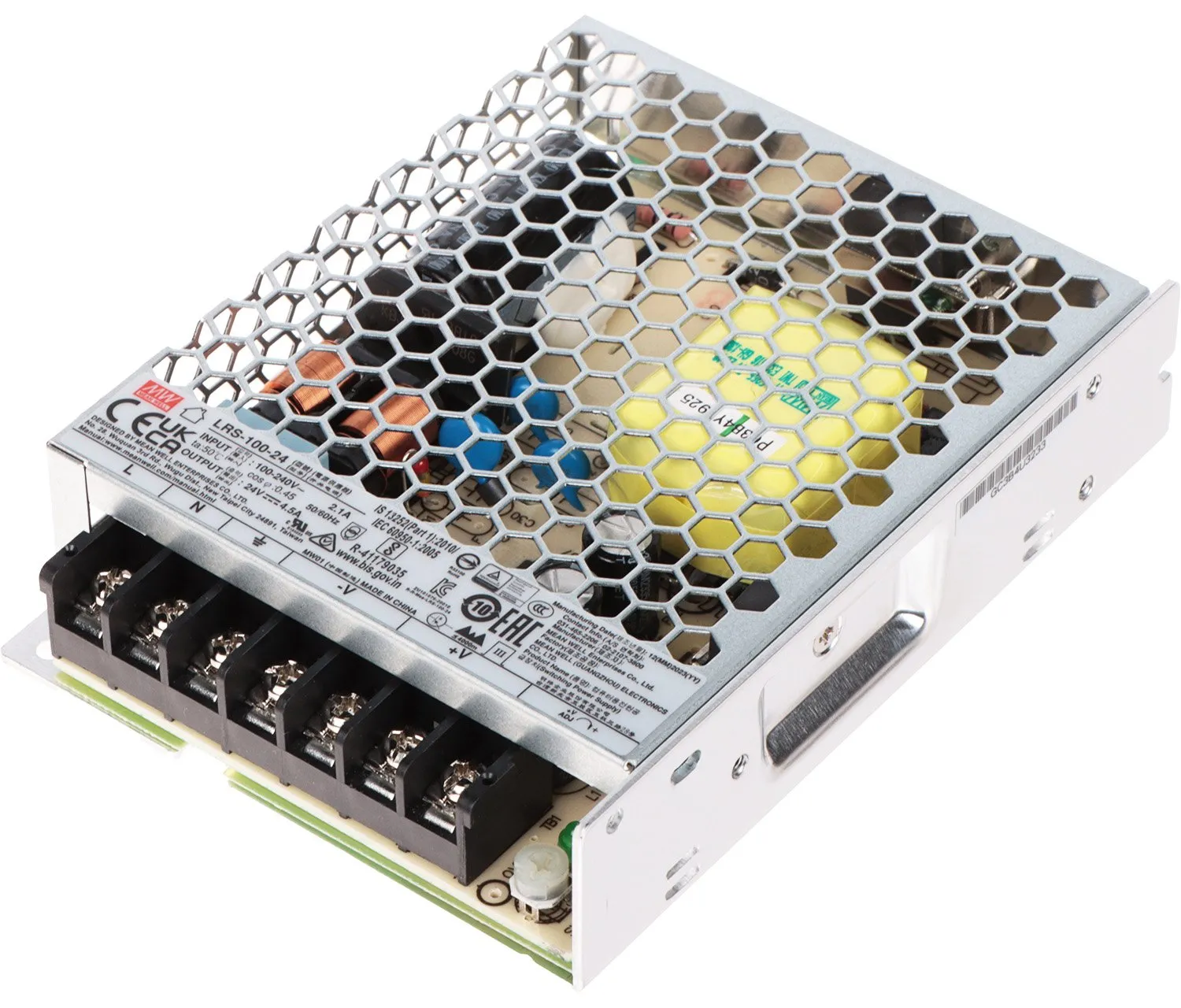

The image shows a compact, metal-cased switching power supply with a honeycomb ventilation design. It features multiple connection terminals and is labeled with technical specifications and safety certifications.
The image shows a compact, open-frame power supply unit with a metal mesh cover, exposing internal components like capacitors and coils. It features multiple connection terminals and detailed labeling for input and output specifications.

  • Manufacturer

    MEAN WELL

  • Product Code

    LRS-100-24

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

21,24 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Single-input switching power supply with small size. Note: If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current. Note: The -V terminals are physically shorted to each other, as are the +V terminals

Type of power supply:Pulsed
Power supply voltage:85 ... 264 V AC
Operating frequency:47 ... 63 Hz
Output voltage:24 V DC
Output voltage adjustment:21.6 ... 28.8 V
Current capacity of the power supply:4.5 A
Power supply output:108 W
Number of outputs:1 pcs.
Protections:
  • Short circuit
  • Overload
  • Surge protection
Operating temperature / relative humidity:-30 °C ... 70 °C / 20 % ... 90 %
Weight:0.31 kg
Dimensions:129 x 97 x 30 mm
Manufacturer/Brand:MEAN WELL
