SWITCHING POWER SUPPLY LRS-150-12 MEAN WELL

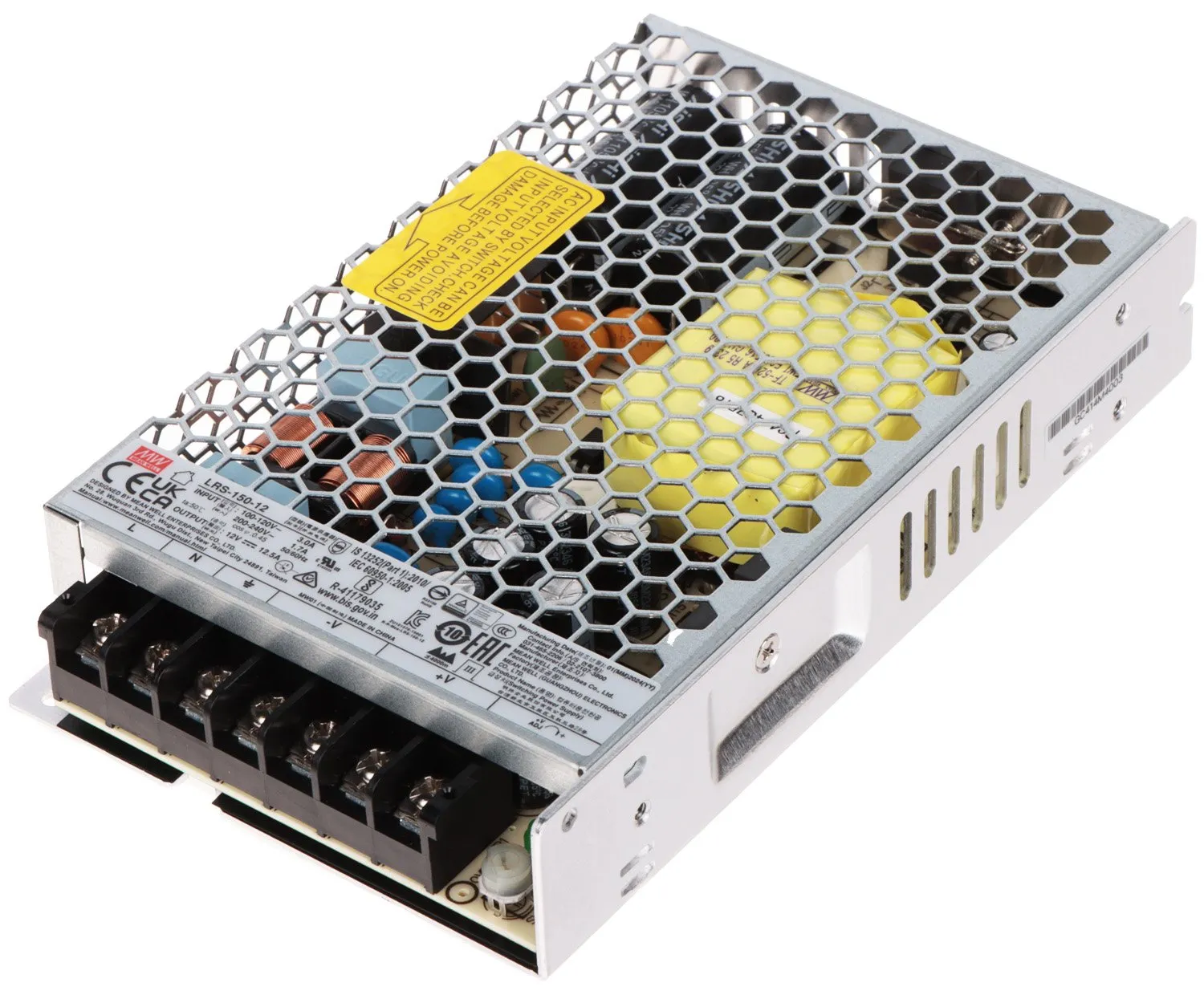

The image shows a compact, metal-cased switching power supply with a honeycomb ventilation design, ensuring efficient heat dissipation. It features multiple connection terminals and safety certifications, suitable for various electronic applications.

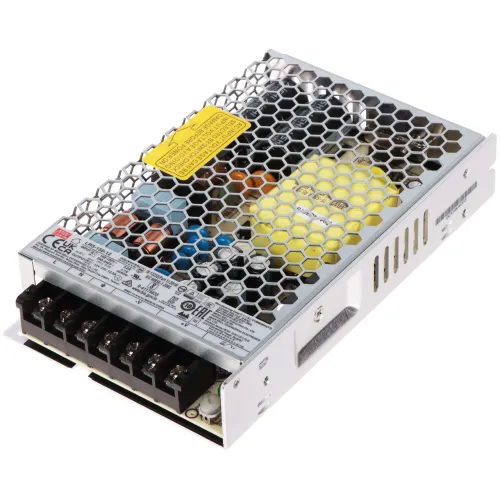

The image shows a metal-cased power supply unit with a honeycomb ventilation design, featuring multiple connection terminals and detailed specifications on the label. The unit is designed for converting AC input to DC output, suitable for various electronic applications.

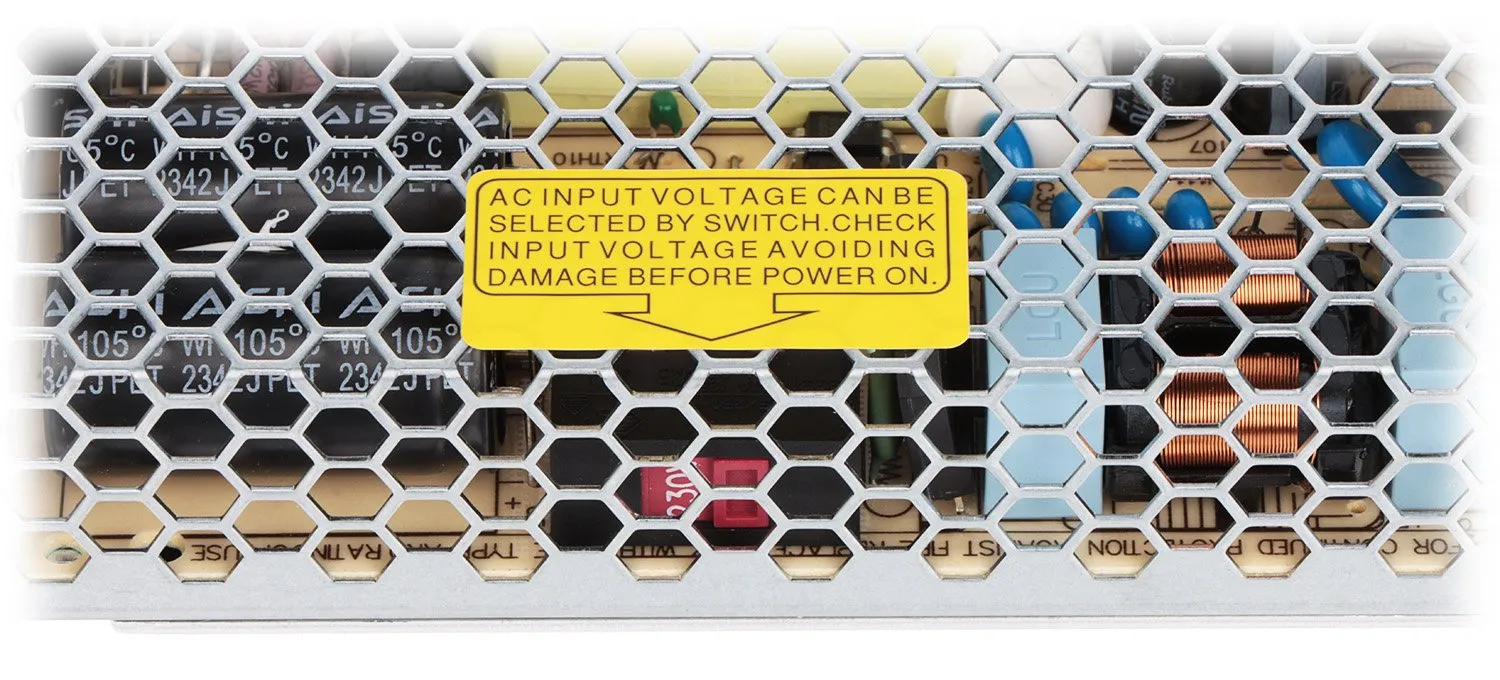

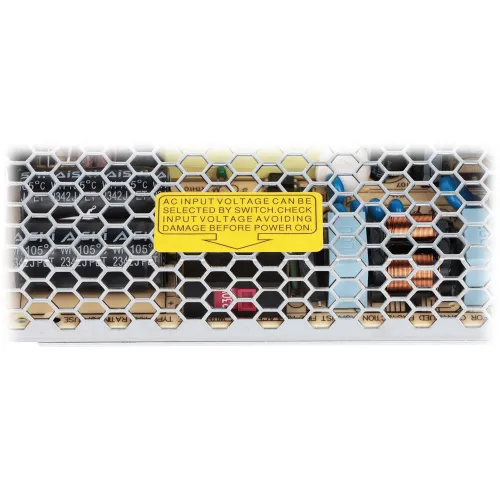

The image shows a power supply unit with a honeycomb grille, revealing internal components like capacitors and coils. A yellow label on the grille advises checking and selecting the correct AC input voltage to prevent damage.

Manufacturer
MEAN WELL
Product Code

LRS-150-12

see description

Ask about this product show form

Availability: in stock Shipping 24/48h

Price (Incl. VAT):

26,88 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Product Description

Single-input switching power supply with small size. Note: If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current. Note: The -V terminals are physically shorted to each other, as are the +V terminals

Type of power supply:	Pulsed
Power supply voltage:	Selectable by switch 85 V ... 132 V AC 170 V ... 264 V AC
Operating frequency:	47 ... 63 Hz
Output voltage:	12 V DC
Output voltage adjustment:	10.2 ... 13.8 V
Current capacity of the power supply:	12.5 A
Power supply output:	150 W
Number of outputs:	1 pcs.
Protections:	Short circuit Overload Surge protection
Operating temperature / relative humidity:	-30 °C ... 70 °C / 20 % ... 90 %
Weight:	0.41 kg
Dimensions:	159 x 97 x 30 mm
Manufacturer/Brand:	MEAN WELL

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
