MOBILE RECORDER AHD, PAL, IP PROTECT-207 4 CHANNELS

The image shows a compact, black mobile AHD PAL IP recorder with a durable, vented casing for efficient heat dissipation. It features multiple ports, including USB and lock mechanisms, designed for secure and versatile connectivity in surveillance systems.

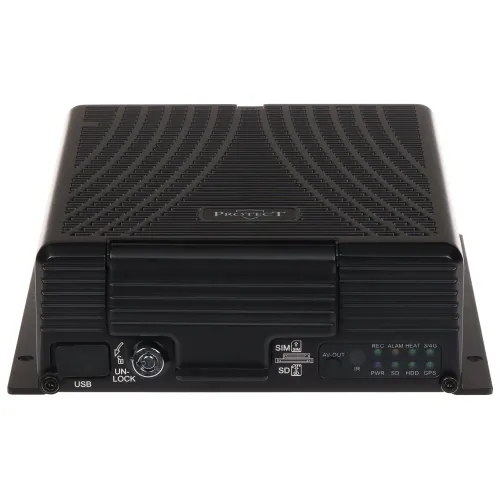

The image shows a black electronic device with a textured surface, featuring a USB port, SIM and SD card slots, and various indicator lights on the front panel. The device is designed for secure data management and connectivity, suitable for professional use.
The image shows a black electronic device with a vented design and an open front cover, revealing internal components. A detached panel is placed in front, highlighting the device's modular and accessible structure.
The image shows the rear view of a black electronic device featuring multiple connectivity ports, including VGA, USB 2.0, RJ45, and various camera inputs. The device also has labeled WiFi, power, and AV-out connections, designed for versatile multimedia and network integration.

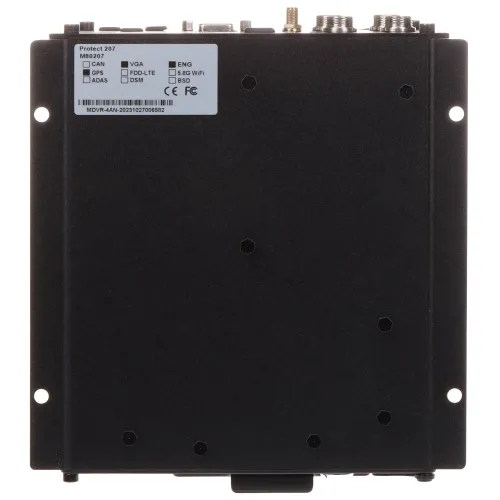

The image shows a black electronic device with multiple ports and connectors on the top edge, designed for various connectivity options such as GPS, VGA, and FDD-LTE. The front panel features a label with technical specifications and compliance information.
A comprehensive car audio and video installation kit featuring various cables, connectors, and a remote control. The set includes a mounting bracket, a key, and essential tools for easy setup.

  • Product Code

    PROTECT-207

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

465,62 €

Add to Watchlist

Najniższy koszt dostawy: 21,24 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

PROTECT-207 is a mobile recorder designed for use in coaches, city buses, busses, streetcars, subways, company and passenger vehicles, as well as special vehicles, i.e. trucks, police cars, prison or military vehicles, ambulances The device has been specially designed to exhibit increased vibration and shock resistance The recorder supports a 2.5" drive with a capacity of up to 2 TB. PROTECT-207's power cords are connected to the battery and ignition (analogous to a radio) so that when the ignition is turned, the device automatically starts recording audio-video Additionally, the device has a power backup and continues recording for 8 seconds after a power outage. PROTECT-207 has 4 video inputs equipped with standard M12 connectors

Standard:AHD, CVBS, TCP/IP
Video inputs:4 pcs. BNC
Video outputs:1 pcs. VGA
1 pcs. CINCH
1 pcs. M12, 4-pin socket
Audio inputs:4 pcs. CINCH
Audio outputs:1 pcs. CINCH
Video recording resolutions:1920 x 1080, 1280 x 720, 960 x 576, 720 x 576, 704 x 576 px
Total max. recording speed:
  • 100 fps @ 4 x AHD 1080p,
  • 100 fps @ 4 x CVBS 960H,
  • 25 fps @ 1 x IP 1080p
Supported hard drives:1 x 2 TB HDD / SSD 2.5 "
Memory occupancy for video recording:0.4 GB/h @ 1920 x 1080 px H.265 15 fps
Video compression method:H.265 / H.264
GPS:Yes
G-Sensor:3-axis
Gyroscope:3-axis
RS-485:No
RS-232:No
Alarm inputs / outputs:8 / 1
SIM slot:No
MicroSD slot:Yes
USB port:1 x USB 3.0
Ethernet Port:1 x RJ-45 Passive PoE
Wi-Fi module:No
Selected features:
  • 12V DC/3A power supply for cameras directly from DVR : 4 x DC 2.1/5.5mm socket + 1 x Passive PoE
  • Automatic recording when turned on
  • Power support - Continues recording after a short power outage (up to 8 seconds)
  • Recording of alarm and service events
  • Reading out the memory of alarms and failures
  • Recording of the traveled route of the vehicle with the help of a GPS receiver
  • GPS, G-Sensor and gyroscope sensors allow detection of events such as collision, harsh braking, acceleration or cornering too fast
  • Integration with sensors in the vehicle
  • Archiving to a USB drive (flash drive, external drive)
  • Archiving to micro SD memory card
  • Default administrator password: 888888
  • Remote control
  • Compliant with MIL-STD-810G standard
  • Automatic heating of the hard drive slot allows recording to start at temperatures from -40°C
  • Mirror - Mirroring of the image
Power supply:8 V ... 36 V DC
Power consumption:< 0.5 W (standby mode)
< 36 W (operation)
Operating temperature:-40 °C ... 80 °C
Permissible relative humidity:20 % ... 95 % RH
Weight:1.71 kg
Dimensions:
  • 210 x 184 x 61 mm
  • 248 x 184 x 61 mm + additional cable housing
Supported languages:English
