EXTERNAL CAMERA DISTRIBUTION POINT EXPERT-POE/OTD-8G2GSFP 8 PoE + 2 x SFP

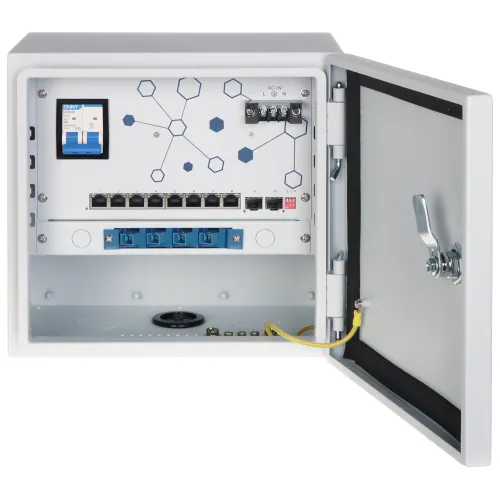

Outdoor camera distribution point with multiple Ethernet ports and SFP slots, housed in a secure, weather-resistant enclosure. The unit features a lockable door and organized internal layout for efficient cable management.

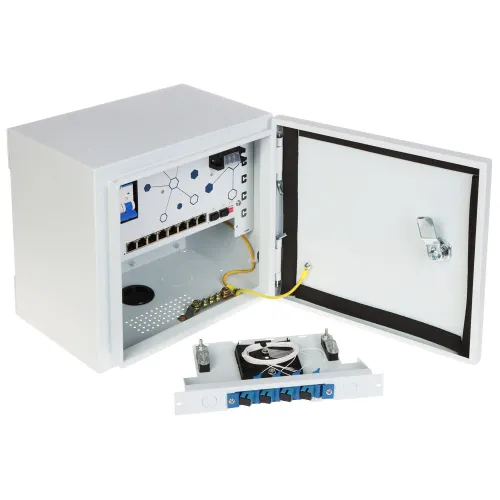

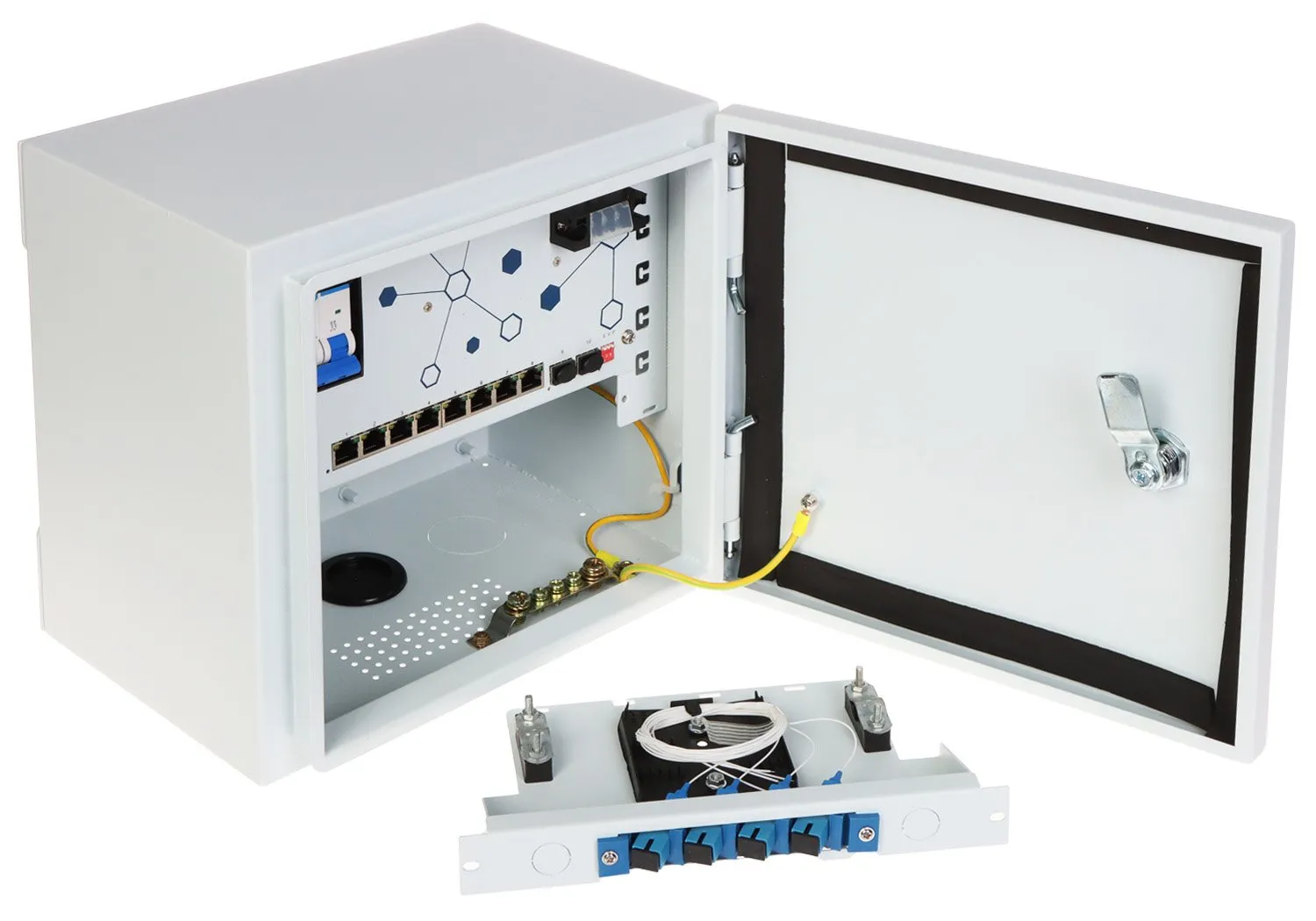

The image shows a white metal enclosure with an open door, revealing a network panel with multiple ports and a circuit diagram on the inside. Below the enclosure, there is a removable panel with fiber optic connectors and cables.

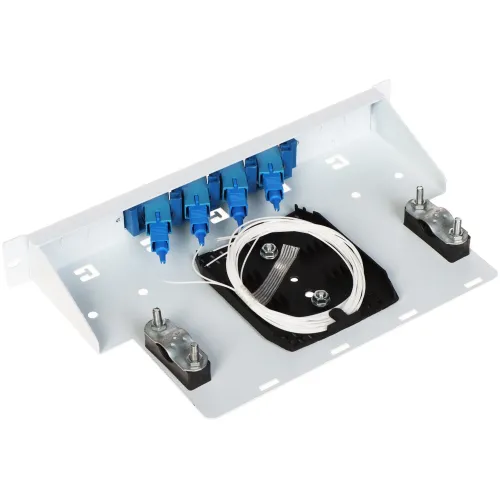

The image shows a fiber optic patch panel with four blue LC connectors and a neatly coiled white fiber optic cable. The panel is mounted on a white metal base with adjustable brackets for secure installation.

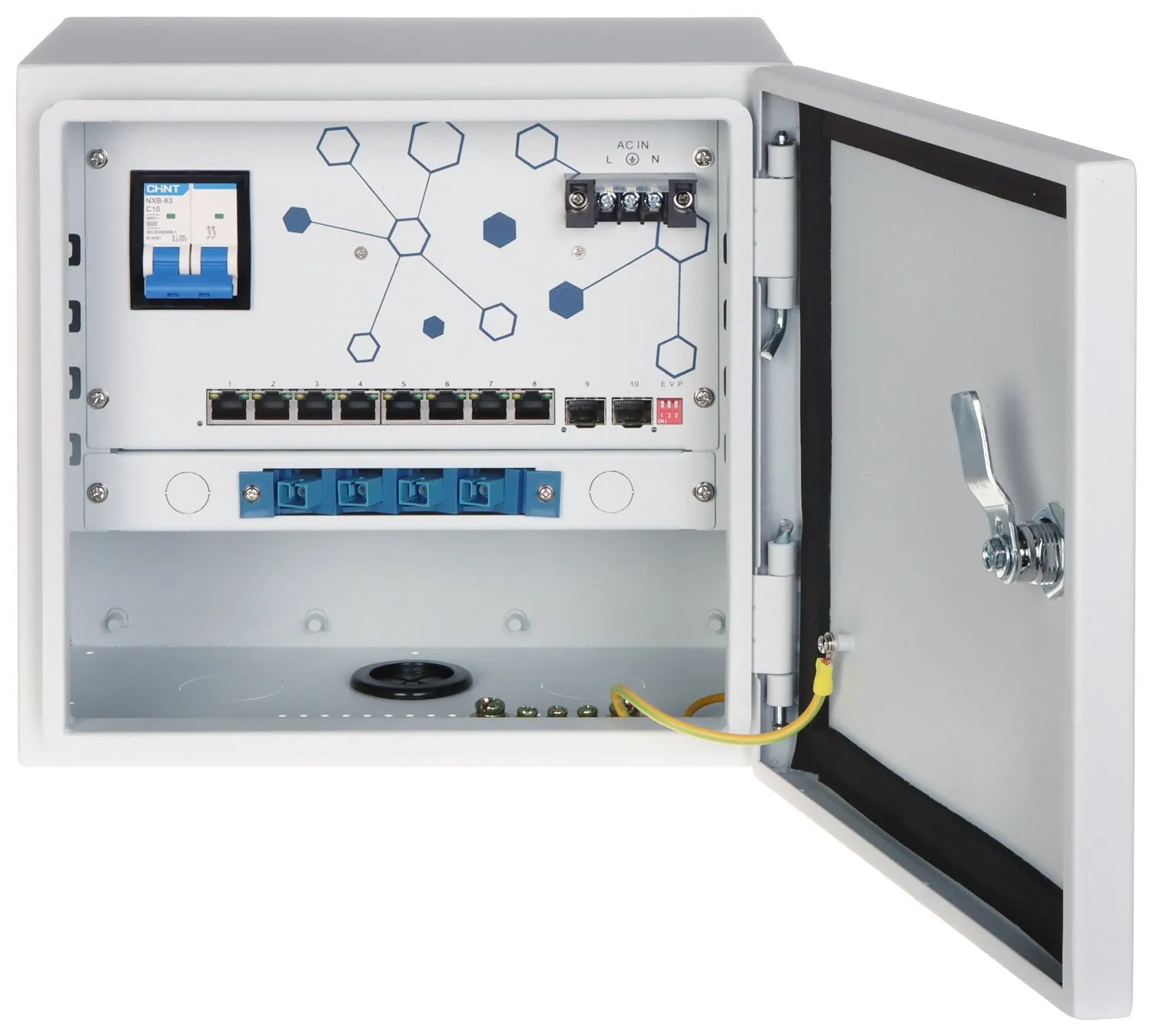

The image shows an open electrical enclosure featuring a circuit breaker, multiple Ethernet ports, and fiber optic connections. The interior design includes a network pattern graphic and labeled AC input terminals.
The image shows an open metal cabinet housing a network switch with multiple Ethernet ports and fiber optic connections. Inside, there is a grounding bar with yellow cables attached, ensuring secure and organized cable management.

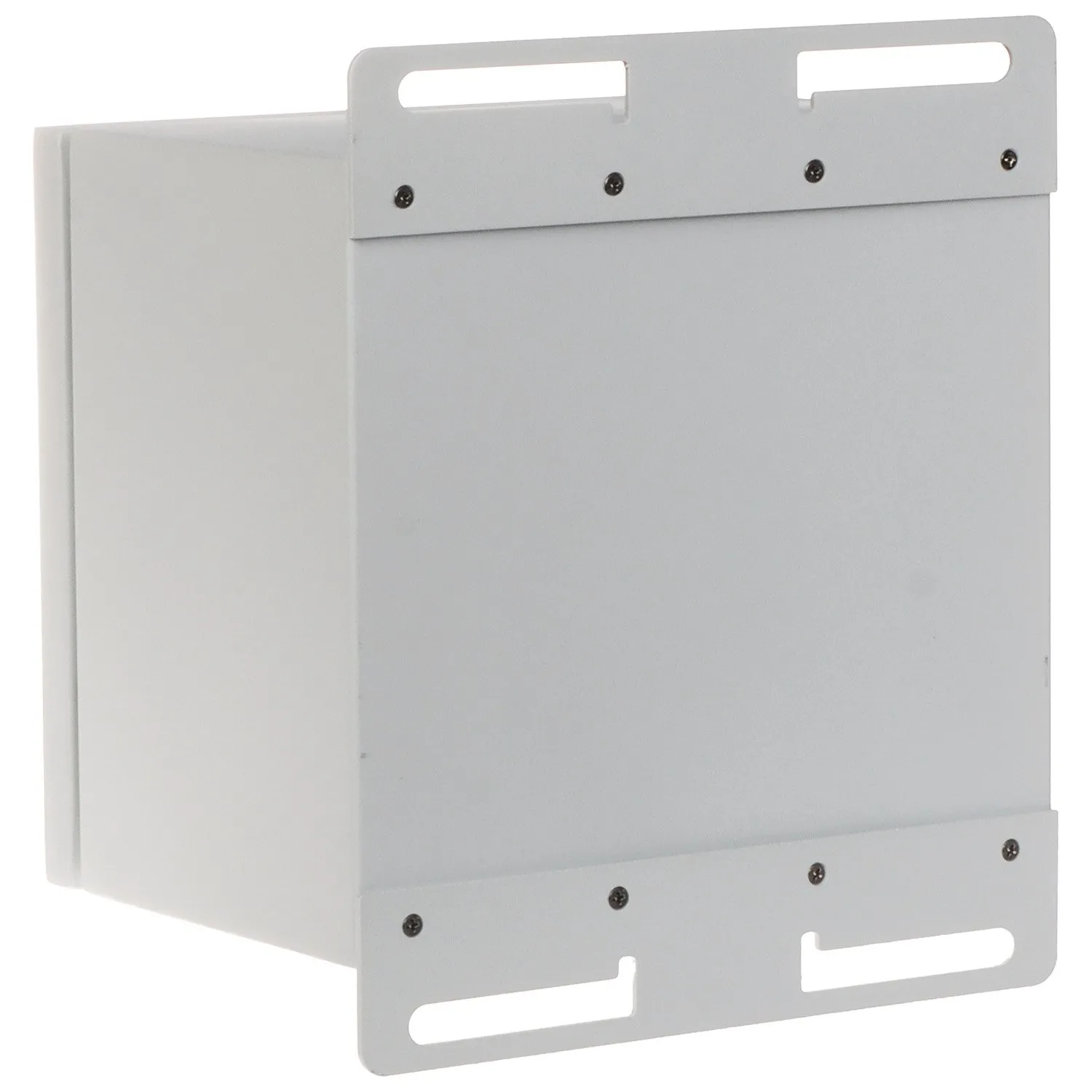

A white, rectangular metal enclosure with mounting brackets on the top and bottom edges is shown. The design features multiple screw holes for secure attachment to various surfaces.
An outdoor electrical enclosure is mounted on a pole, featuring a hinged door and multiple connection points inside. The box is designed for secure housing of electrical components, suitable for various environmental conditions.
The image shows a set of metal hose clamps, two black rubber caps, a metal key, and five small screws. These components are likely used for securing and sealing connections in plumbing or mechanical applications.

  • Product Code

    EXPERT-POE/OTD-8G2GSFP

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

487,33 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The EXPERT-POE/OTD-8G2GSFP set consists of an 8-port PoE switch, additionally equipped with 2 SFP Uplink ports, integrated with a fiber switch, fuse and lightning arrester, enclosed in an IP55 rated outdoor enclosure

PoE switch:
LAN ports:
  • 8 x RJ45 10/100/1000 Base-T ( 8 x PoE (802.3af/at) ),
  • 2 x SFP (Uplink) 1000 Base-X
Management:No
LEDs:Power, Link/Act, PoE
Transmission Speed:
  • 10 / 100 / 1000 Mbps : 8 LAN & PoE Ports,
  • 1000 Mbps : 2 SFP ports (Uplink)
Maximum output power:30 W @ PoE (802.3af/at) - Ports 1 ... 8
Maximum total power:115 W
MAC address table:16k
Operating modes:
  • E - EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250m
  • V - VLAN mode, ports 1 ... 8 are isolated from each other and work separately with ports 9, 10
  • P - PoE Auto-check mode - monitors ports that power PoE devices and automatically restarts by cutting off power when an unresponsive device is detected
Fiber optic switch:
Number of line cables:2
Number of splice trays:1
Weld space:8
Connector type:SC / PC
Number of adapters:4
Number of pigtails:4
Housing:
Material of construction:Metal
Color:Gray
Leakage class:IP55
Cable grommets:3 pcs. from the bottom Ø 39 mm
Selected features:
  • The door is lockable
  • Built-in fan
Maximum pole diameter:350 mm
External dimensions:280 x 260 x 210
General data:
Certifications:CE, RoHS
Protections:
  • Electrostatic Discharge Protection - Contact/Air (ESD/EMP) : 6 / 8 kV
  • Overcurrent circuit breaker : C10, protected L+N lines
  • Lightning protection :
    • Maximum voltage : 385 V AC
    • Nominal discharge current : 20 kA (8/20µs)
    • Maximum discharge current : 40 kA (8/20µs)
Power supply:100 ... 240 V AC, 50 / 60 Hz - Screw terminals
Operating temperature:-20 °C ... 65 °C
Weight:5.65 kg
Dimensions:280 x 260 x 205 mm

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
