MULTIFUNCTIONAL CCTV TESTER CS-H9F-80C

The image shows a multifunctional CCTV tester with a touchscreen interface, featuring various diagnostic tools and applications. It has an orange and black design with a protective cover and a stylus for precise operation.

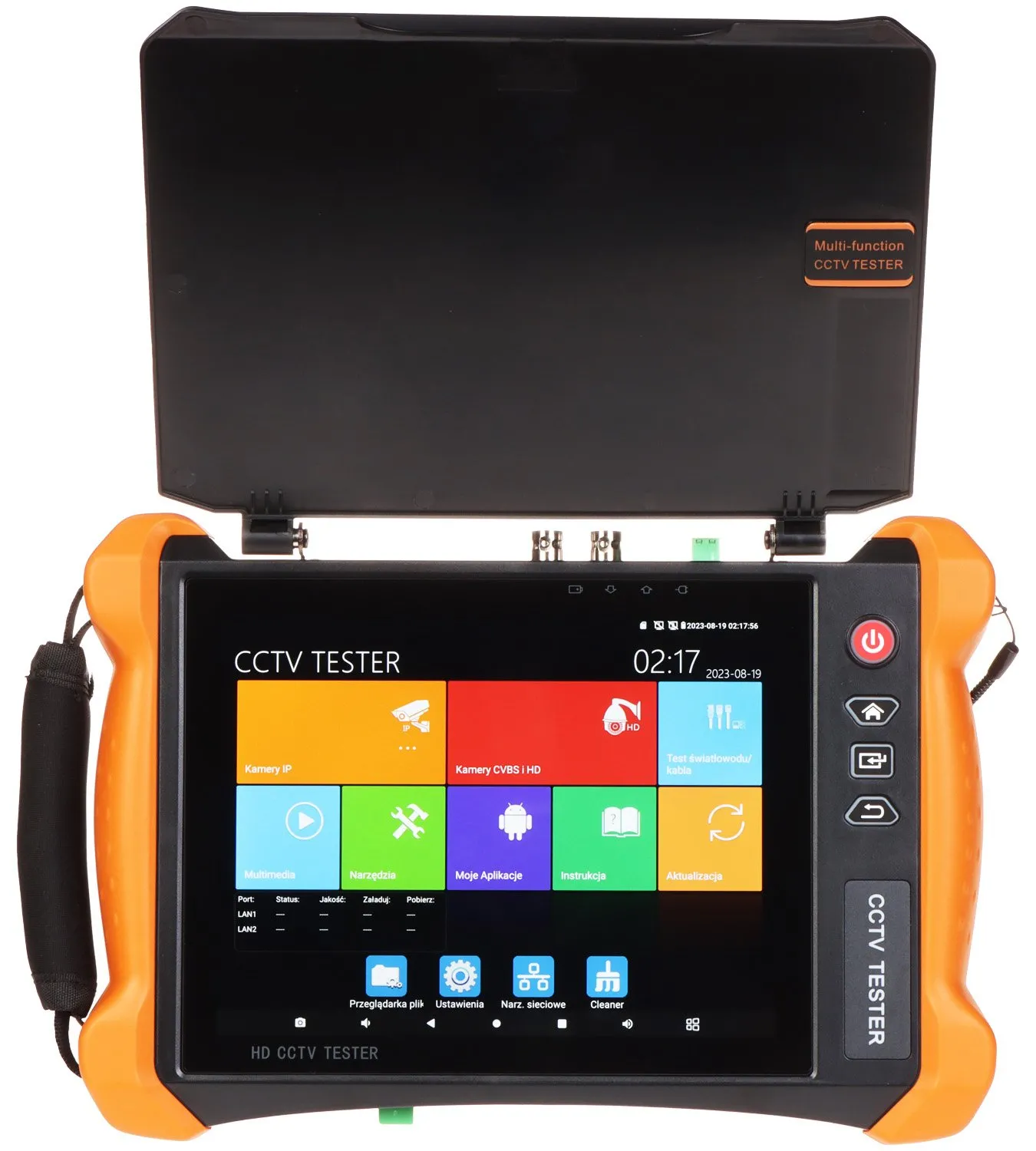

The image shows a multi-function CCTV tester with a large touchscreen display, featuring various menu options for camera testing and network tools. The device has a rugged design with orange protective corners and a black handle for easy portability.

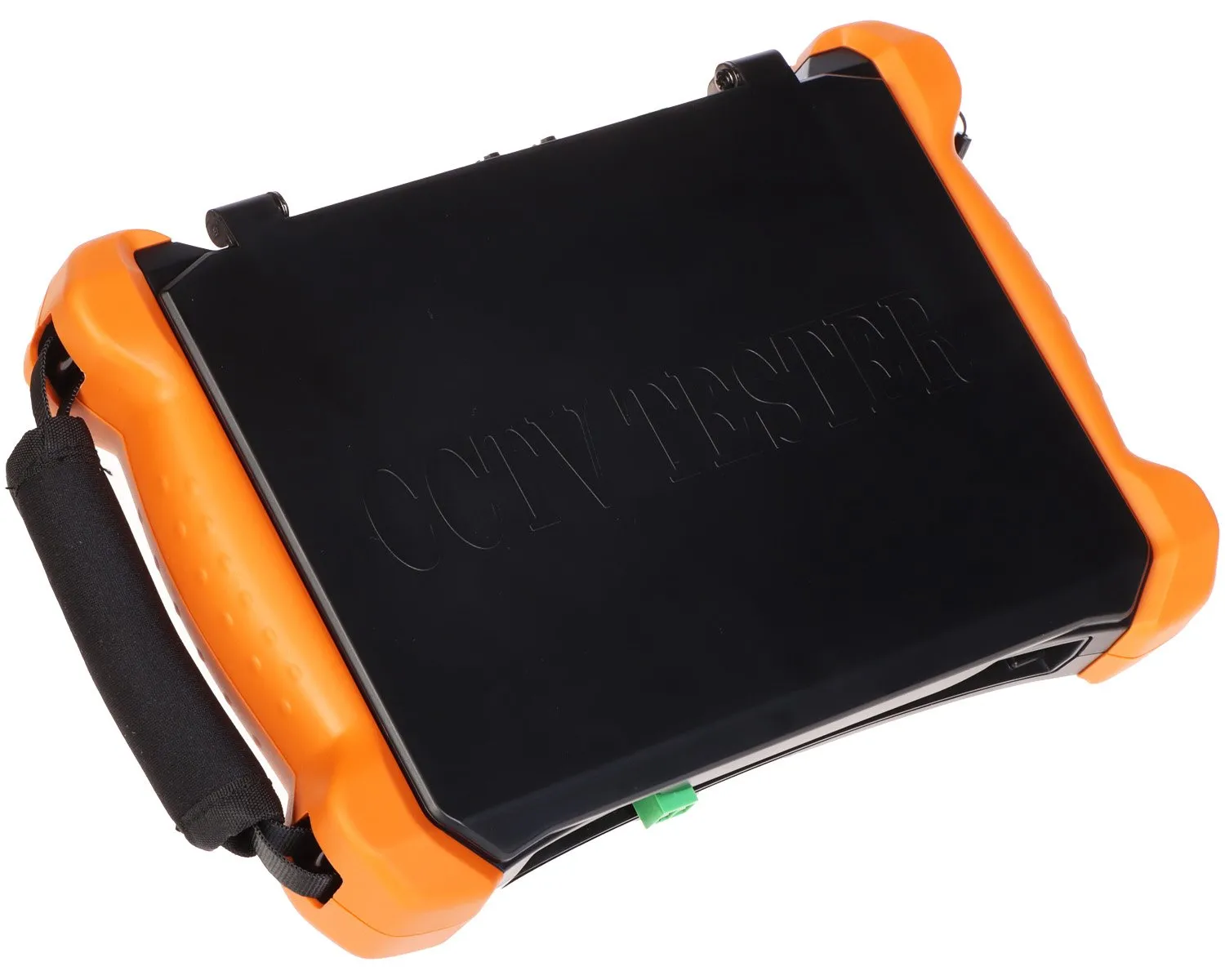

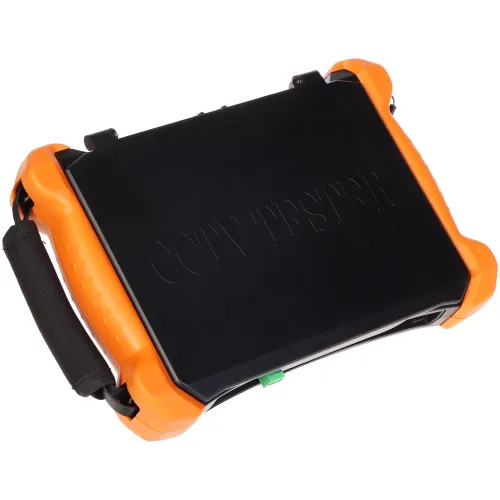

The image shows a portable CCTV tester with a rugged design, featuring a black screen and an orange protective casing. It includes a handle for easy carrying and a tiltable screen cover for added protection.
The image shows a rugged, orange and black handheld device with multiple connectivity ports, including HDMI, LAN, and RS-485. It features a sturdy design with a strap and a stylus attached for easy handling and operation.
The image shows an HD CCTV tester with a large screen and multiple input/output ports, including HDMI and Ethernet. It features an orange protective casing and a foldable cover for screen protection.
The image shows the back view of a rugged, portable electronic device with an orange protective casing and a built-in stand. It features various ports and connectors, including BNC and Ethernet, designed for professional use in testing and diagnostics.

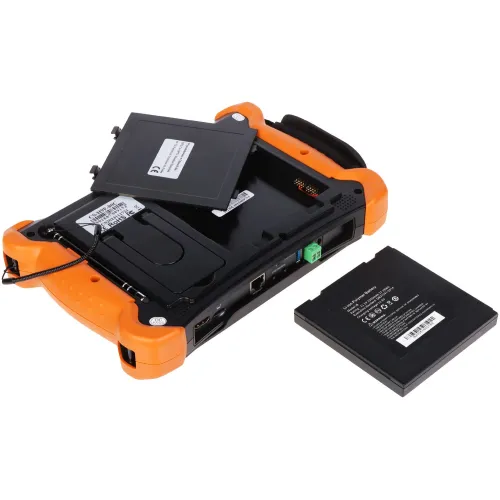

The image shows a portable electronic device with an open battery compartment, featuring an orange protective casing and various connectivity ports. A separate rechargeable battery is placed next to the device, ready for installation.

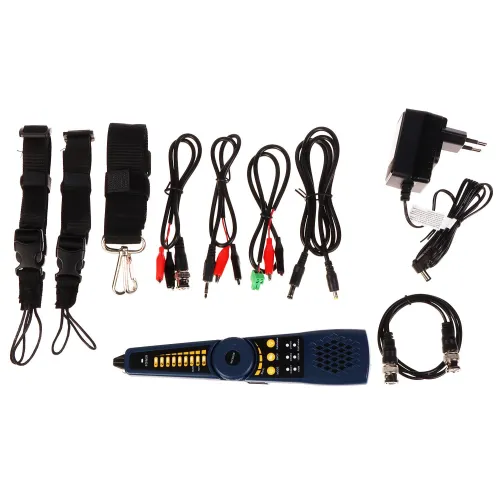

The image shows a comprehensive cable testing kit, including a tone generator and probe, various connector cables, and a power adapter. The kit also features adjustable straps and additional accessories for versatile connectivity and testing applications.
The image shows the interface of a CCTV tester with a colorful grid layout, featuring options such as IP cameras, CVBS & HD cameras, multimedia, tools, and network settings. The screen displays the current time and date at the top, with various icons for settings and applications at the bottom.
The image shows a settings menu on a digital device screen, displaying language options such as English, Polish, and Italian. The interface is sleek and modern, with a black background and white text for easy readability.
A compact, black carrying case with orange accents designed for organizing and transporting electronic accessories. The case features multiple compartments and a sturdy handle for easy portability.

  • Product Code

    CS-H9F-80C

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

1 067,87 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Multifunctional tester for AHD, HD-CVI, HD-TVI, IP, analog cameras, Speed Dome (PTZ) cameras, equipped with many additional functions, necessary when starting CCTV installations

Video standard:
  • AHD - 8 Mpx,
  • HD-CVI - 8 Mpx,
  • HD-TVI - 8 Mpx,
  • TCP/IP - 8K,
  • CVBS - PAL / NTSC
Display:8 " Retina - capacitive touchscreen, 2048 x 1536 px
Video input:
  • 1 pcs. AHD / HD-CVI / HD-TVI / CVBS - BNC socket
  • 1 pcs. HDMI
Video output:
  • 1 pcs. CVBS - BNC socket
  • 1 pcs. HDMI
LAN port:2 pcs. - Cooperation with PoE cameras and switches
Audio input:1 pcs. Mini Jack
Audio output:1 pcs. Mini Jack
Video signal level meter:AHD, HD-CVI, HD-TVI, CVBS: Peak level, Sync level, Burst
Video signal generator:
  • Control signal generator
  • Generation of eight color bars in PAL / NTSC standards
  • Blue or black screen generation possible
Serial ports:RS-485
Protocols:Supports more than 30 RS485 protocols : Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC
Transmission speed:150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
Twisted-pair or telephone line test:Test connection of UTP or telephone cables, terminated with RJ-45 plug.
RS-485, RS-232 line test:Testing data from a control device (commands are displayed hexadecimally)
Wi-Fi module:Yes
Identification of the cable in the bundle:Yes
Audio test:Yes
Digital Multimeter:No
Optical power measurement:No
VLS (VFL) visual fiber fault locator:No
TDR reflectometer:No
Operation as power source:
  • 5 V DC / 2 A from USB port
  • 12 V DC / 3 A
  • 24 V DC / 2 A
  • 48 V (PoE, LAN), 90 W (max)
Battery power supply:
  • Li-Ion battery : 11.1 V, 3350 mAh, 37.19 Wh
  • 15 V DC / 2.4 A (power adapter included)
Estimated battery operating time:10 hours (max)
Operation:Graphical menu - touch and button control
Selected functions:
  • Test of AHD cameras
  • Test of HD-CVI cameras
  • Test of HD-TVI cameras
  • Test of PAL/NTSC cameras
  • Test of IP cameras - Supported image compression methods : H.265, H.264, MJPEG
  • Search and preview of Onvif-compliant IP cameras
  • Control of PTZ and PTZ (speed dome) cameras
  • Preview from IP cameras using built-in applications - gDMSS HD Lite, gDMSS Lite, Safire Connect, Network State, XMEye, CloudSEE Tiandy tool, Fseye, EZView, FreeIP PRO, iVMS-4500 HD Safire EasyView, MEye
  • Built-in web browser - Google Chrome
  • Control signal generator
  • LAN connection monitoring
  • IP address scanner
  • PING - link testing using ICMP packets
  • Detection of connected port in switch
  • Twisted-pair cable tester
  • Cooperation with PoE cameras and switches
  • PoE power meter
  • DC 5V / 12V / 48V power source
  • Identification of the cable in the bundle
  • Data monitor - RS-485 serial port monitor
  • Cable tracer application - easy location of a cable in an unstructured bundle
  • Audio test
  • Hotspot - Wi-Fi
  • Video recording to micro SD card with playback - 8 GB included
  • Playback of recordings
  • Installed VLC Media Player application - ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg and others)
  • Calculator
  • Installed Quickoffice package - creating and reading .docx text documents, .xlsx spreadsheets and .pptx multimedia presentations
  • Built-in flashlight
  • Android 11
  • Backlit buttons
Operating temperature:-10 °C ... 50 °C
Permissible relative humidity:30 % ... 90 %
Weight:1.16 kg
Dimensions:263 x 182 x 42 mm
Supported languages:Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian.
